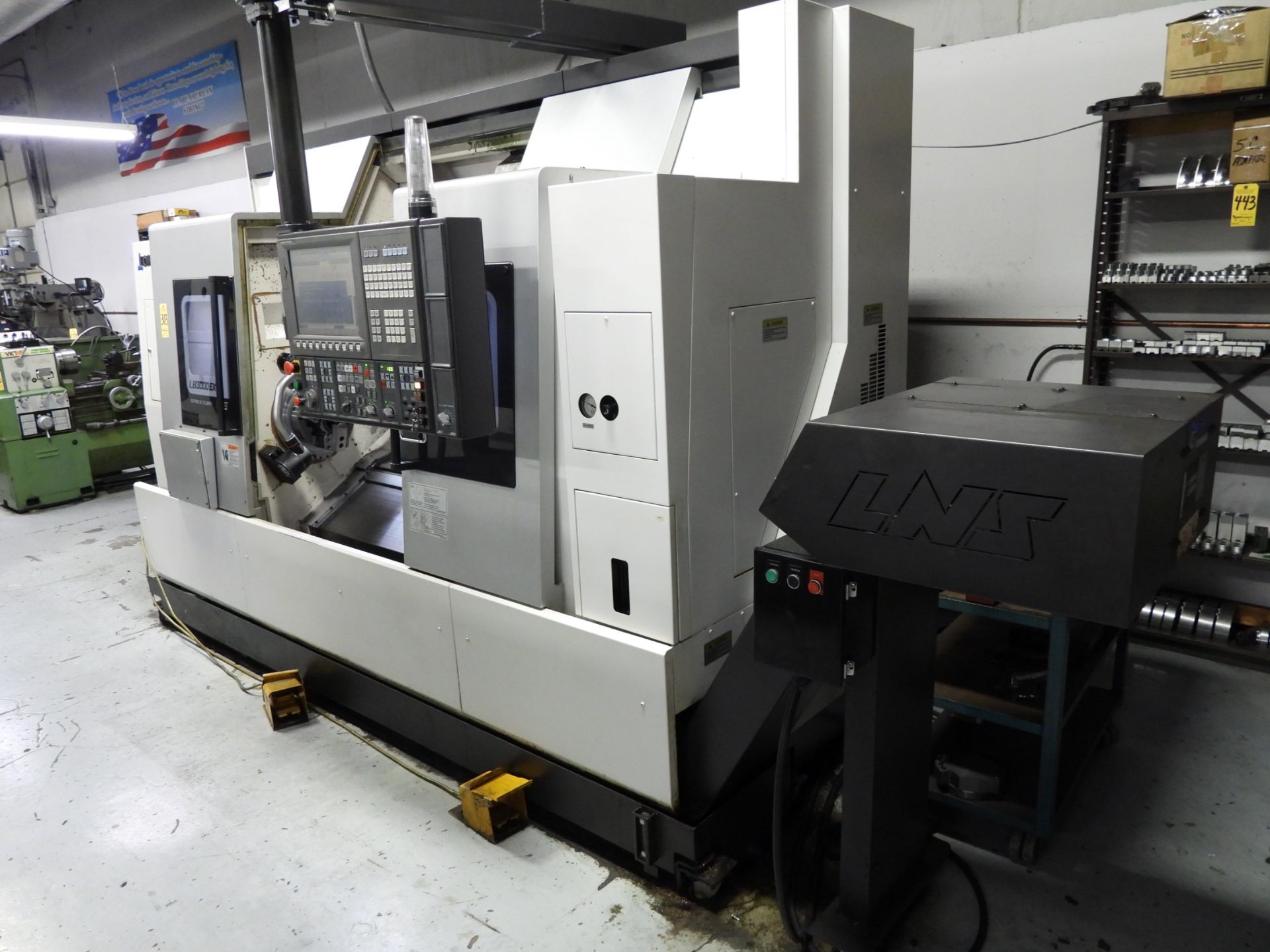

Okuma LB3000-EXII-MYW-800 CNC Turning Center – 2014

SKU 11011
Make/Model Okuma LB3000-EXII-MYW-800
Year 2014
Condition Used - Good
Video On Request
Out of stock
SKU: 11011
Make/Model: Okuma LB3000-EXII-MYW-800
Year: 2014
Condition: Used – Good
Video: On Request
SKU: 11011

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

Make: Okuma
Model: LB3000-EXII-MYW-800
Condition: Used
Equipped With:
OSP P300L THiNC CNC Control
15″ Color LCD Display
MY Milling Function
Y-Axis
Sub-Spindle (W-Axis)
12-Station Turret
C-Axis Main & Sub Spindles
Live Tooling
Thermo Friendly Concept
Liquid-Cooled Headstocks
Tool Touch Setter
High-Output Flood Coolant System
Multi-Tap Transformer
Capacity:
Swing Over Bed: 22.83″
Swing Over Saddle: 18.50″
Max Turning Diameter: 13.39″
Max Turning Length (Between Spindles): 32.18″
Distance Between Centers (No Chuck): 42.72″
Travels:
X-Axis Travel: 10.24″
Y-Axis Travel: 4.72″ (+2.76″ / −1.97″)
Z-Axis Travel: 39.76″
W-Axis Travel (Sub-Spindle): 35.24″
Feedrates:
Rapid Traverse X-Axis: 984 IPM
Rapid Traverse Y-Axis: 492 IPM
Rapid Traverse Z-Axis: 1,181 IPM
Main Spindle:
Spindle Nose: A2-6
Spindle Speed Range: 45 – 5,000 RPM
Spindle Motor: 30 HP (15 min) / 20 HP (Continuous)
Max Torque: 258 ft-lbs
Spindle Bore: 3.15″
Sub-Spindle:
Spindle Nose: 140 mm Flat Nose
Spindle Speed Range: 45 – 6,000 RPM
Spindle Motor: 15 HP (20 min) / 10 HP (Continuous)
Spindle Bore: 2.44″
Fully Programmable W-Axis
Turret & Milling:
12-Station Turret (Radial)
Milling Spindle Power: 9.6 HP / 5.5 HP
Milling Speed Range: Up to 6,000 RPM
ER32 Collet Capacity
C-Axis Control: 0.001° Indexing
Synchronized Tapping
General:
Coolant Tank Capacity: 68.7 Gallons
Floor Space (Approx.): 133″ × 80″ × 89″ High
Machine Weight (Approx.): 15,070 lbs
Power Requirement: 220V / 3-Phase
Equipped With:
OSP P300L THiNC CNC Control
381 mm Color LCD Display
MY Milling Function
Y-Axis
Sub-Spindle (W-Axis)
12-Station Turret
C-Axis Main & Sub Spindles
Live Tooling
Thermo Friendly Concept
Liquid-Cooled Headstocks
Tool Touch Setter
High-Output Flood Coolant System
Multi-Tap Transformer
Capacity:
Swing Over Bed: 580 mm
Swing Over Saddle: 470 mm
Max Turning Diameter: 340 mm
Max Turning Length (Between Spindles): 817 mm
Distance Between Centers (No Chuck): 1,085 mm
Travels:
X-Axis Travel: 260 mm
Y-Axis Travel: 120 mm (+70 mm / −50 mm)
Z-Axis Travel: 1,010 mm
W-Axis Travel (Sub-Spindle): 895 mm
Feedrates:
Rapid Traverse X-Axis: 984 IPM
Rapid Traverse Y-Axis: 492 IPM
Rapid Traverse Z-Axis: 1,181 IPM
Main Spindle:
Spindle Nose: A2-6
Spindle Speed Range: 45 – 5,000 RPM
Spindle Motor: 30 HP (15 min) / 20 HP (Continuous)
Max Torque: 258 ft-lbs
Spindle Bore: 80 mm
Sub-Spindle:
Spindle Nose: 140 mm Flat Nose
Spindle Speed Range: 45 – 6,000 RPM
Spindle Motor: 15 HP (20 min) / 10 HP (Continuous)
Spindle Bore: 62 mm
Fully Programmable W-Axis
Turret & Milling:
12-Station Turret (Radial)
Milling Spindle Power: 9.6 HP / 5.5 HP
Milling Speed Range: Up to 6,000 RPM
ER32 Collet Capacity
C-Axis Control: 0.001° Indexing
Synchronized Tapping
General:
Coolant Tank Capacity: 68.7 Gallons
Floor Space (Approx.): 3,378 mm × 2,032 mm × 2,261 mm High
Machine Weight (Approx.): 15,070 lbs
Power Requirement: 220V / 3-Phase
