*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112424 |

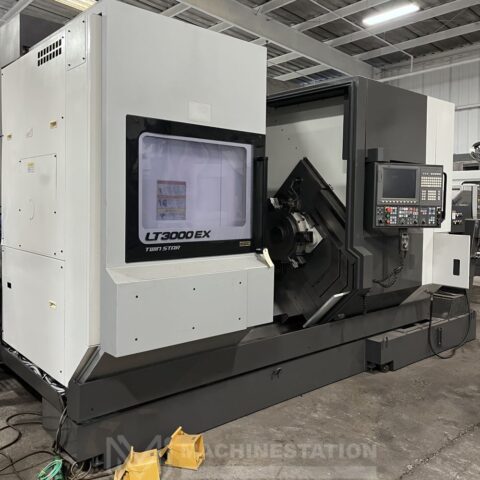

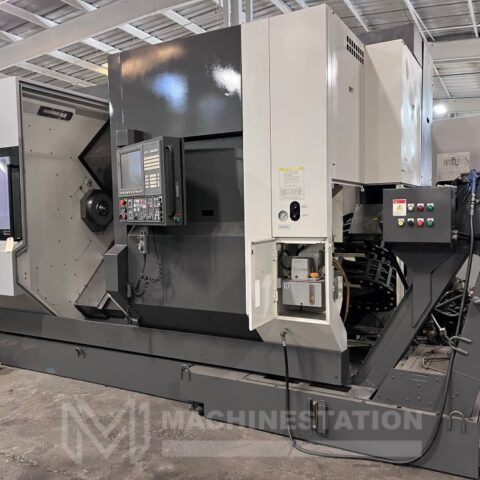

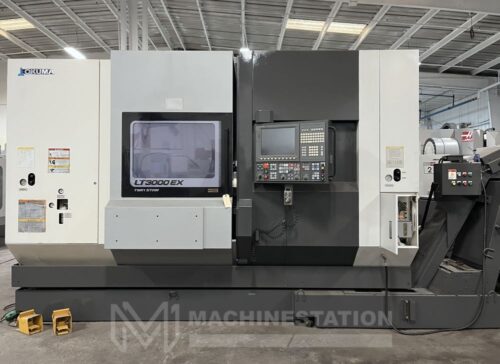

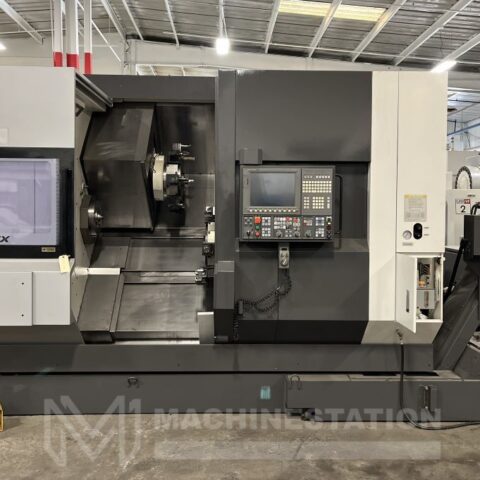

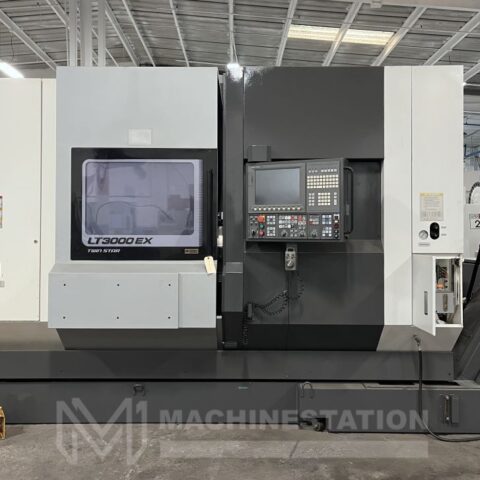

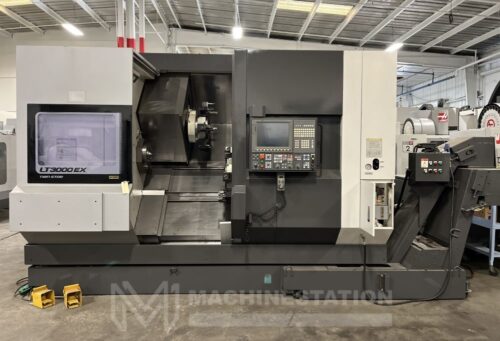

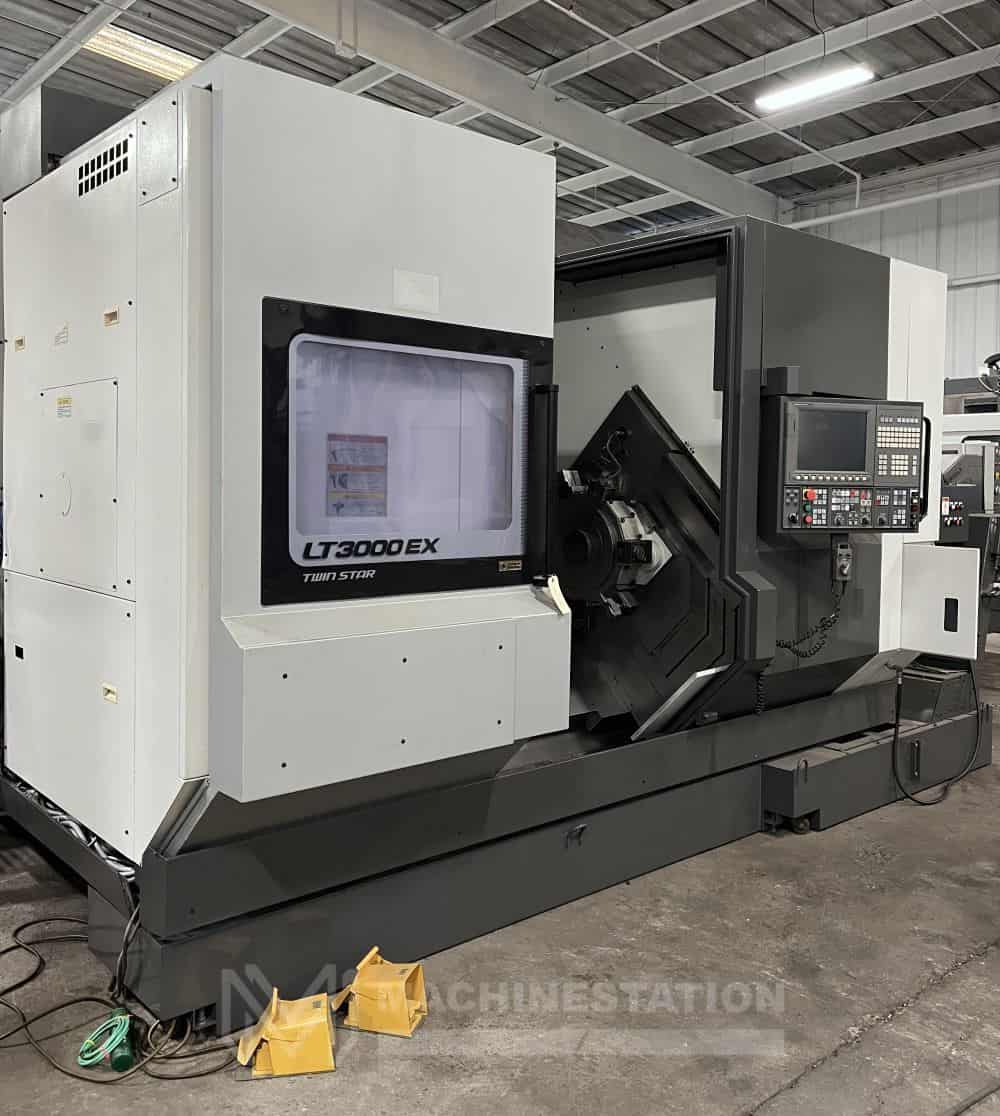

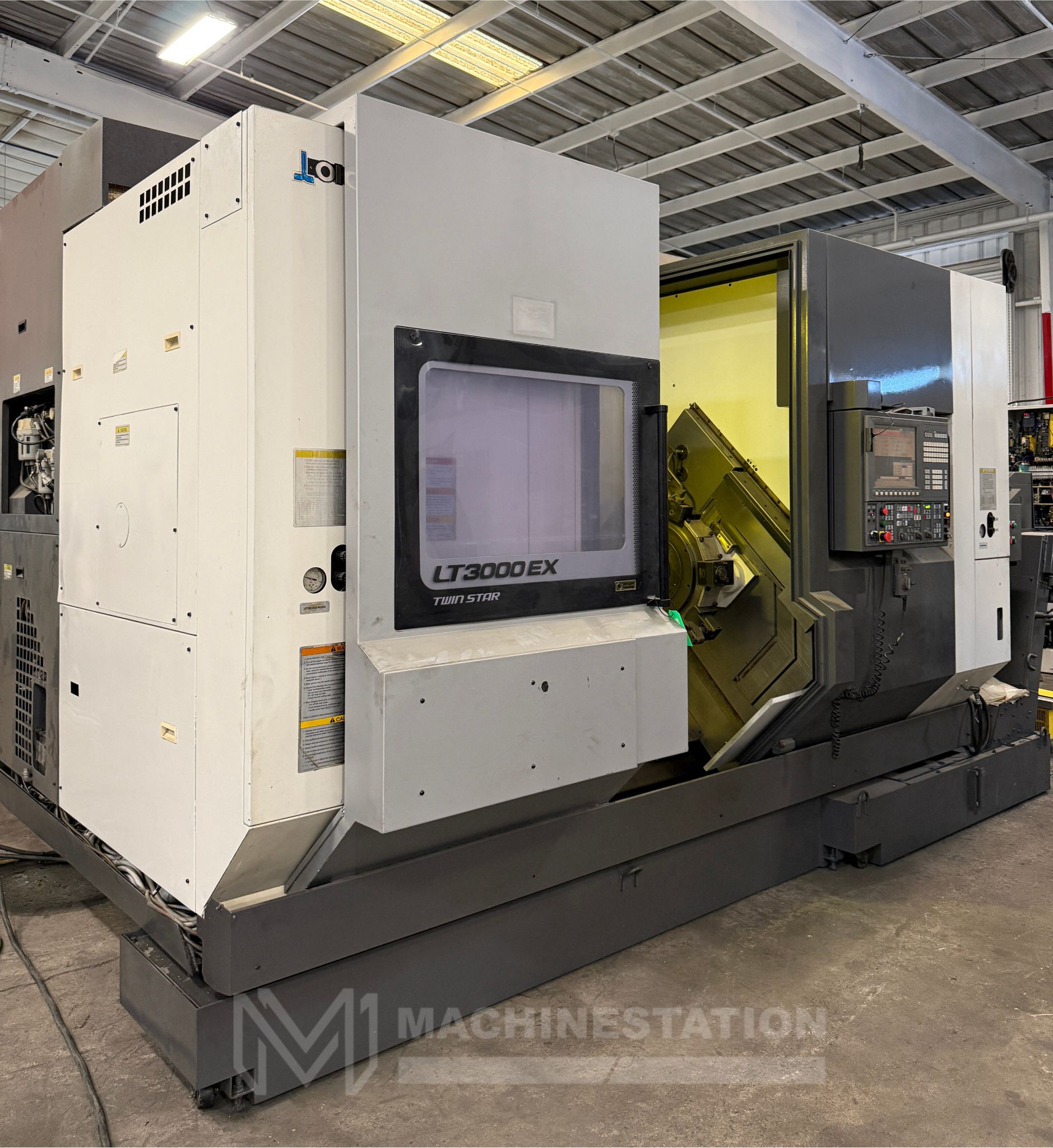

| Make: | Okuma |
| Model: | LT3000 EX 2T2MY |
| Year: | 2013 |
| Features: |
|---|

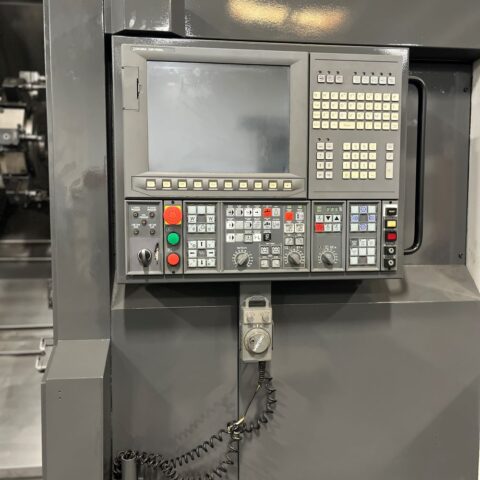

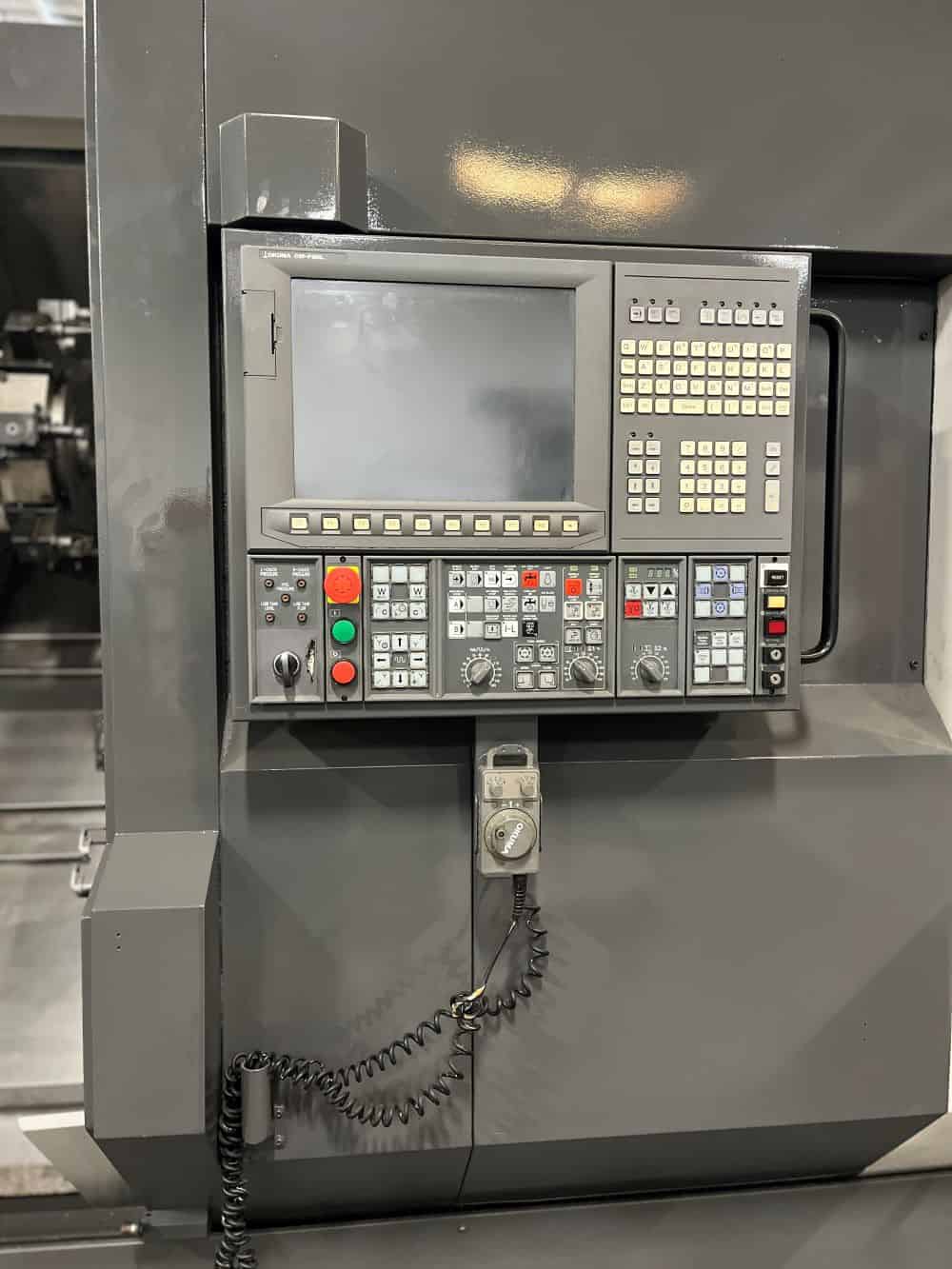

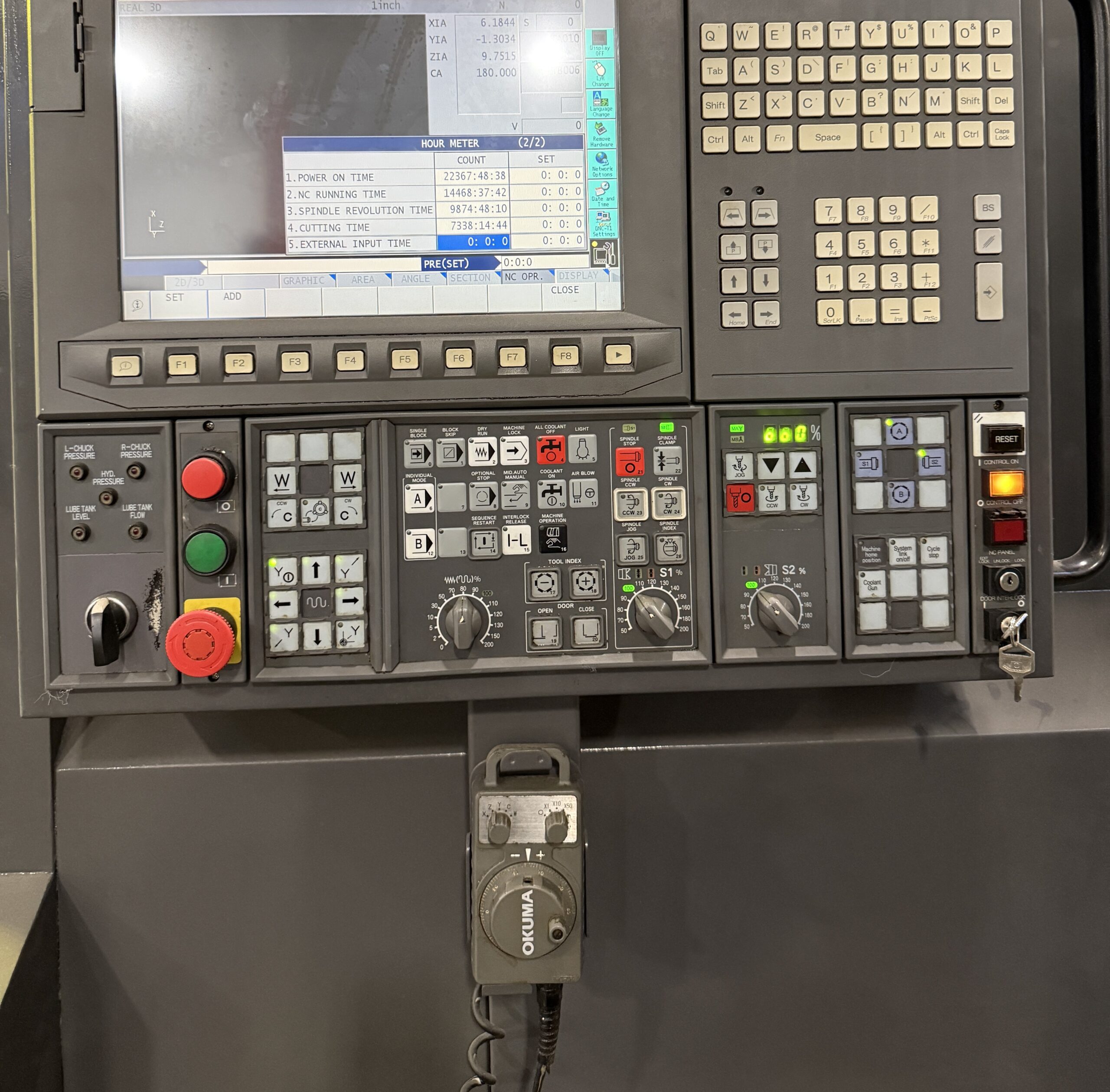

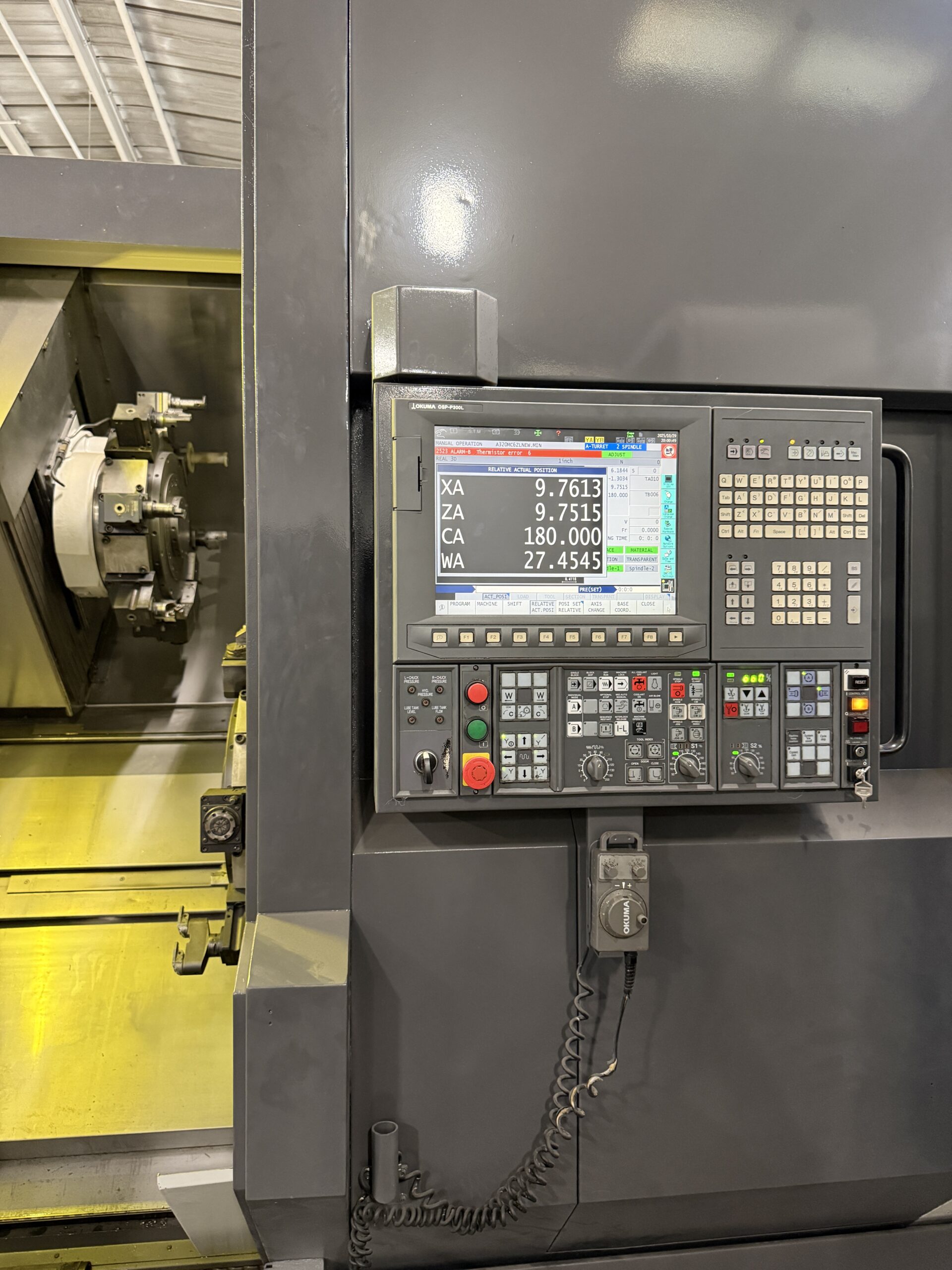

| Okuma OSP-P300L CNC Control |

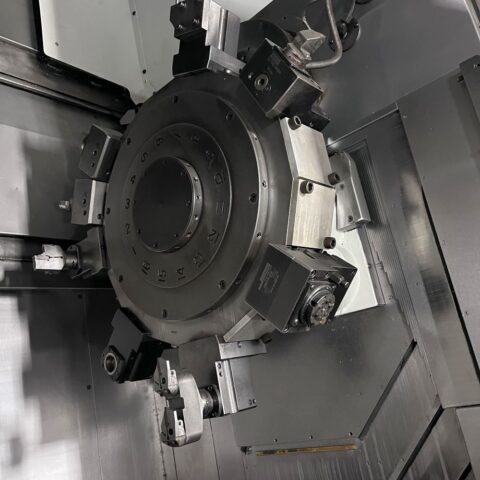

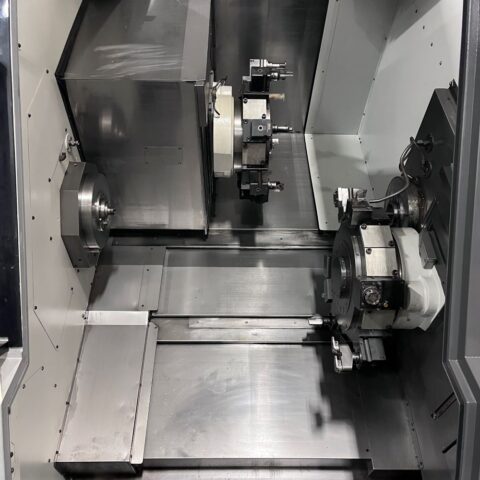

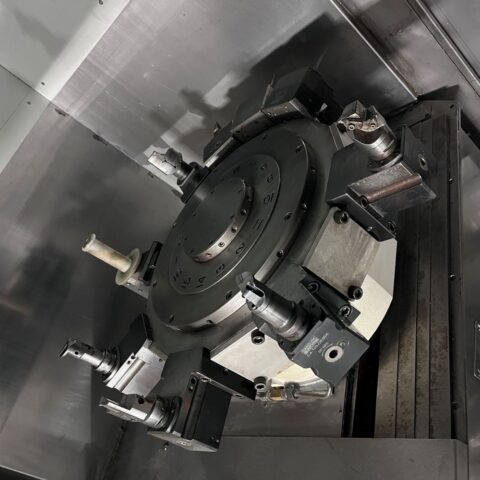

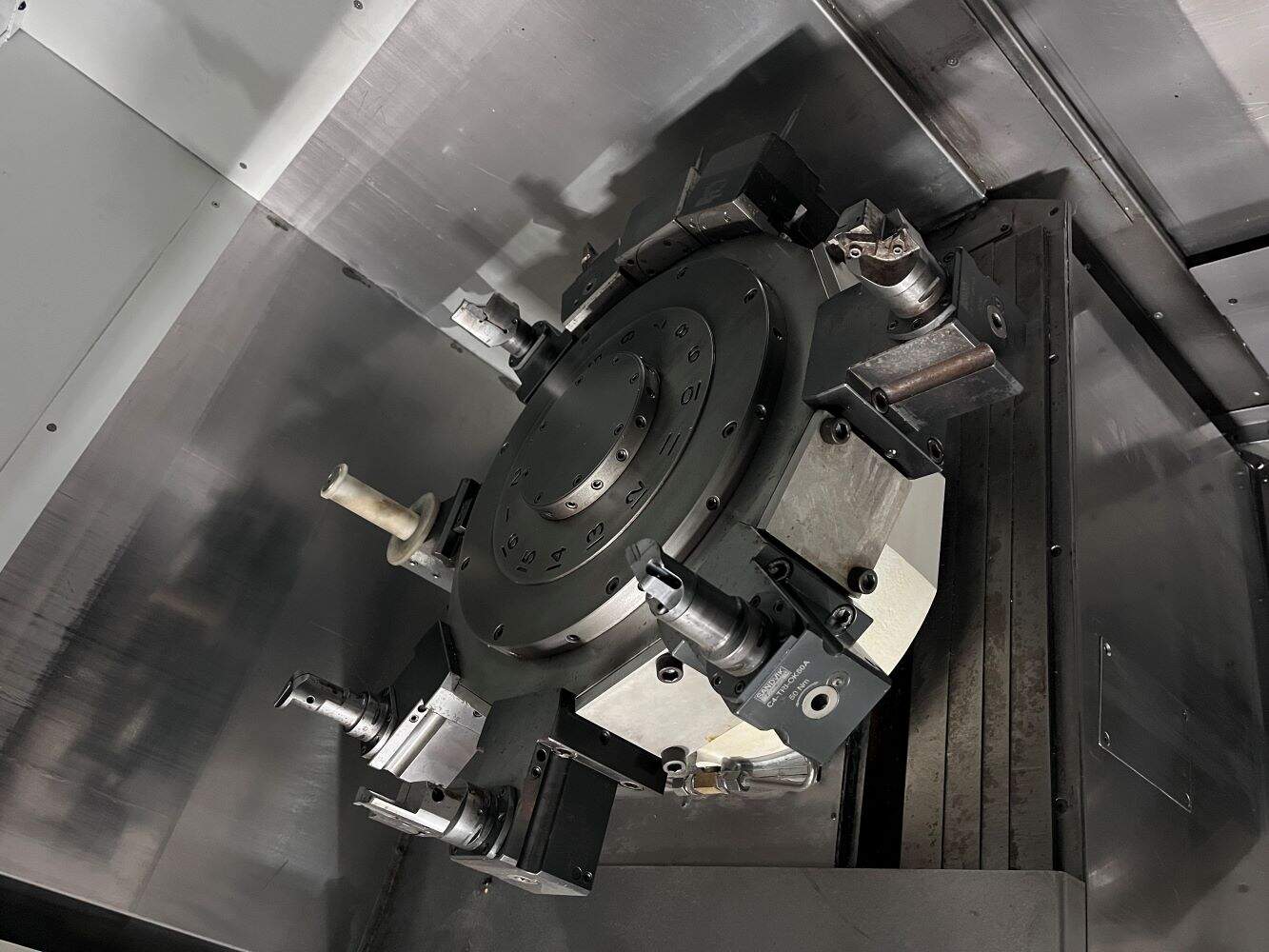

| 16 Station Upper Turret with Live Tool |

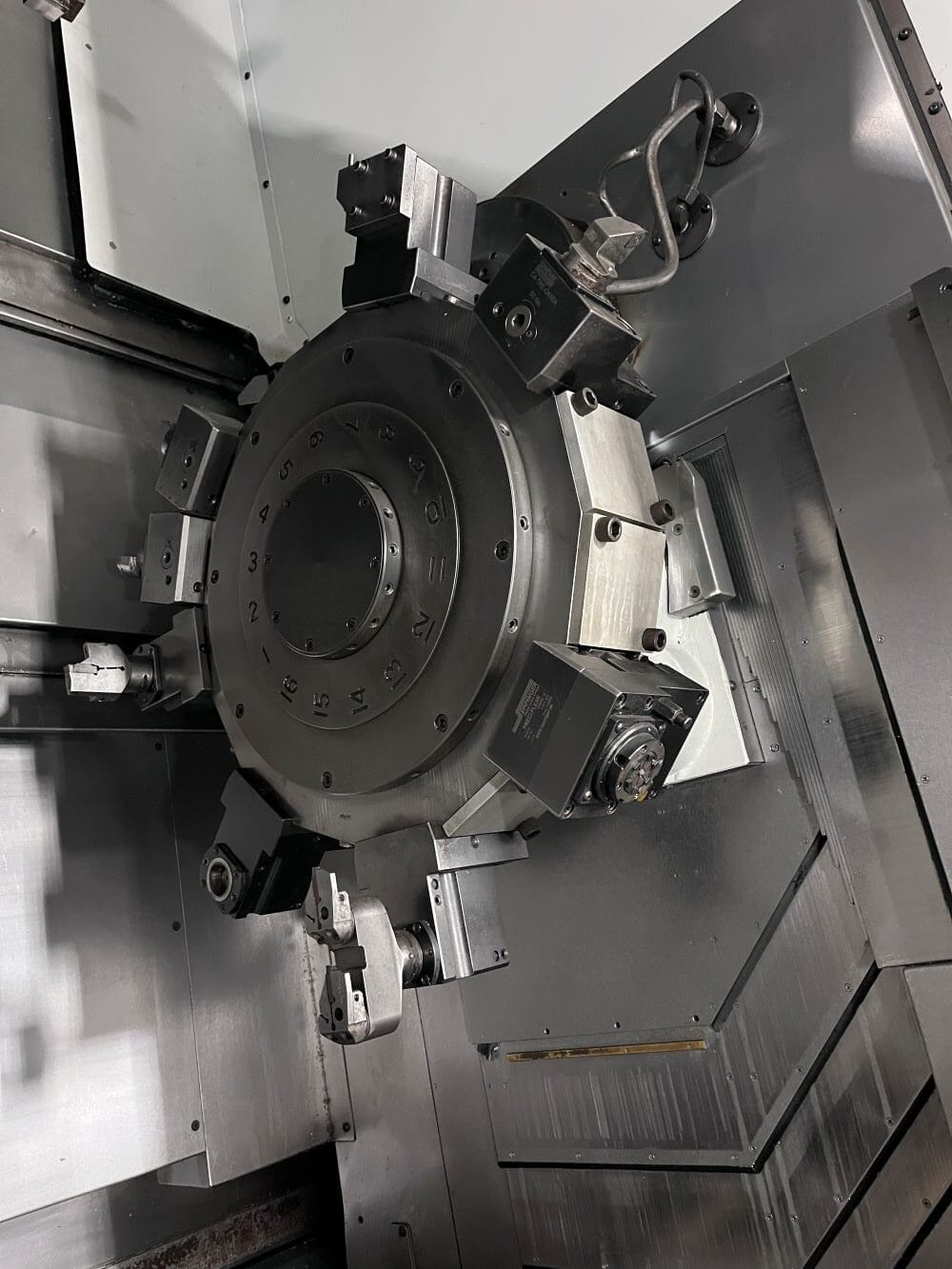

| 16 Station Lower Turret with Live Tool |
| Y Axis Capability on Both Turrets |
| Servo Controlled Full C-Axis on Both Spindles |

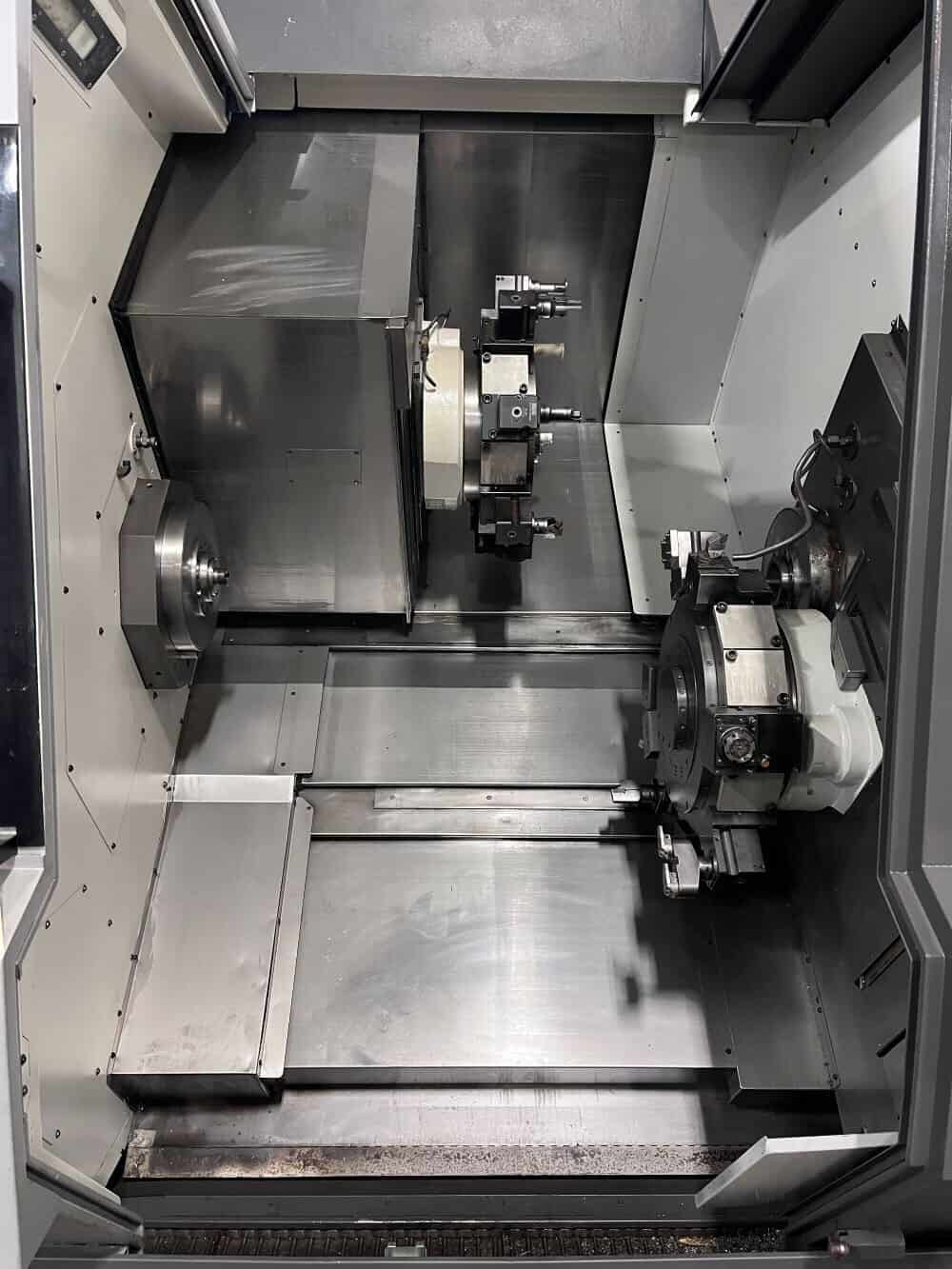

| A2-6 Main Spindle |
| A2-6 Sub Spindle |
| Rigid Tapping on Both Spindles |
| Foot Operated Control for Chuck |
| Coolant System |

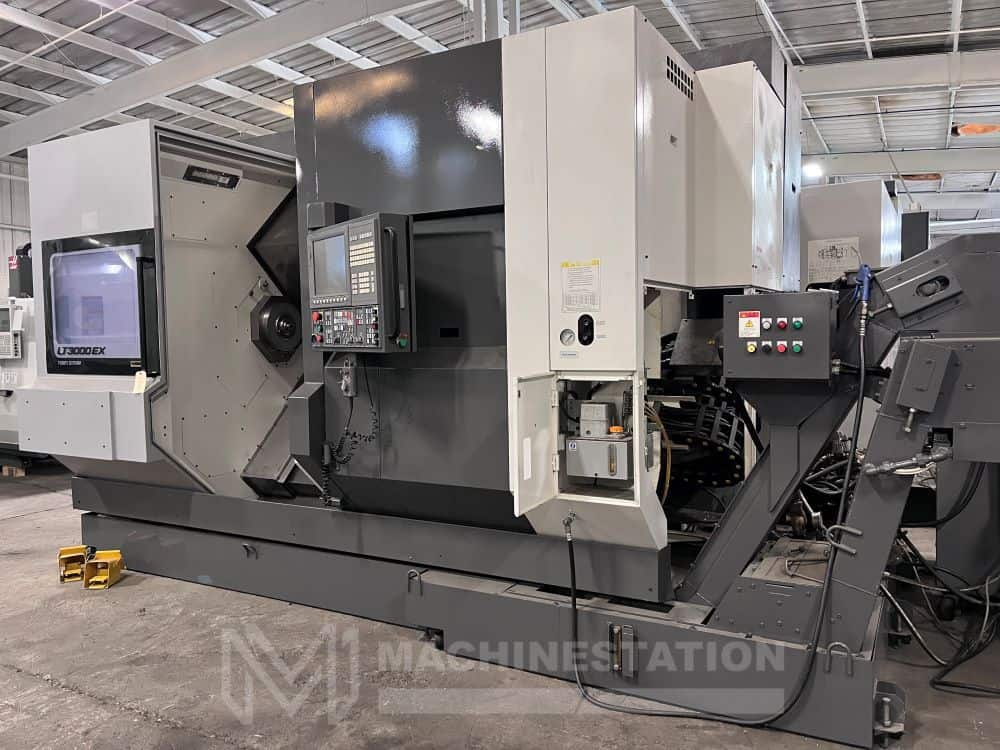

| Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter Upper Turret: 13.78″ |
| Max Turning Diameter Lower Turret: 13.78″ |
| Max Swing Over Saddle : 21.66″ |
| Max Turning Length: 7.88″ |
| Max Bar Capacity Main Spindle : 2.56″ |
| Max Bar Capacity Sub Spindle : 2.56″ |
| Travels: |
|---|
| X1 Axis Travel Upper : 10.04″ |
| X2 Axis Travel Lower : 10.04″ |
| Y1 Axis Travel: 4.92″ |
| Y2 Axis Travel: 4.92″ |
| Z1 Axis Travel Upper : 36.61″ |
| Z2 Axis Travel Lower : 36.61″ |
| W Axis Travel: 37.01″ ( Sub Spindle ) |
| C Axis: 360° (0.001°) Both Spindle |
| Feedrate: |
|---|
| X Axis: 1181 IPM Rapid Traverse |
| Y Axis: 787 IPM Rapid Traverse |
| Z Axis: 1575 IPM Rapid Traverse |
| W Axis: 1575 IPM Rapid Traverse |
| Spindle: |
|---|
| Main Spindle Bore: 3.15″ |
| Sub Spindle Bore: 3.15″ |
| Main Spindle Nose: A2-6 |
| Sub Spindle Nose: A2-6 |
| Main Spindle Speed: 45 – 5000 RPM |
| Sub Spindle Speed: 45 – 5000 RPM |
| Main Spindle Power: 30 HP |
| Sub Spindle Power: 20 HP |
| Turret: |
|---|
| Turret Type: Multitasking V16 |
| Upper Turret Capacity: 16 Stations |
| Lower Turret Capacity: 16 Stations |
| Live Tool Speed: 45 – 6000 RPM |
| Live Tool Power: 9.5 HP |
| General: |
|---|
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Power Requirement: 56.8 kva |
| Overall Dimensions: 177.32″ x 108.27″ x 104.33″ |
| Weight: 24,640 lbs Approx. |
