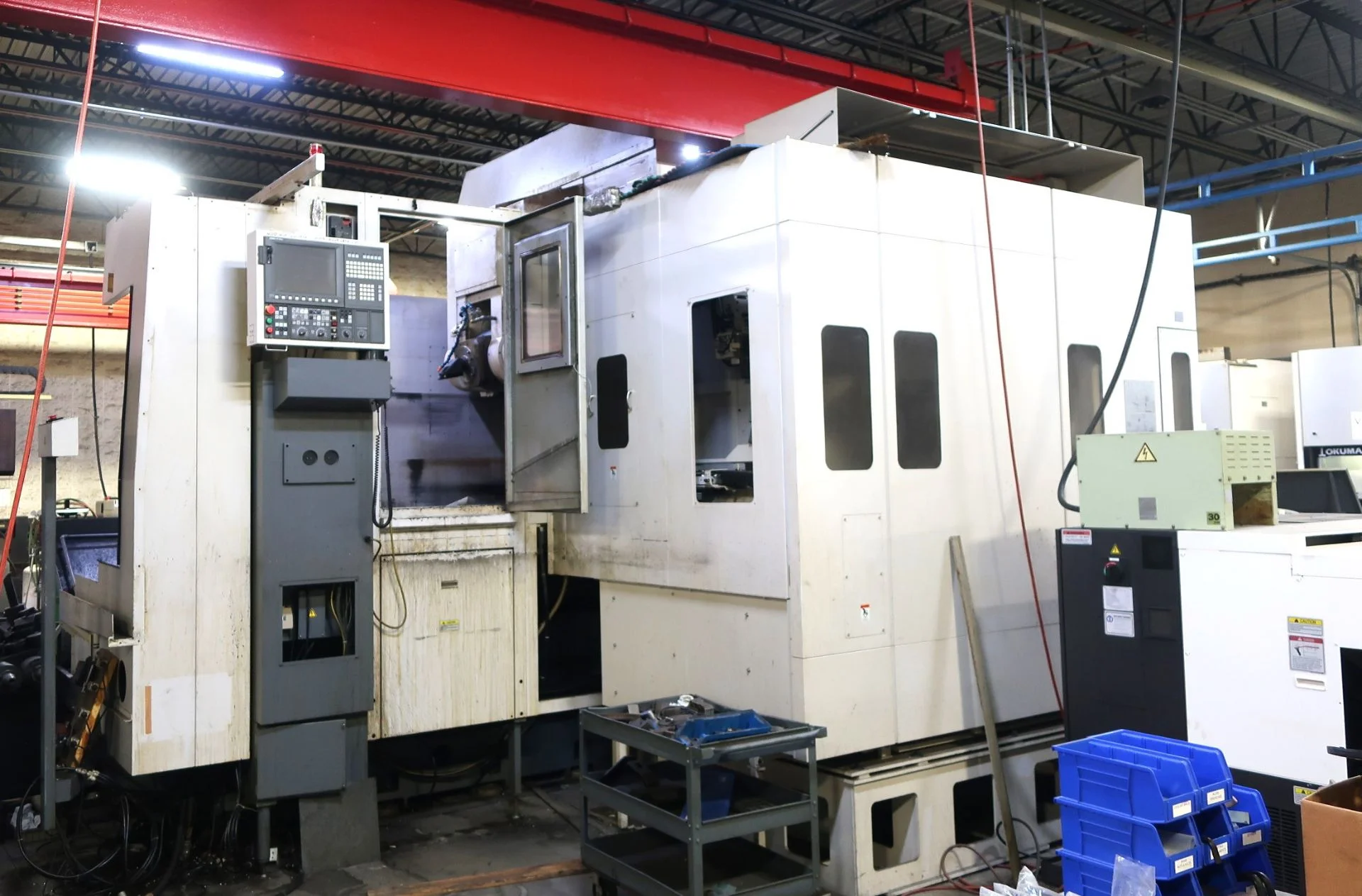

Okuma VTM-200YB CNC Vertical Turning & Milling Center – 2011
SKU
11068
Make/Model
Okuma VTM-200YB
Year
2011
Condition
Used - Good
Video
On Request
Out of stock
| SKU: | 11068 |
| Make/Model: | Okuma VTM-200YB |
| Year: | 2011 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | Okuma |
| Model: | VTM-200YB |
| Machine Type: | Vertical Turning & Milling Center |
| Condition: | Used |
| Equipped With: |
|---|
| Y-Axis Capability |
| B-Axis Milling Head |
| Vertical Turning Table |
| C-Axis Table |
| Automatic Tool Changer |
| Live Milling Capability |
| Coolant System |
| Full Enclosure |
| Capacity: |
|---|
| Max Turning Diameter: 78.74″ |
| Max Swing Diameter: 94.49″ |
| Max Turning Height: 55.12″ |
| Max Table Load (With Chuck): 15,400 lbs |
| Table: |
|---|
| Table Diameter: 62.99″ |
| Table Speed Range: 8 – 400 RPM |
| Axis Travels: |
|---|
| X-Axis Travel: 62.99″ |
| Y-Axis Travel: ±19.69″ |
| Z-Axis Travel: 55.12″ |
| B-Axis Travel: ±30° |
| Spindle (Milling Head): |
|---|
| Spindle Speed Range: 6 – 400 RPM |
| Spindle Motor Power: 40 HP |
| Max Spindle Torque: 8,415 ft-lb (20-min) |
| Automatic Tool Changer: |
|---|
| Tool Magazine Capacity: 32 Tools |
| General: |
|---|

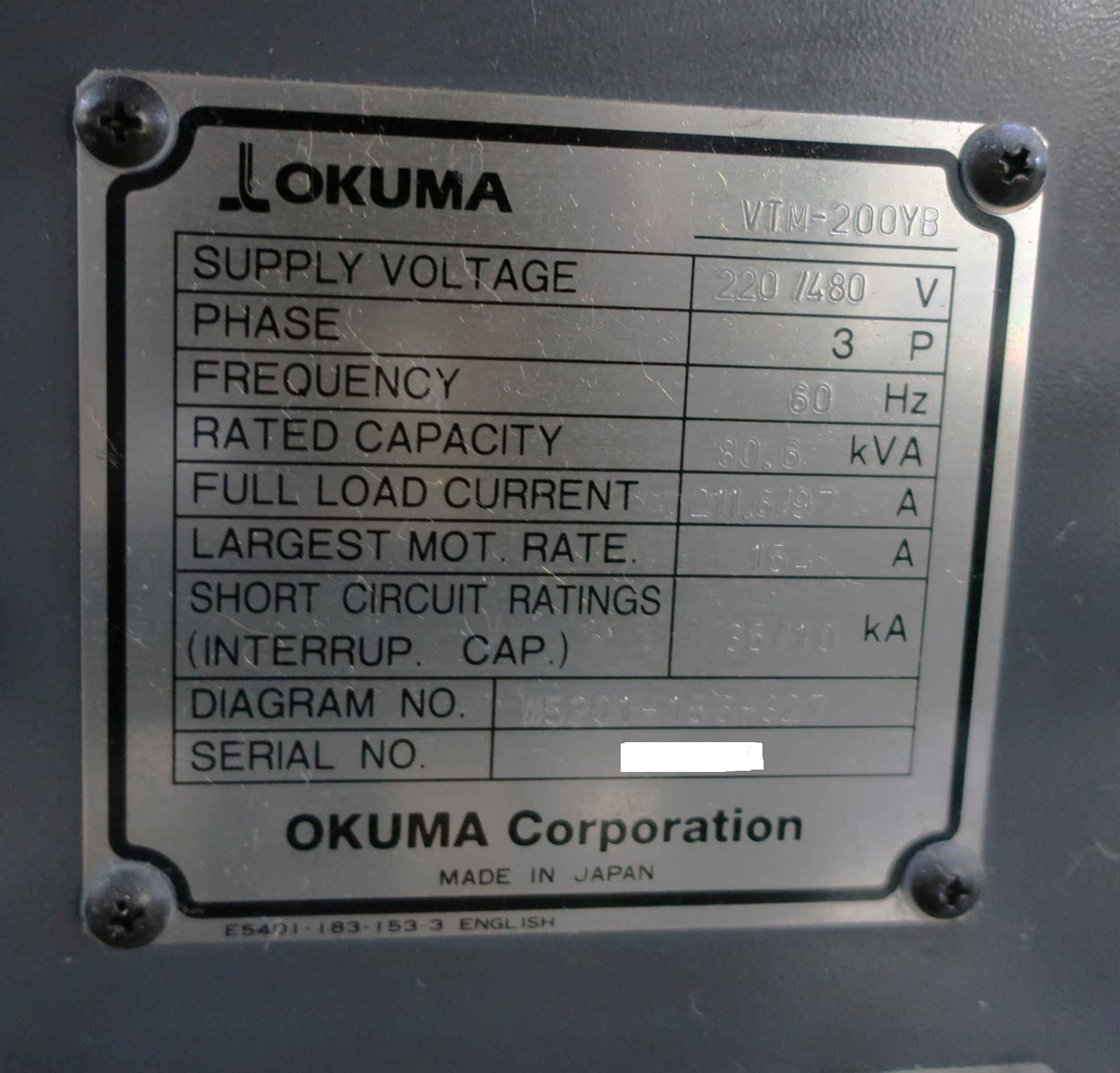

| Power Requirement: 220V / 3-Phase |
| Machine Weight (Approx.): 33,000 lbs |
| Equipped With: |
|---|
| Y-Axis Capability |
| B-Axis Milling Head |
| Vertical Turning Table |
| C-Axis Table |
| Automatic Tool Changer |
| Live Milling Capability |
| Coolant System |
| Full Enclosure |
| Capacity: |
|---|
| Max Turning Diameter: 2,000 mm |
| Max Swing Diameter: 2,400 mm |
| Max Turning Height: 1,400 mm |
| Max Table Load (With Chuck): 15,400 lbs |
| Table: |
|---|
| Table Diameter: 1,600 mm |
| Table Speed Range: 8 – 400 RPM |
| Axis Travels: |
|---|
| X-Axis Travel: 1,600 mm |
| Y-Axis Travel: ±500 mm |
| Z-Axis Travel: 1,400 mm |
| B-Axis Travel: ±30° |
| Spindle (Milling Head): |
|---|
| Spindle Speed Range: 6 – 400 RPM |
| Spindle Motor Power: 40 HP |
| Max Spindle Torque: 8,415 ft-lb (20-min) |
| Automatic Tool Changer: |
|---|
| Tool Magazine Capacity: 32 Tools |
| General: |
|---|
| Power Requirement: 220V / 3-Phase |
| Machine Weight (Approx.): 33,000 lbs |
| Categories | CNC Vertical Machining Center |
|---|---|
| Make | Okuma |
| Model | VTM-200YB |
Payment Terms
A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
Shipping & Logistics
We coordinate domestic and international shipping, including loading, containerization, and freight arrangements through trusted logistics partners.
Machine Inspection
Buyers can request a live video demonstration, machine inspection, or schedule an on-site visit before completing the purchase.
Export & Documentation
For international orders, we can assist with export documentation, commercial paperwork, and pre-shipment inspection requirements.
