*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Okuma |
| Model No.: |
LB3000EX II |
| Year of Manufacture: |
2018 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Turning Center |
| CNC Control: |

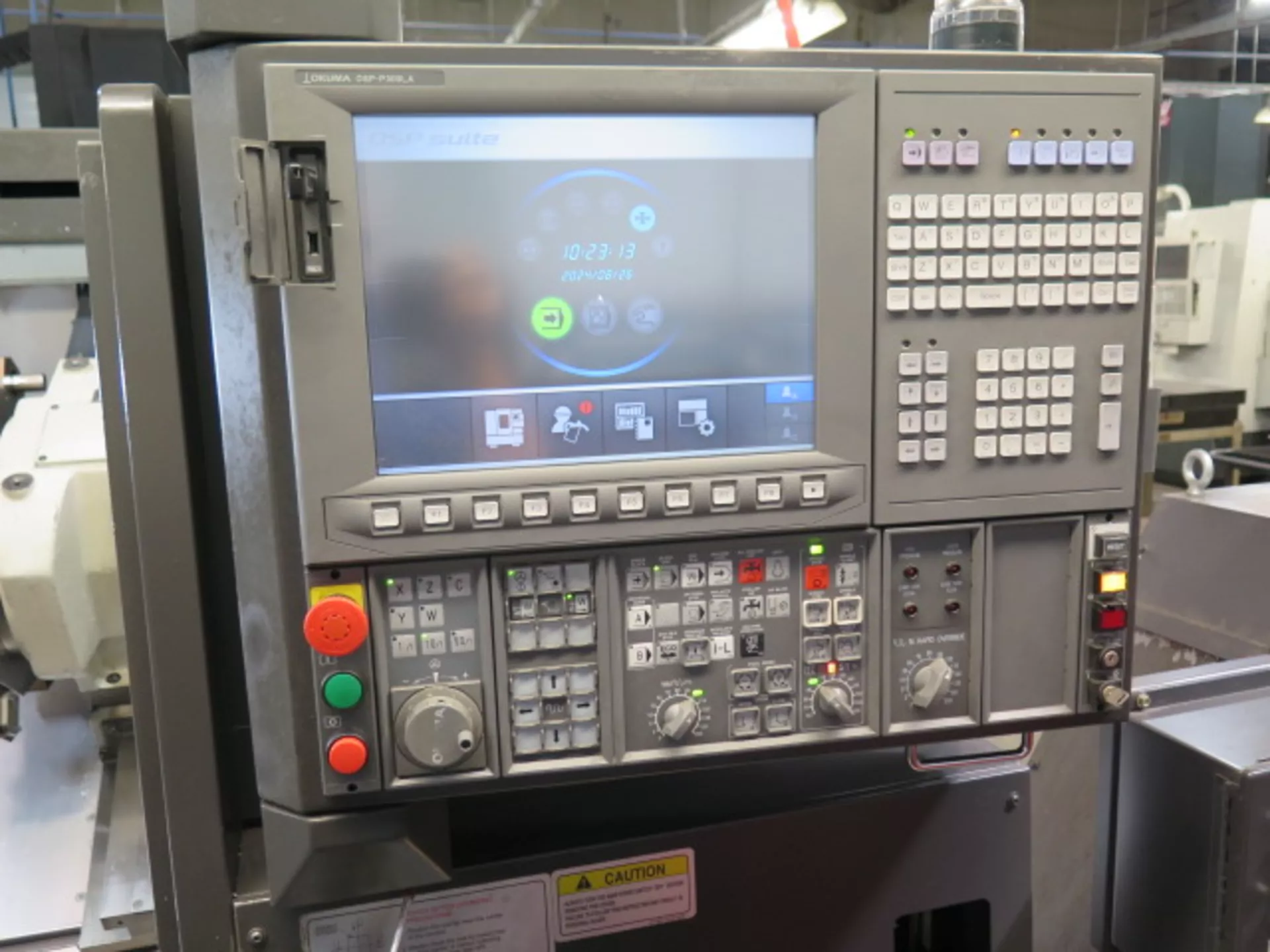

Okuma OSP-P300 Series |
| Equipped With: |
| OSP-P300 CNC Control |
| Y-Axis Capability |
| Live Tooling |
| C-Axis |
| Sub-Spindle |
| 12-Station Turret |
| 10” Main Chuck / 6” Sub Chuck |
| Parts Catcher |
| Chip Conveyor |
| High-Pressure Coolant |
| Programmable Tailstock (if equipped) |
| Bar Feeder Ready |
| Thermo-Friendly Concept (Thermal Stability) |
| Rigid Slant Bed Construction |
| Capacity: |
| Max Turning Diameter: 13.39″ (340 mm) |
| Max Turning Length: 31.5″ (800 mm approx.) |
| Swing Over Bed: 22.83″ |
| Swing Over Cross Slide: 18.5″ |
| Bar Capacity: 3.0″ (76 mm approx.) |
| Distance Between Centers: ~42.7″ |
| Travels: |
| X-Axis Travel: 10.24″ |
| Y-Axis Travel: ±2.76″ / -1.77″ (Total ~4.5″) |
| Z-Axis Travel: 39.76″ |
| Rapid Traverse (X/Z/Y): 984 / 1,181 / 492 IPM |
| Spindle: |
| Spindle Nose: A2-8 |
| Spindle Bore: 3.15″ – 3.59″ |
| Spindle Speed: 4,200 – 5,000 RPM |
| Main Spindle Motor: 30 – 40 HP |
| Sub-Spindle: |
| Sub-Spindle Speed: Up to 6,000 RPM |
| Sub-Spindle Motor: ~15 HP |
| Sub-Spindle Bore: ~2.44″ |
| Turret & Tooling: |
| Turret Capacity: 12 Stations |
| Turret Type: VDI / BMT (Configuration Dependent) |
| Live Tool Speed: Up to 6,000 RPM |
| C-Axis Indexing: 0.001° |
| General: |
| Power Requirement: ~29 kVA |
| Machine Dimensions: Approx. 118″ × 70″ × 75″ |
| Machine Weight: ~14,000 lbs (6,300+ kg) |
| Features: |
| Y-Axis for complex off-center machining |
| Sub-Spindle for complete part processing |
| Live tooling for milling, drilling & tapping |
| High rigidity slant-bed construction |
| Okuma Thermo-Friendly Technology for accuracy |
| High torque spindle for heavy cutting |
| Excellent chip evacuation system |
| Ideal for high-production & multi-operation parts |
| Reduced cycle times with full multitasking capability |
