*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Okuma |
| Model: | LB 45III |
| Year: | 2015 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center (Lathe) |

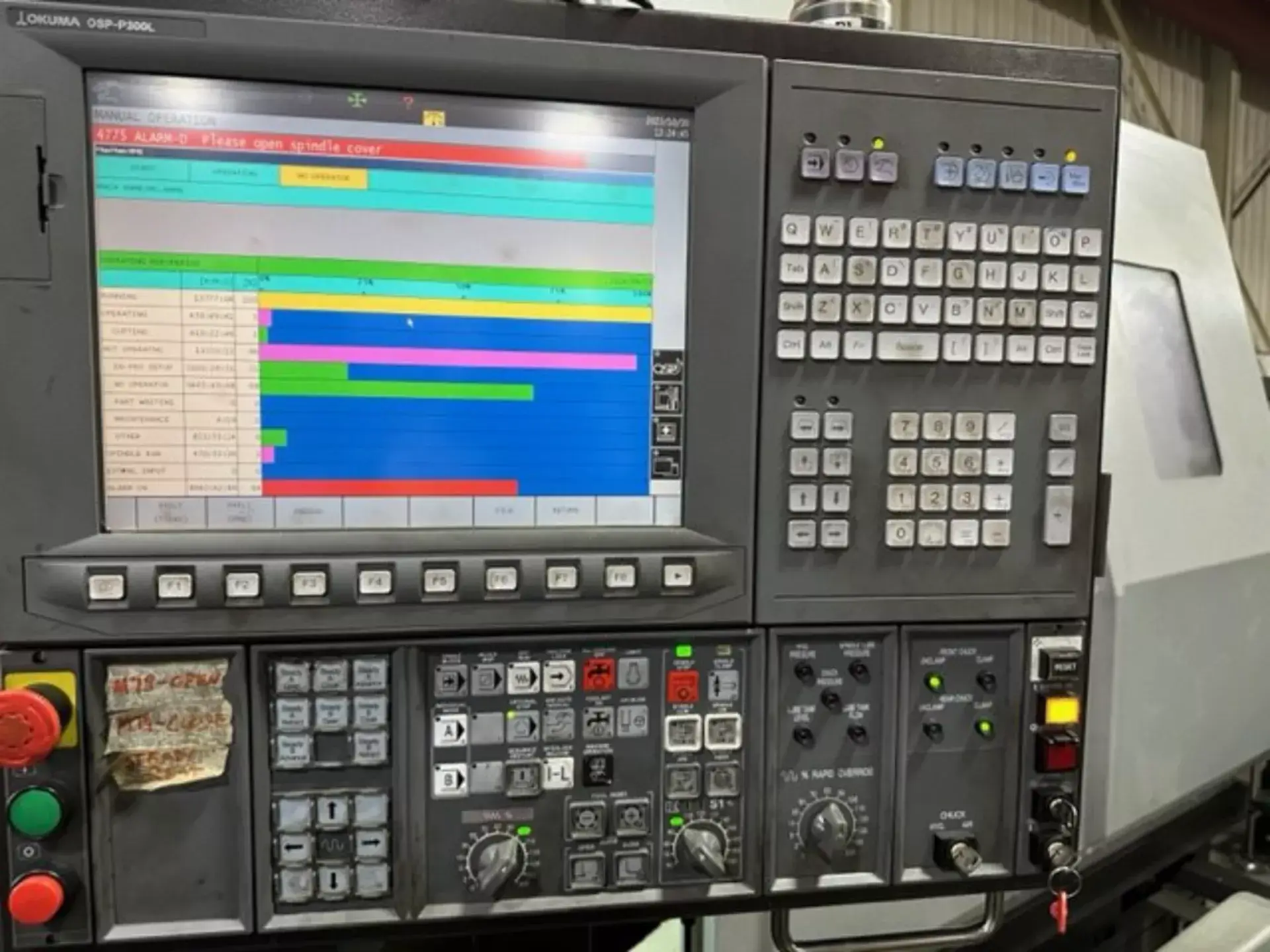

| CNC Control: | OKUMA OSP P300L CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|

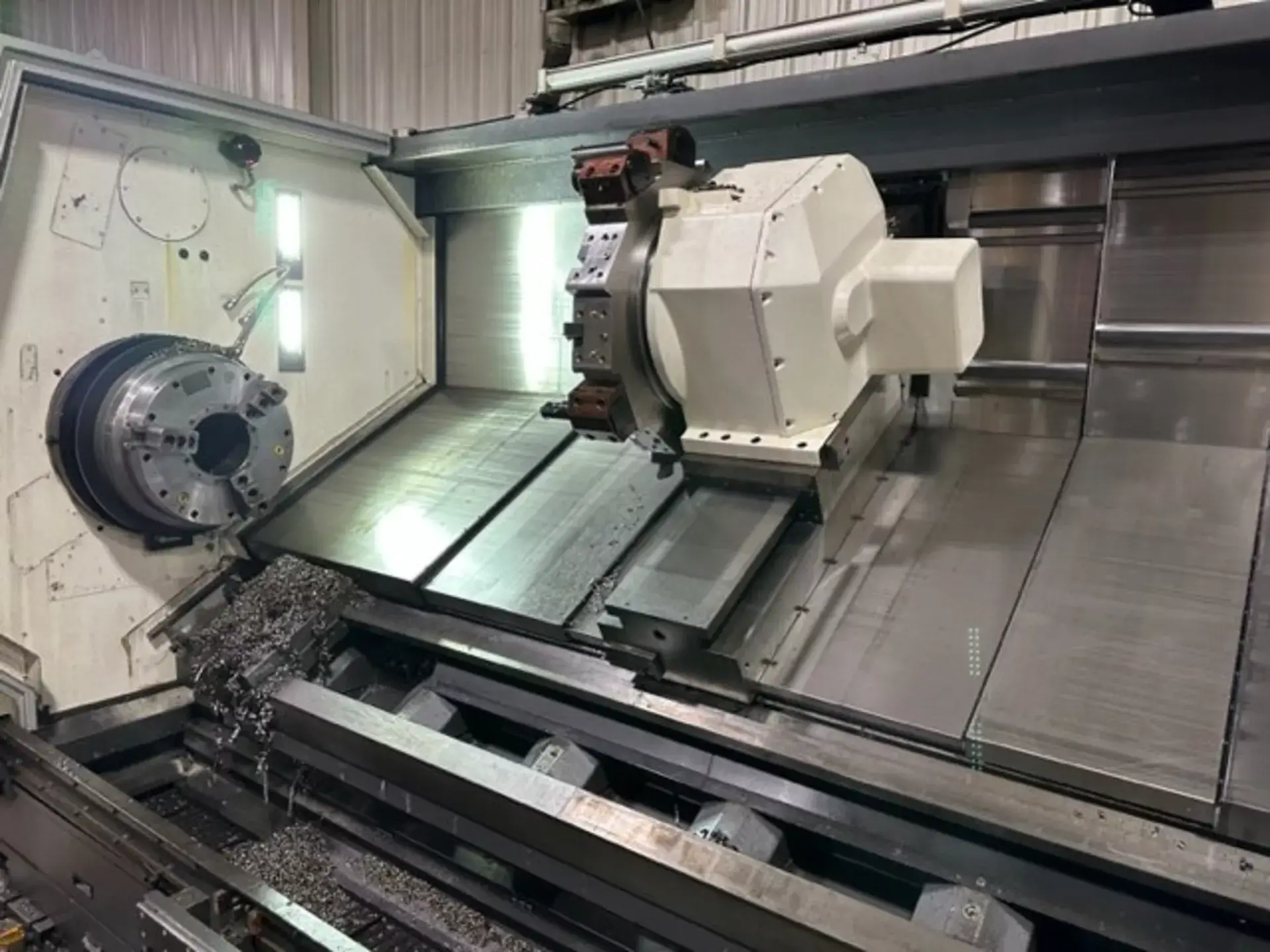

| 19″ 3-Jaw Chuck |
| RENISHAW Probe and Inspection Software |
| ATLING AX8.5E Hydraulic Steady Rest (3.9″ – 16.9″) |

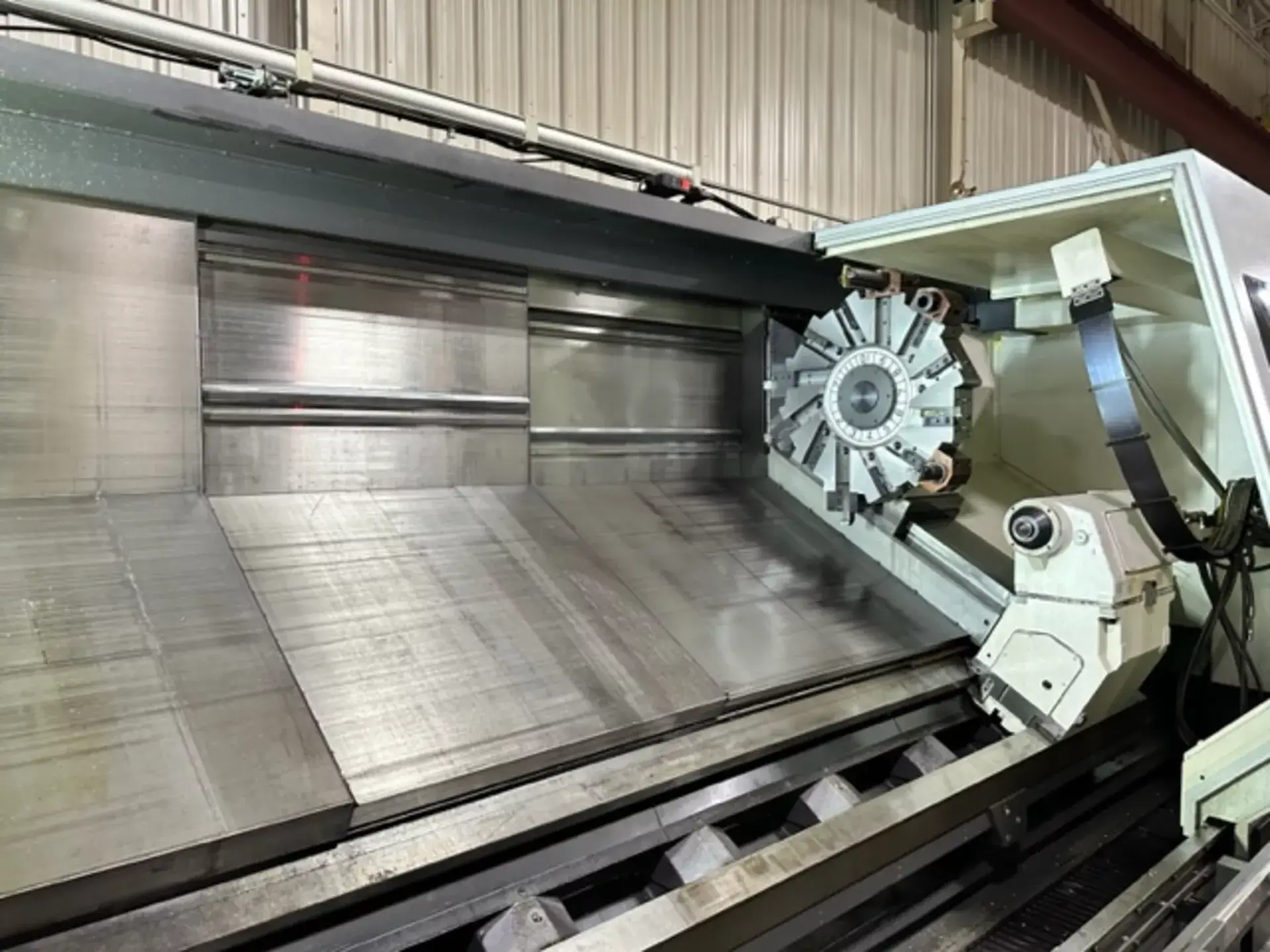

| 12 Station Turret |
| Programmable Tailstock |
| Spindle Chiller |
| Spindle Orientation |
| Long Boring Bar |
| (4) USB Ports / 160MB Memory |
| Full Color Graphics |
| HI-G Control |
| Inch / Metric Switchable |
| Keller Coolant Filtration System |
| Tool Life Management & Tool Wear Compensation |
| Chip Conveyor |
| Capacity: |
|---|
| Swing Over Bed: 35.43″ |
| Max Turning Diameter: 21.65″ |
| Max Machining Length: 118.11″ |
| Distance Between Centers: 120″ |
| Spindle Bore: 10.2″ |
| Bar Capacity: 7.28″ |
| Travel: |
|---|
| X Axis Travel: 17.32″ |
| Z Axis Travel: 120.47″ |
| Rapid Traverse X Axis: 591 IPM |
| Rapid Traverse Z Axis: 787 IPM |
| Spindle: |
|---|
| Spindle Speed: 1,000 RPM |
| Spindle Motor: 60 HP |
| Gear Ranges: 4 |
| Turret: |
|---|
| Capacity: 12 Station Turret |
| Tailstock: |
|---|
| Type: Programmable |
| Quill Diameter: 5.12″ |
| Quill Travel: 6.69″ |
| Tailstock Travel: 118″ |
| General: |
|---|
| Air Required: 100 PSI Approx. |
| Power: 220V / 3-Phase / 50/60 Hz |
| Overall Dimensions: ~260″ x 110″ x 110″ High |
| Weight: ~48,000 lbs |
| Cutting Hours: 410 Hours |
