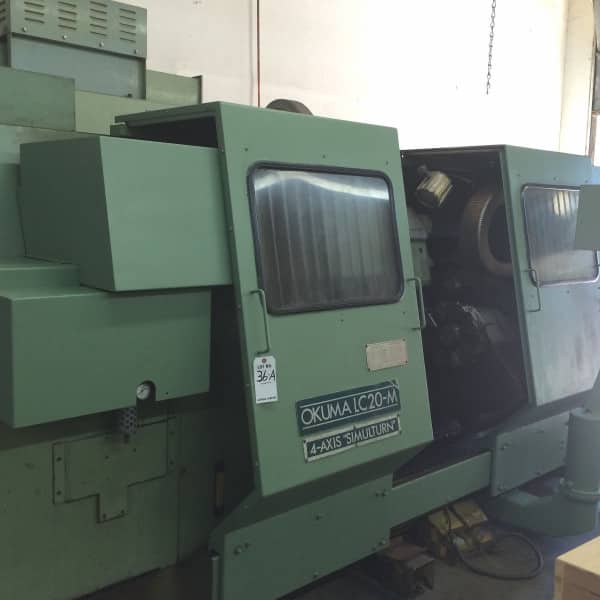

Okuma LC20M 4Axis CNC Lathe
Country of Origin: Japan
Model #: LC20-M / LC20-2SC
Serial #: 3640
Condition: We are unable to fully test this machine, and therefore we are selling it AS-IS.
Okuma LC20M 4Axis CNC Lathe Features:
- Kitagawa 10″ Three-Jaw Power Chuck.
- Okuma OSP5000L-G Control.
- Chip Conveyor.
- Coolant System.
- 25 Male Pin Serial Port and Round Parallel Port.
- Taper Reader with Facit Interface.
- Foot Pedal Chuck Control.
- RPM & Motor Load Gauges For Main & Live Spindle.
- Central Automatic Lubrication System.
- Hardened and Ground Box Style Ways.
- Hydraulic System with Oil Cooler Built onto Machine.
- Full Work Area Guarding.
- 12-Station Top Turret.
- 8-Station Bottom Turret.
- Live Tool Capability.
Okuma LC20M 4Axis CNC Lathe Specifications:
Swing Over Bed: 15.75″
Maximum Turning Diameter: 11.81″
Maximum Turning Length: 18.12″
X-Axis (Upper Turret): 6.30″
X-Axis (Lower Turret): 4.33″
Z-Axis (Upper/Lower Turret): 20.47″
Chuck Diameter: 10″
Spindle Nose: A2-6
Hole Thru Chuck Draw Tube: 1-11/16″
Hole Thru Chuck: 2-9/16″
Spindle Speeds: 15 to 3,500 rpm
Center Taper: #5 Morse Taper
Quill Diameter: 3.5″
Quill Travel: 12″ approx.
Electrical: 220 / 440 Volt, Three Phase
Overall Dimensions: 180″ x 95″ x 95″ tall

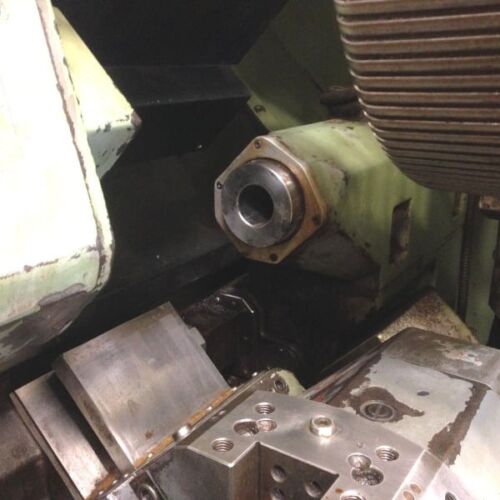

Okuma LC20M 4Axis CNC Lathe Comes as shown in pictures.
