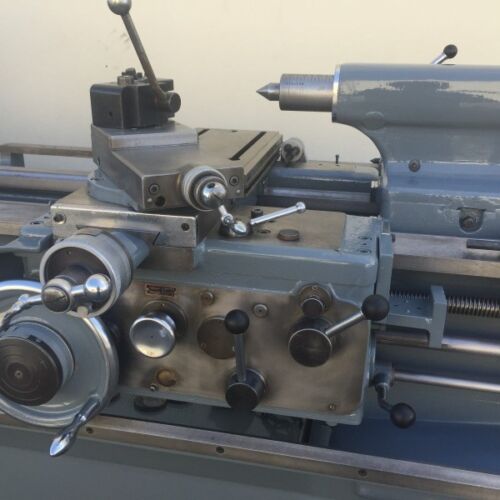

Okuma LS 7215 Features:

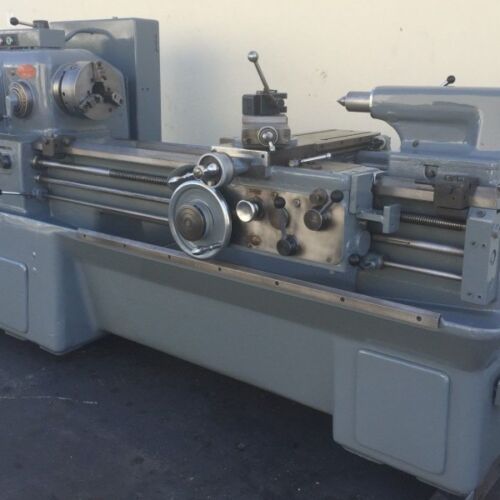

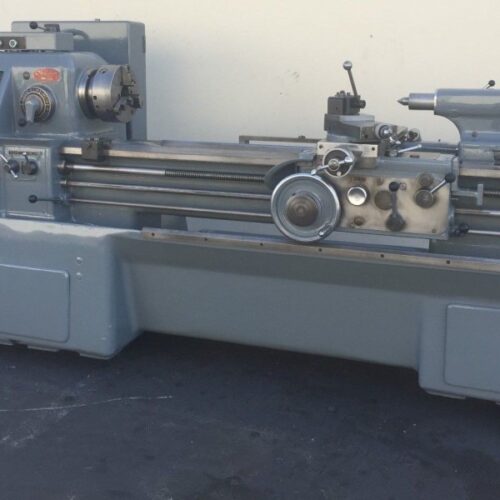

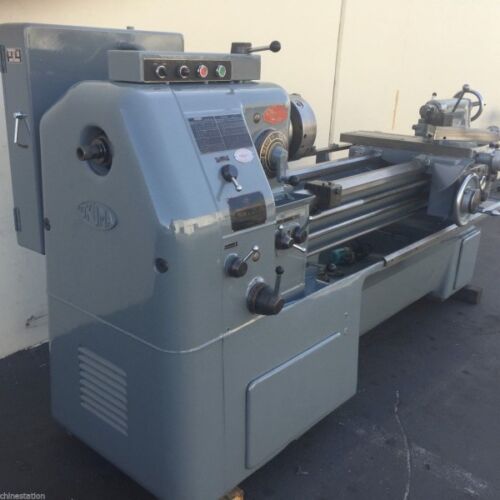

- Geared Head Engine Lathe

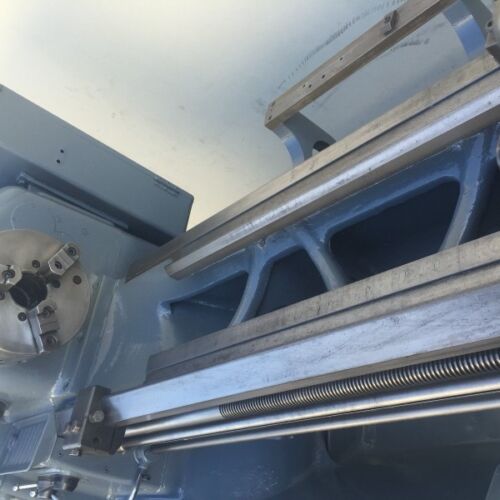

- Hardened Bed
- Inch/ mm Thread
- 10″ Three-Jaw Chuck
- Kirkelie 200 Series Tool Holder
- Carriage Stops
- Coolant System
Okuma LS 7215 Specifications:
- Capacities:
- Swing Over Bed: 21″
- Swing Over Cross Slide: 10.6″
- Swing Over Compound Slide: 5.5″
- Distance Between Centers: 58″

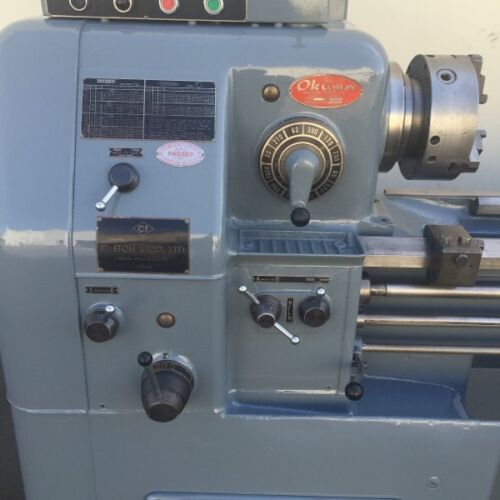

Spindle:
- Mount: D1-6
- Thru Hole: 2 1/4″
- Number of Speeds: 12
- Speed Range: 35 to 1,800 RPM
Carriage:
- Cross Slide Travel: 10.6″
- Compound Slide Travel: 5.5″
- T-Slot Dimensions: 1-3/16″ x 1-55/64″ (approx.)
Threads:
- Inch: 4 to 56, Metric: 0.5 to 7mm

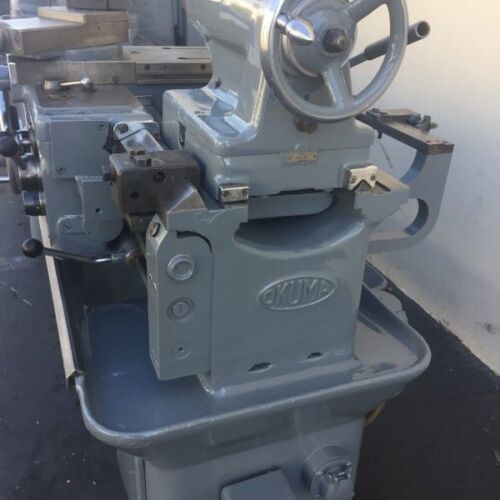

Tailstock:
- Spindle Taper: #4 Morse Taper
- Spindle Diameter: 2.56″
- Spindle Travel: 6-3/4″
Bed:
- Width: 16″
- Length: 76″
General:
- Motor: 10 Horsepower, 220/440 Volt, 1,500 / 1,800 RPM, 50 / 60 Hz
- Electrical: 440 Volt, Three Phase
- Overall Dimensions: 110″ x 48″ x 60″ tall, Weighs: 7000 Lbs
