*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

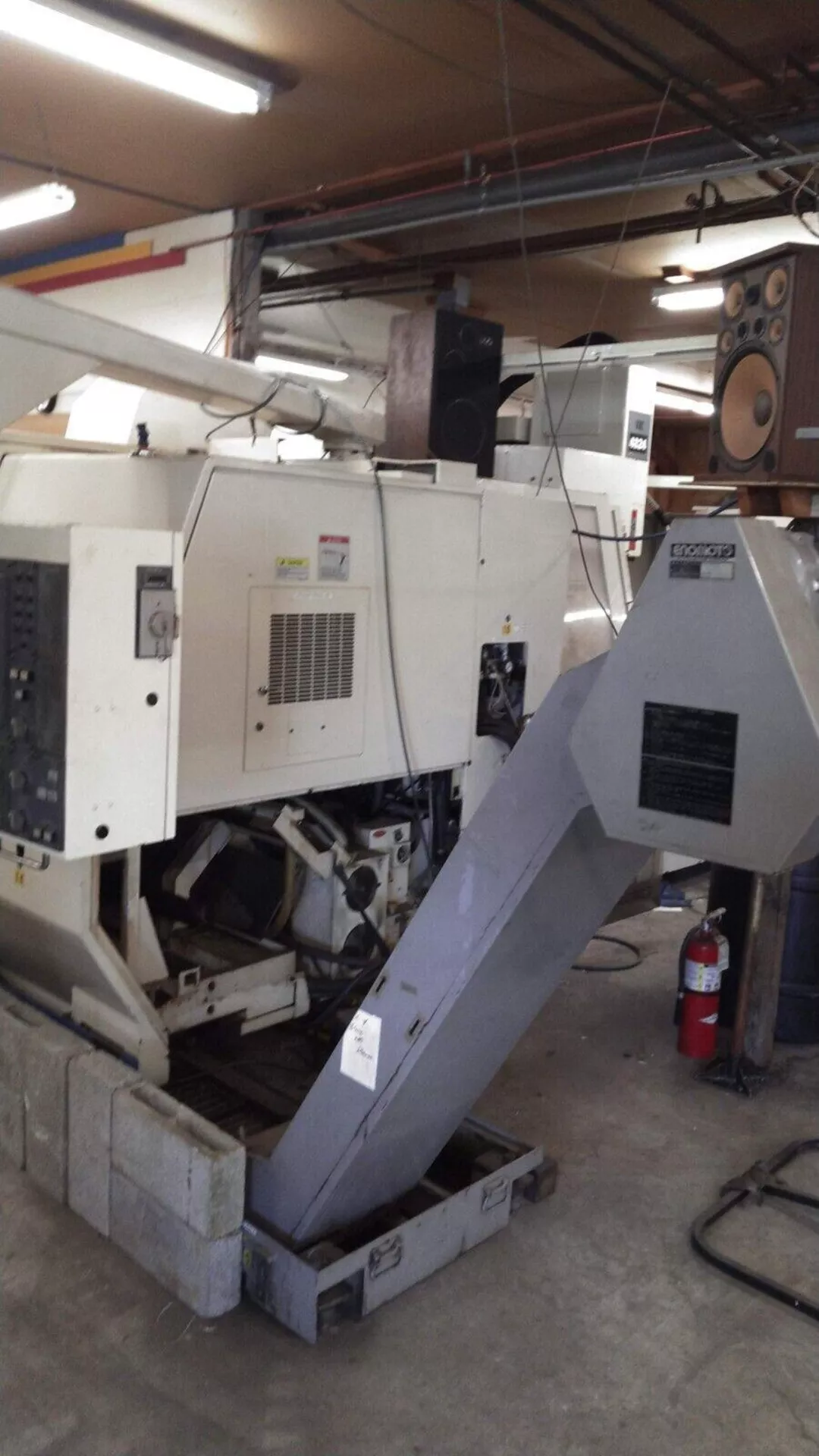

| Manufacturer: | Okuma |
| Model: | LT-15 |
| Machine Type: | CNC Twin Spindle Twin Turret Turning Center |
| Year: | 2002 |

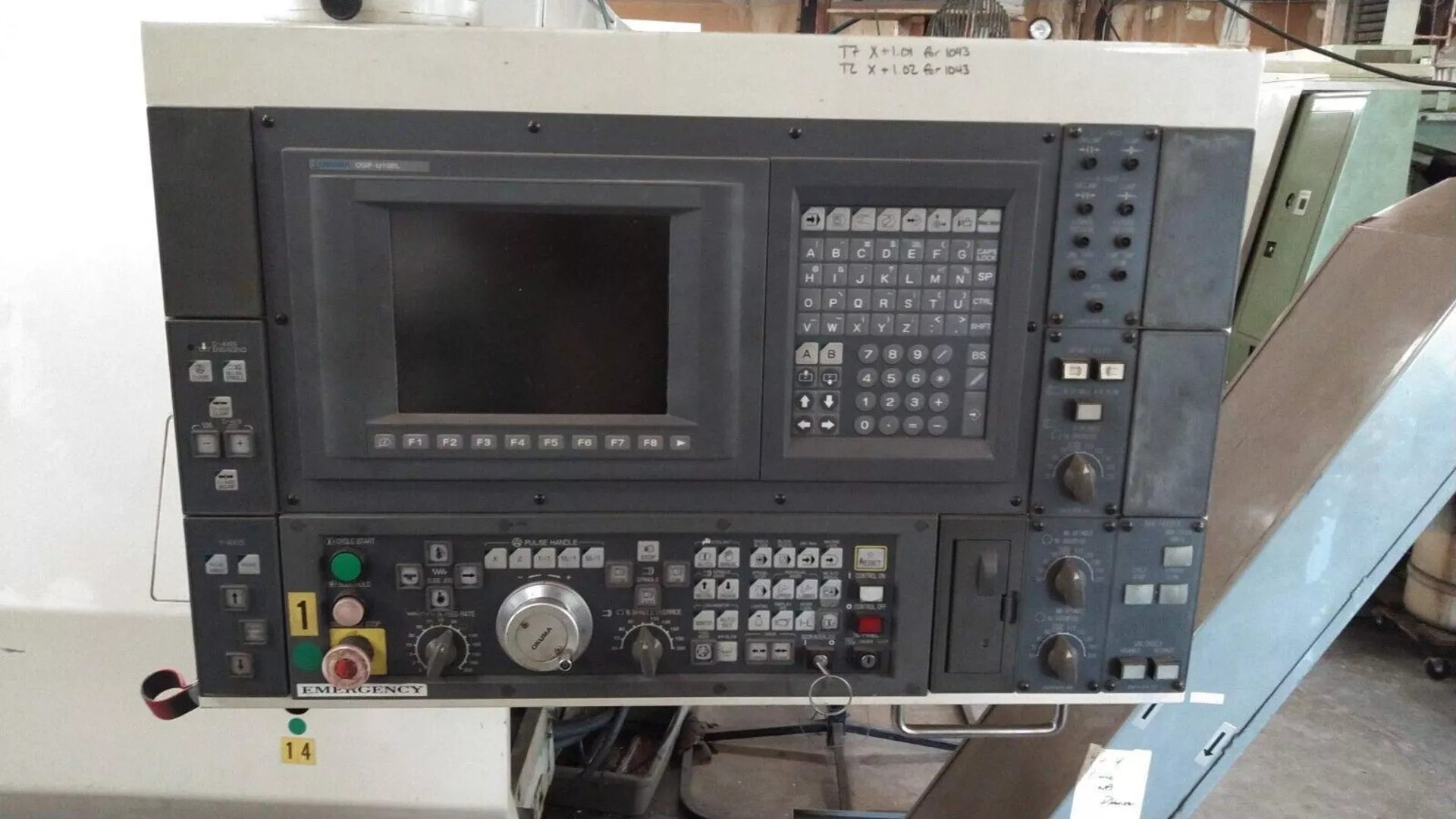

| Control: | OSP U100L CNC Control |
| Country of Origin: | Japan |
| Features: |
|---|
| Twin Spindle Design |
| Twin Turret Configuration |
| Upper & Lower Live Tool Turrets |
| Y-Axis Capability |
| 8″ Hydraulic Chucks |
| Live Tooling |
| Chip Conveyor |
| Coolant System |
| Live Tool Holders Included |
| High Production Multi-Tasking Capability |
| Capacity: |
|---|
| Chuck Size: 8″ |
| Swing Over Bed: 21.65″ |
| Distance Between Centers: 46.65″ |
| Maximum Turning Length: 35.4″ |
| Spindle Bore: 2.44″ |
| Bar Capacity: 2.33″ |
| Travels: |
|---|
| X-Axis Travel Upper: 9.65″ |
| X-Axis Travel Lower: 9.06″ |
| Z1-Axis Travel: 18.11″ |
| Z2-Axis Travel: 35.43″ |
| Y-Axis Travel: 3″ |
| Spindle: |
|---|
| Spindle Speed Range: 50 – 4,000 RPM |
| Spindle Speed Ranges: 2 Speed Range |
| Spindle Motor: 20 HP |
| Turrets: |
|---|
| Number of Turret Positions Per Turret: 12 |
| All Stations Live Tool Ready |
| Turret Indexing Time Tool to Tool: 0.3 Seconds |

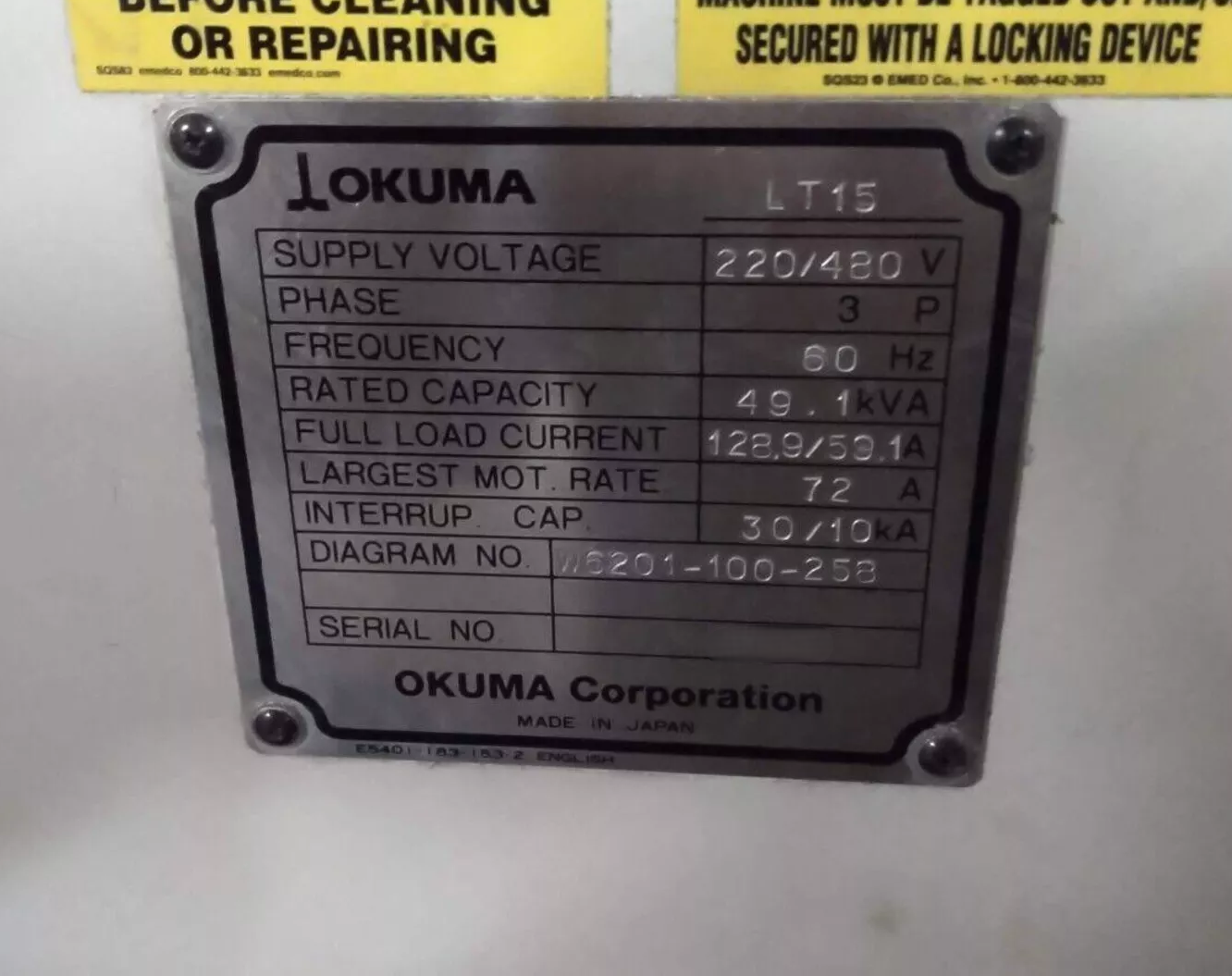

| Electrical: |
|---|
| Voltage: 220 / 480V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Rated Capacity: 49.1 KVA |
| Full Load Current: 128.9 / 59.1A |
| General: |
|---|
| Made in Japan |
| Slant Bed CNC Turning Center |
| Multi-Tasking Production Lathe |
| Twin Spindle Simultaneous Machining Capability |
