*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Okuma |
| Model: |
MA-40HA |
| Year: |
2003 |
| Machine Type: |
CNC Horizontal Machining Center |
| CNC Control: |

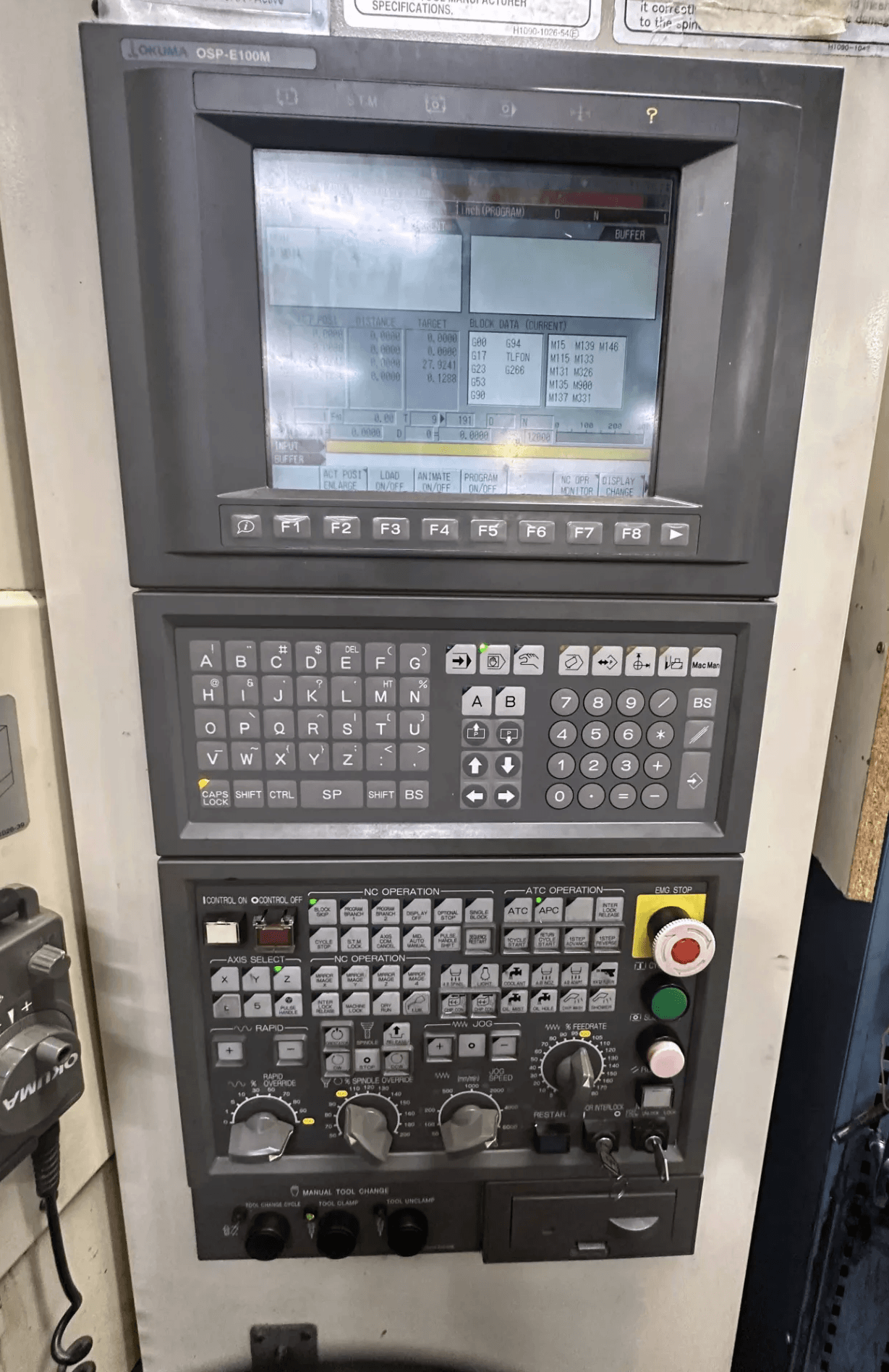

Okuma OSP-E100M CNC Control |
| Country of Origin: |
Japan |
| Equipped With: |
| Okuma OSP-E100M CNC Control |
| 2 Pallet Automatic Pallet Changer |
| 30 Position Automatic Tool Changer |
| 15,000 RPM High Speed Spindle |
| CAT 40 Spindle |
| Coolant Thru Spindle |
| Chip Conveyor |
| Renishaw Probing System |
| High-Pressure Coolant System |
| Automatic Lubrication System |
| Full Enclosure |
| Capacity: |
| Pallet Size: 15.75″ x 15.75″ |
| Maximum Pallet Load: 880 LBS |
| Travels: |
| X-Axis Travel: 22.05″ |
| Y-Axis Travel: 24.01″ |
| Z-Axis Travel: 24.61″ |
| Spindle: |
| Spindle Speed: 15,000 RPM |
| Spindle Motor: 35 HP |
| Spindle Taper: CAT 40 |
| Tool Changer: |
| Tool Capacity: 30 ATC |
| Feed Rates: |
| Rapid Traverse X-Axis: 1,574 IPM |
| Rapid Traverse Y-Axis: 1,574 IPM |
| Rapid Traverse Z-Axis: 1,574 IPM |

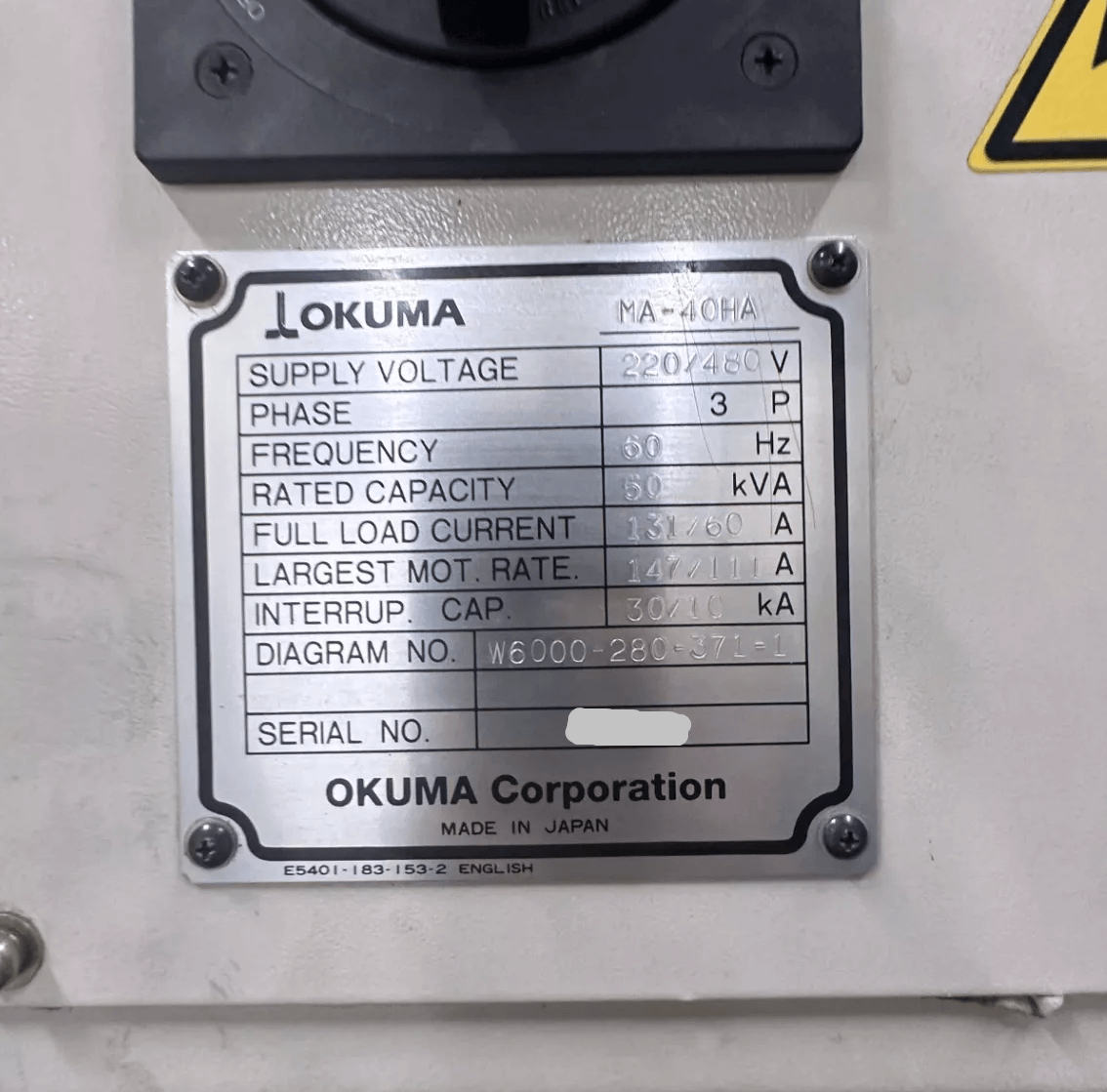

| Electrical: |
| Main Voltage: 220/480V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Rated Capacity: 50 kVA |
| General: |
| Power Source: AC 220/480V / 3-Phase / 60 Hz |
| Power Requirement: 50 kVA |
| Overall Dimensions: 170″ x 105″ x 120″ High |
| Weight: 25,000 lbs. Approx. |
