*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
-
Features:

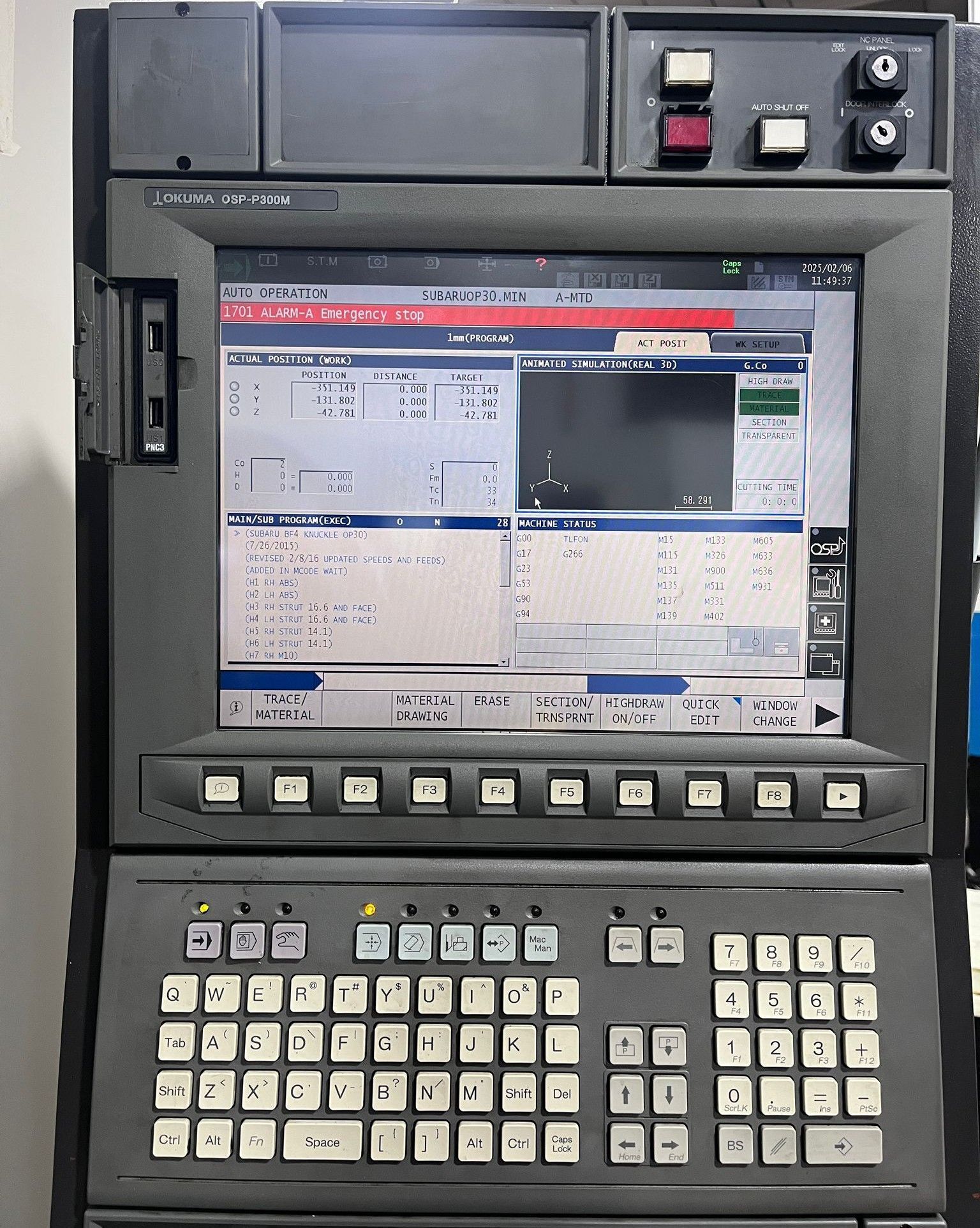

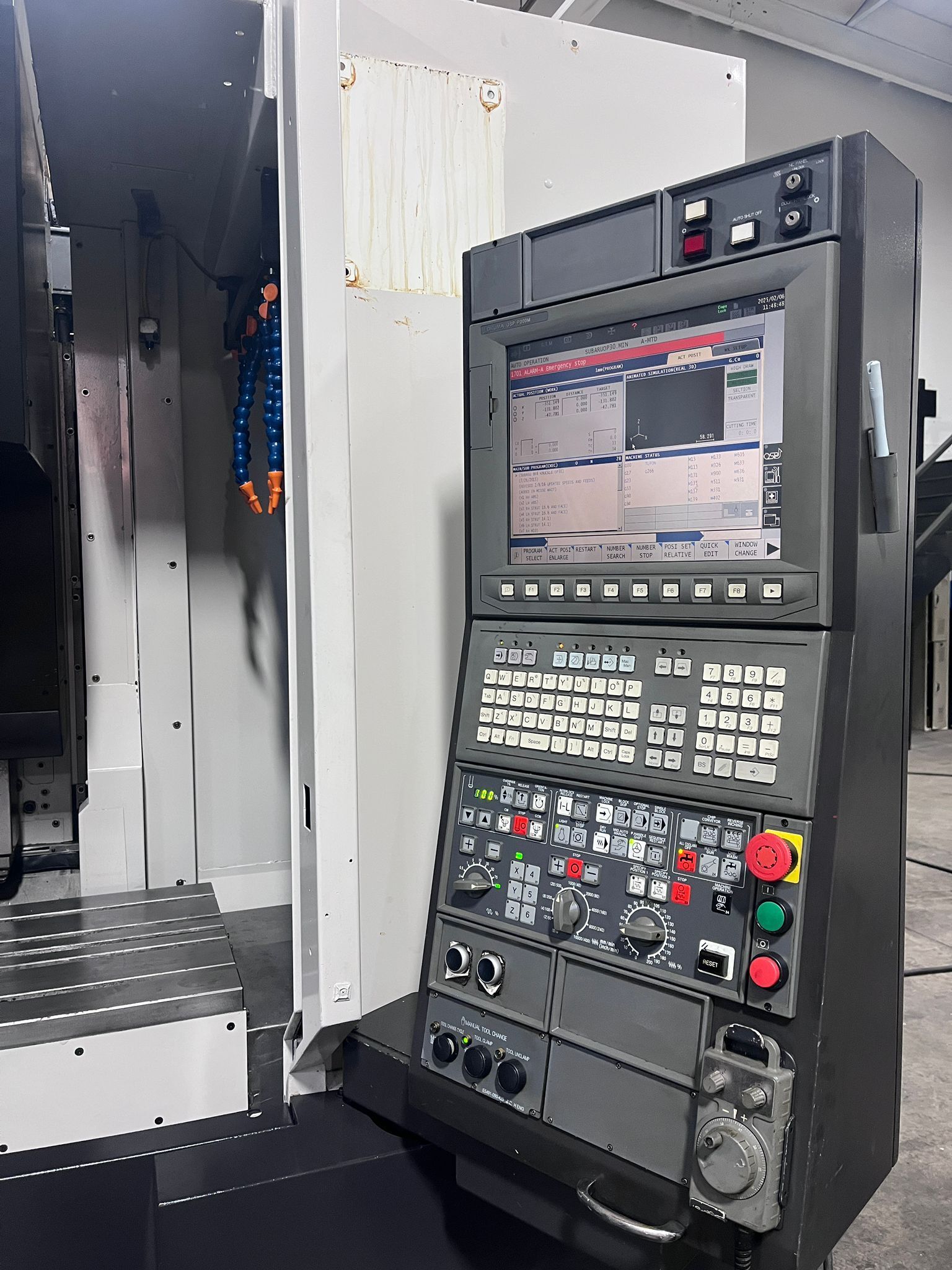

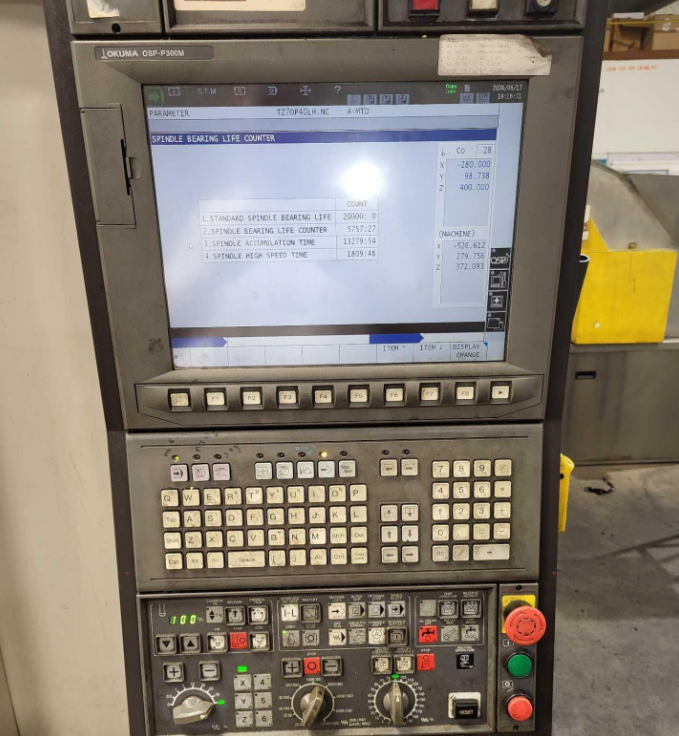

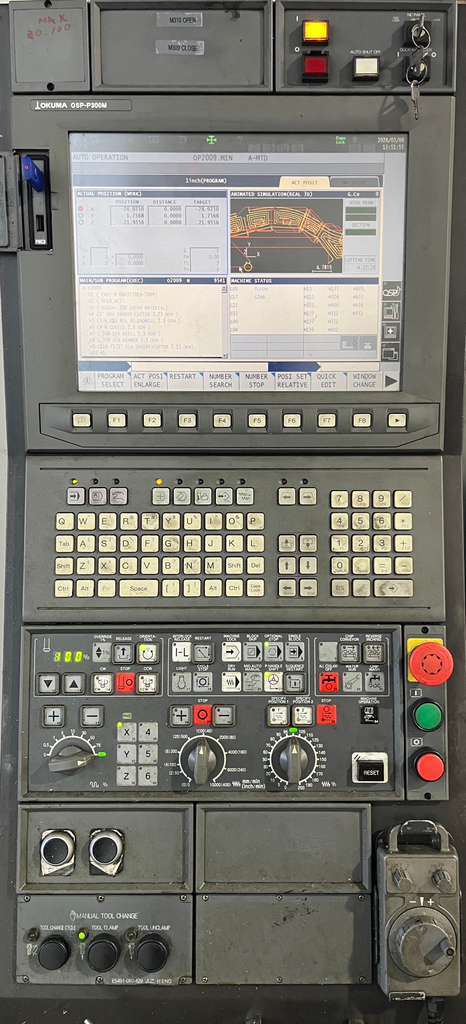

- Okuma OSP-P300M CNC Control
- USB Ports
- Rigid Tapping

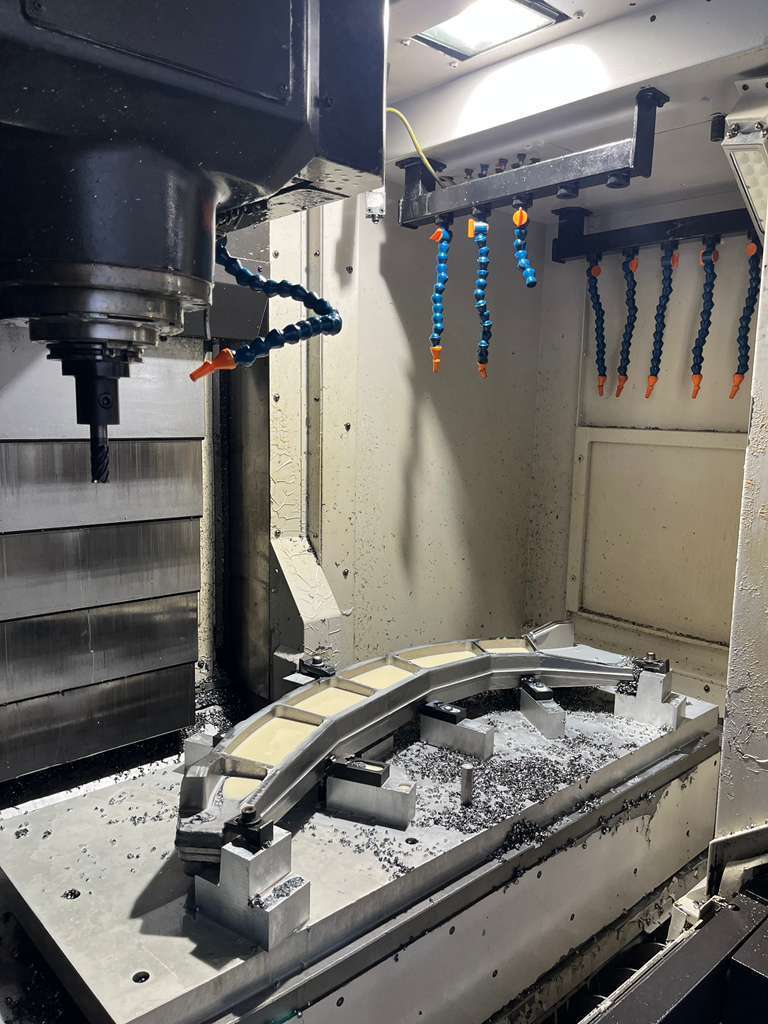

- Coolant System
- Telescopic Way Covers

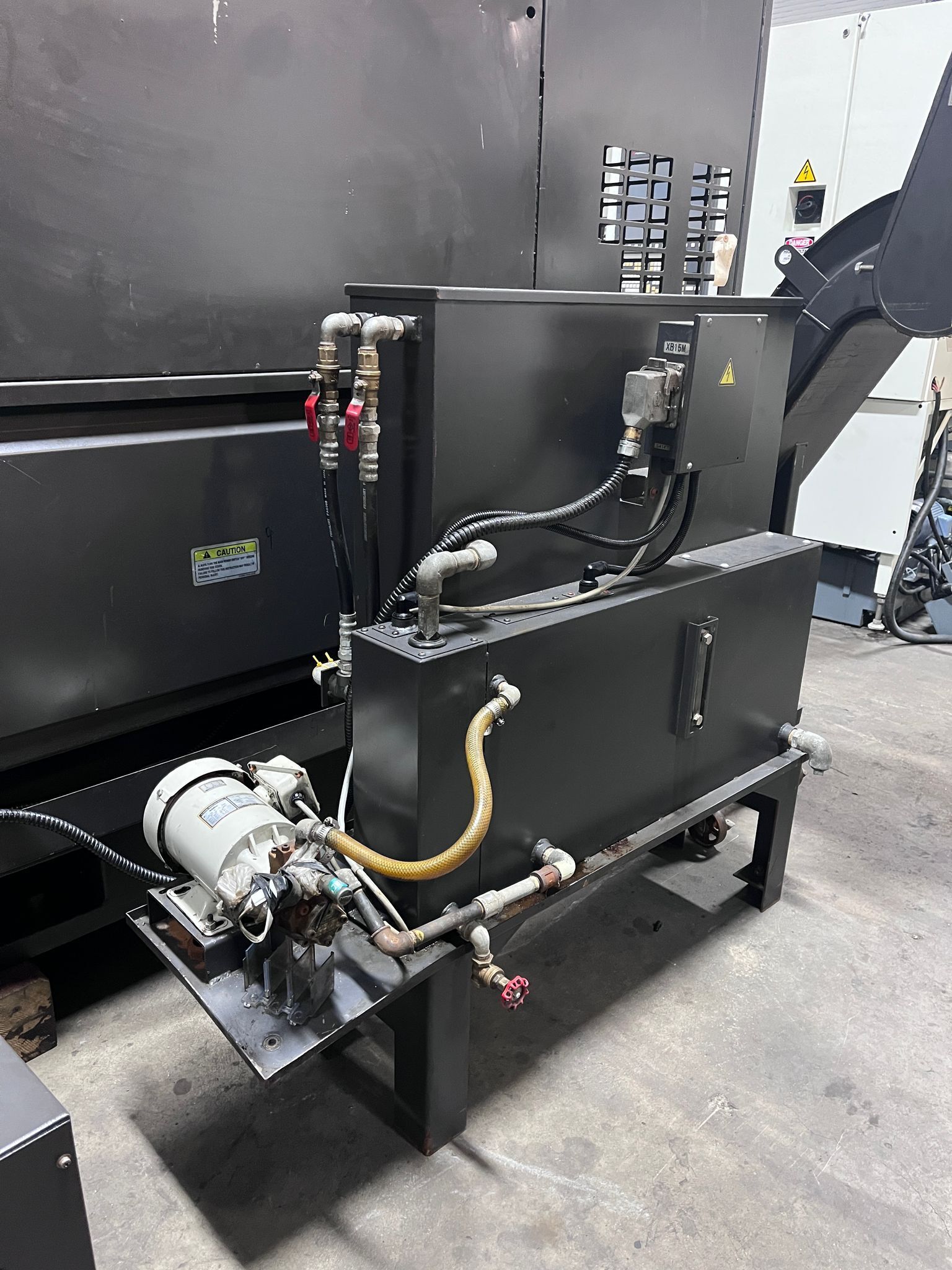

- Automatic Lubrication System
-
Travels:
- X-Axis: 51.18″
- Y-Axis: 22.04″
- Z-Axis: 22.04″
- X, Y Axis Rapid Traverse rates: 1575 IPM
- Z Axis Rapid Traverse rates: 1181 IPM
- Cutting Feedrate: 1181 IPM
- Spindle Nose to Table (Min.- Max.): 7.87″ – 29.92″
-
Table:
- Length: 51.18″
- Width: 22.04″
- T-Slot no. & Width: 5 X 0.7″
- Max Weight on Table: 2204 lbs
-

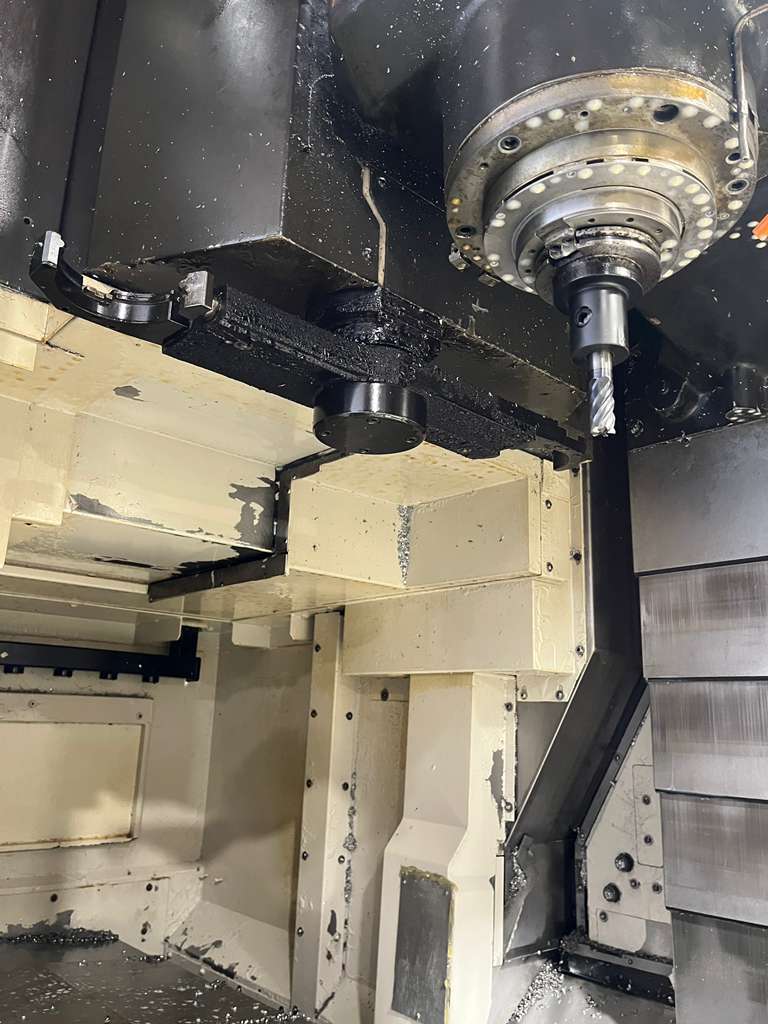

Spindle:
- Spindle Type: Gear Head
- Taper Size: CAT-50 Big Plus
- Speed Range: 6,000 RPM
- Spindle Power: 30 HP
-
Automatic Tool Changer:
- Capacity: 32 Station Side Mounted
- Max Tool Weight: 44 lbs
- Max Tool Length: 15.74″
- Max Tool Diameter: 5.31″
-
General:
- Air Required: 90 psi, 4 scfm

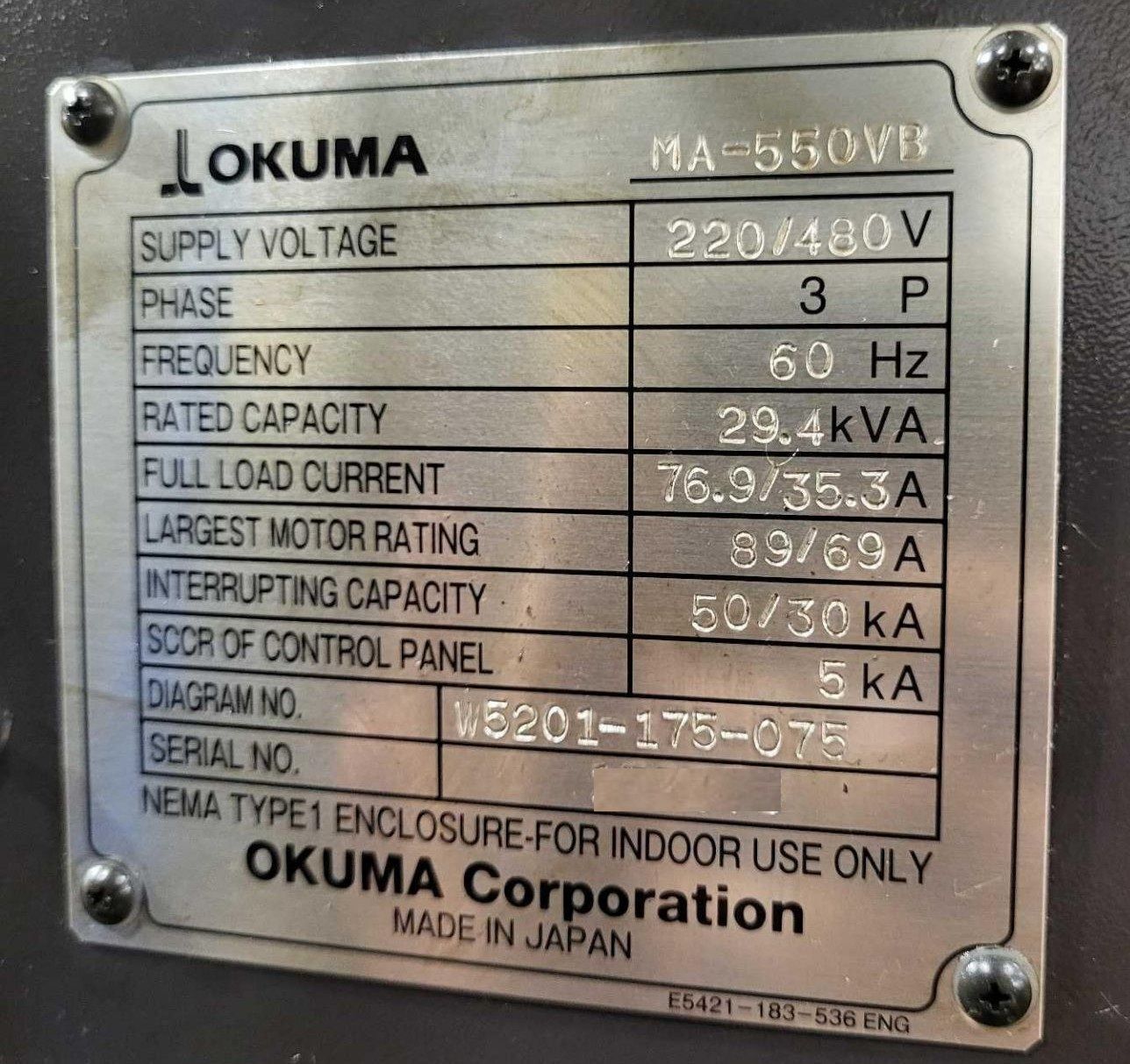

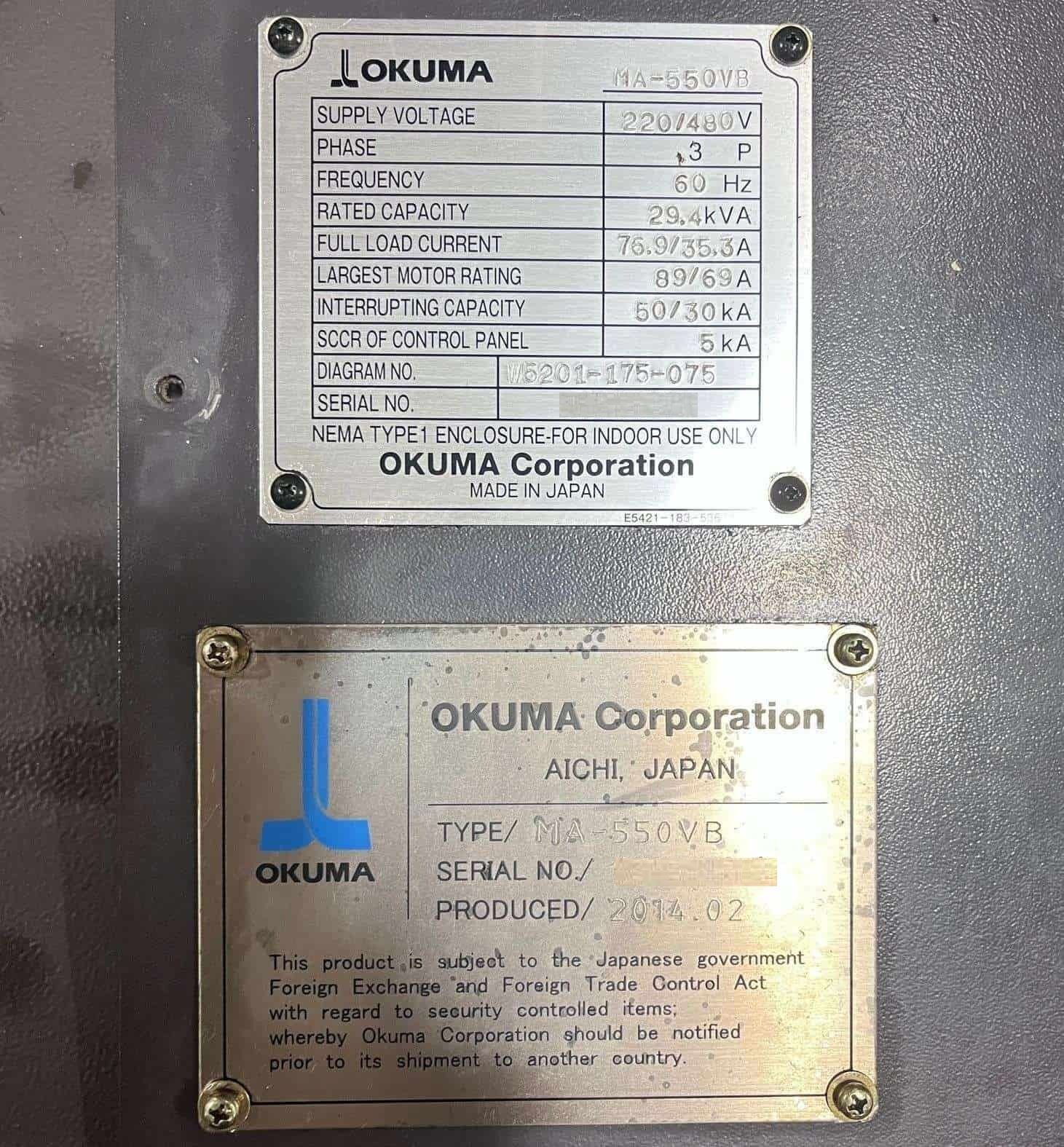

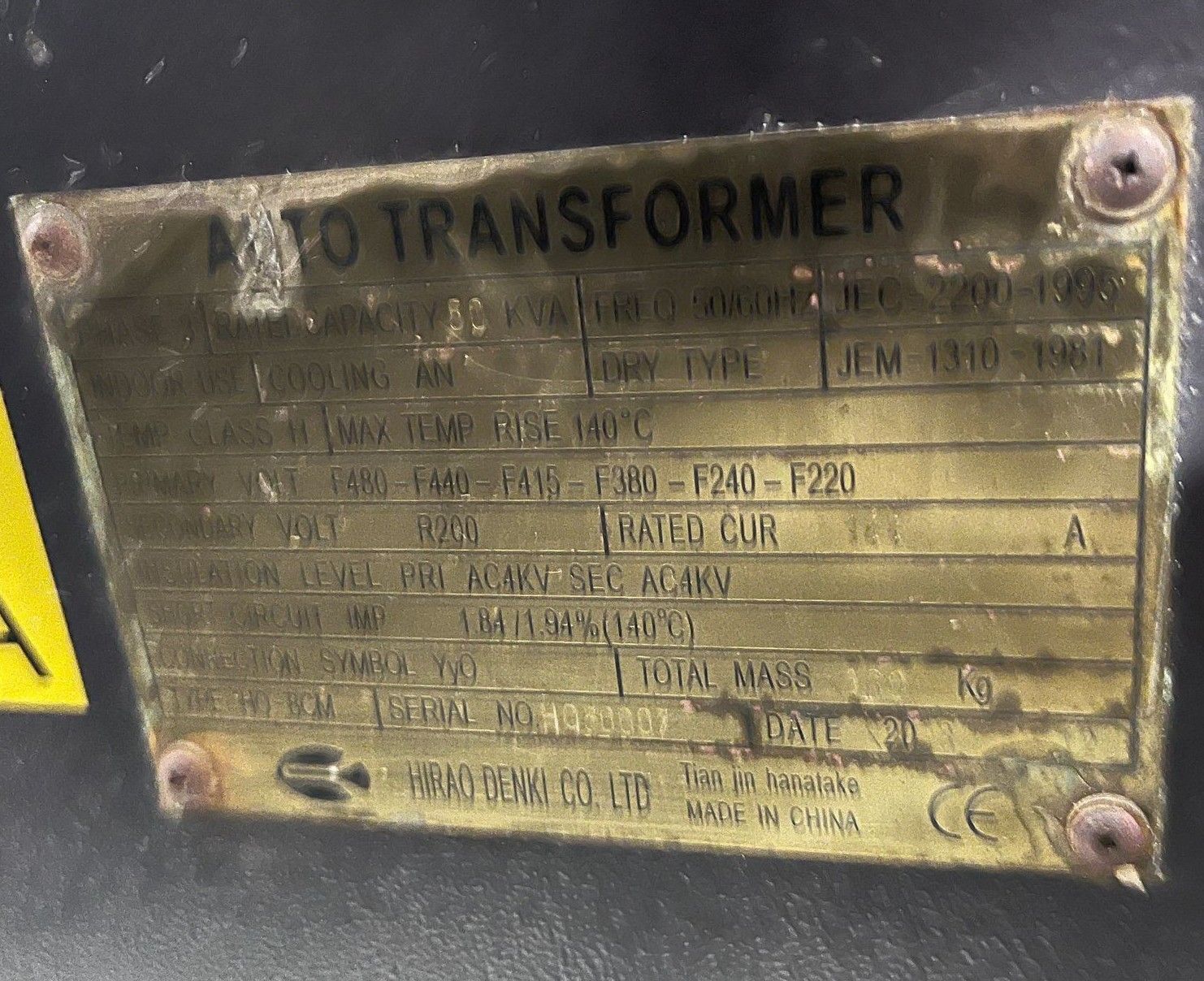

- Power: 440v/220v / 29.4kva / 3-Phase
- Overall Dimensions: 126″ x 112″ x 114″ High
- Weight: 29,960 lbs. Approx.
