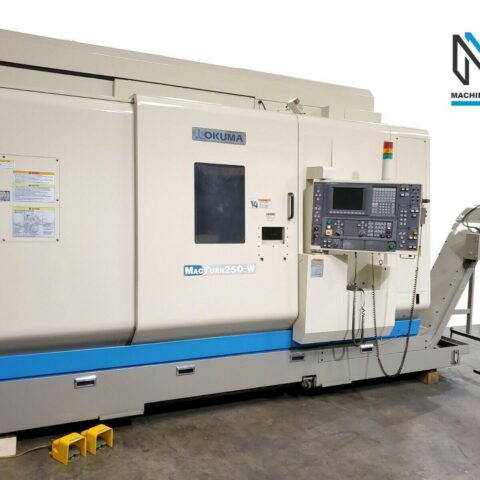

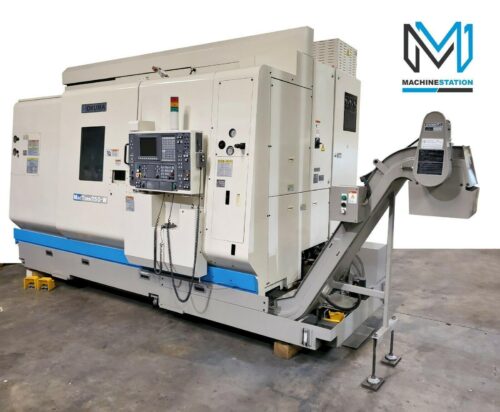

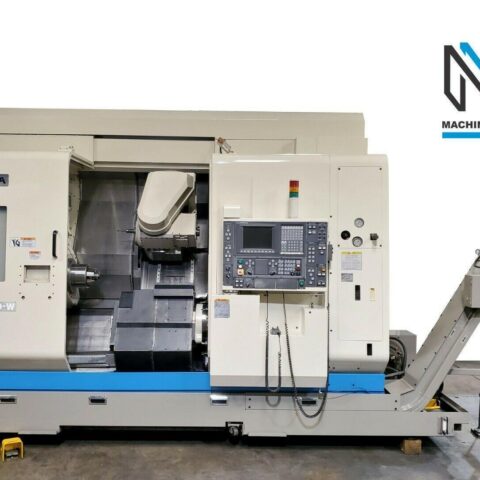

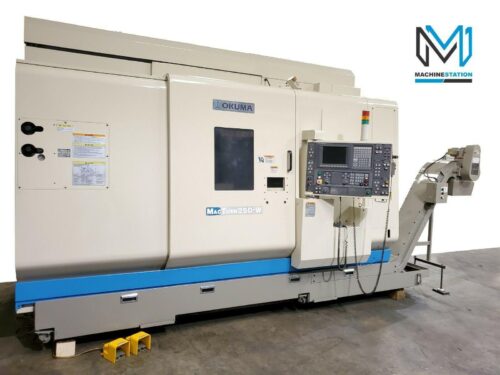

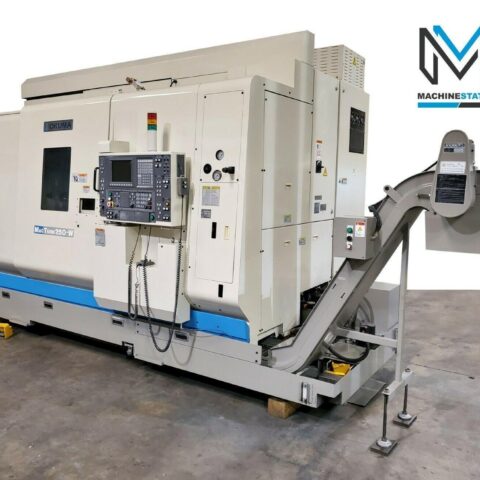

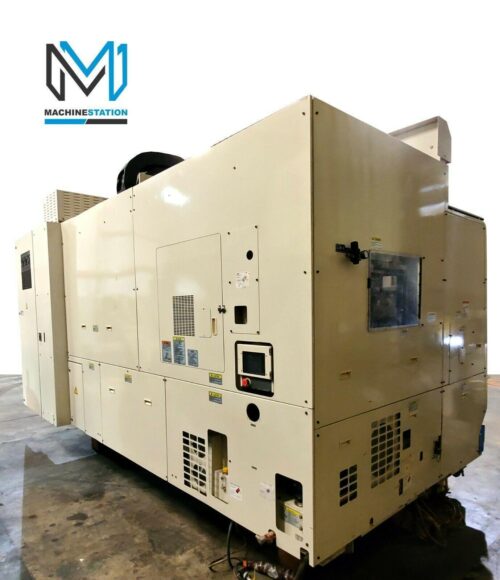

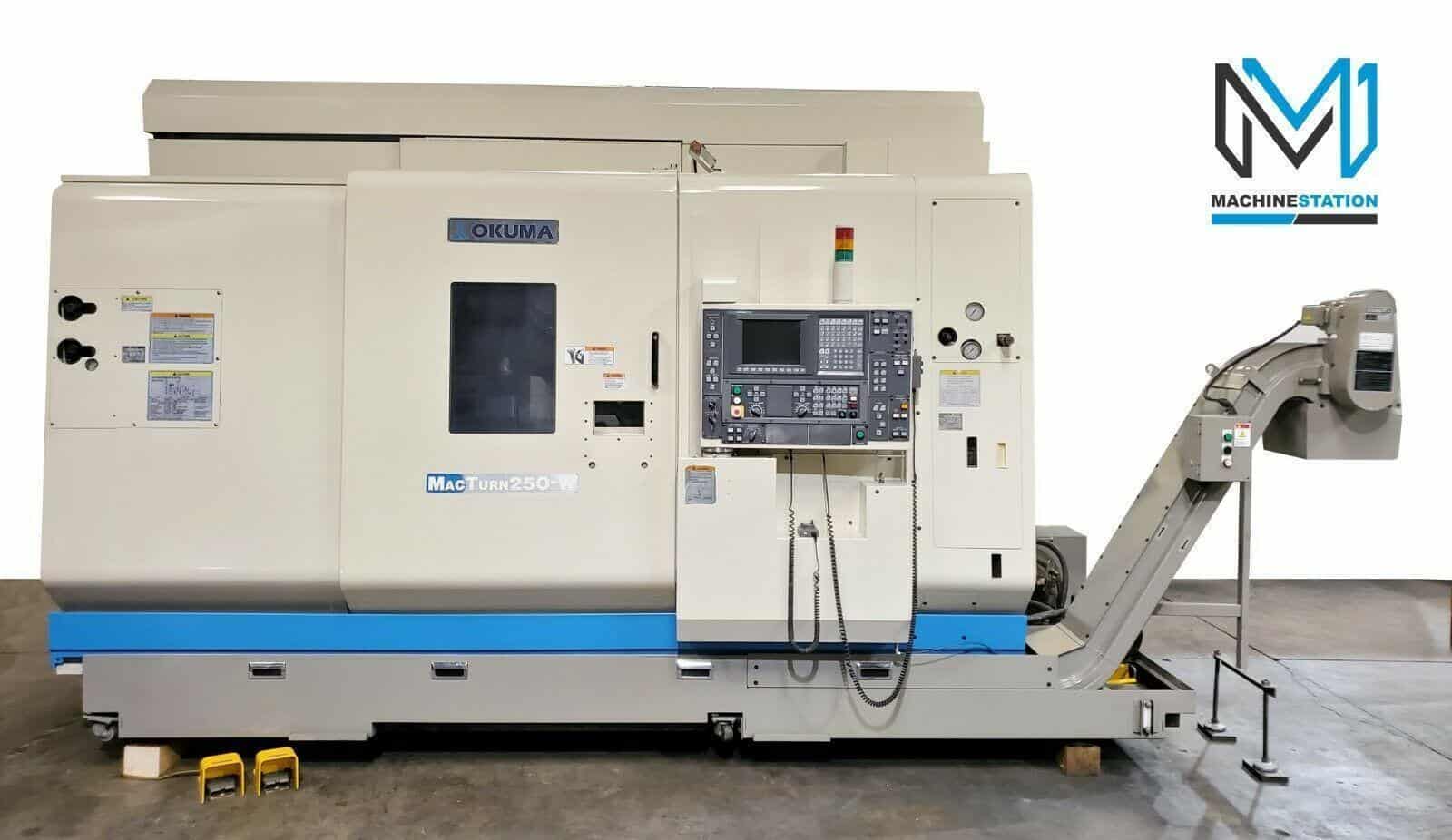

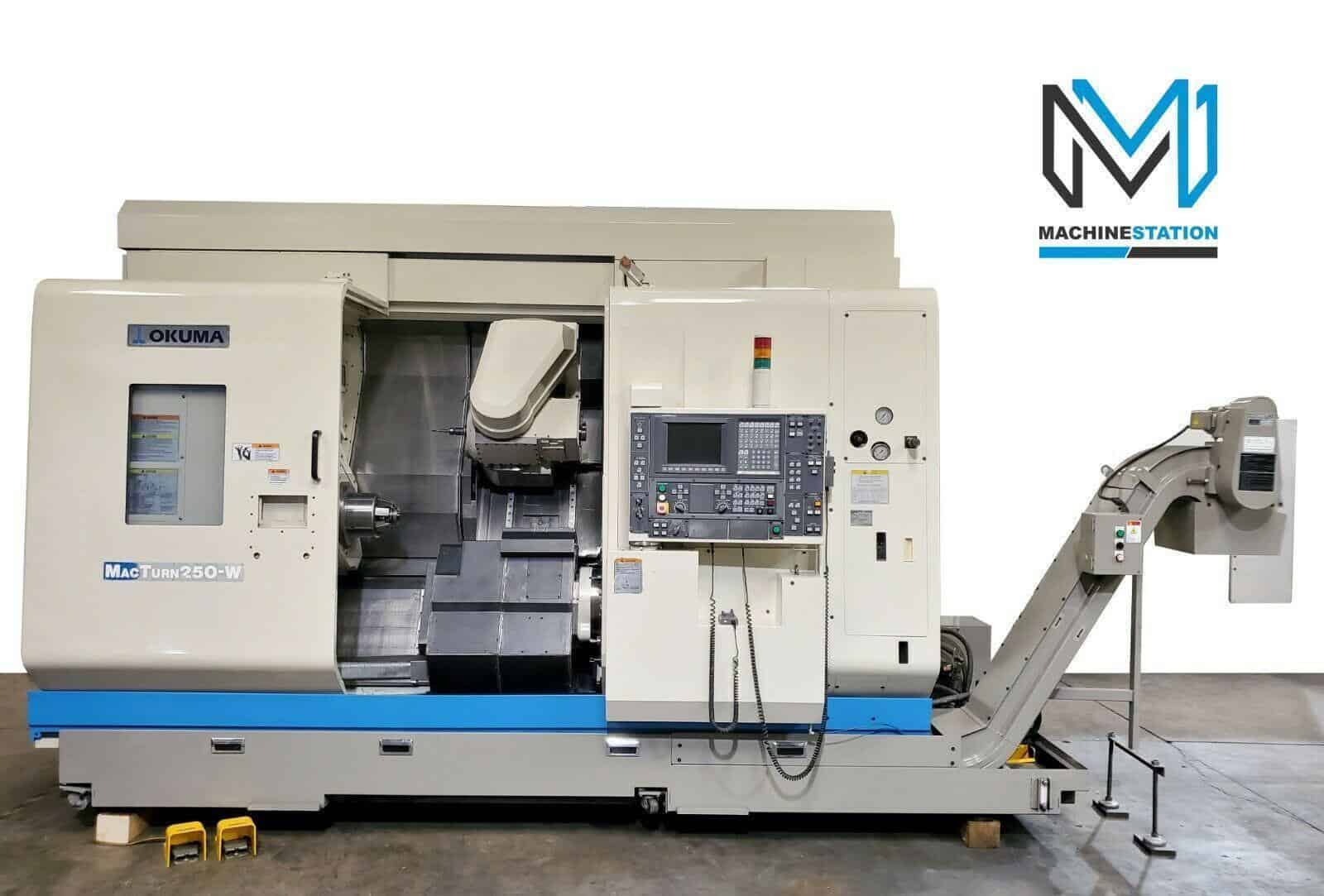

Okuma Macturn 250-W CNC 7 Axis Turn Mill Lathe


Qty =


Product Description

SKU# 1989
Model No.: MacTurn 250-W

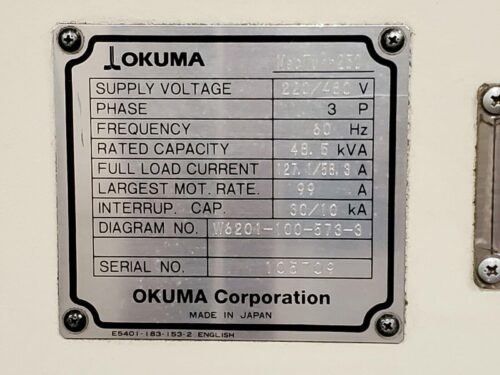

Serial No.: 105709
YEAR: 2004
Condition: Very Good
Comes with Chucks, Tool Holders, Chip Conveyor & Manuals

All specifications are approximations, and are subject to verification.

Okuma Macturn 250-W CNC 7 Axis Turn Mill Lathe Equipped With:

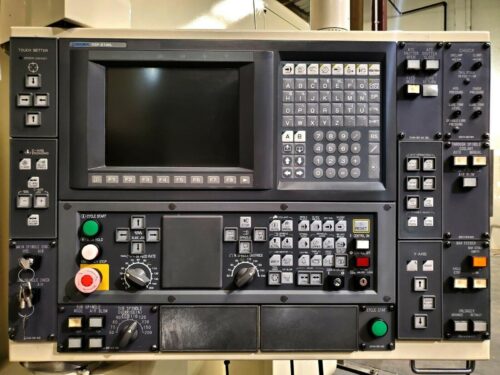

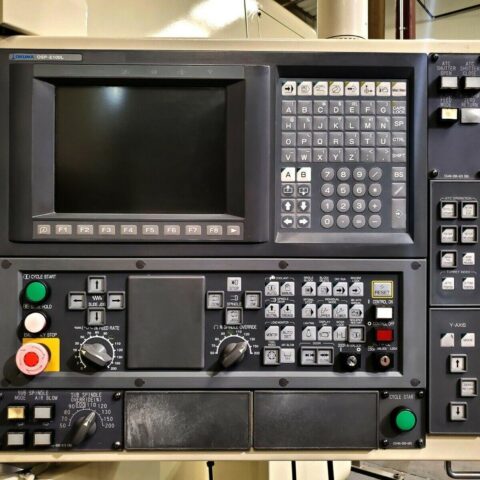

OSP-E100L CNC Control

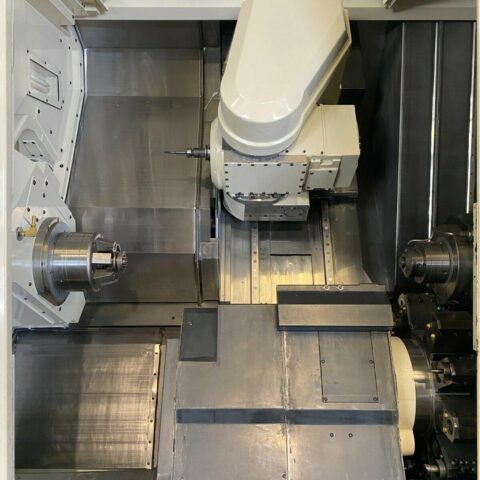

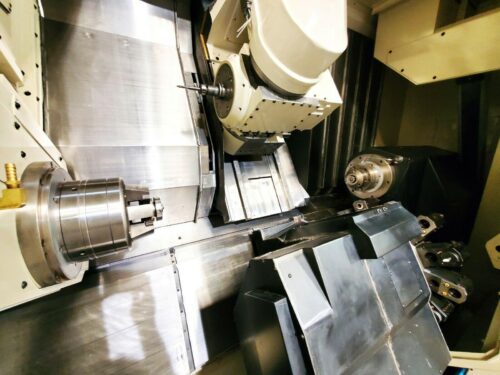

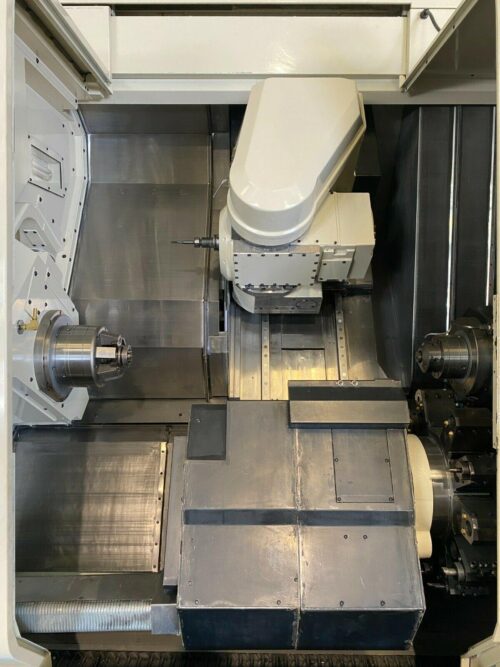

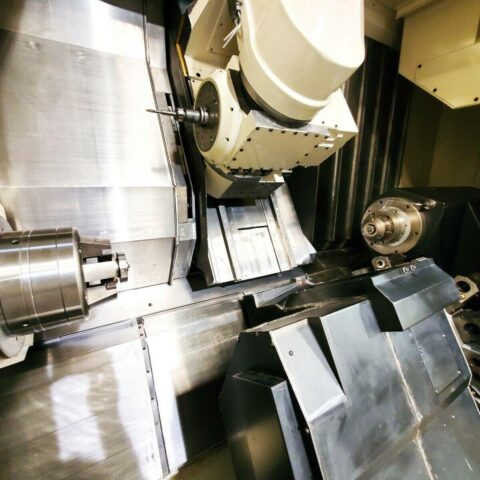

12000 RPM Pendulum Milling Head
Powerful (22kw) 30 HP high-torque integral spindle motors
High speed 5,000 RPM spindles
Servo driven 40 station ATC with 1.8 sec tool to tool time
Servo Controlled Full C-Axis on Both Spindles
12 Station lower turret with Live tool capability
Y Axis Capability
PCMCIA Card Slot
Tool monitoring system – wear and breakage detection
Automated Parts Unloading system
8″ Big Bore Chuck on Main Spindle
8″ Chuck on Sub Spindle
Rigid Tapping on Both Spindles
Foot Operated Control for Chuck
High Pressure Coolant System

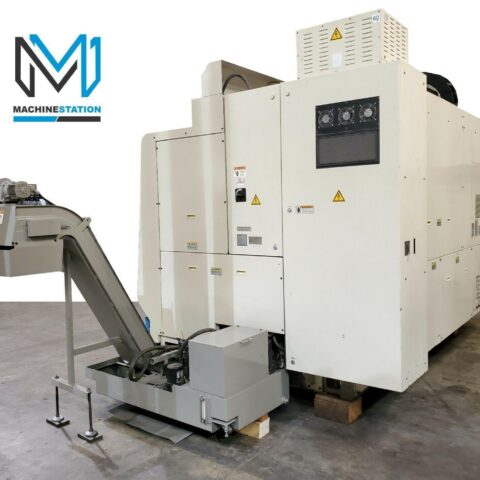

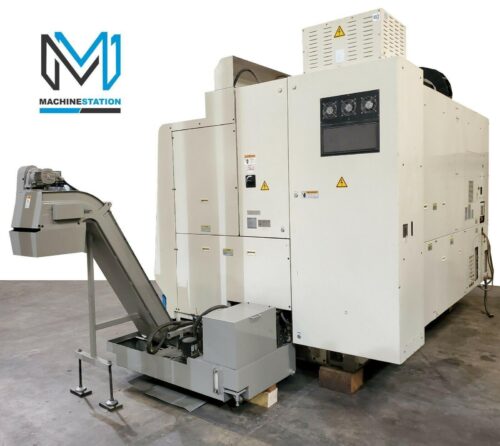

Chip Conveyor
Inbuilt Transformer
Chiller Unit
Comes with Tools, Chip Conveyor, Books & Manuals.

Okuma Macturn 250-W CNC 7 Axis Turn Mill Lathe Specifications:
Max Turning Diameter Upper Turret : 21.25″
Max Turning Diameter Lower Turret : 11.89″
Max Swing Upper Turret : 29.5″
Max Swing with Y Axis : 19.70″
Max Swing over Cross Slide : 23.6″
Max Turning Length: 40.15″
Max Bar Capacity Main Spindle : 2.625″
Max Bar Capacity Sub Spindle : 2.55″
Max Weight on Main & Sub Spindle : 1322 lbs
Max Distance Between Main & Sub Spindle: 52.50″

X1 Axis Travel Upper : 22.24″
X2 Axis Travel Lower : 7.36″
Z1 Axis Travel Upper : 41.3″
Z2 Axis Travel Lower : 41.3″
Y Axis Travel: 6.7″
W Axis Travel: 41.34″ ( Sub Spindle )
C Axis: 360° (0.001°) Both Spindle
B Axis Travel: 240°

Feedrate: Rapid Traverse:
X Axis: 1417 IPM Rapid Traverse
Z Axis: 1417 IPM Rapid Traverse
Y Axis: 1351 IPM Rapid Traverse
B Axis: 1181 IPM

Main Spindle Bore: 2.99″
Sub Spindle Bore: 2.99″
Main Spindle Nose: A2-6 Sub
Spindle Nose: A2-6
Main Spindle Speed: 35-5000 RPM
Sub Spindle Speed: 35-5000 RPM
Main Spindle Power: 22 kw
Sub Spindle Power: 22 kw

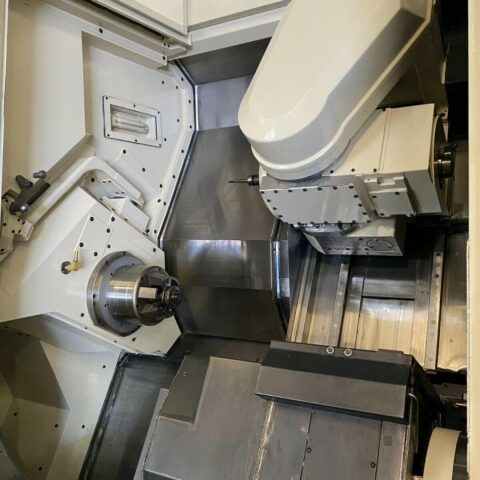

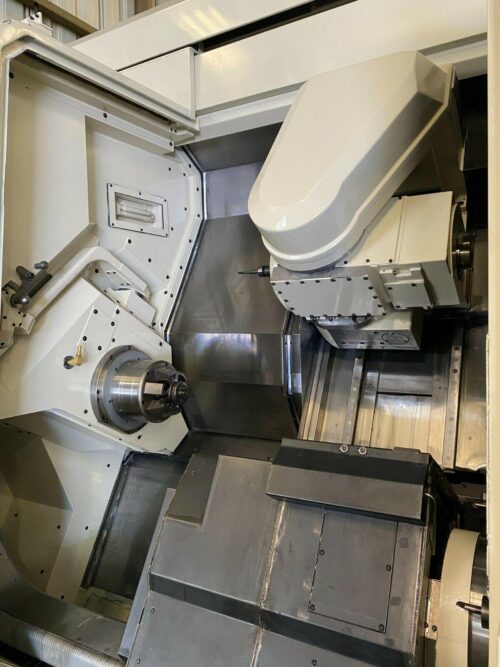

Milling Head: Single Station Pendulum Head with 40 ATC
Tool Type: CAPTO-C6, 40 Taper
Spindle Speed: 15-12000 RPM
Spindle Motor: 18.5 kw
Spindle 5°
Index Time: 0.5 Sec

Lower Turret:
Capacity: 12 Live Stations Tool
Holder Type: BMT-55P
Turret Index Time: 0.2Second OD
Tool Size: 1.00″ ID
Tool Size : 1.50″ Live
Tool Speed: 5000 RPM

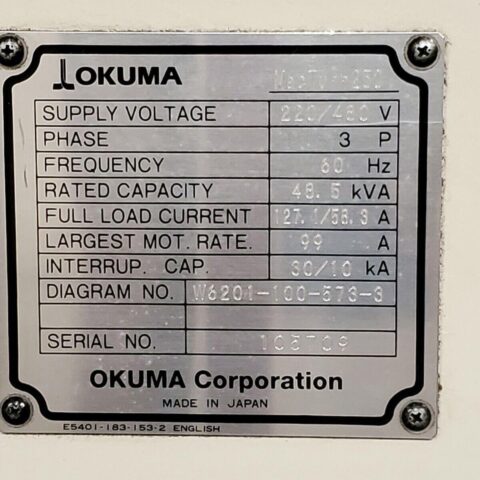

Power: 87 kva, 220v / 3-Phase
Air Required: 71 PSI Overall
Dimensions: 192″ x 99″ x 110″
High Overall Dimensions: 210″ x 99″ x 110″ High with Chip Conveyor
Weight: 26,500 lbs

“No Charges for loading at list Price”

Comes as shown in pictures..
