*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | Okuma |
| Model: | MB-5000H |
| Machine Type: | Horizontal Machining Center |
| Condition: | Used |
| Equipped With: |
|---|

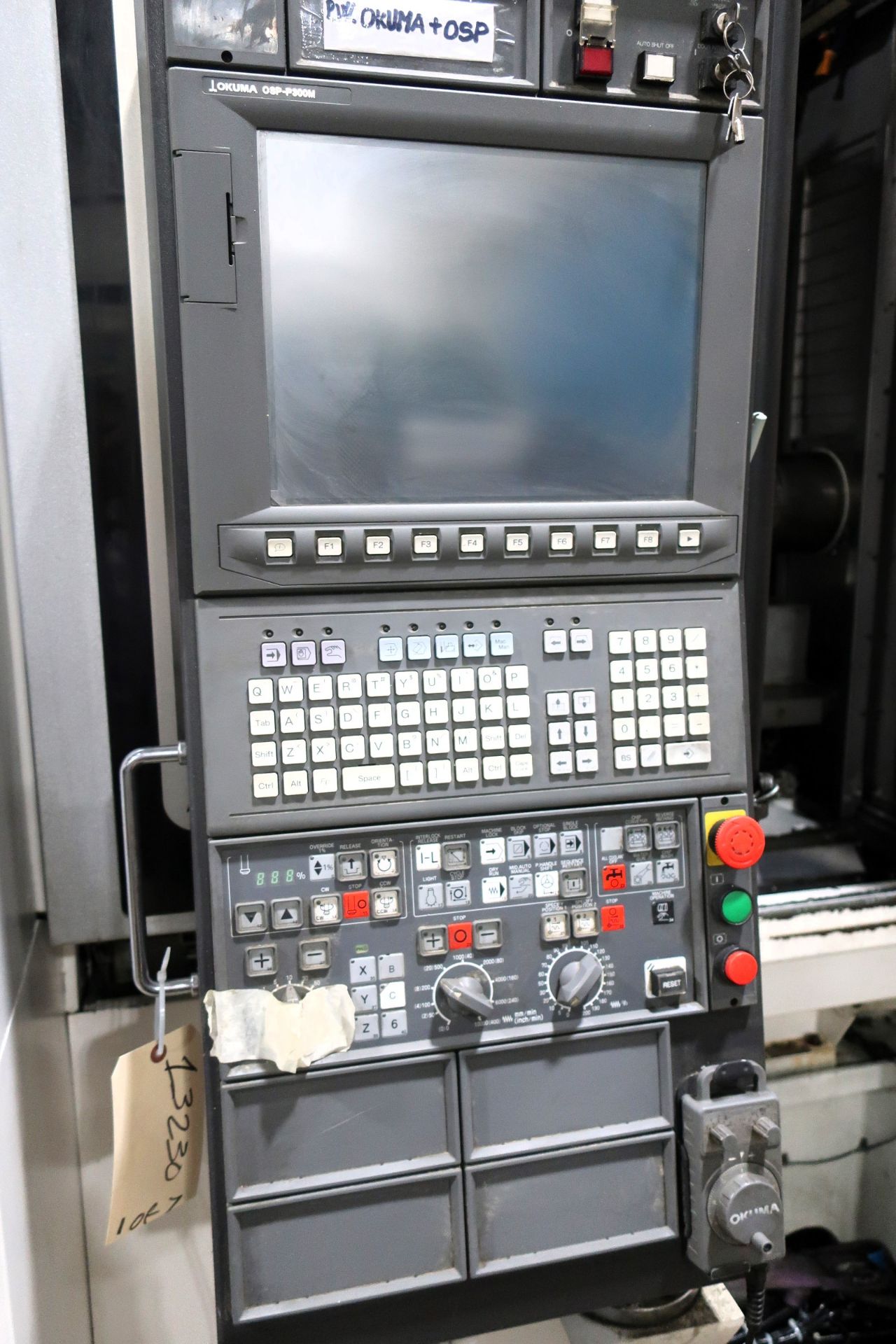

| OSP CNC Control |
| Automatic Pallet Changer (2-Pallet) |
| Full 4th-Axis Rotary Table |
| Automatic Tool Changer |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Travels: |
|---|
| X-Axis Travel: 29.5″ |
| Y-Axis Travel: 29.5″ |
| Z-Axis Travel: 31.5″ |
| Pallet & Table: |
|---|
| Pallet Size: 19.7″ × 19.7″ |
| Max Workpiece Size: 29.5″ × 39.4″ |
| Max Pallet Load: 1,764 lbs |
| Spindle: |
|---|
| Spindle Taper: BT40 |
| Spindle Speed: 15,000 RPM |
| Spindle Motor: 30 HP |
| Spindle Type: Built-In Motor |
| Feedrates: |
|---|
| Rapid Traverse X/Y/Z: 2,362 IPM |
| Cutting Feedrate: 472 IPM |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 40 Tools |
| Max Tool Diameter: 3.9″ (Adjacent Empty) |
| Max Tool Length: 15.7″ |
| Max Tool Weight: 18 lbs |
| General: |
|---|
| Power Requirement: 220V / 3-Phase |
| Machine Weight (Approx.): 26,500 lbs |
