*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: |
Okuma |
| Model: |
MB-5000H |
| Condition: |
Used |
| Equipped With: |

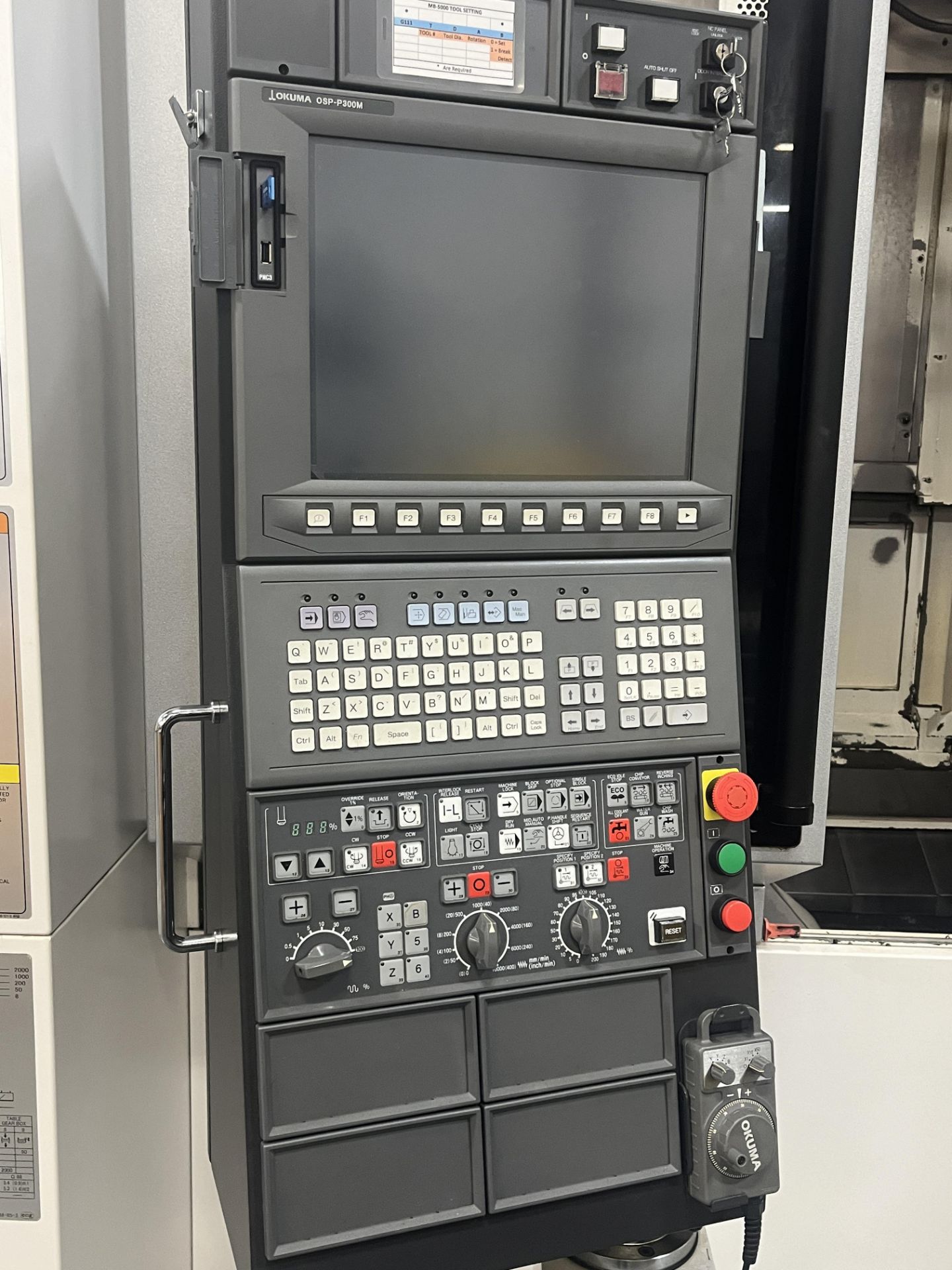

- Okuma OSP-P300M CNC Control
- Thermo-Friendly Concept

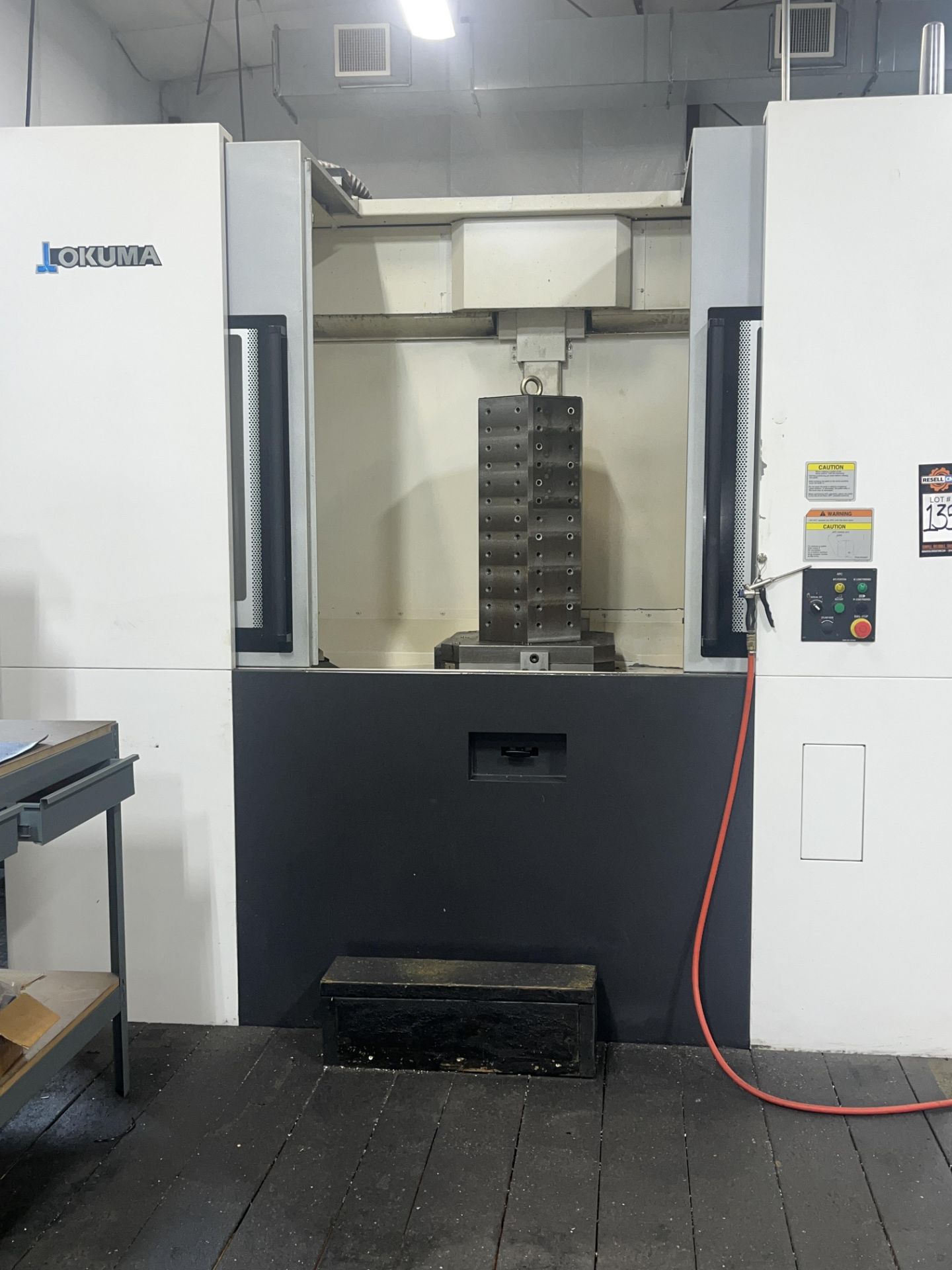

- Automatic Pallet Changer (2-Pallet Rotary Shuttle)
- Full 4-Axis Machining Capability
- High-Speed Horizontal Machining Design
- Automatic Tool Changer
- Coolant System

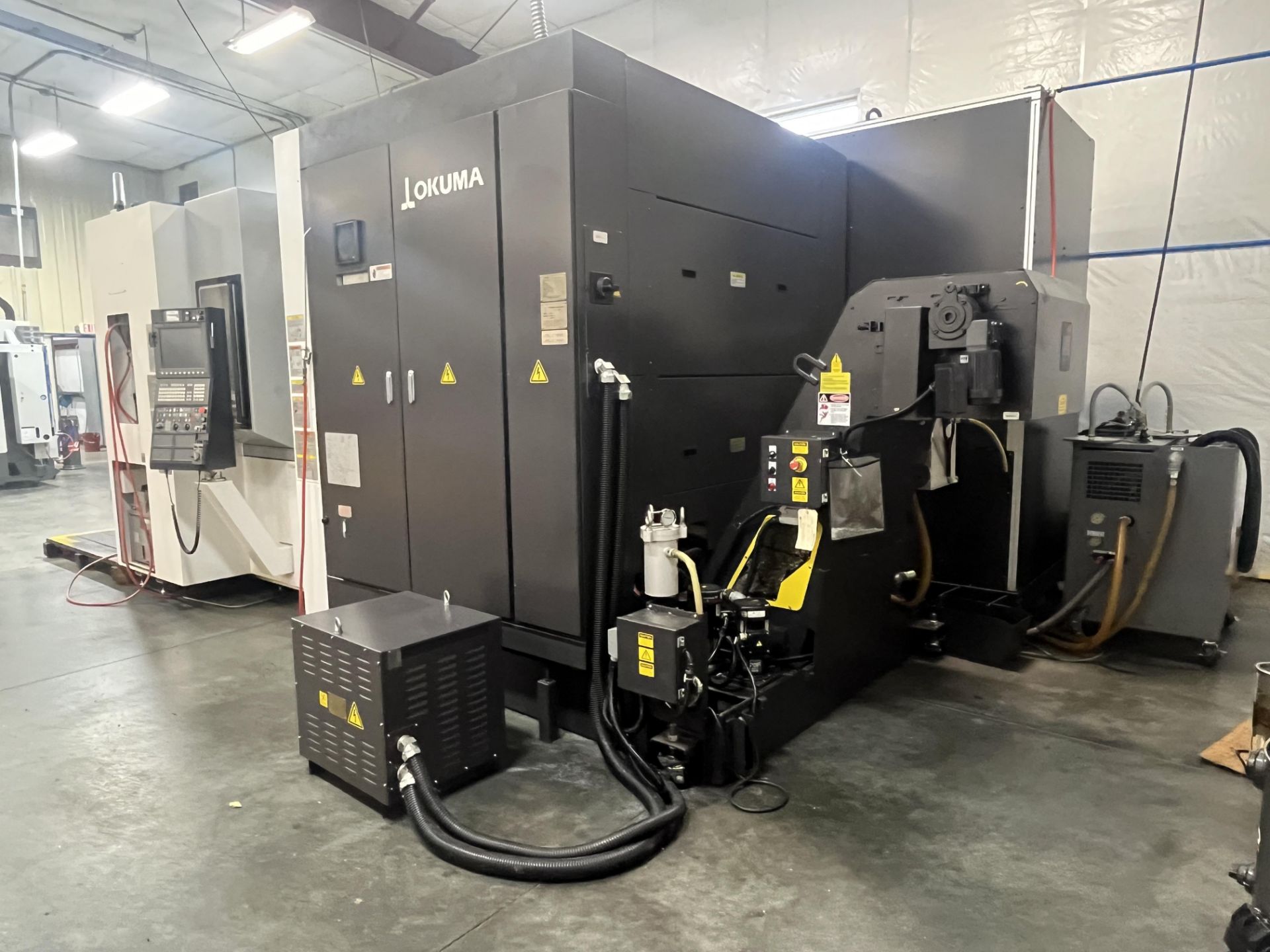

- Chip Conveyor
- Full Enclosure
|
| Capacity: |
- Pallet Size: 19.7″ × 19.7″
- Max Workpiece Diameter: 31.5″
- Max Workpiece Height: 39.4″
- Max Table Load: 1,763 lbs
|
| Travels: |
- X-Axis Travel: 29.9″
- Y-Axis Travel: 29.9″
- Z-Axis Travel: 29.9″
- B-Axis Indexing: 1° (0.001° Optional)
|
| Spindle: |
- Spindle Taper: CAT-40 (Optional HSK-A63)
- Spindle Speed: 15,000 RPM
- Spindle Motor: 35 HP (10-min) / 25 HP (Continuous)
- Integral Motor Spindle
|
| Feedrates: |
- Rapid Traverse X/Y/Z: 2,362 IPM
- Cutting Feedrate: 0.04″ – 2,362″/min
|
| Automatic Tool Changer: |
- Tool Capacity: 48 Tools (64 Optional)
- Max Tool Diameter: 2.76″ (5.91″ Adjacent Empty)
- Max Tool Length: 11.81″
- Max Tool Weight: 22 lbs
|
| General: |

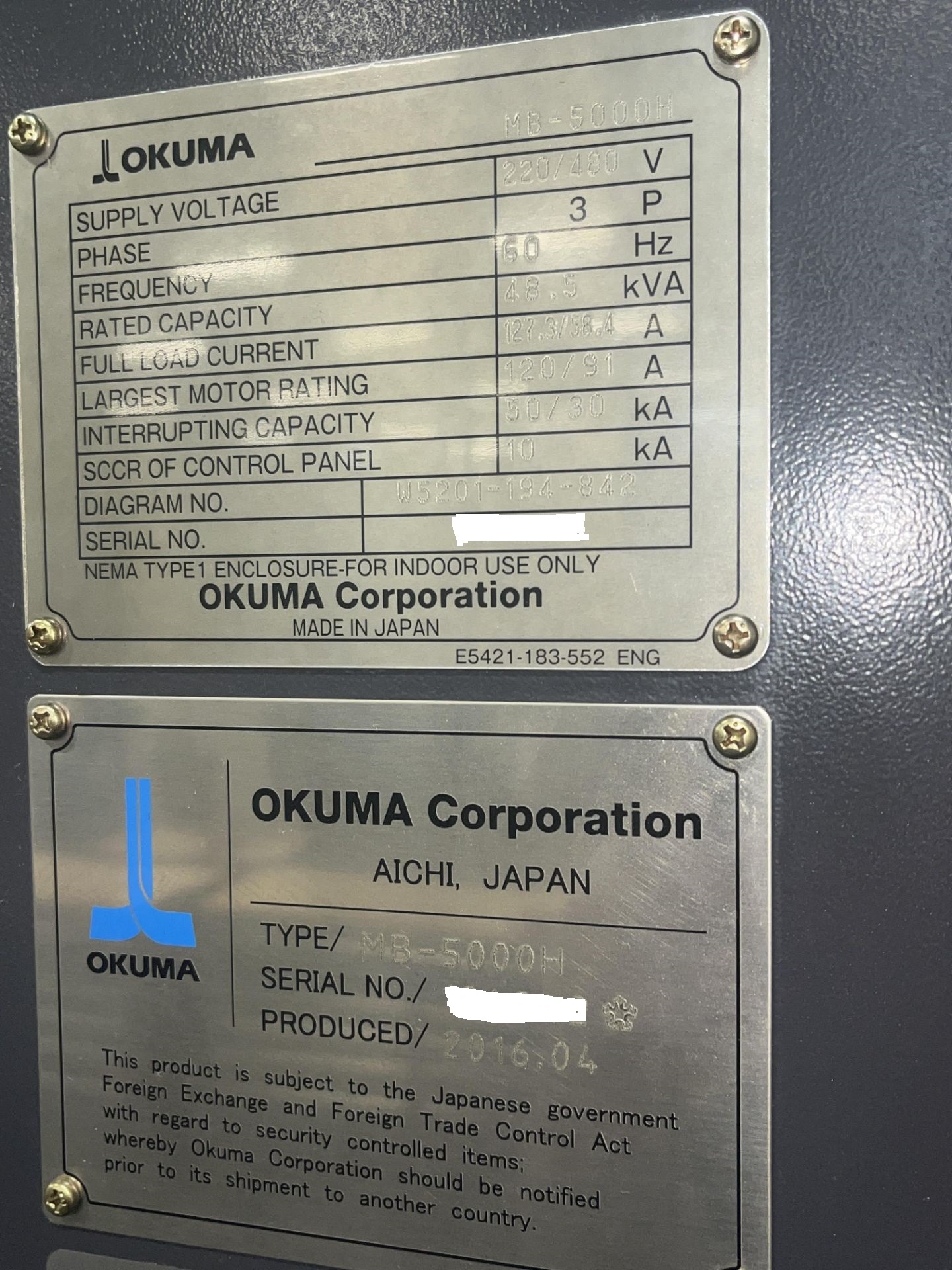

- Power Requirement: 220V / 3-Phase
- Machine Weight (Approx.): 26,000 lbs
- Floor Space Required (Approx.): 155″ × 295″
|
