*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

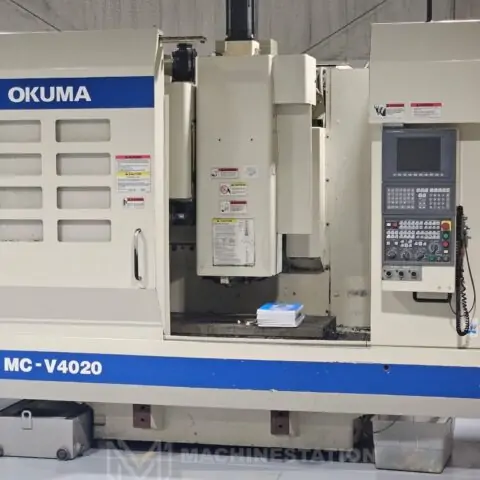

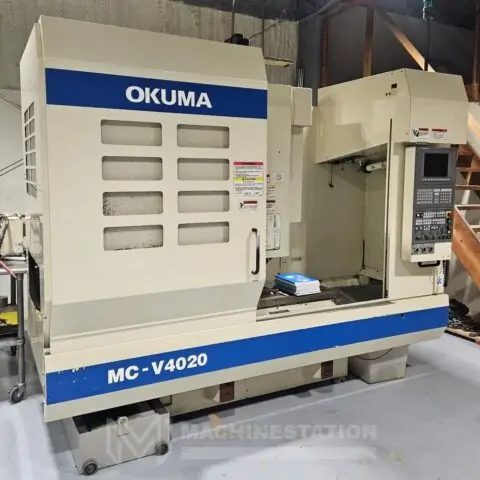

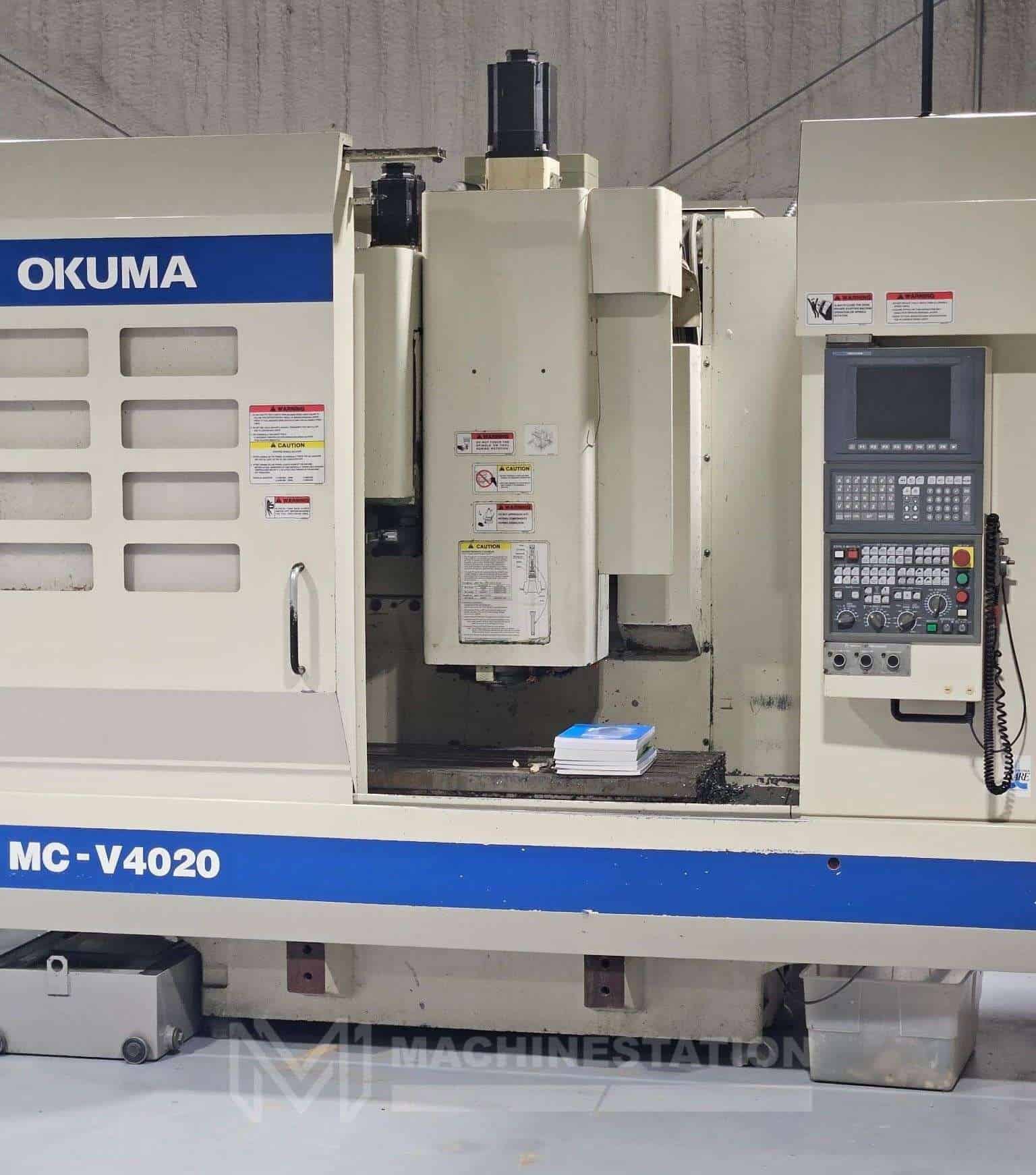

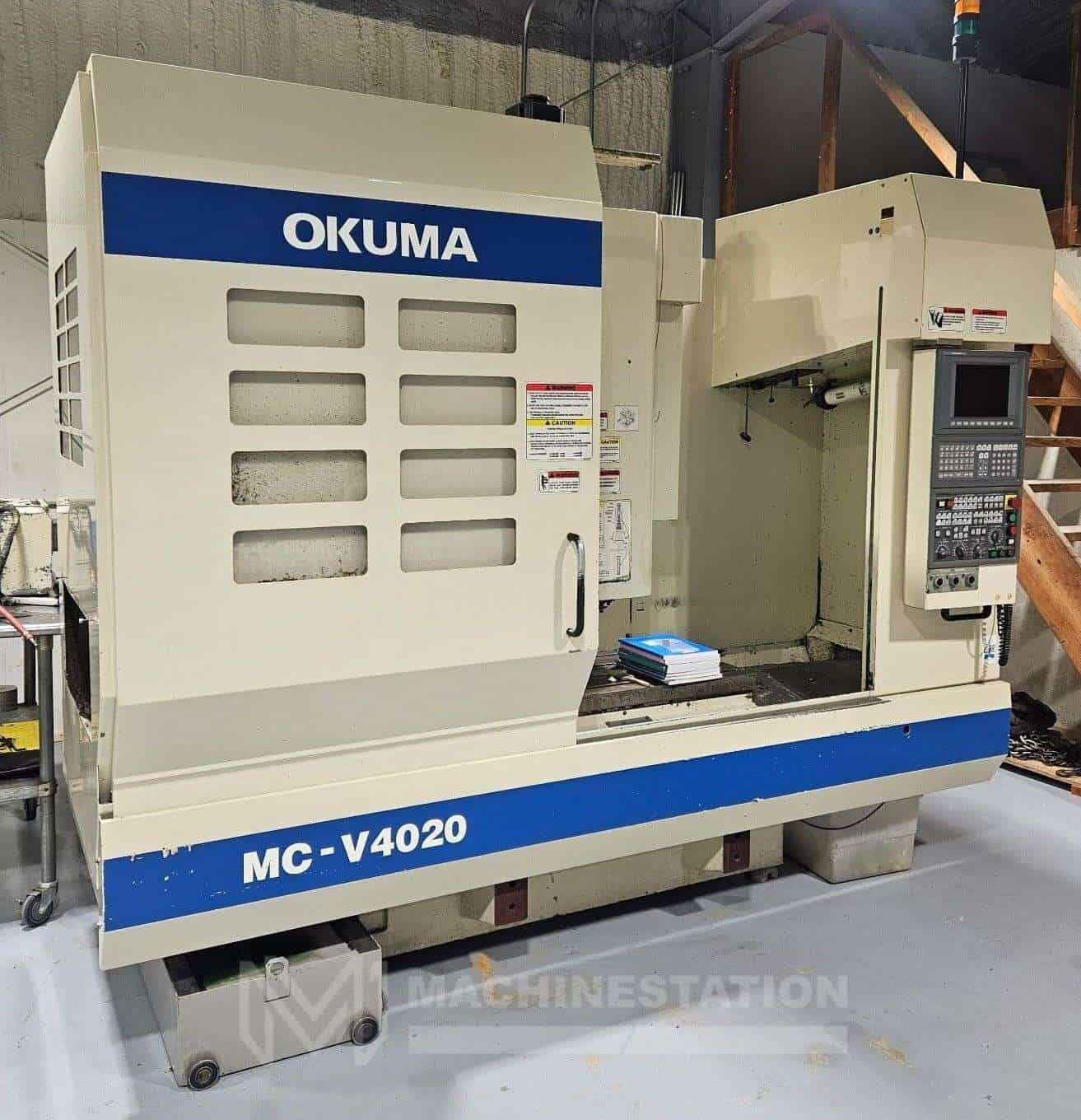

| Make: | Okuma |
| Model: | MCV4020 |
| Year: | 2005 |
| Condition: | Used – Good |
| Features: |
|---|
| Okuma CNC Control |

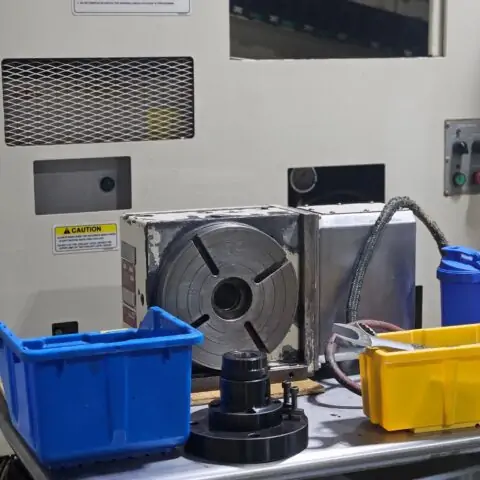

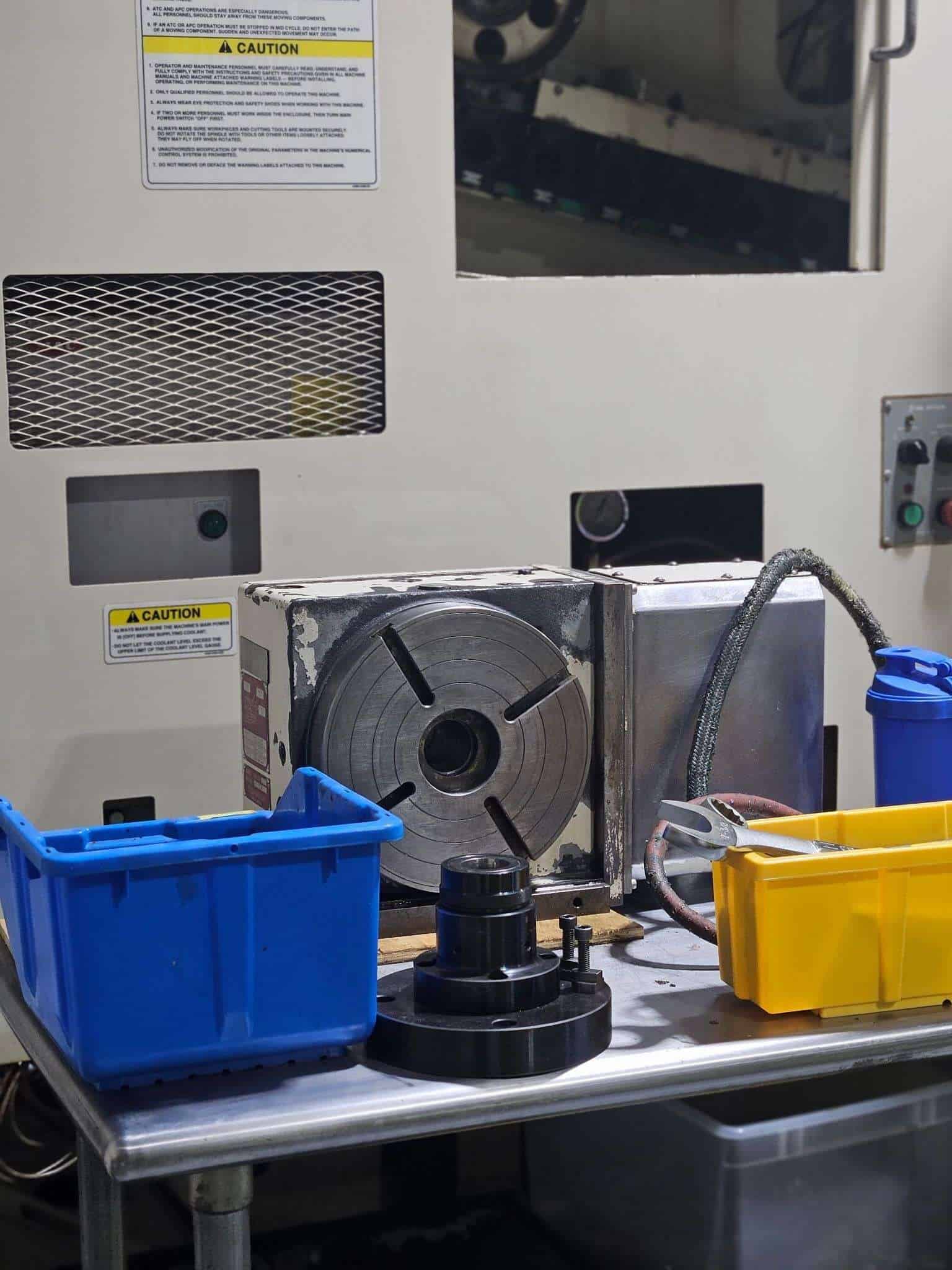

| 4th Axis Rotary Table |
| 8,000 RPM Precision Spindle |
| 20 Station Automatic Tool Changer |
| 20 HP High Torque Spindle |
| Rigid Tapping |
| Coolant System |
| Chip Tray |
| Travel: |
|---|
| X-Axis: 40.0″ |
| Y-Axis: 20.0″ |
| Z-Axis: 17.7″ |
| Rapid Traverse Rates X & Y Axis: 1417 Inch Per Minute |
| Rapid Traverse Rates Z Axis: 1181 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 6.3″ – 24″ |
| Table: |
|---|
| Length: 48″ |
| Width: 20″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1500 lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 8,000 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 20 Tools |
| Max Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.54″ – 4.92 |
| Max Tool Length: 15.75″ |
| Tool Changing Time (Tool to Tool): 1.5 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 3-Phase / 60 Hz |
| Overall Dimensions: 114″ x 111″ x 104″ High Approx. |
| Weight: 16,000 lbs Approx. |
