All specifications are approximations and are subject to verification.
| Location | Lake Elsinore, CA |
| SKU | 105091 |

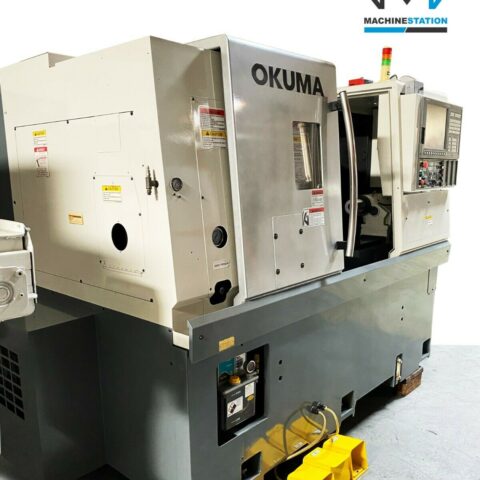

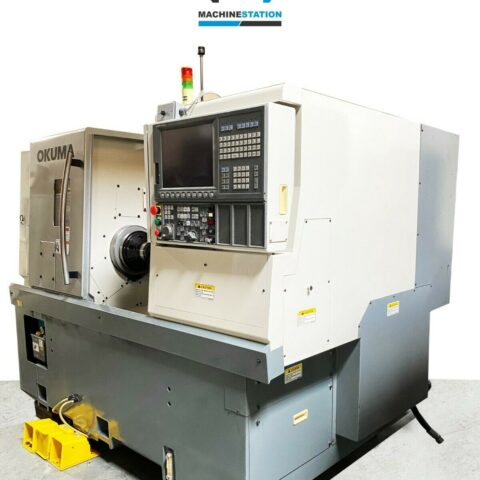

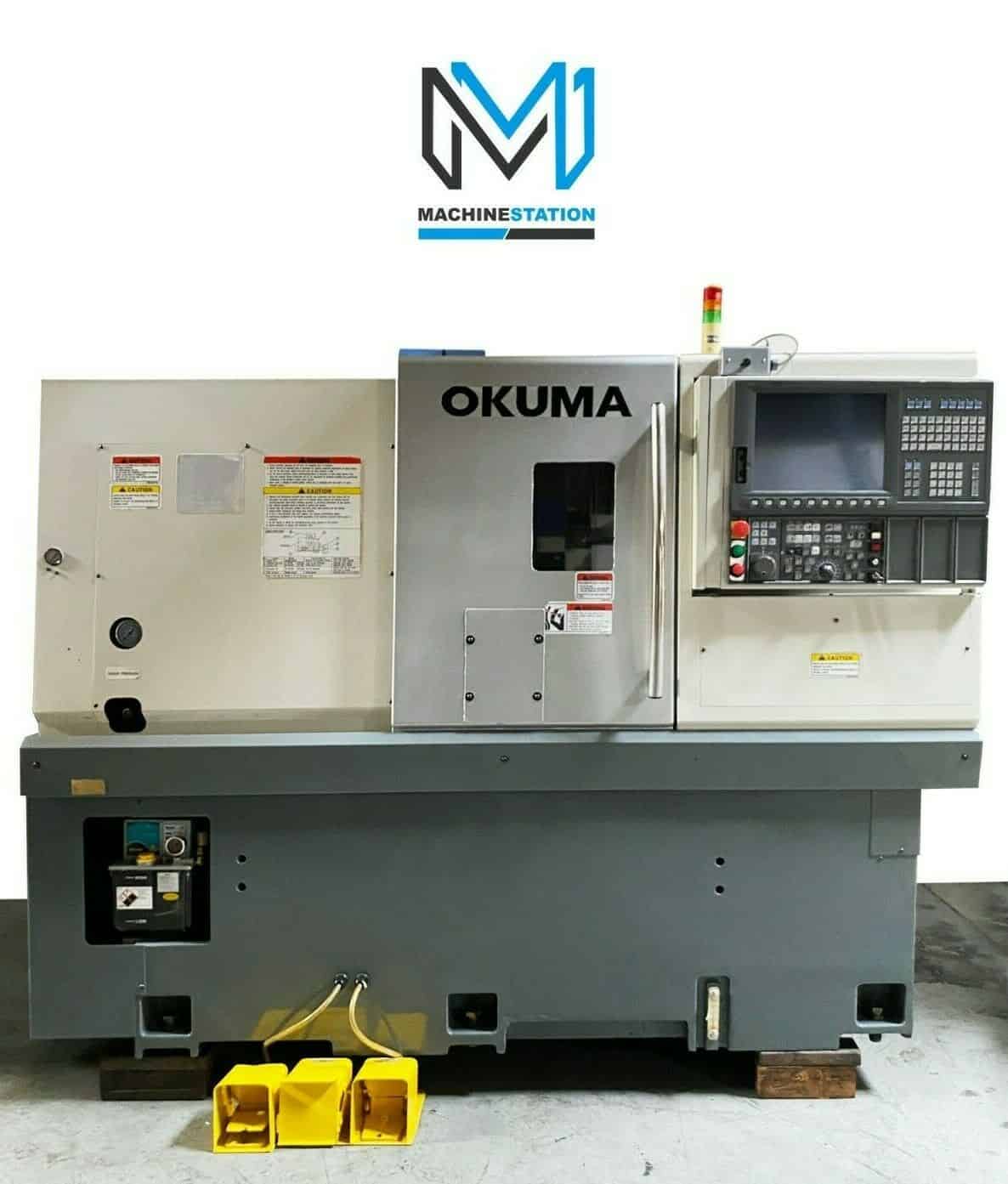

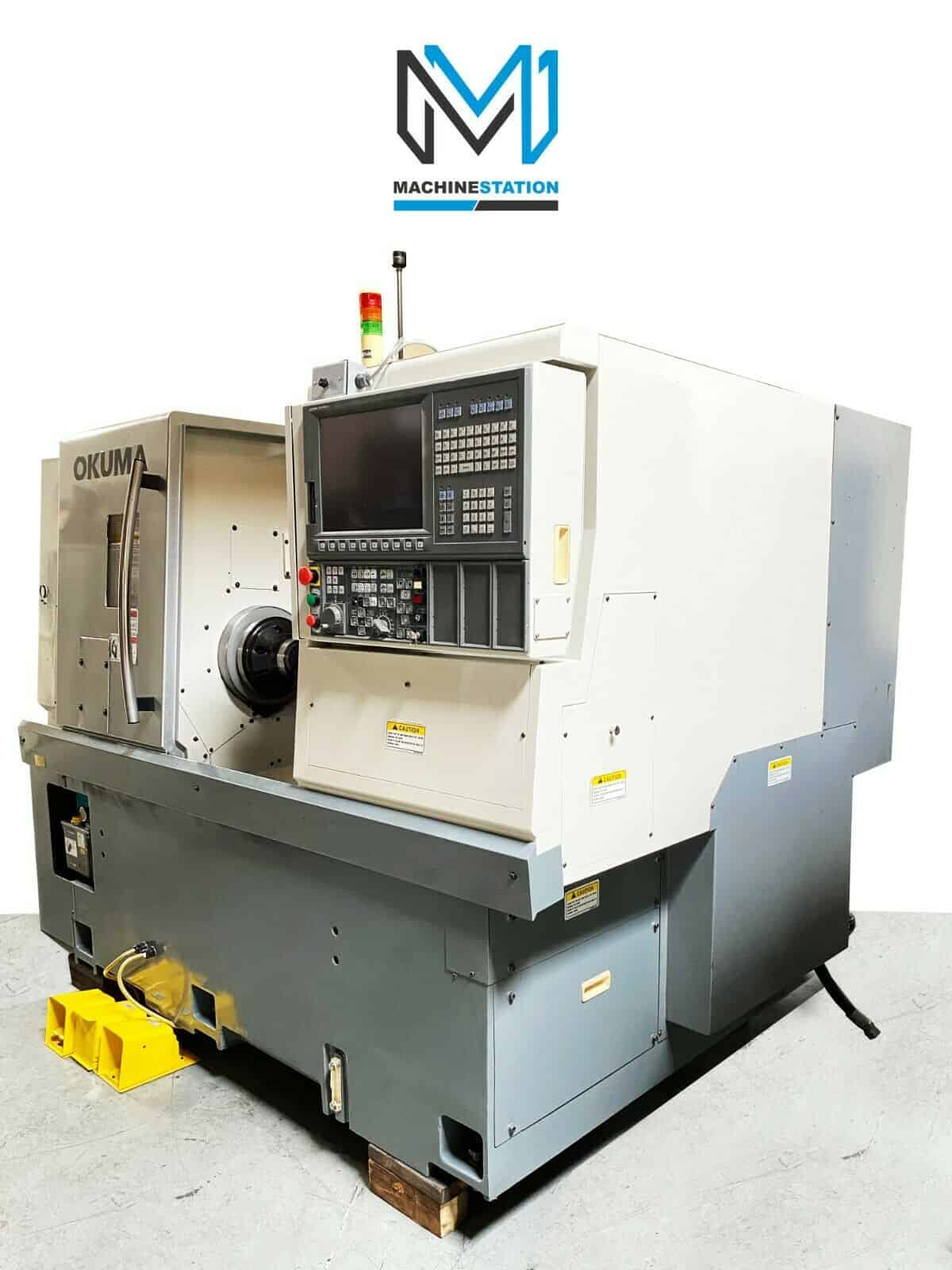

| Make | Okuma |
| Model No. | ES-L10 II |
| Condition | Used-Good |
| Equipped With: |
|---|

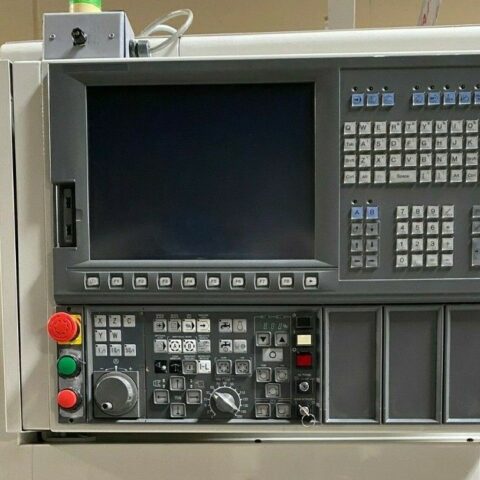

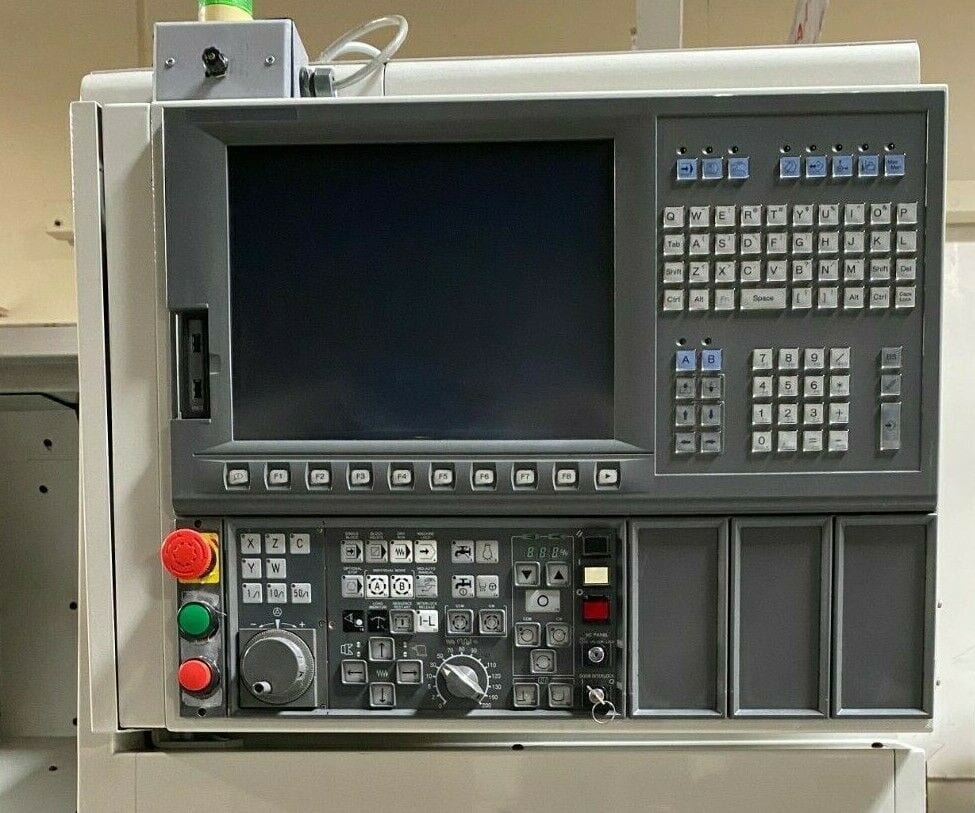

| OSP-P200LA CNC Control |
| 12″ LCD Touch Screen Display |

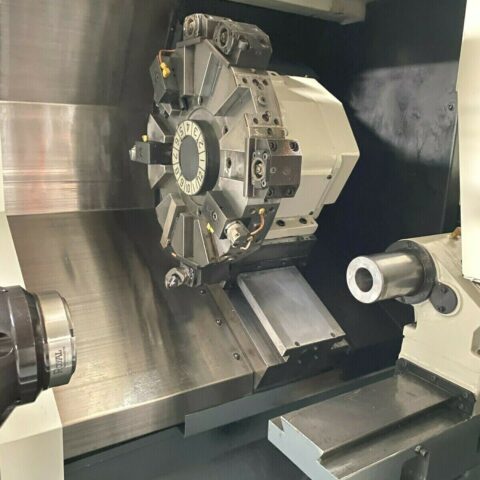

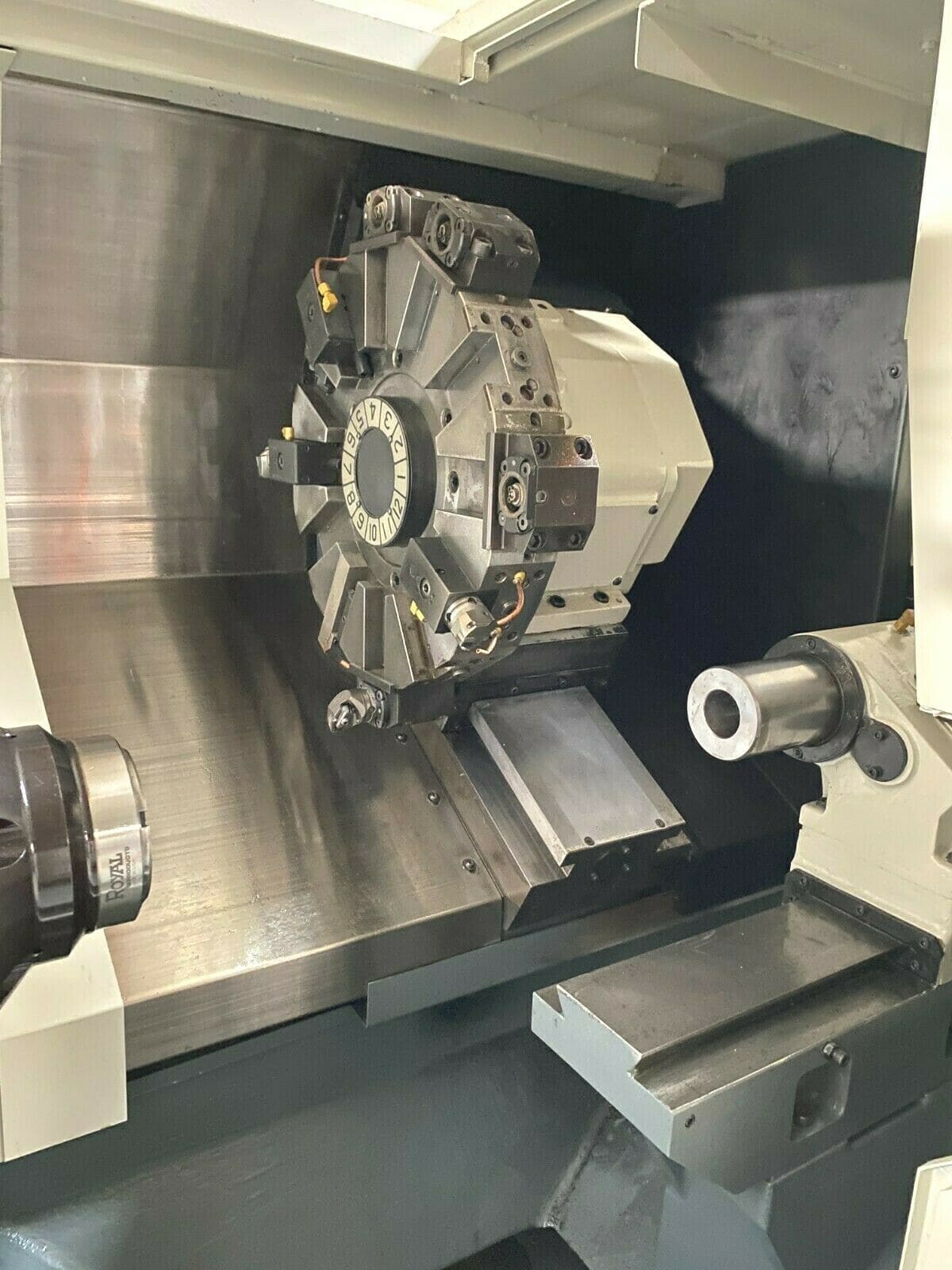

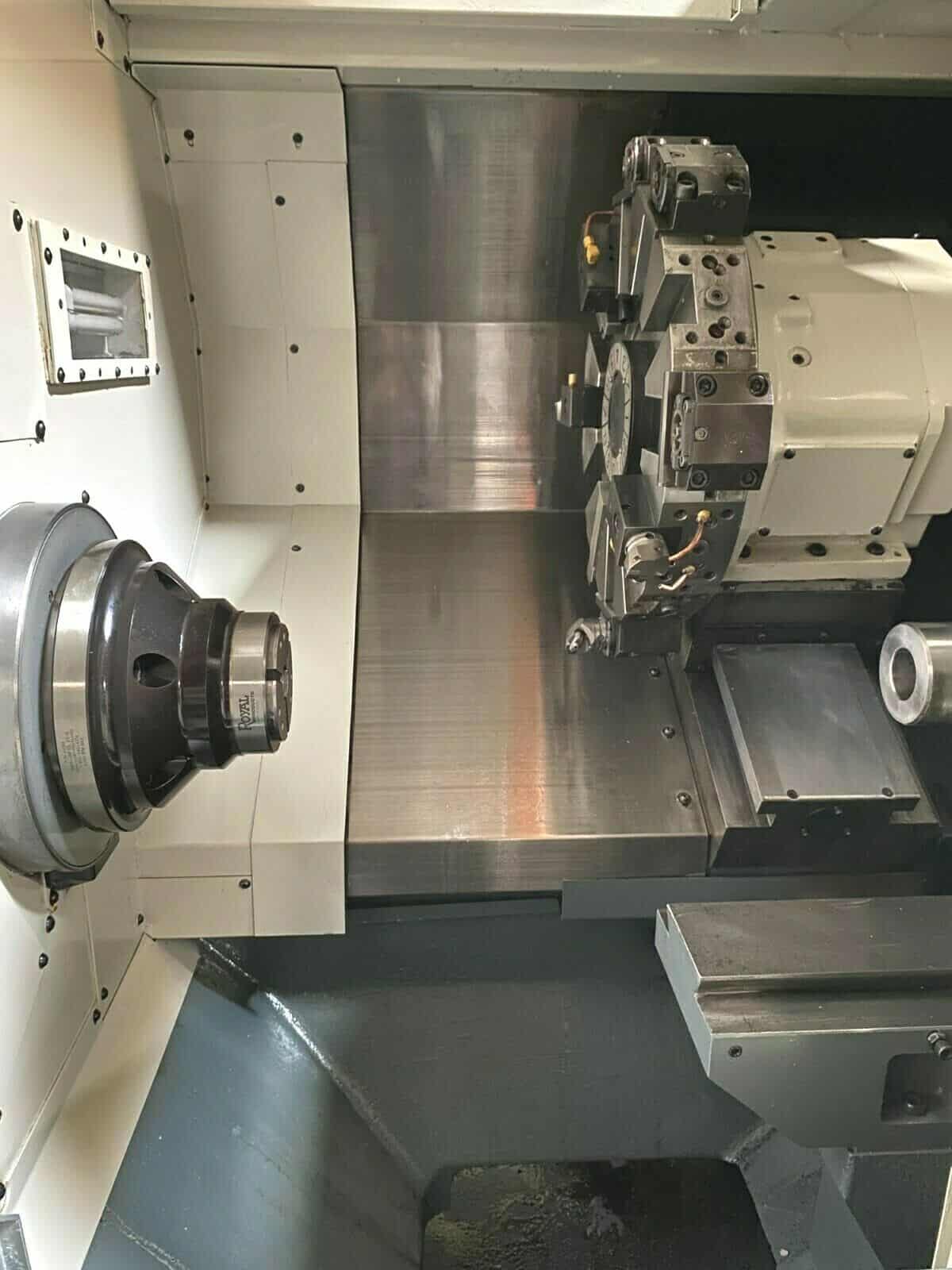

| 12-Station Turret |
| One Touch IGF Programming |
| USB Drive |

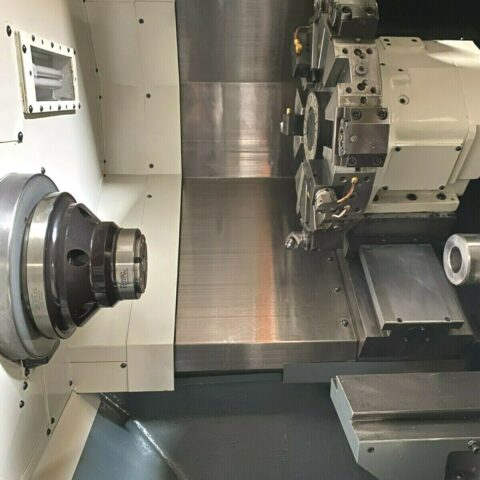

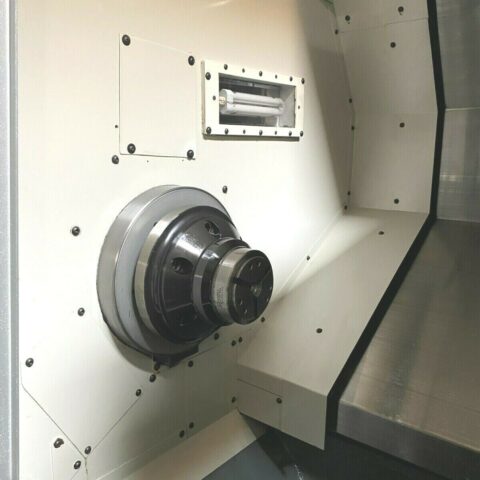

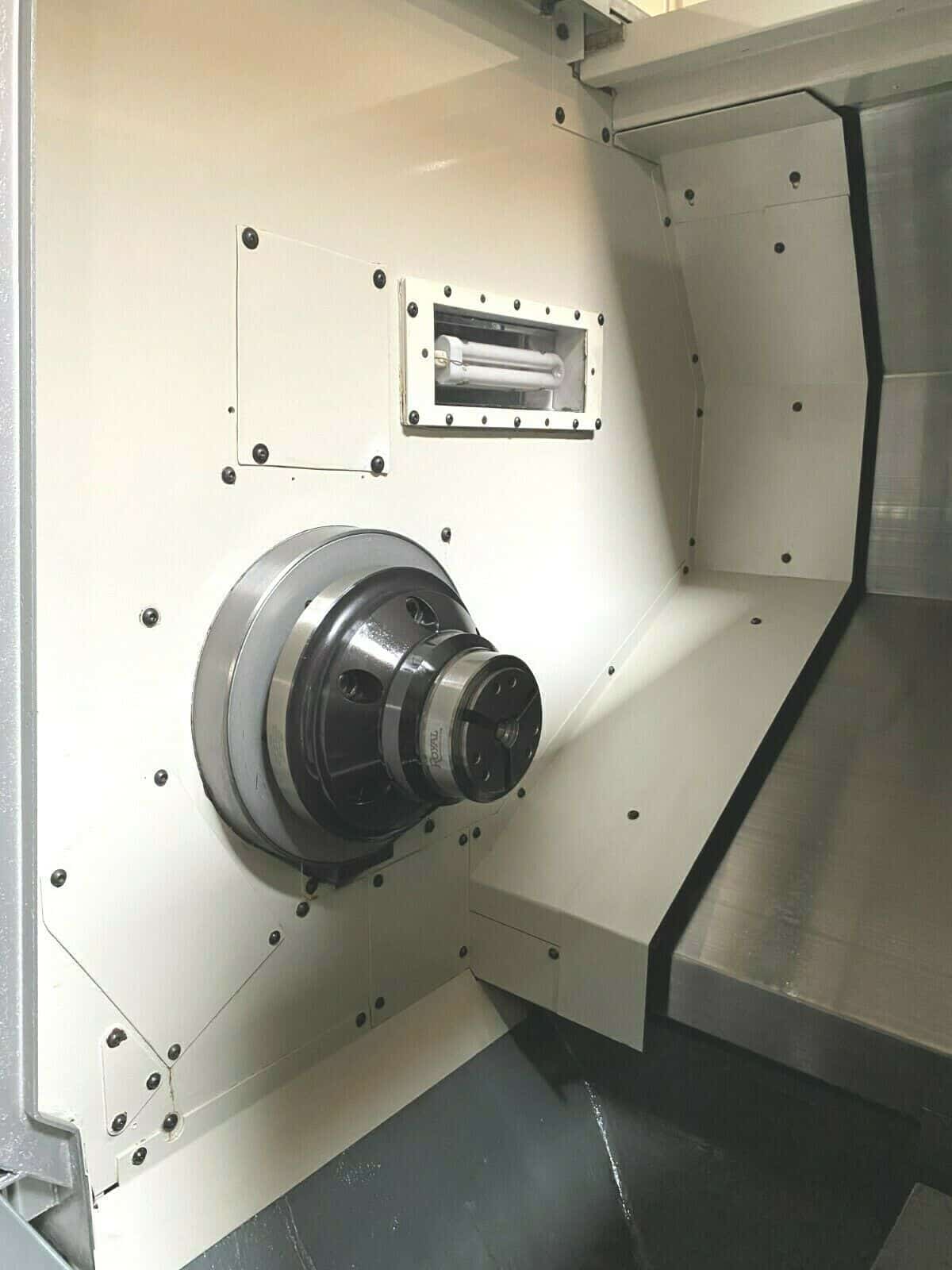

| Royal Quick Grip 65 Collet Chuck ($4000 Value) |
| 10″ 3 Jaw Chuck Capable |
| Hydraulic Tailstock with Power Quill |

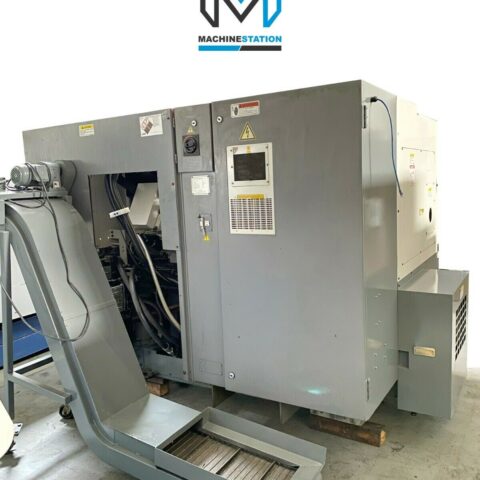

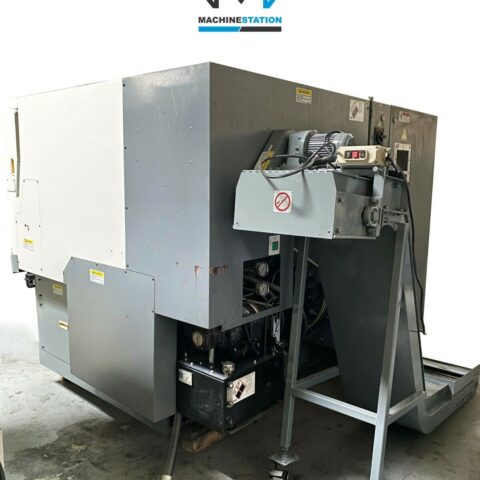

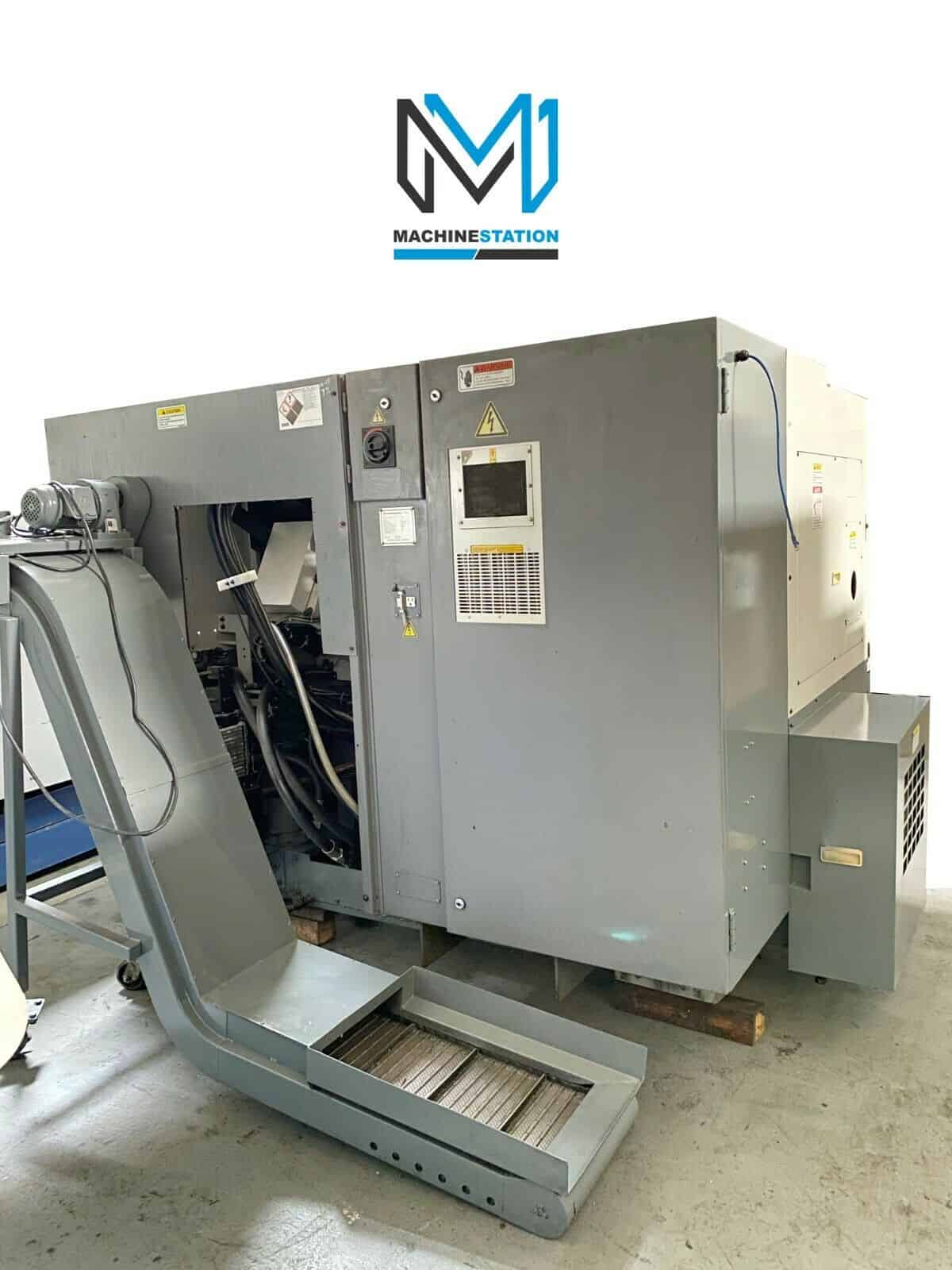

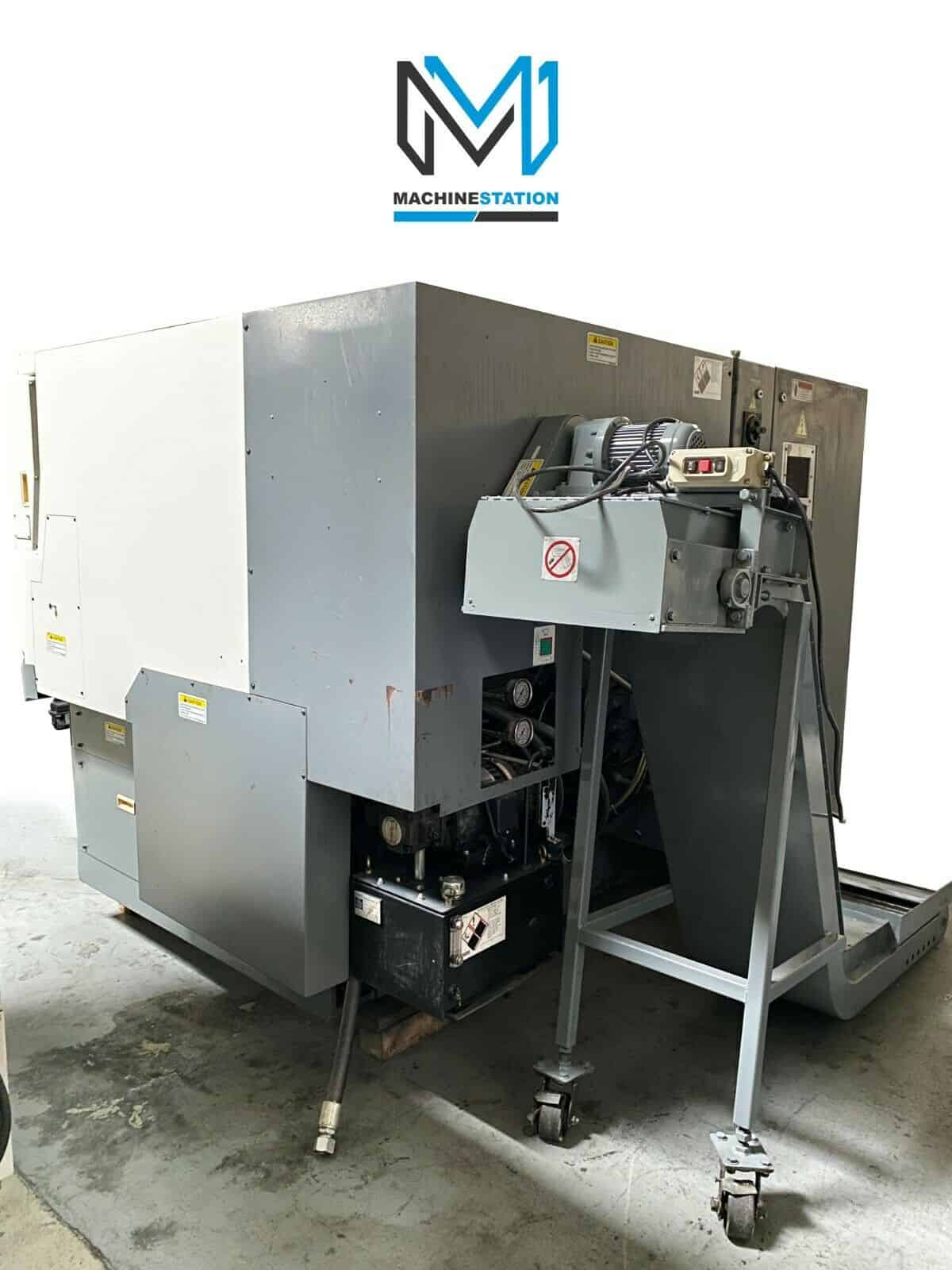

| Chip Pan and Chip Conveyor |
| Coolant System |
| Automatic Lubrication system |
| Foot Operated Control for Chuck and Tailstock |
| Specifications: |
|---|
| Max Turning Diameter: 12.20″ |
| Max Turning Length: 19.68″ |
| Max Bar Capacity: 3.05″ |
| Swing Over Bed: 21.65″ |
| Distance Between Centers: 24.6″ |
| Travel: |
|---|
| X Axis Travel: 8.10″ |
| Z Axis Travel: 20.47″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 984 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.15″ |
| Spindle Speed: 30-4500 RPM |
| Spindle Motor: 25 HP |

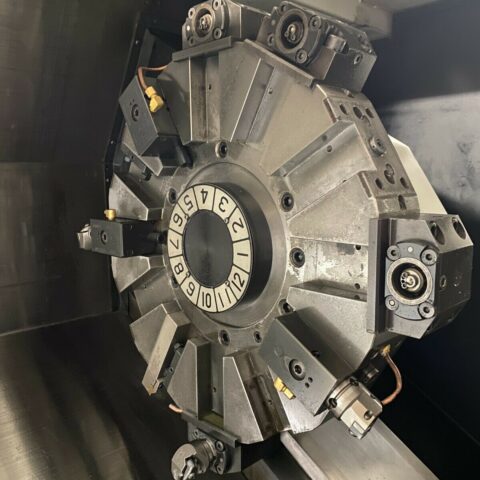

| Turret: |
|---|

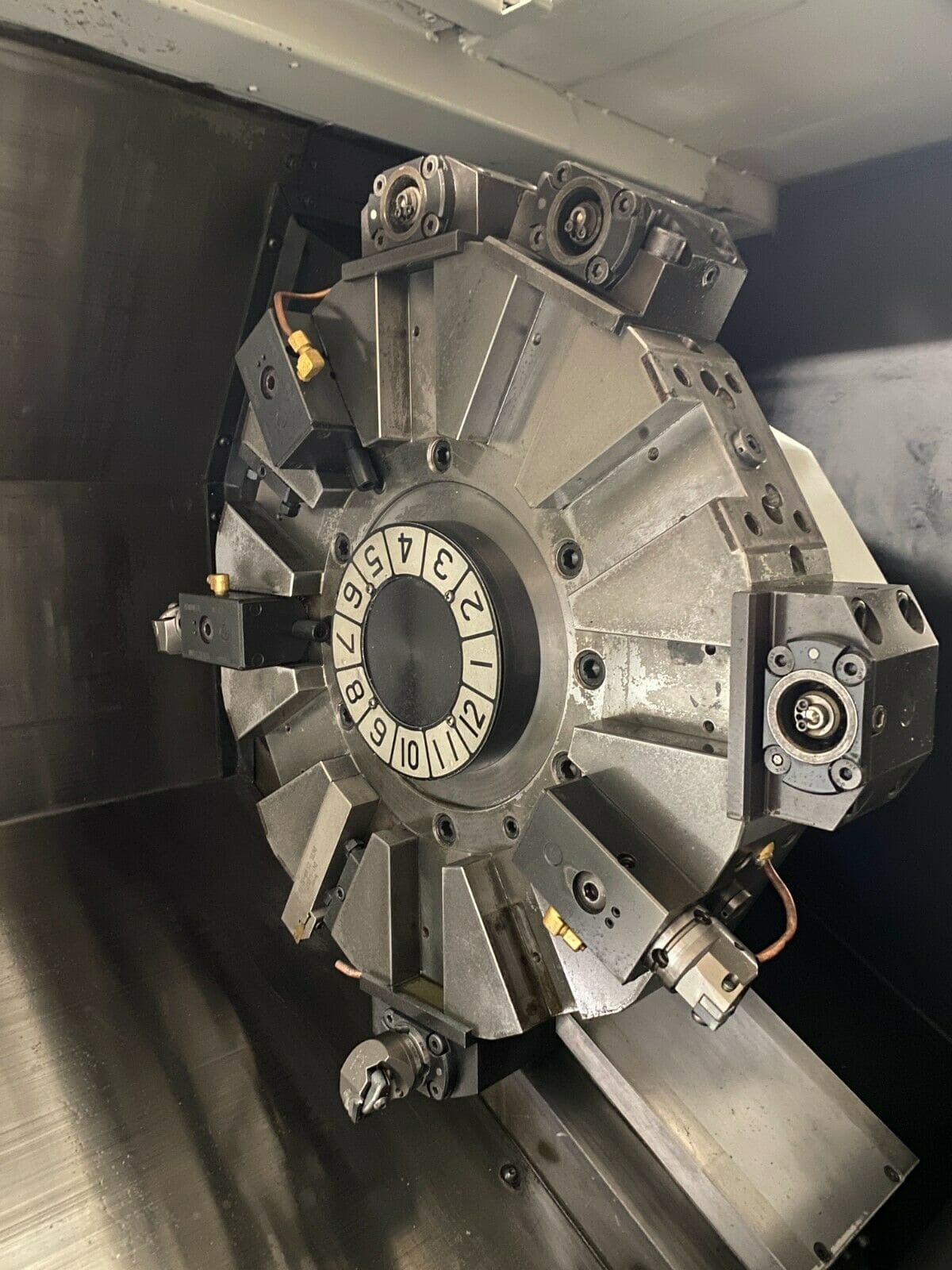

| Turret Capacity: 12 Stations |
| Turret Index Time: 0.5 Second |
| Tailstock: |
|---|
| Tailstock Body Travel: 14.3″ |
| Tailstock Quill Dia.: 3.54″ |
| Tailstock Quill Stroke: 3.93″ |
| Tailstock Taper: MT-5 |
| General: |
|---|

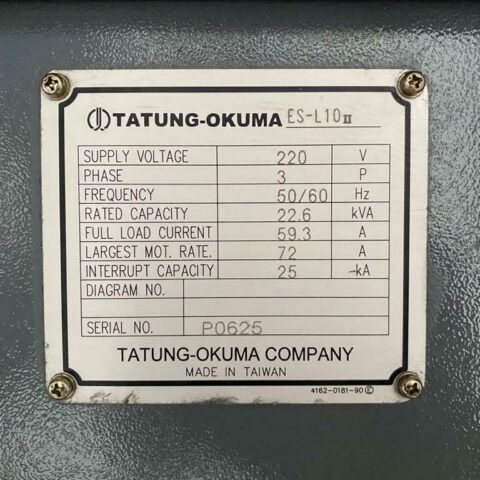

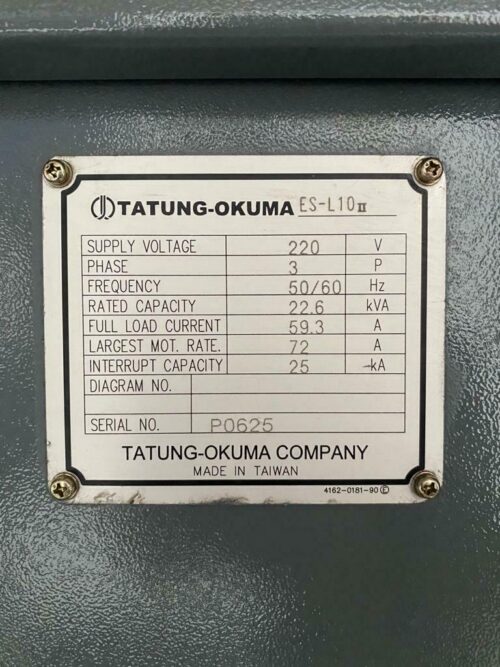

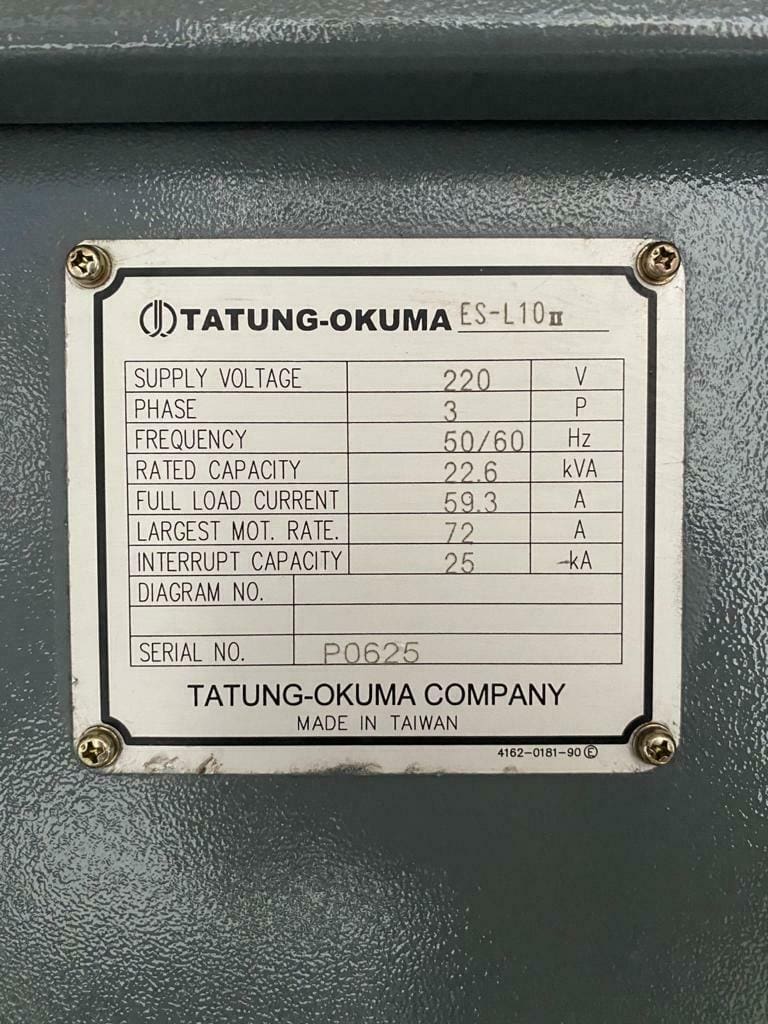

| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 68 Amps |
| Overall Dimensions: 110″ x 68″ x 80″ High |
| Overall Dimensions: 140″ x 68″ x 80″ High with Chip Conveyor |
| Weight : 8500 lbs Approx. |
