Primero KM-170 CNC Vertical Machining Center

SKU 11738
Make/Model Primero KM-170
Year 2014
Video On Request
Out of stock
SKU: 11738
Make/Model: Primero KM-170
Year: 2014
Video: On Request
SKU: 11738

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Primero
Model: KM-170
Year: 2014
Features:

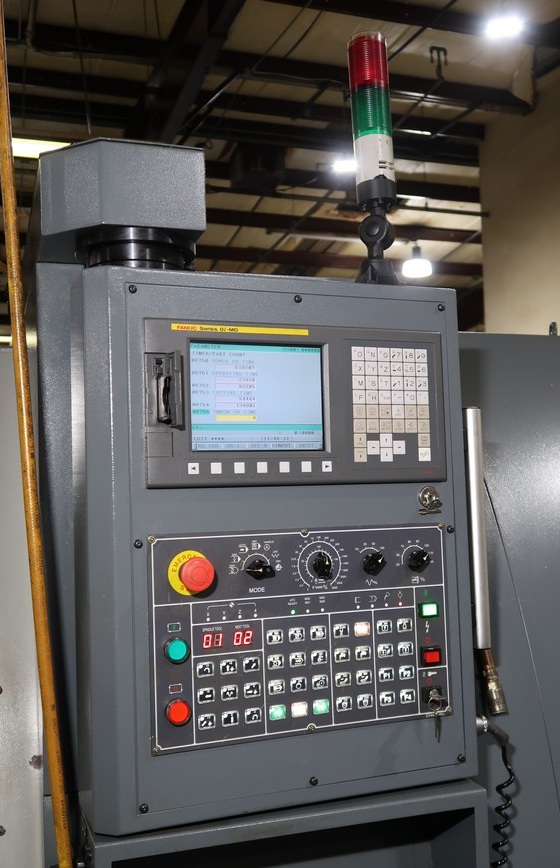

Fanuc Series Oi-MD CNC Control
CT40 Spindle
15 HP Spindle Motor
6,000 RPM Spindle
24-Position Side-Mounted Automatic Tool Changer
Rigid Tapping
Flood Coolant System
Spinflo Spindle Chiller
Automatic Lubrication System
Chip Auger
Fully Enclosed Splash Guard
MPG Handwheel
Work Light
Travels:
X-Axis Travel: 67″
Y-Axis Travel: 33″
Z-Axis Travel: 28″
Table:
Table Size: 72″ × 30″
Maximum Table Load: 3,300 lbs
T-Slots: 5
T-Slot Size: 0.71″
T-Slot Centers: 5.91″
Spindle:
Spindle Speed: 6,000 RPM
Spindle Taper: CT40
Spindle Motor: 15 HP
Automatic Tool Changer:
Tool Capacity: 24 Tools
ATC Type: Side-Mounted
Tool Shank: CT40
Maximum Tool Diameter: 5.0″
Maximum Tool Length: 11.8″
Maximum Tool Weight: 17.6 lbs
Feed Rates:
Rapid Traverse (X/Y): 945 IPM
Rapid Traverse (Z): 787 IPM
Cutting Feed Rate: 394 IPM
General:
Electrical: 220 Volt / 3 Phase / 60 Hz
Cutting Time: Approx. 2,247 Hours
Machine Dimensions (Approx.): 190″ × 145″ × 125″
Machine Weight (Approx.): 17,860 lbs
Travels:
X-Axis Travel: 1,702 mm
Y-Axis Travel: 838 mm
Z-Axis Travel: 711 mm
Table:
Table Size: 1,829 mm × 762 mm
Maximum Table Load: 3,300 lbs
T-Slots: 5
T-Slot Size: 18 mm
T-Slot Centers: 150 mm
Spindle:
Spindle Speed: 6,000 RPM
Spindle Taper: CT40
Spindle Motor: 15 HP
Automatic Tool Changer:
Tool Capacity: 24 Tools
ATC Type: Side-Mounted
Tool Shank: CT40
Maximum Tool Diameter: 127 mm
Maximum Tool Length: 300 mm
Maximum Tool Weight: 17.6 lbs
Feed Rates:
Rapid Traverse (X/Y): 945 IPM
Rapid Traverse (Z): 787 IPM
Cutting Feed Rate: 394 IPM
General:
Electrical: 220 Volt / 3 Phase / 60 Hz
Cutting Time: Approx. 2,247 Hours
Machine Dimensions (Approx.): 4,826 mm × 3,683 mm × 3,175 mm
Machine Weight (Approx.): 17,860 lbs
CategoriesCNC Vertical Machining Centers
MakePrimero
ModelKM-170
  • Fanuc Series Oi-MD CNC Control
  • CT40 Spindle
  • 15 HP Spindle Motor
  • 6,000 RPM Spindle
  • 24-Position Side-Mounted Automatic Tool Changer
  • Rigid Tapping
  • Flood Coolant System
  • Spinflo Spindle Chiller
  • Automatic Lubrication System
  • Chip Auger
  • Fully Enclosed Splash Guard
  • MPG Handwheel
  • Work Light
