Quaser MV154-APC CNC Vertical Machining Center

Out of stock

Product Description

QUASER MV154-APC CNC VERTICAL MACHINING CENTER

Make: QUASER
Model No.: MV154-APC/E12
Serial No.: 107G110133
MFG. Year : 2011 Installed: 2012
Condition: Excellent

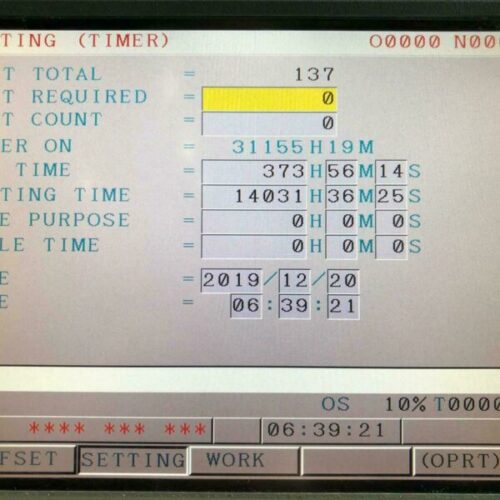

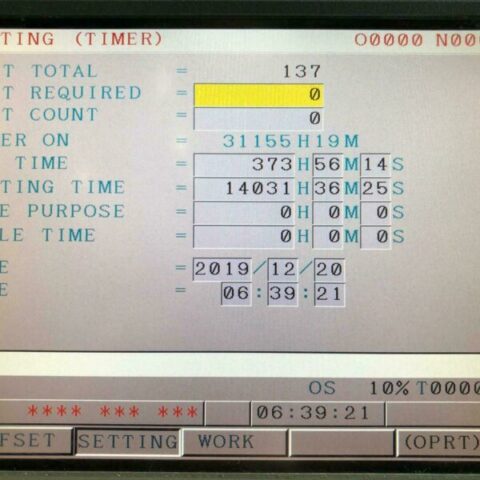

Cutting Hours: 14031

All specifications are approximations, and are subject to verification.

Quaser MV154-APC Features:

Automatic Dual Pallet changer

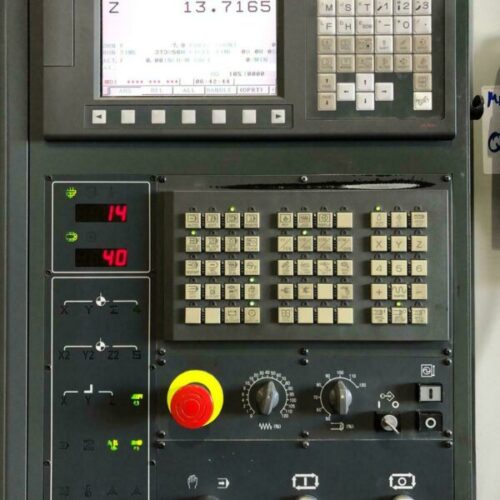

Fanuc Oi-MD CNC Control
Through Spindle Coolant
12,000 RPM Precision Spindle
48 Automatic high speed tool changer

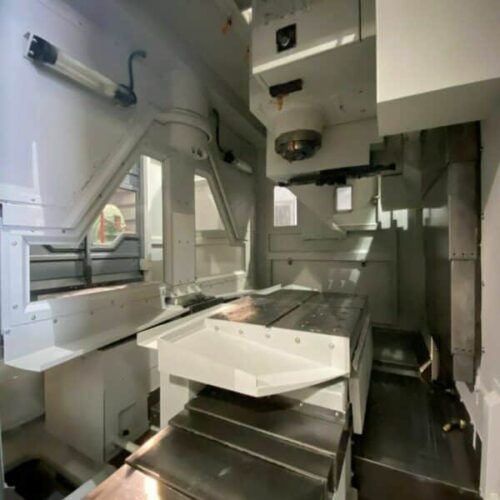

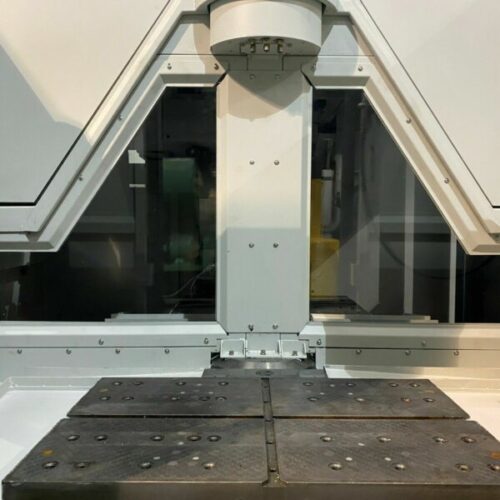

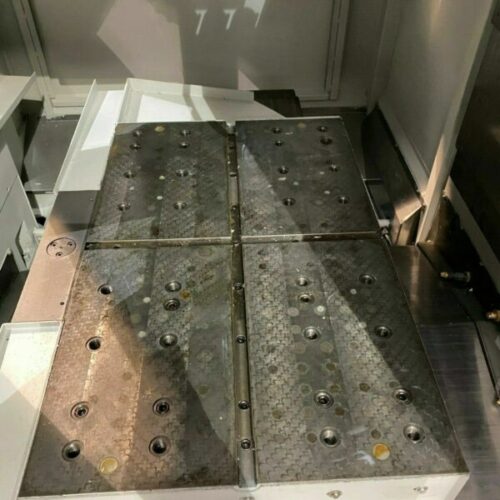

Jig Type Pallet Table
PCMCIA Card Slot
MPG Control
Rigid Tapping
Spindle Orientation
High Pressure Flood Coolant
Dual Auger System

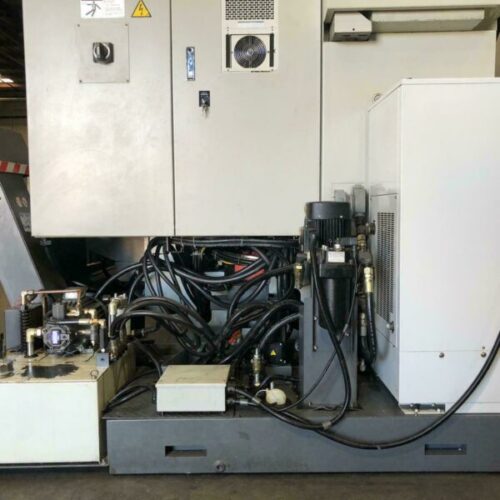

Spindle Chiller Unit
Flood Coolant system
Chip Conveyor
Large Side Operation Door
Levelling Pads
Manuals & Books

Quaser MV154-APC Specifications:

Travels:
X-Axis: 29.92″
Y-Axis: 19.68″
Z-Axis: 22.04″
Rapid Traverse Rates: 1259″ Per Minute
Feed Rates: 590″ Per Minute
Spindle Nose to Table (Min.- Max.): 5.9″ – 27.9″

Table:
Length: 30.0″
Width: 20.0″
Max Weight on Table: 763 lbs

Spindle:
Spindle: Taper Size:  40
Speed Range: 0 – 12,000 RPM
Spindle Type: Belt Drive
Spindle Power: 25 HP

Automatic Tool Changer:
Capacity: 48
Tool Weight: 17.6 lbs
Max Tool Dia: 4.92″
Max Tool Length: 11.8″
Tool Changing Time: 2.8 Seconds

General:
Air Required: 90 psi, 4 scfm
Power: 220v / 30 kva / 3-Phase
Overall Dimensions: 160″ x 120″ x 110″ High W/Chip Conveyor
Weight: 21000 lbs

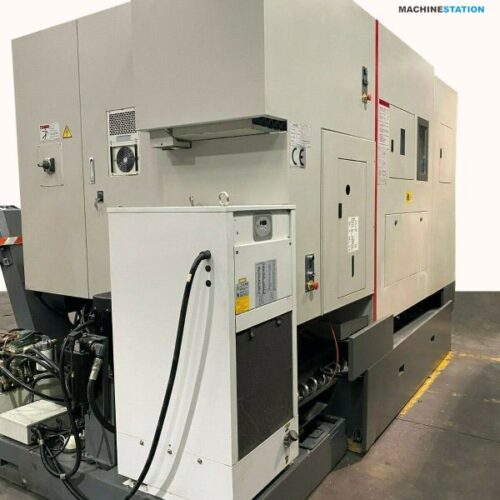

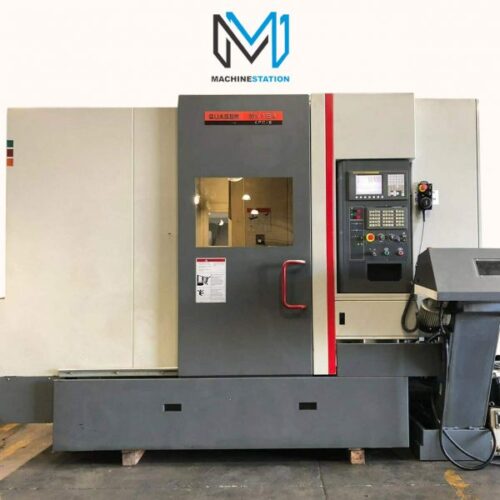

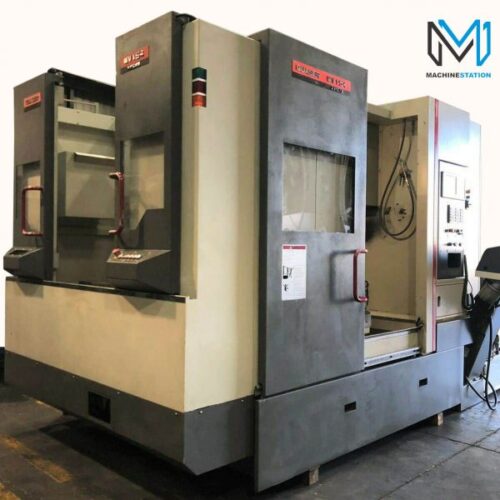

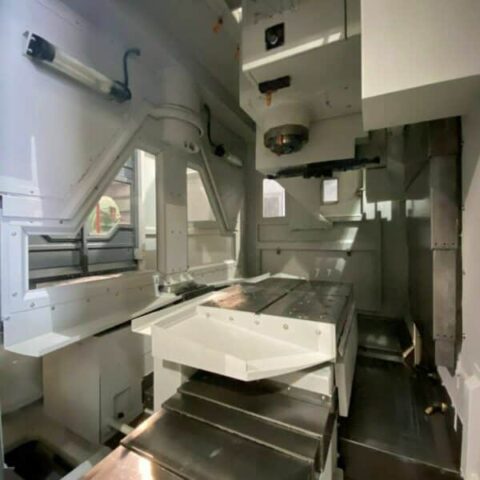

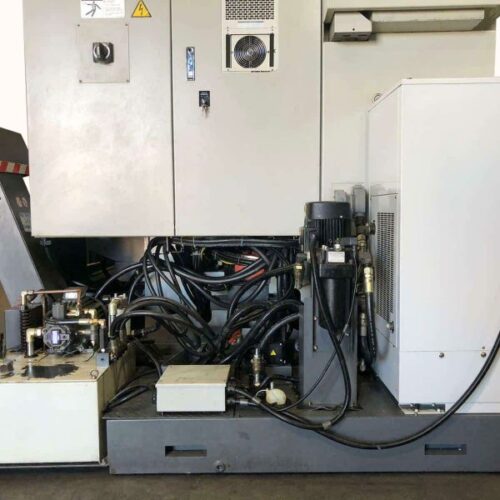

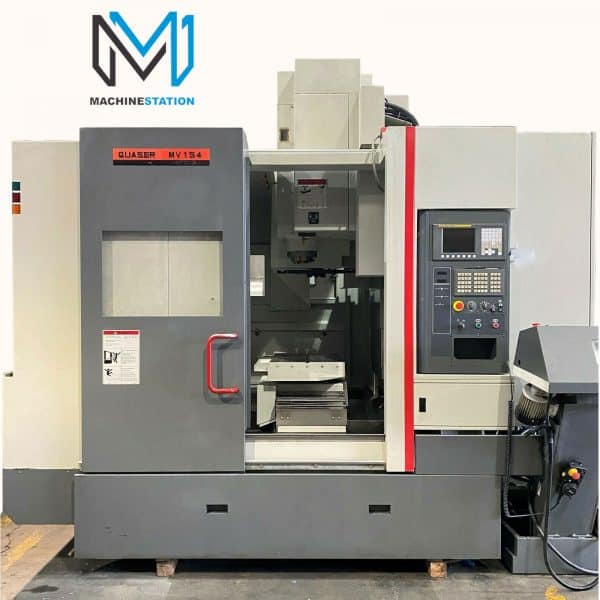

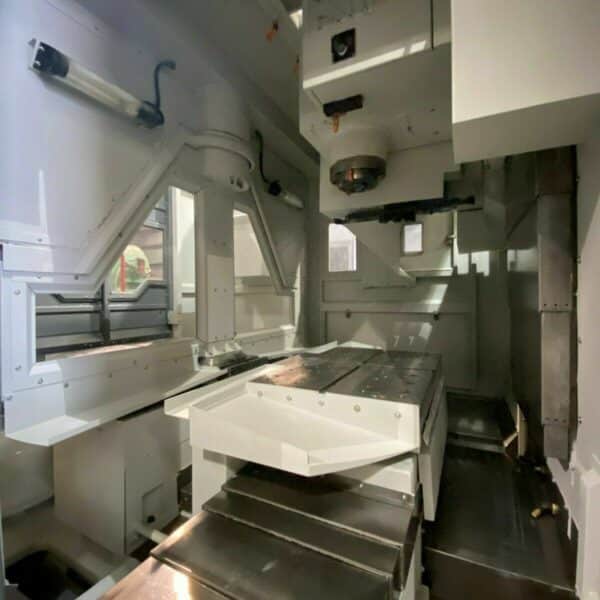

Quaser MV154-APC Comes as Shown in Pictures….
