*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Quaser |

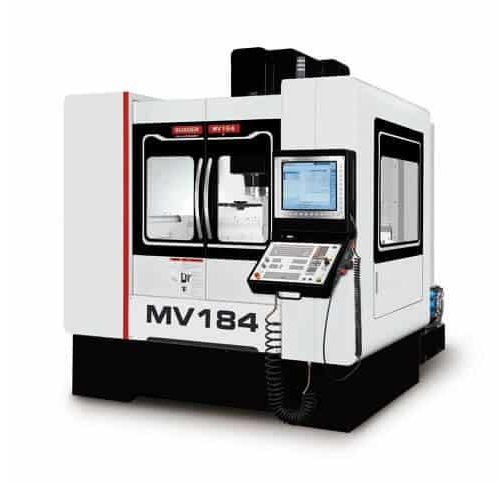

| Model: | MV184C |
| Condition: | Brand New |
| Specification: |
|---|
| Work range |
| Table size (mm) : 1200 X 1600 |
| Travel X (mm) : 1020 |
| Travel Y (mm) : 610 |
| Travel Z (mm) : 610 |
| Table load capacity (kg) : 500 |
| Main Spindle: |
|---|
| Spindle taper : 40 taper |
| Max. spindle speed : 12K |
| Tool Changer: |
|---|
| Magazine positions : 30 |
| Max. tool diameter (mm) : 76.2 |
| Max. tool dia. Due to neighbor pots are empty (mm): 125 |
| Max. tool length (mm) : 280 |
| NOTE: Different Configurations of Same Model Available. Similar but not Identical. |
|---|
| MV184E, MV184P, MV184D, MV184M |
| C =Cost effect |
| E =Standard |
| P =Performance |
| D =Model & Die |
| M =High precision |
