All specifications are approximations, and are subject to verification.
| SKU | 115120 |
| Make | QuickTech |
| Model No. | i42-Twin |
| New | 2017 |
-

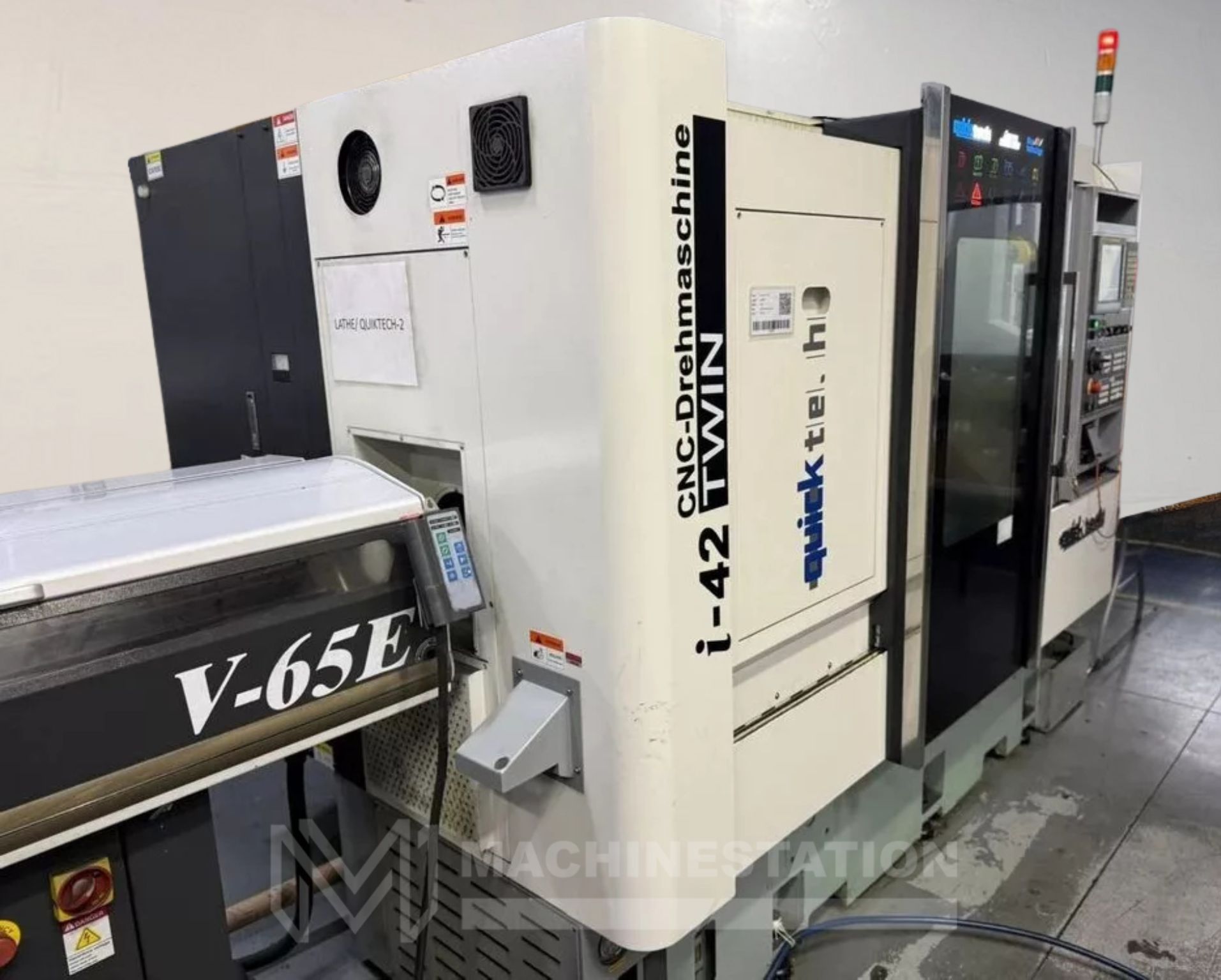

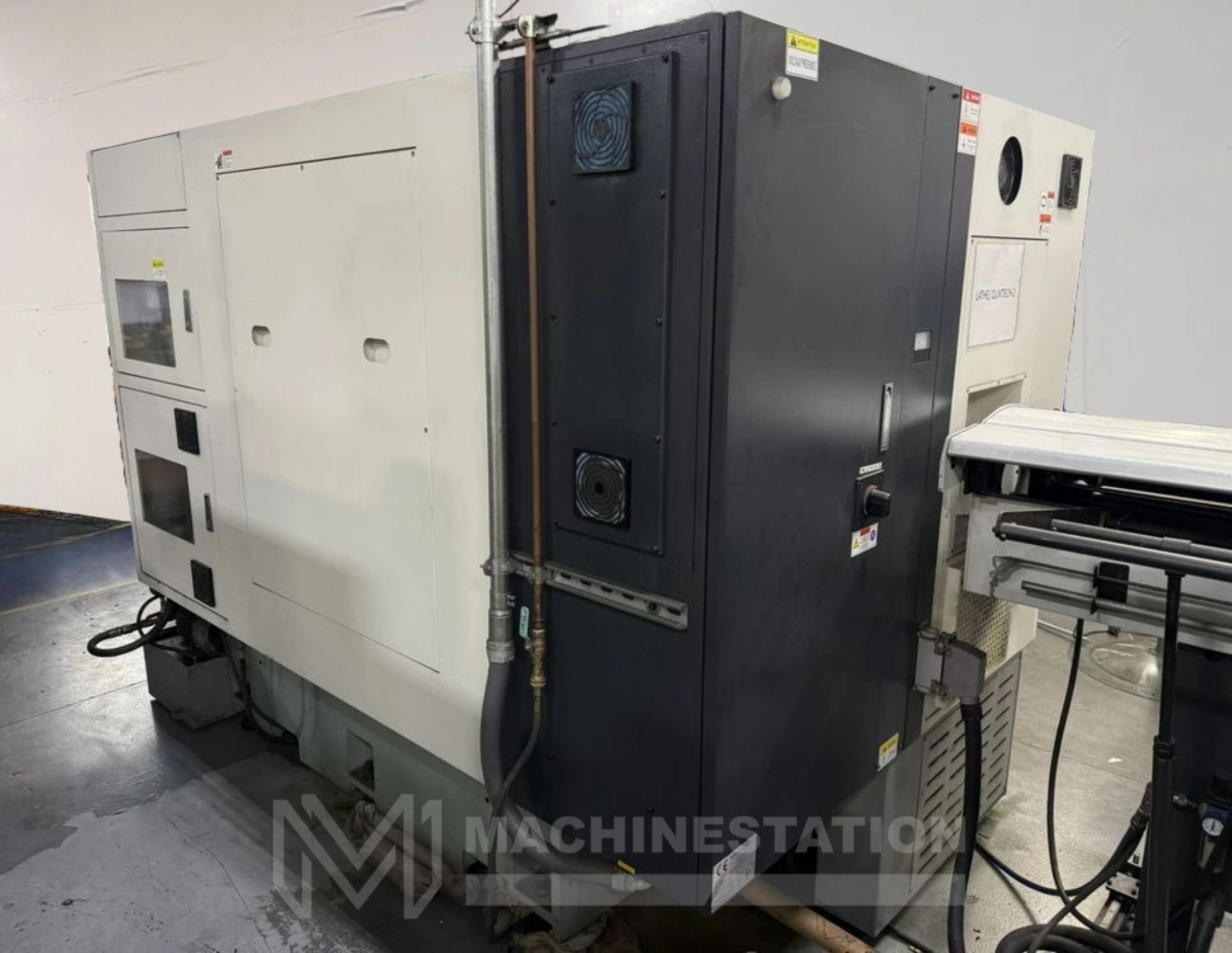

QuickTech i42-Twin Equipped With:

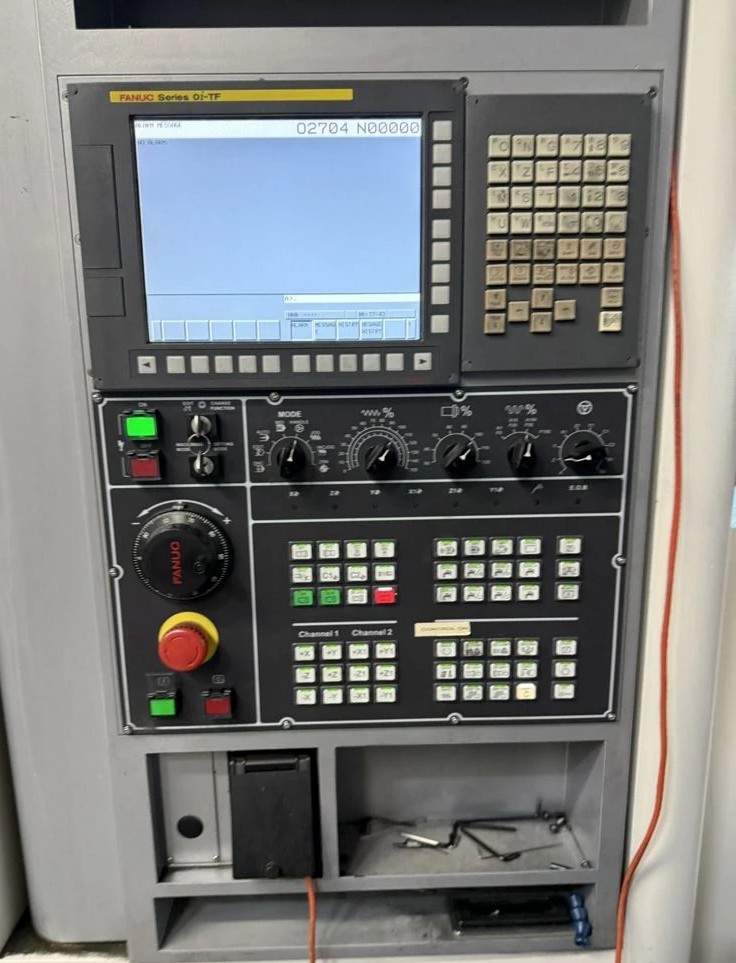

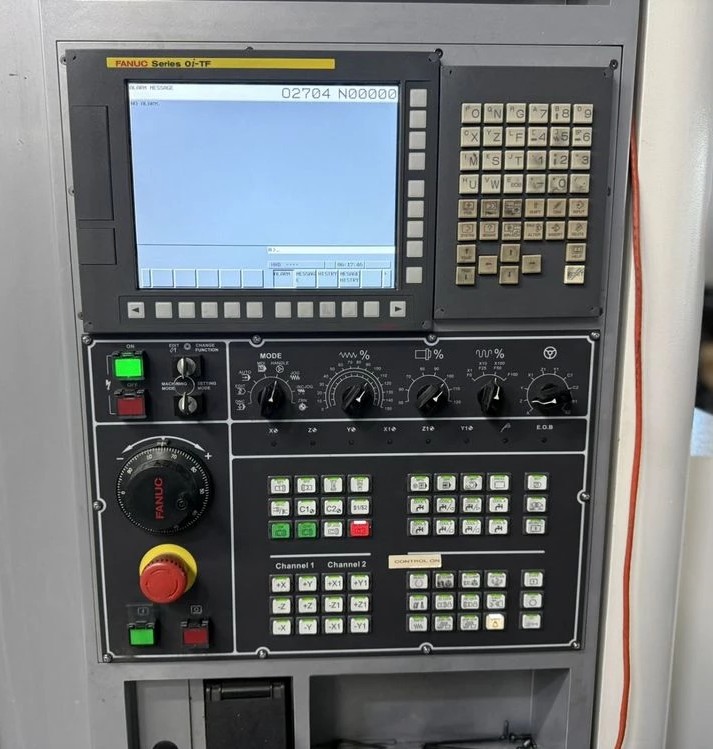

- Fanuc Oi-TF CNC Control

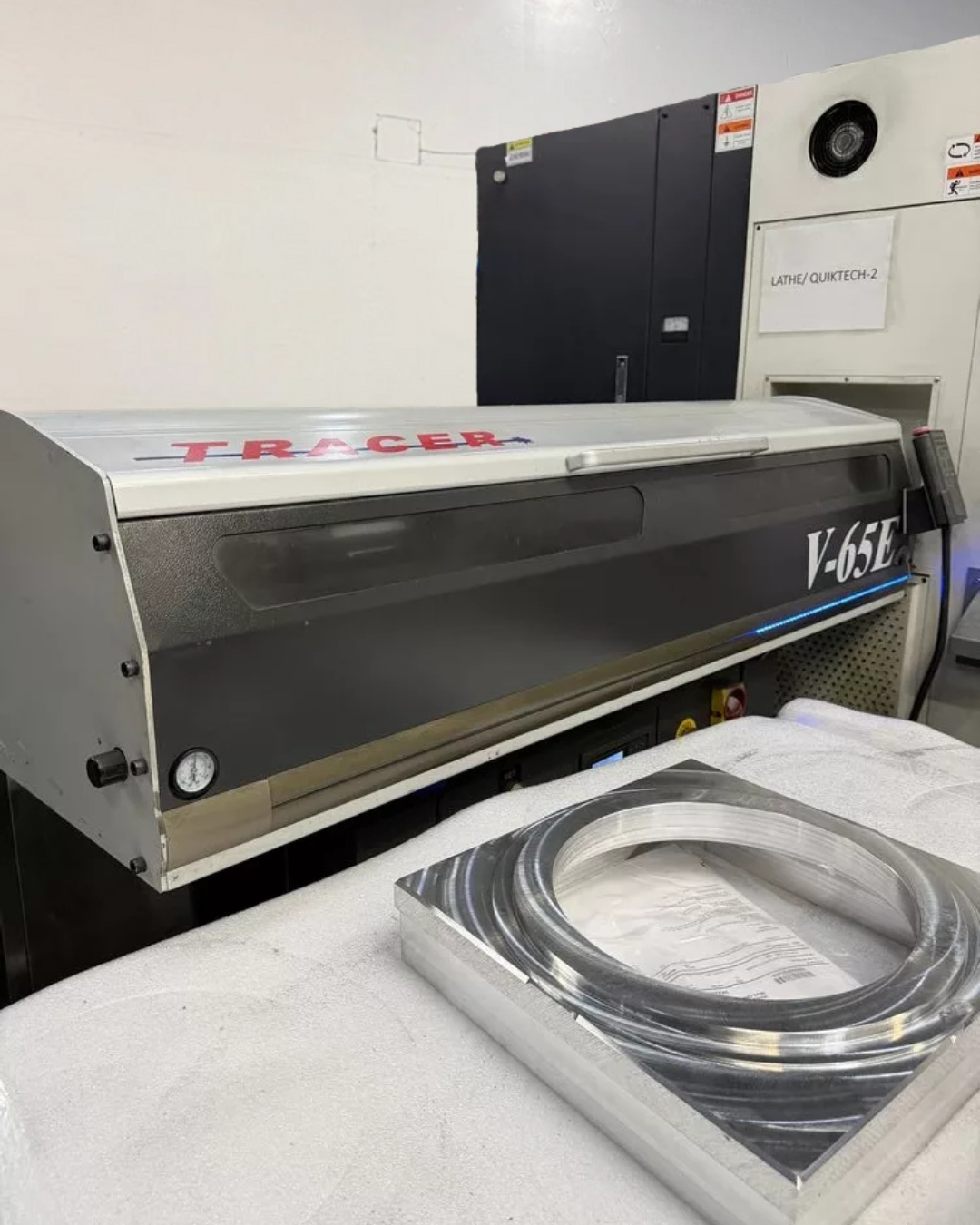

- Bar Feeder

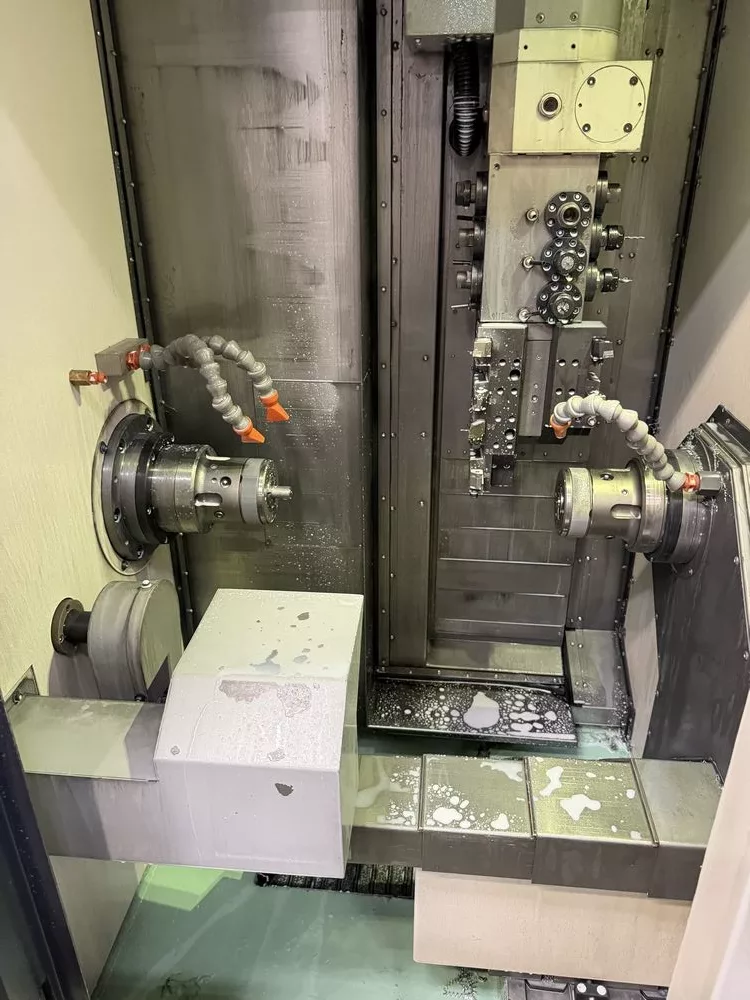

- Collet Chuck on Main Spindle
- Collet Chuck on Sub Spindle
- C Axis Live Tool
- USB Drive & Memory Card Slot
- Intelligent Door
- Parts Catcher
- Parts Conveyor
- Rigid Tapping on Both Spindles
- Foot Operated Control for Chuck
- Coolant System
- Chip Conveyor
-

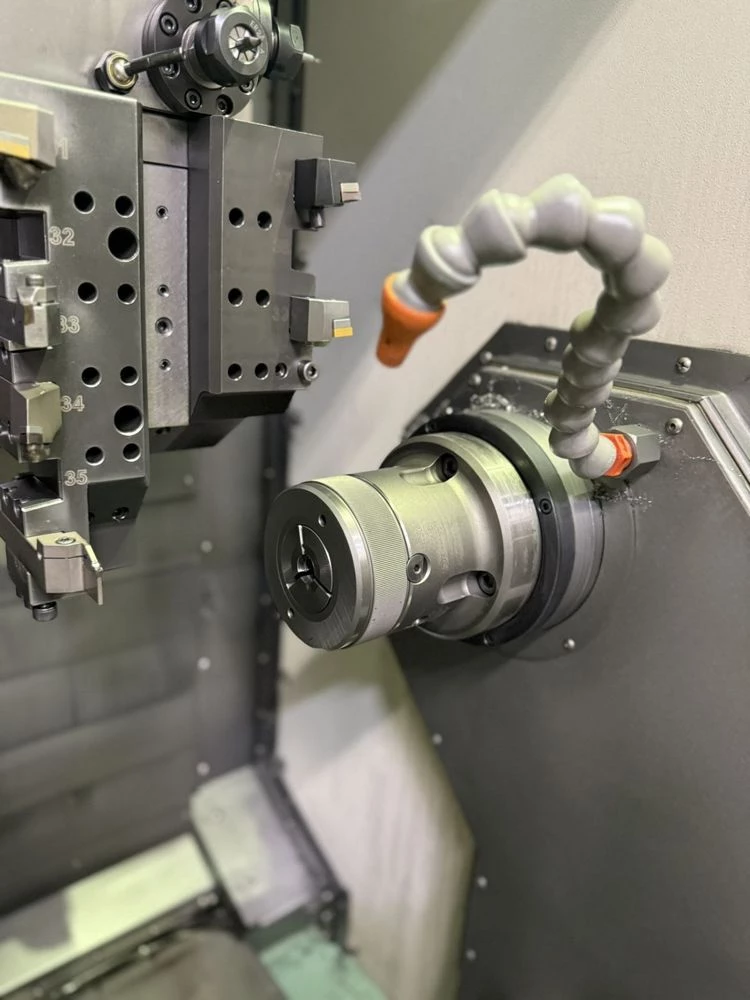

Spindle Capacity
- Max. Bar Working Dia : 42.0 mm / 1.65″
- Spindle Max. Turning Length. : 300.0 mm / 11.81″
- Spindle Collet Chuck Type : KK5-173E42B
- Spindle Nose : ISO(DIN) A2-5
- Spindle Bore : 44.0 / 1.73″
- Spindle Speed Range : 4000 RPM
-

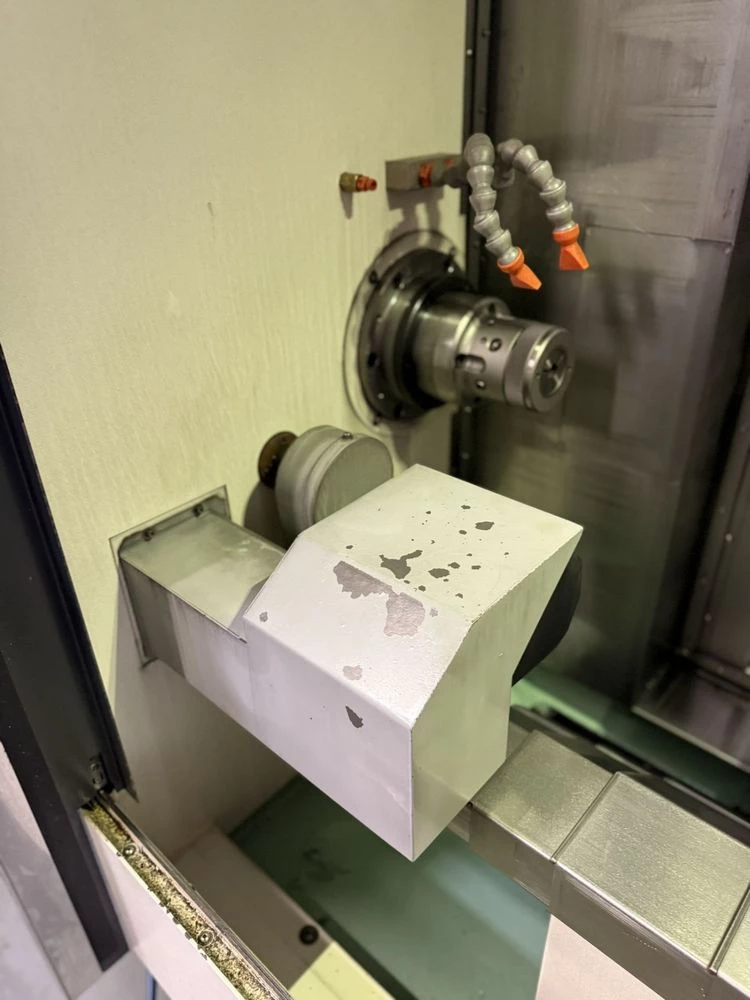

Sub-Spindle Capacity
- Max. Turning Dia. : 100.0 mm / 3.94″
- Max. Bar Working Dia : 42.0 mm / 1.65″
- Max. Turning Length. : 155.0 mm 6.10″
- Collet Chuck Type : KK5-173E42B
- Nose : ISO(DIN) A2-5
- Bore : 30.0 mm / 1.18″
- Speed Range : 4000 RPM
-
C Axis :
- Positioning Accuracy : 0.001°
-
Travel & Feed
- X-Axis Travel: 150.0 mm / 5.91″
- Y-Axis Travel: 415.0 mm / 16.34″
- Z-Axis Travel: 300.0 mm / 11.81″
- Z-1 Axis Travel: 450.0 mm / 17.72″
-
A.T.C System
- OD / ID Tools Main Spindle (1st) : 6 / 5 ?
- OD / ID Tools Sub Spindle (2nd) : 3 / 4 ?
- Tool Shank Size : 20.0 mm / 0.79″
- Boring Bar (main) : ER-20/20mm / 0.79″
- Boring Bar (sub) : ER-20/20mm / 0.79″
-

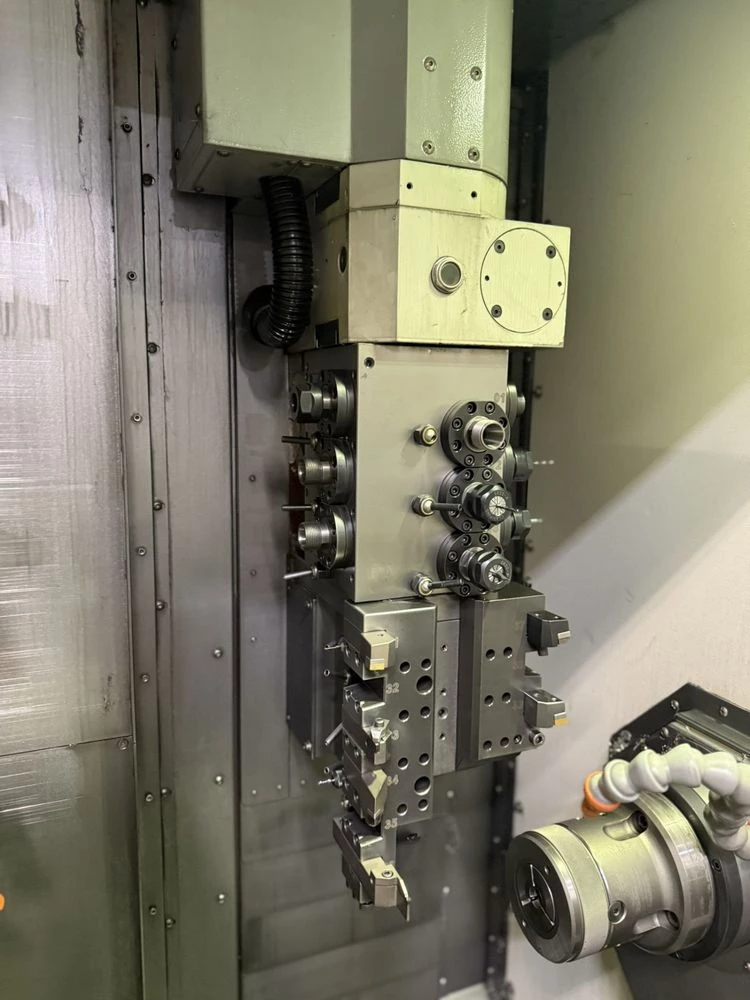

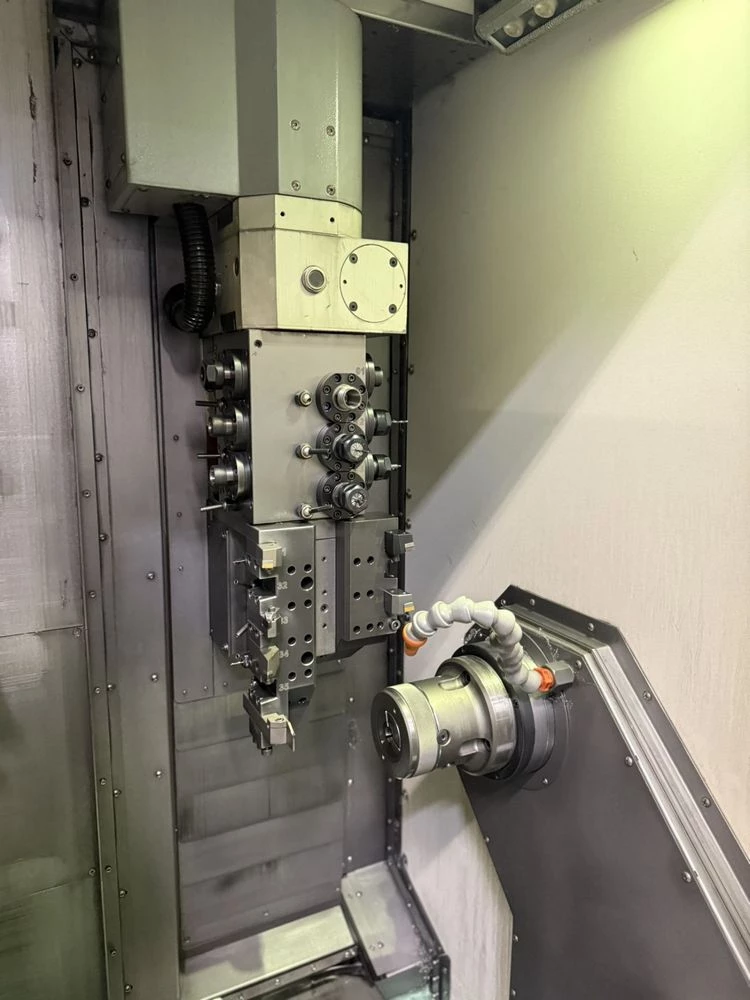

Motorized Tool
- Index Time: 0.3 sec (One) / 0.6 sec (Full)
- Number of motorized tools : 12
- B-Axis Rotation: 360°
- Max Tool Speed: 4,000 RPM
- Size : ER-20
- Max Drilling Diameter: 12.0 mm / 0.47″
- Max Tapping Capacity: M10 × 1.5
-
Motors (Fanuc)
- Main Spindle Motor: 11.0 kW (15 HP)
- Sub-Spindle Motor: 5.5 kW (7.5 HP)
- X1 Axis Servo Motor: 1.2 kW (1.6 HP)
- Y-1 Axis Servo Motor: 1.8 kW (2.4 HP)
- Z-1, Z2 Axis Servo Motor: 1.8 kW (2.4 HP)
- B1 Axis Servo Motor: 0.75 KW (1.0 HP)
- T1 Motorized Tool Servo Motor: 2.5 kW (3.35 HP)
-
Hydraulic System
- Hydraulic Motor: 1 HP
- Tank Capacity: 50 L / 13.2 gal
- Max Pressure: 50 kg/cm² / 711 PSI
-
Lubrication
- Lubrication Motor: 25 W / 0.03 HP
- Tank Capacity: 2.0 L / 0.53 gal
- Max Pressure: 15 kg/cm² / 213 PSI
-
Coolant System
- Coolant Pump Pressure: 5 bar / 73 PSI
- Coolant Tank Capacity: 240 L / 63.4 gal
- Coolant Motor: 2 HP
-
General
- Power Required: 220v / 3-phase / 60 Hz / 20 KVA
- Length: 3,500 mm / 137.8″
- Width: 1,800 mm / 70.9″
- Height: 1,900 mm / 74.8″
- Machine Weight: 4,000 kg / 8,818 lbs
