*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Seiki |
| Model: | VS 2VS |
| Year: | 2007 |
| Condition: | Used – Good |
| Machine Type: | Vertical Milling Machine |
| Control: | Newall C80 2-Axis DRO |
| Equipped With: |
|---|

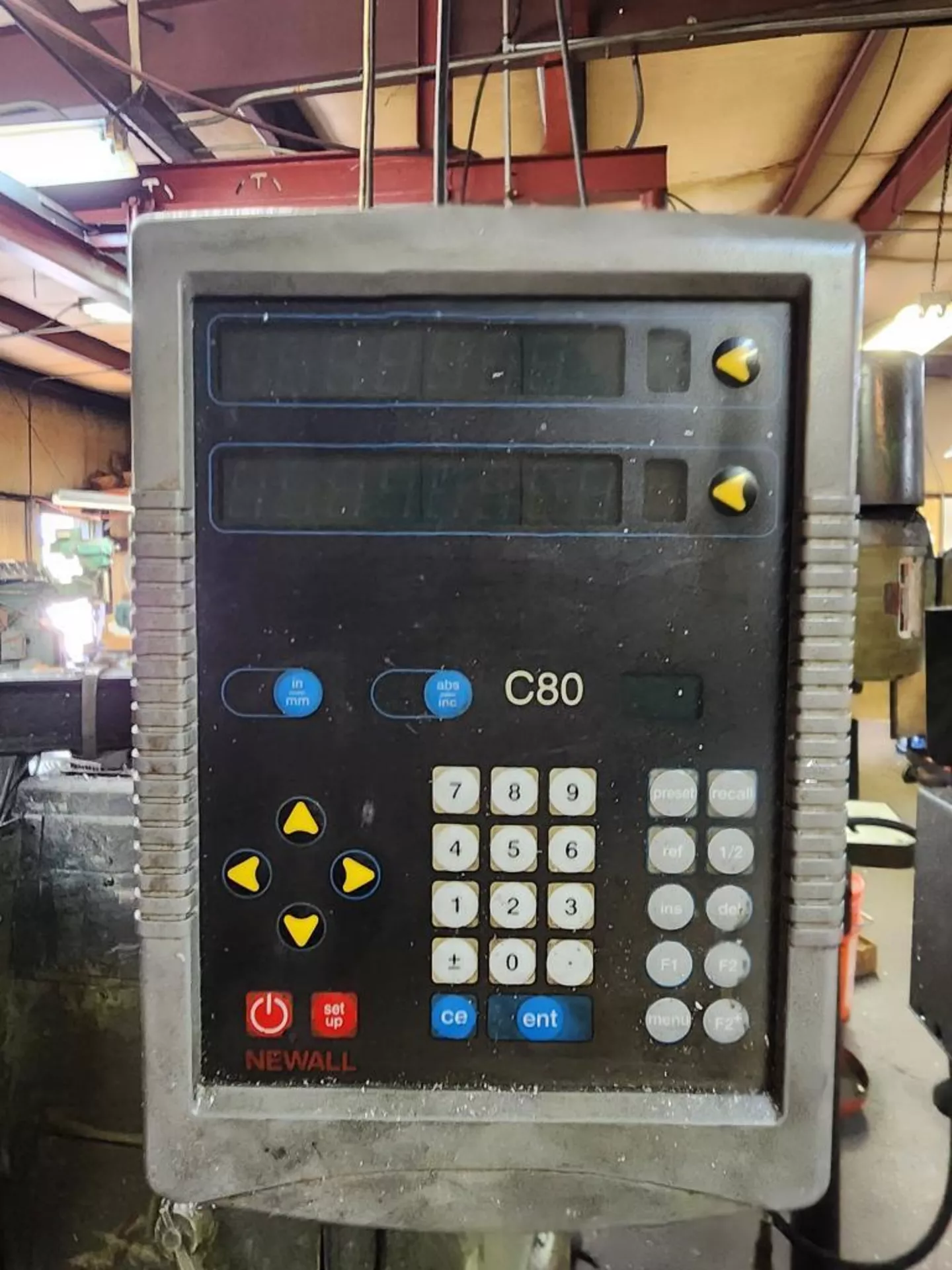

| Newall C80 2-Axis Digital Readout |
| 42″ x 9″ Servo Powered Table |

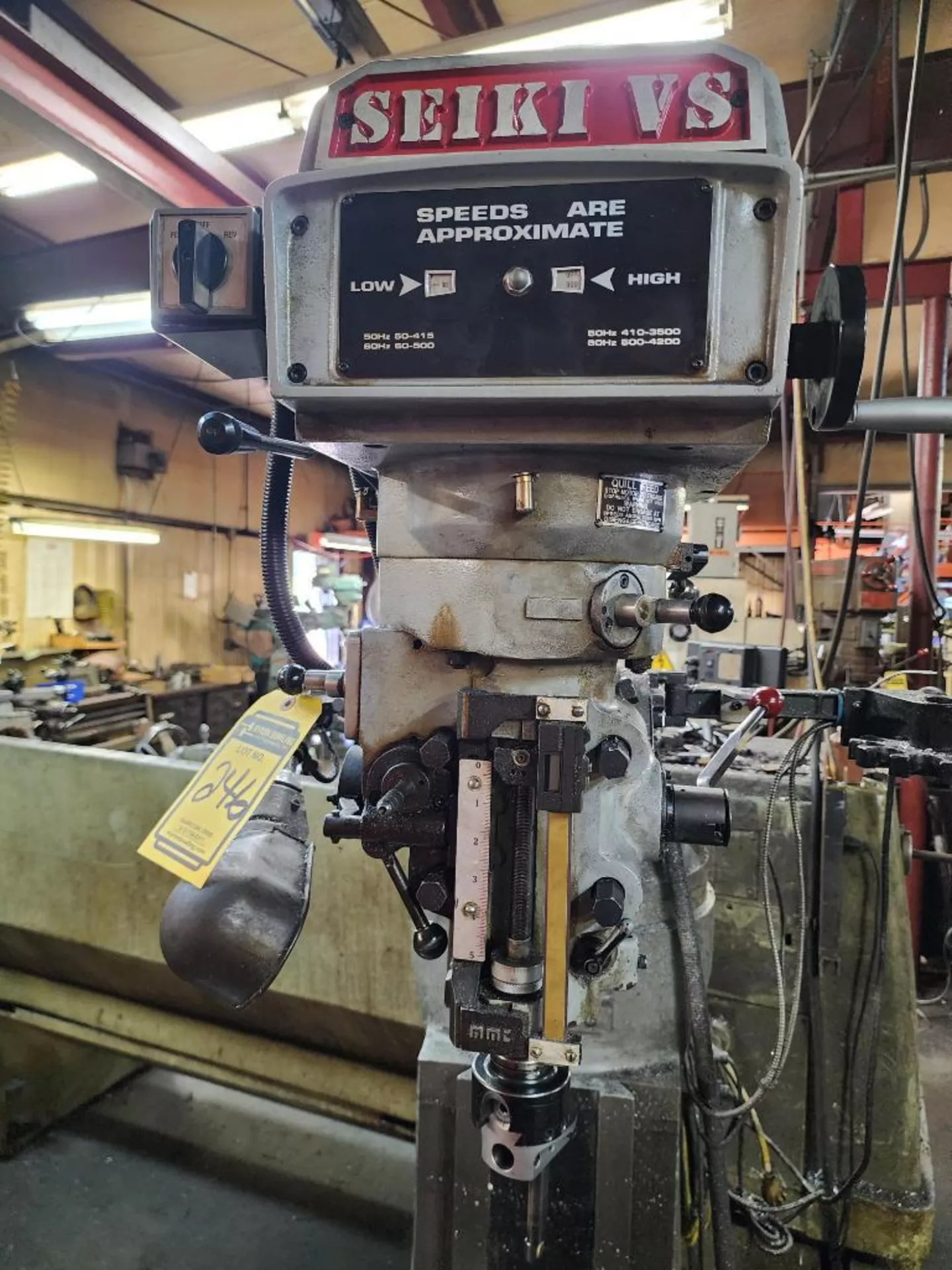

| Variable Speed Milling Head |
| R8 Spindle Taper |
| Chrome Hardened Ways |
| Power Feed Table |
| Tilting Milling Head |
| Swivel Ram Head Design |
| Quill Feed Handle |
| One Shot Lubrication System |
| Work Light |
| Drawbar |
| Heavy Duty Knee Type Construction |
| Variable Speed Belt Drive |
| Bridgeport Style Vertical Mill |
| Capacity: |
|---|
| Table Size: 42″ x 9″ |
| Table Load Capacity: Approx. 750 lbs |
| Spindle Taper: R8 |
| Quill Diameter: Approx. 3.375″ |
| Number of T-Slots: 3 |
| Travels: |
|---|
| X Axis Travel: Approx. 30″ |
| Y Axis Travel: Approx. 12″ |
| Z Axis Knee Travel: Approx. 16″ |
| Quill Travel: 5″ |
| Ram Travel: Approx. 12″ |
| Feedrate: |
|---|
| Servo Power Feed Table |
| Variable Speed Feed Control |
| Spindle: |
|---|
| Spindle Taper: R8 |
| Spindle Speed Range: 60 – 4500 RPM |
| Spindle Motor: 2 HP |
| Variable Speed Head |
| Head Tilt: 90° Left / Right |
| Head Swivel: 360° |
| General: |
|---|
| Power Requirement: 220V / 3-Phase / 60 Hz |
| Machine Dimensions: Approx. 66″ x 63″ x 84″ High |
| Machine Weight: Approx. 2,200 lbs |
