Used Sharp SV-4328SX CNC Vertical Machining Center

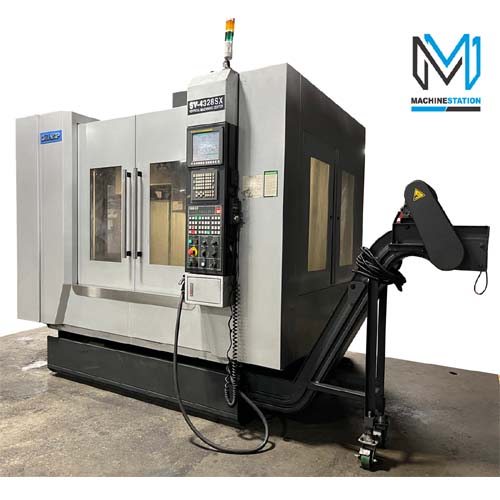

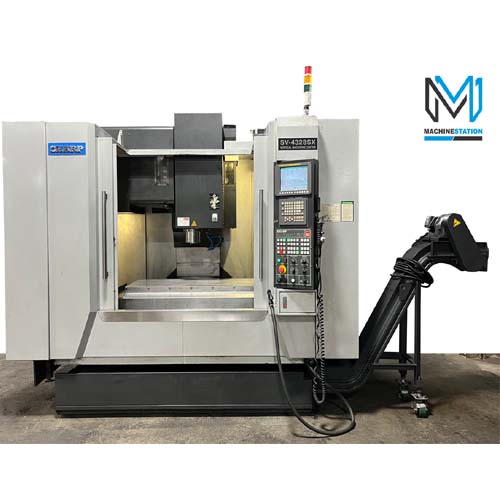

Sharp SV-4328SX CNC Vertical Machining Center

Location Byron, IL

SKU 2313

Make/Model Sharp SV-4328SX

Video On Request

Out of stock

Location:	Byron, IL
SKU:	2313
Make/Model:	Sharp SV-4328SX
Video:	On Request

SKU: 2313

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	2313
Make:	Sharp
Model:	SV-4328SX
Serial:	1029
Year:	2012
Condition:	Excellent

Features:

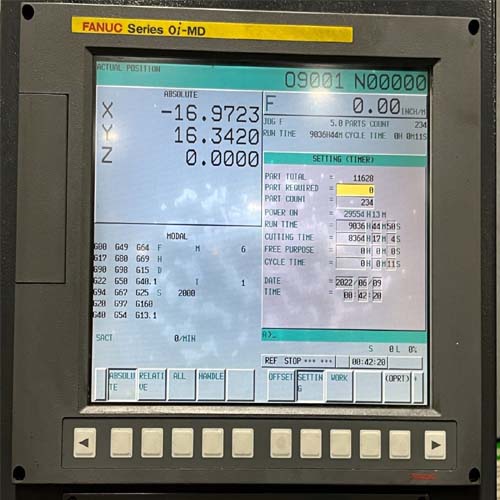

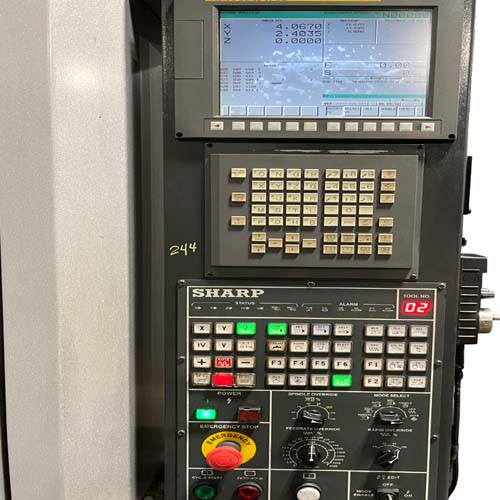

Fanuc OiMD Series CNC Control
X, Y & Z 4 Box Way Construction
Large Cross (Y) Travel: 27.56″
Through Spindle Coolant
12000 RPM High Precision Spindle
PCMCIA Card Slot
MPG Control
Rigid Tapping
24 Automatic High Speed Tool Changer
Telescopic Way Covers
Flood Coolant System

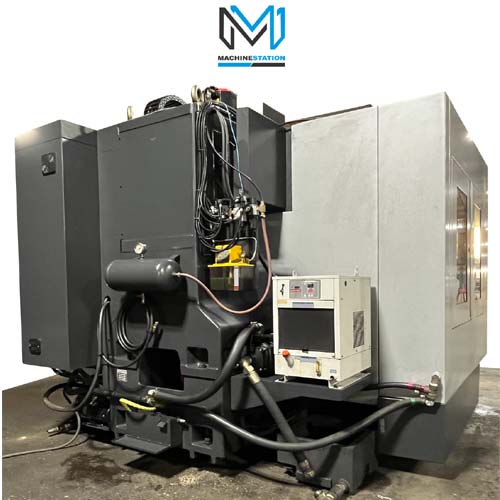

Oil Chiller
Chip Conveyor

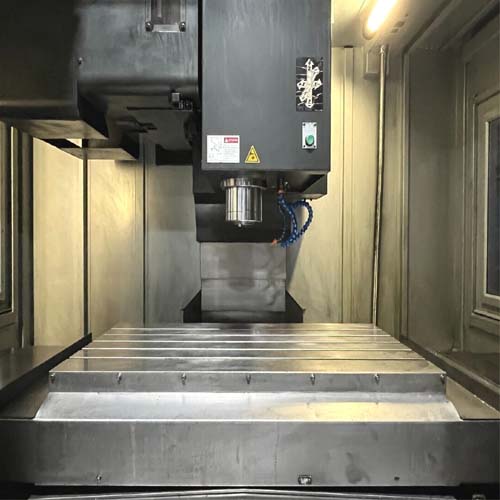

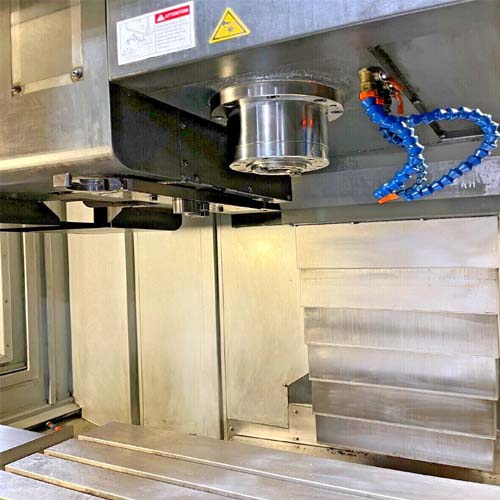

Spindle:
Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 22.5 HP

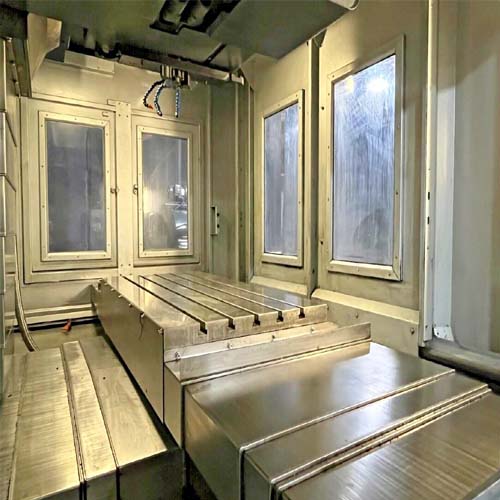

Table:
Length: 51.2″
Width: 25.6″
Number of Std T-Slots: 5
T-Slot Width: 5/7″
Max Weight on Table: 2200 lbs

Travels:
X-Axis: 43.3″
Y-Axis: 27.56″
Z-Axis: 24″
X & Y Axis Rapid Traverse Rates: 945 Inch Per Minute
Z Axis Rapid Traverse Rates: 590 IPM
Cutting Feed Rates: 394 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.1″ – 29.1″

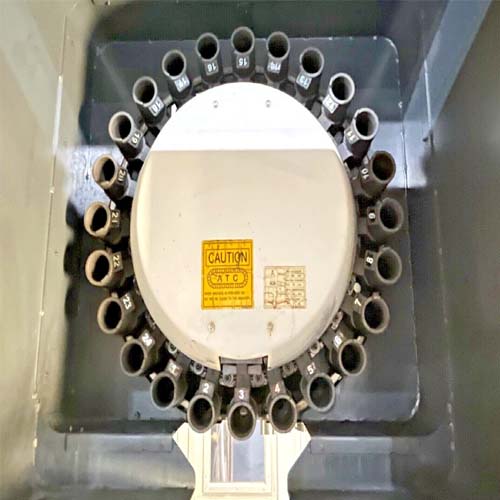

Automatic Tool Changer:
Capacity: 24 Station Side Mounted
Tool Weight: 15.4 lbs
Max Tool Dia: 2.99″
Max Tool Length: 11.8″
Tool Changing Time: 4.6 Seconds

General:
Air Required: 80 psi, 4 scfm
Power: 220v / 30 kva / 3-Phase
Overall Dimensions: 114″ x 114″ x 122″ High
Weight: 17637 lbs

Spindle:
Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 22.5 HP

Table:
Length: 1,300 mm
Width: 650 mm
Number of Std T-Slots: 5
T-Slot Width: 5/178 mm
Max Weight on Table: 2200 lbs

Travels:
X-Axis: 1,100 mm
Y-Axis: 700 mm
Z-Axis: 610 mm
X & Y Axis Rapid Traverse Rates: 945 Inch Per Minute
Z Axis Rapid Traverse Rates: 590 IPM
Cutting Feed Rates: 394 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 130 mm – 739 mm

Automatic Tool Changer:
Capacity: 24 Station Side Mounted
Tool Weight: 15.4 lbs
Max Tool Dia: 76 mm
Max Tool Length: 300 mm
Tool Changing Time: 4.6 Seconds

General:
Air Required: 80 psi, 4 scfm
Power: 220v / 30 kva / 3-Phase
Overall Dimensions: 2,896 mm x 2,896 mm x 3,099 mm High
Weight: 17637 lbs

Make	Sharp

Fanuc OiMD Series CNC Control
X, Y & Z 4 Box Way Construction
Large Cross (Y) Travel: 700 mm
Through Spindle Coolant
12000 RPM High Precision Spindle
PCMCIA Card Slot
MPG Control
Rigid Tapping
24 Automatic High Speed Tool Changer
Telescopic Way Covers
Flood Coolant System
Oil Chiller
Chip Conveyor
