*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

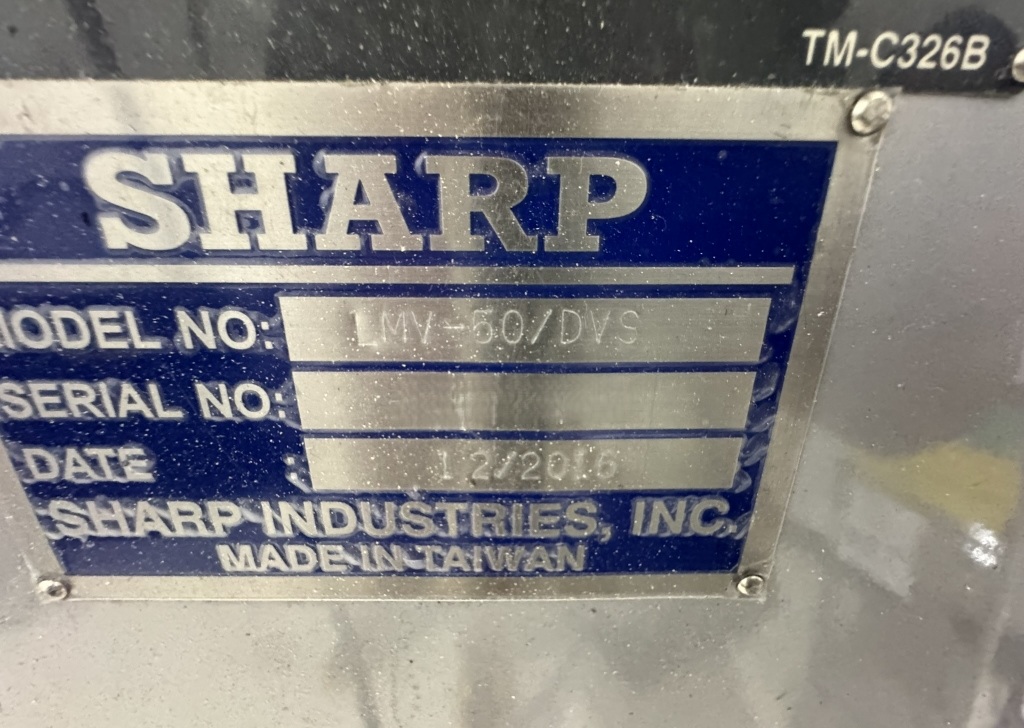

| Make: | SHARP |
| Model: | LMV-50/DVS |
| Year: | 2016 |
| Condition: | Used-Good |
| Machine Type: | Vertical Knee Milling Machine |
| Control: | Digital Readout |
| Equipped With: |
|---|

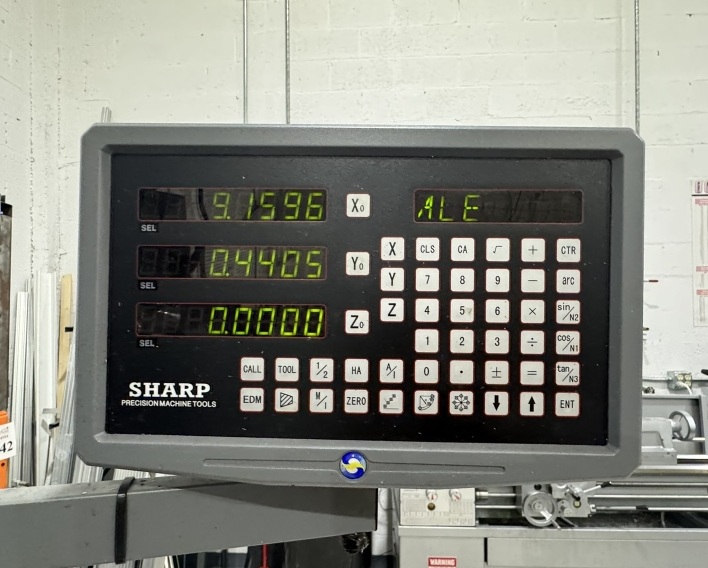

| 3-Axis Digital Readout |
| Digital Variable Speed Head |
| Power Table Feed |
| Kurt Vise |
| One-Shot Lubrication |
| Meehanite Castings |
| R-8 Collets / Tooling |
| Capacity: |
|---|
| Table Size: 9″ × 50″ |
| T-Slots: 3 |
| T-Slot Width: 5/8″ |
| T-Slot Pitch: 2.5″ |
| Travels: |
|---|
| X-Axis Travel: 36.6″ |
| Y-Axis Travel: 12″ |
| Quill Travel: 5″ |
| Knee Travel: 16″ |
| Ram Travel: 12″ |
| Spindle Center to Column: 6.75″–18.5″ |
| Spindle Nose to Table: 2.125″–18″ |
| Spindle: |
|---|
| Spindle Motor: 3 HP |
| Spindle Speed: 60–4,500 RPM |
| Spindle Taper: R-8 |
| Quill Diameter: 3.375″ |
| Head Swivel: 360° |
| Head Tilt Left/Right: ±45° |
| Head Tilt Up/Down: ±45° |
| General: |
|---|
| Electrical: 220/440V / 3-Phase |
| Power Consumption: 3 KVA |
| Machine Weight (Approx.): 2,500 lbs |
| Overall Dimensions (Approx.): 84″ W × 78″ D × 81″ H |
