*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

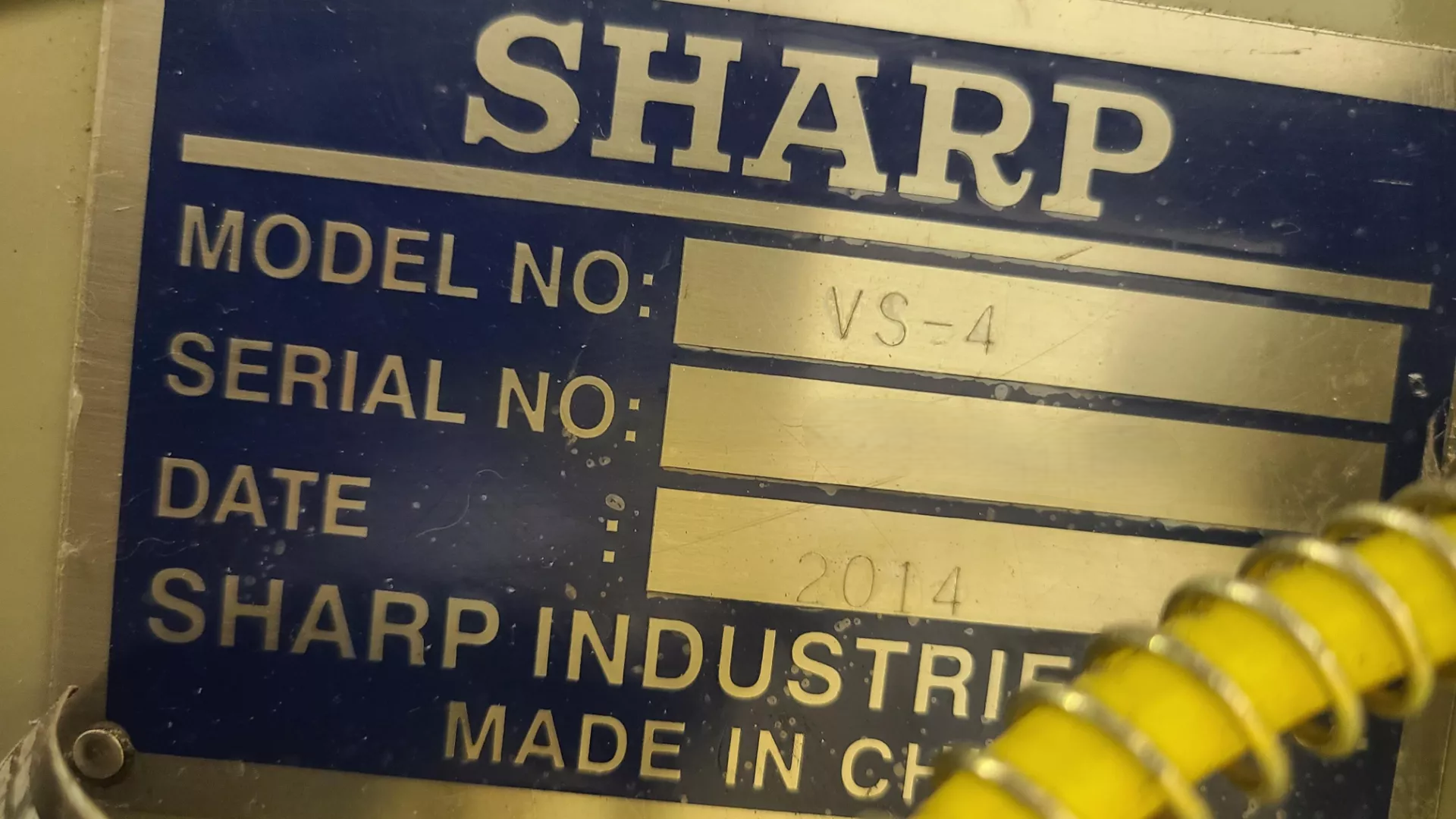

| Make: | Sharp |
| Model: | V5-4 |
| Year: | 2014 |
| Machine Type: | Vertical Milling Machine |
| Control: | Manual / Variable Speed Milling Machine |
| Equipped With: |
|---|
| Variable Speed Spindle Drive |
| NT40 Spindle Taper |
| Hardened & Ground Box Ways |
| Meehanite Castings |
| Precision Ground Gibs |
| Turcite Coated Saddle Ways |
| ABEC-7 Precision Spindle Bearings |
| Heavy Duty Knee Type Construction |
| Chrome Hardened Ways |
| Vertical Swivel Milling Head |
| Power Feed Capability |
| Rigid Head Design |
| Toolroom Milling Configuration |
| Manual Lubrication System |
| Capacity: |
|---|
| Table Size: 10″ x 54″ |
| Table Load Capacity: Approx. 750 lbs |
| Spindle Taper: NT40 |
| Quill Diameter: 4.2″ |
| Travels: |
|---|
| X Axis Travel: 39″ |
| Y Axis Travel: 16″ |
| Z Axis Travel: 16″ |
| Ram Travel: 18″ |
| Feedrate: |
|---|
| Variable Speed Spindle Drive |
| Manual Feed Controls |
| Spindle: |
|---|
| Spindle Taper: NT40 |
| Spindle Speed: 60 – 4500 RPM |
| Spindle Motor: 5 HP |
| Head Tilt: 45° Left / Right |
| Head Swivel: 360° |
| General: |
|---|
| Power Requirement: 220V / 440V |
| Machine Dimensions: Approx. 84″ x 78″ x 88″ High |
| Machine Weight: Approx. 2,800 lbs |
