*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

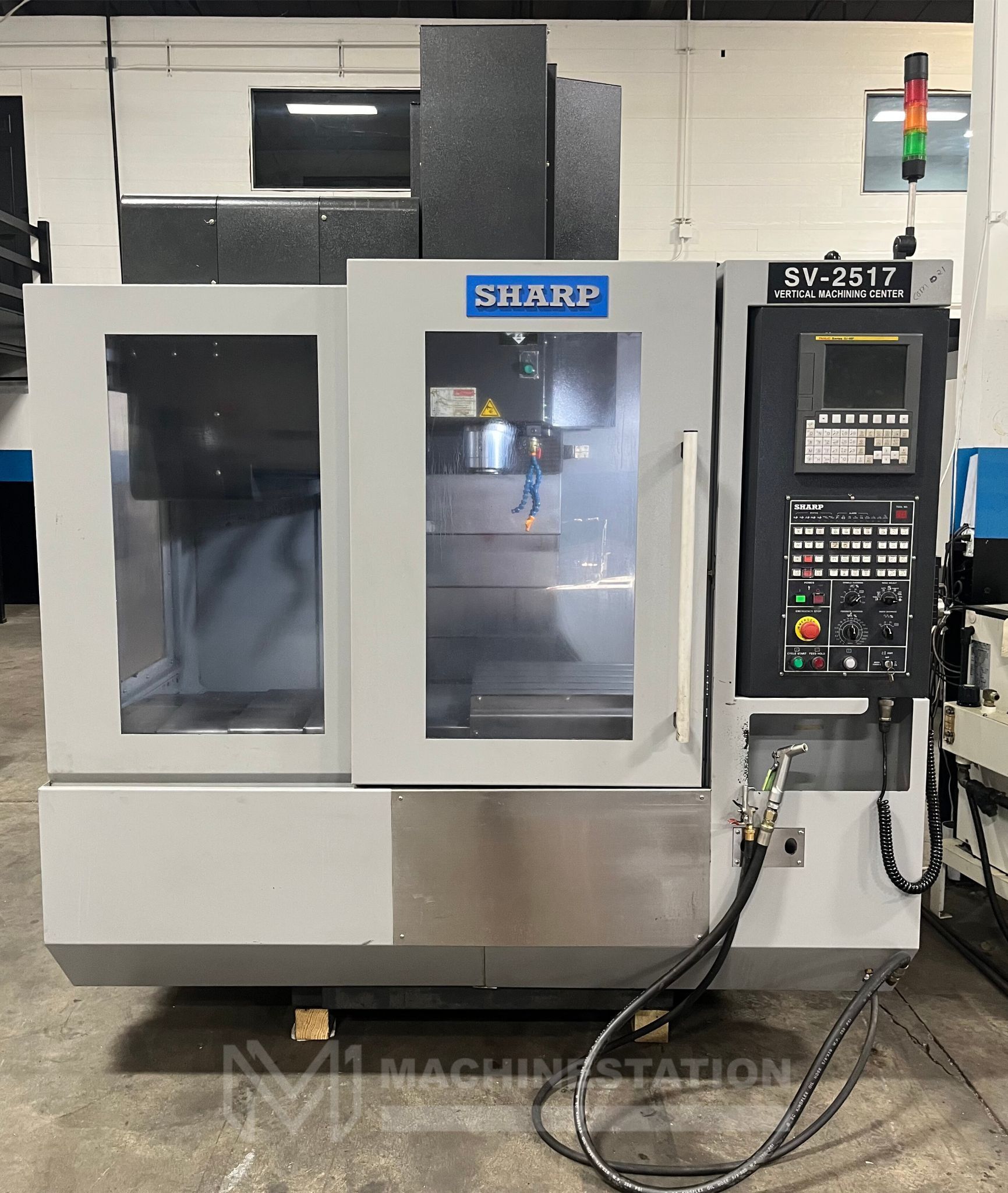

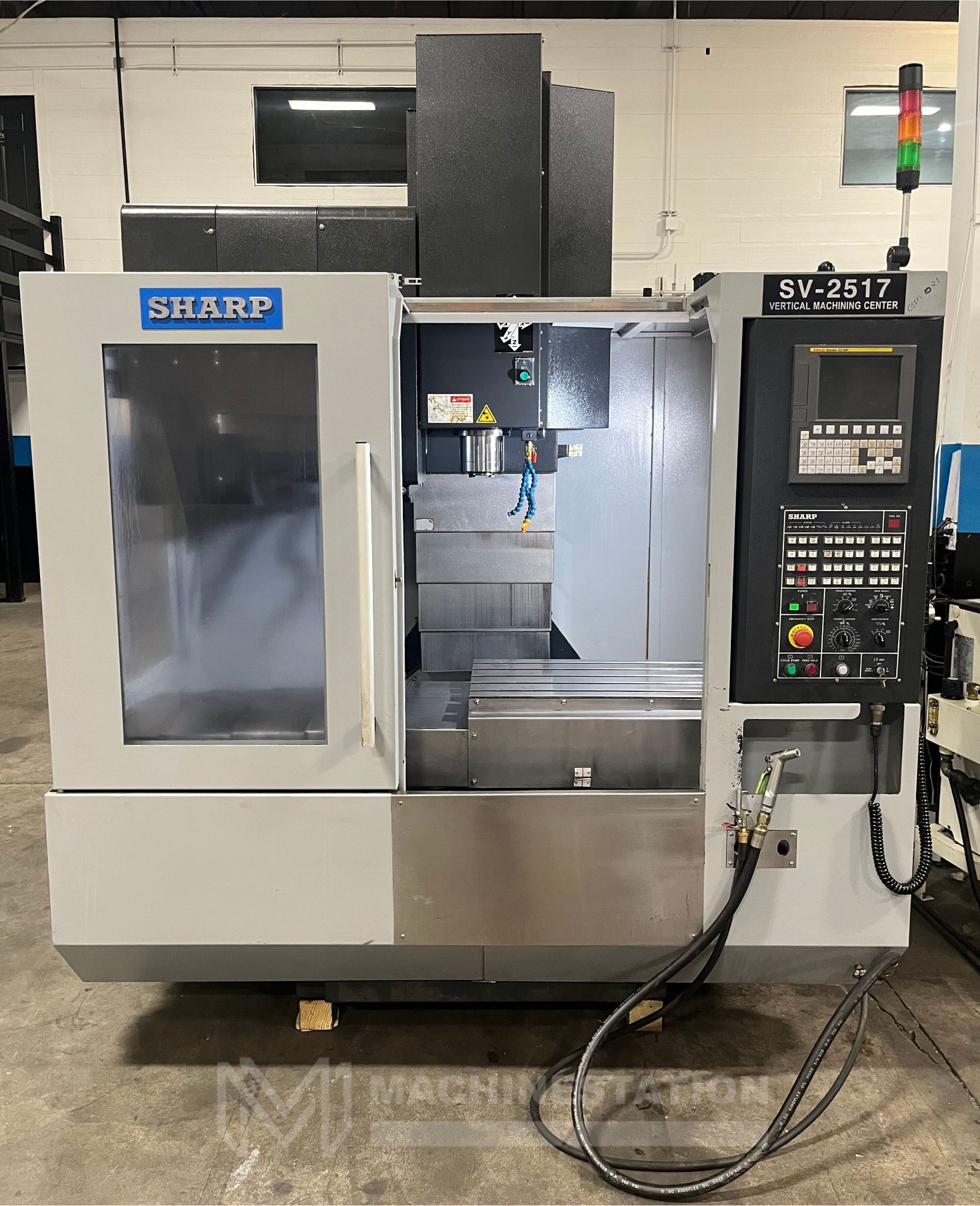

| Make: | Sharp |
| Model No.: | SV-2517 |
| Year of Manufacture: | 2017 |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | Fanuc CNC Control |
| Country of Origin: | Taiwan |
| Equipped With: |
|---|
| Fanuc CNC Control |
| 10,000 RPM Spindle |
| Automatic Tool Changer |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Capacity: |
|---|
| Table Size: 31″ x 18″ |
| Max Table Load: 1,000 lbs |
| Travels: |
|---|
| X-Axis Travel: 25″ |
| Y-Axis Travel: 17″ |
| Z-Axis Travel: 20″ |
| Spindle: |
|---|
| Spindle Speed: 10,000 RPM |
| Spindle Taper: CAT 40 |
| Spindle Motor: 15 HP (Approx.) |
| Tooling: |
|---|
| ATC Capacity: 20 Tools (Approx.) |
| General: |
|---|
| Power Source: AC 220/440 V, 3-Phase, 50/60 Hz |
| Machine Dimensions (L x W x H): 90″ x 85″ x 95″ |
| Machine Weight: 8,000 lbs Approx. |
