Sold
SMEC SL-80C/3200 CNC Turning Center (2014) – Fanuc Control, Heavy Duty Long Bed
Out of stock
| SKU: | 11325 |
| Make/Model: | SMEC SL-80C/3200 |
| Year: | 2014 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | SMEC |
| Model: | SL-80C/3200 |
| Year: | 2014 |
| Condition: | Used – Good |
| Equipped With: |
|---|

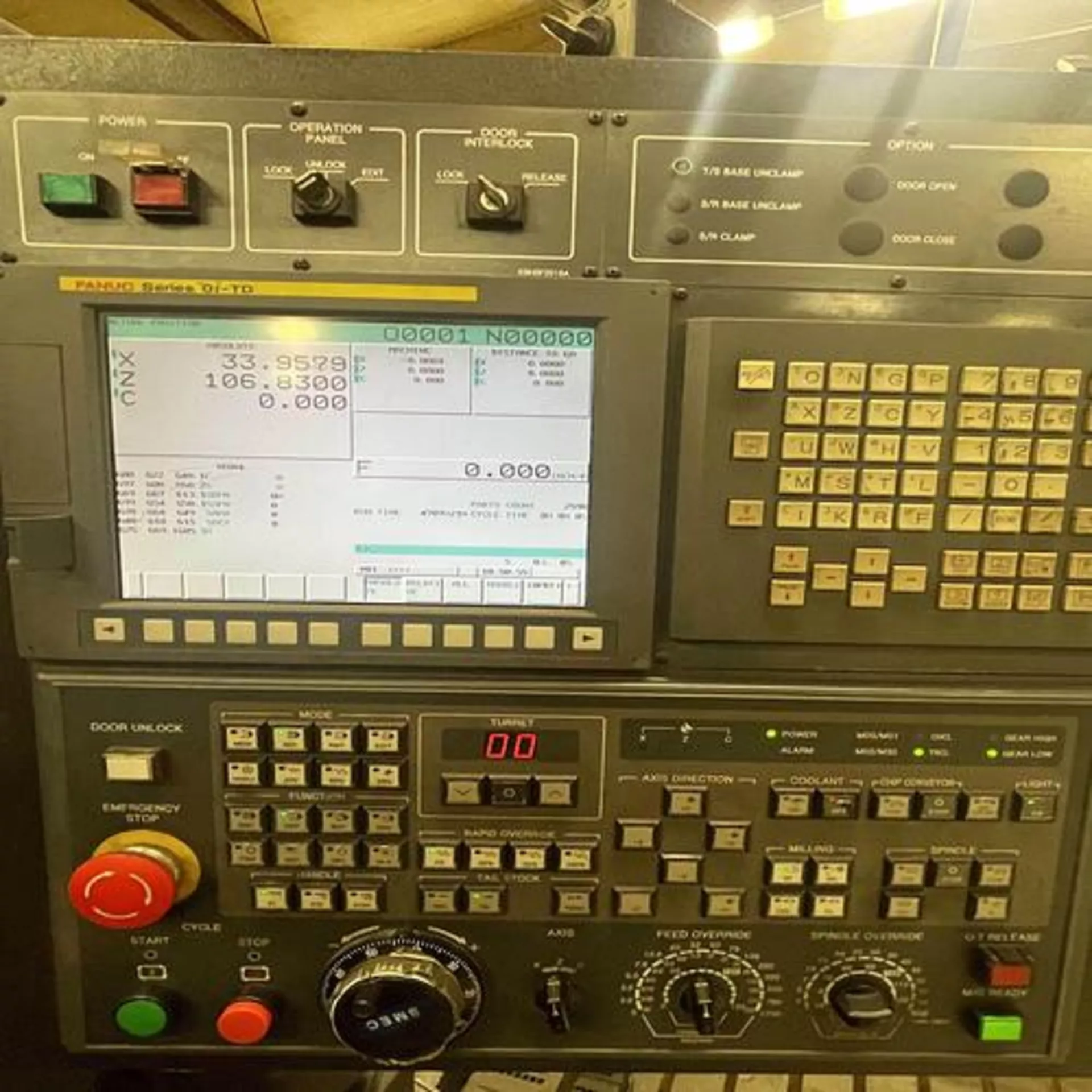

| Fanuc Series 0i-TD CNC Control |
| Heavy Duty Box Way Construction |

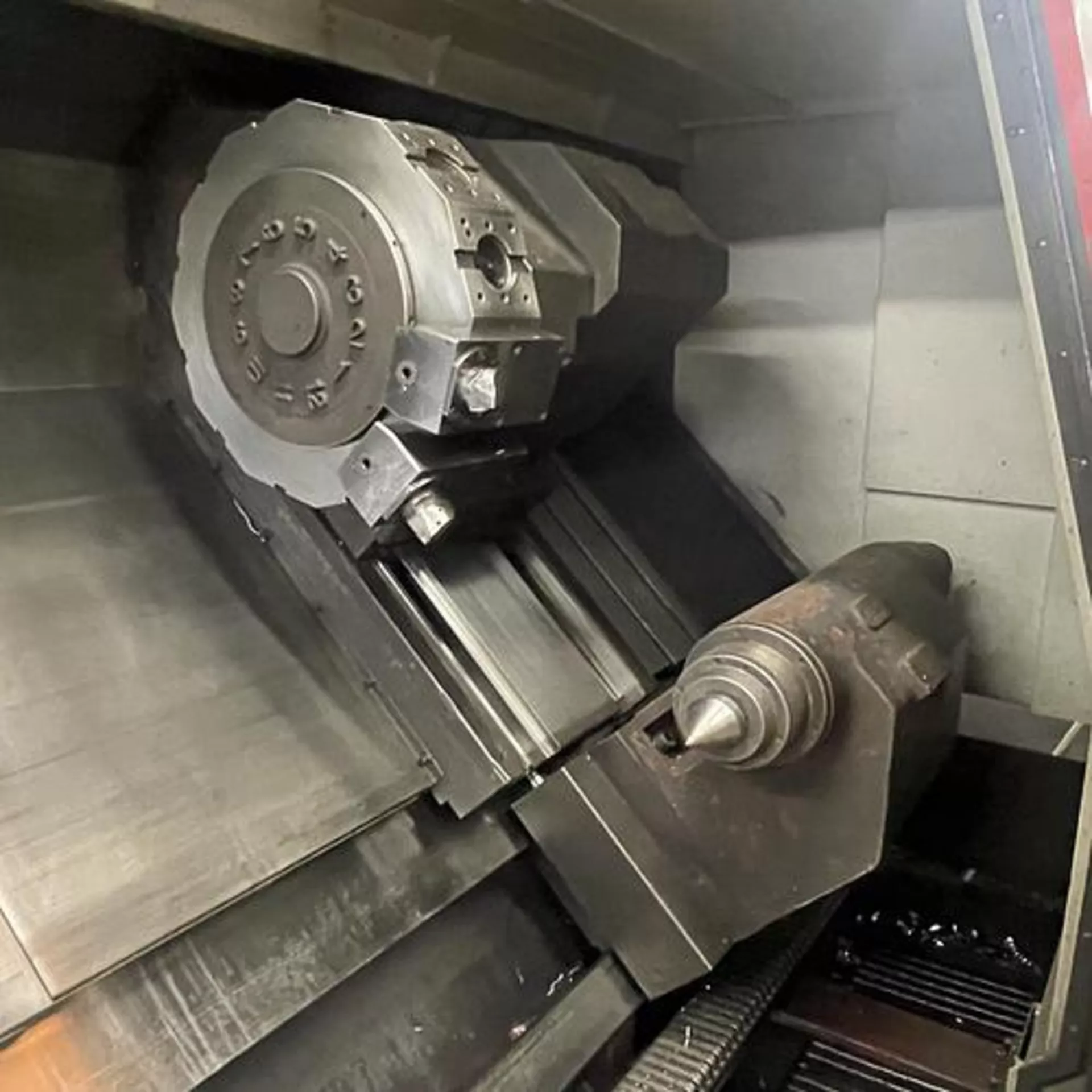

| 12 Station Automatic Turret |
| Hydraulic Programmable Tailstock |
| Extra Long Bed (3200 mm) |
| Flood Coolant System |
| Chip Conveyor |
| Work Light |
| Manual Pulse Generator (Handwheel) |
| Bar Feed Interface |
| Capacity: |
|---|
| Max Turning Diameter: 31.5″ Approx. |
| Max Turning Length: 126″ (3200 mm) |
| Swing Over Bed: 35″ Approx. |
| Max Bar Capacity: 6.5″ Approx. |
| Travel: |
|---|
| X Axis Travel: 17″ Approx. |
| Z Axis Travel: 126″ Approx. |
| Rapid Traverse X Axis: ~500 IPM |
| Rapid Traverse Z Axis: ~787 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 7.0″ Approx. |
| Spindle Speed: 1,500 RPM Approx. |
| Spindle Motor: 50 HP Approx. |
| Turret: |
|---|
| Capacity: 12 Station |
| Tool Type: Heavy Duty Static Tooling |
| OD Tool Size: 1.25″ x 1.25″ Approx. |
| Max Boring Bar Size: 2.5″ Approx. |
| Tailstock: |
|---|
| Tailstock Type: Hydraulic Programmable |
| Tailstock Taper: MT-6 Approx. |
| Tailstock Quill Dia.: 5.0″ Approx. |
| Tailstock Quill Travel: 6.0″ Approx. |
| General: |
|---|
| Power: 220V / 3-Phase / 60 Hz |
| Overall Dimensions: ~240″ x 100″ x 100″ High |
| Weight: ~44,000 lbs (20,000 kg) |
| Categories | CNC Lathes & Turning Centers |
|---|---|
| Make | |
| Model | SL-80C/3200 |
