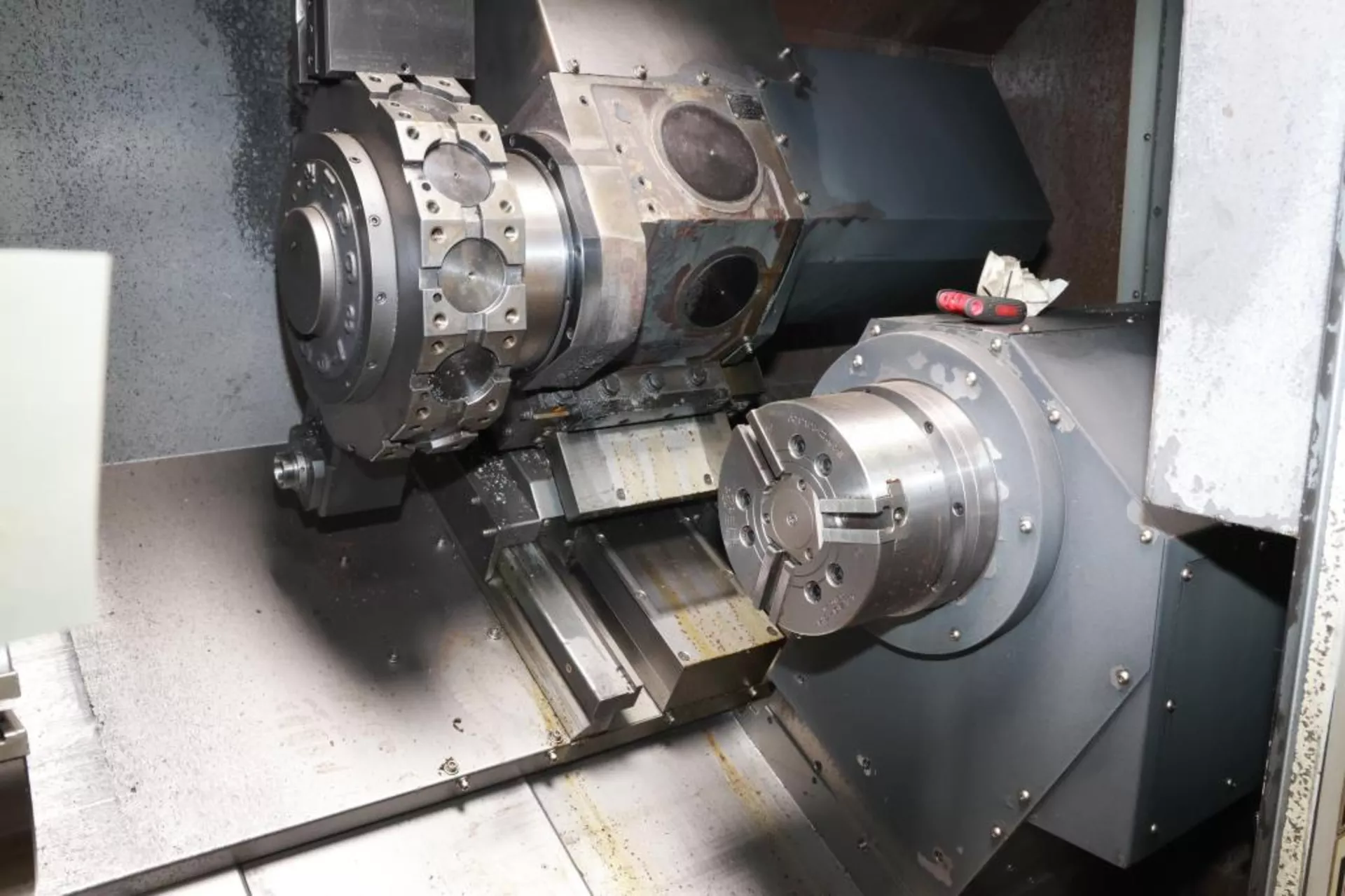

*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

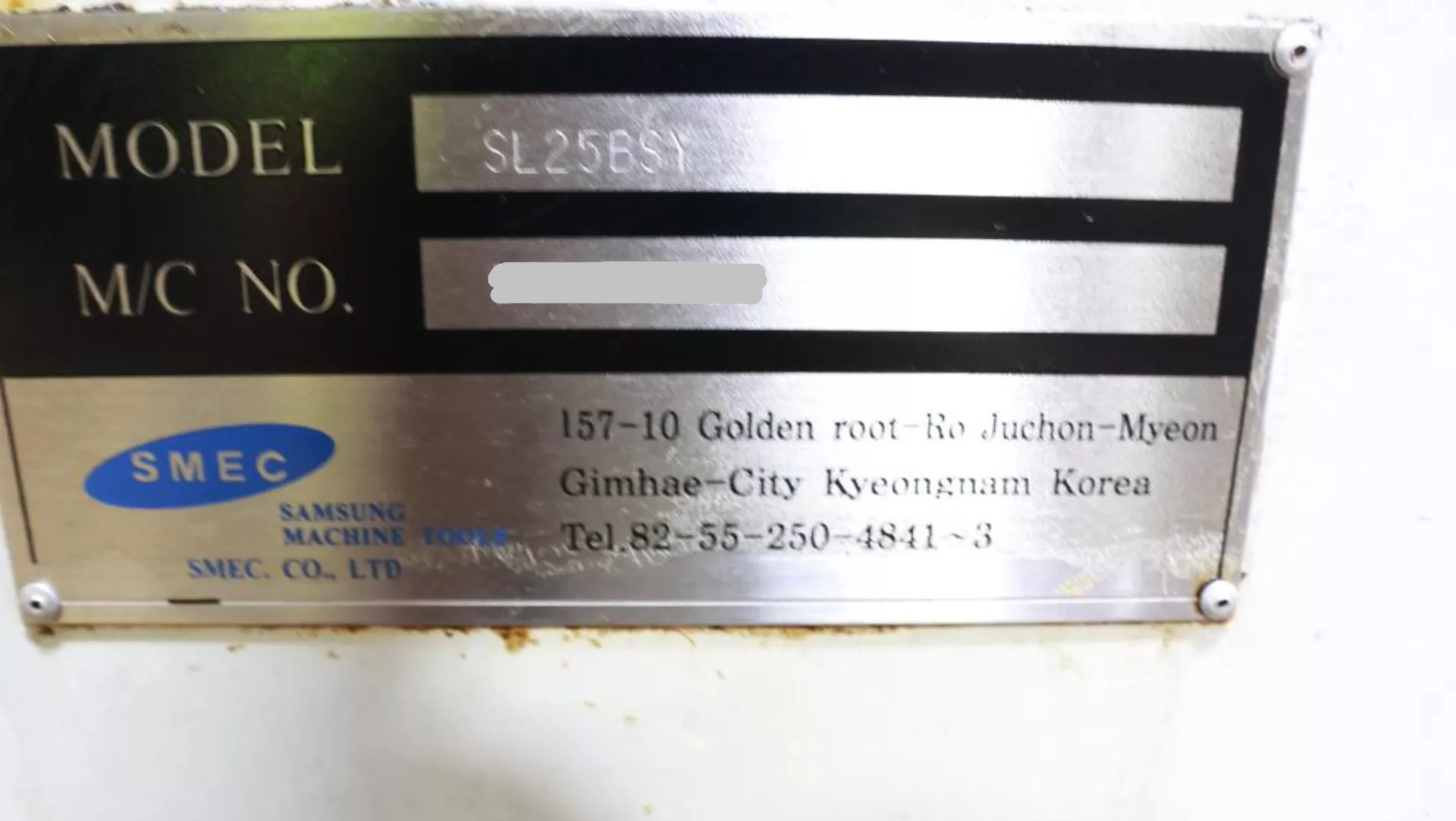

| Make: |
SMEC |
| Model No.: |
SL25BSY |
| Year of Manufacture: |
2012 |
| Condition: |
Used |
| Machine Type: |
CNC Horizontal Turning Center |
| CNC Control: |
Fanuc Oi-TF / Oi-TF Plus |
| Country of Origin: |
South Korea |
| Equipped With: |
| Sub-Spindle (Full Back Working Capability) |
| Y-Axis Milling Capability |
| Live Tooling (BMT65) |
| C-Axis (Main & Sub Spindle) |
| 10″ Hydraulic Chuck |
| Servo Bi-Directional Turret |
| Coolant System |
| Chip Conveyor |
| Parts Catcher (optional) |
| 30° Slant Bed Construction |
| Meehanite Casting Structure |
| Box Guideways (Heavy Duty) |
| Fully Enclosed Guarding |
| Capacity: |
| Max Turning Diameter: 14.17″ (360 mm) |
| Max Turning Length: 20.4″ (520 mm) |
| Swing Over Bed: 25.6″ (650 mm) |
| Swing Over Cross Slide: 21.3″ (540 mm) |
| Bar Capacity: 3.0″ (77 mm) |
| Distance Between Spindles: 33.8″ (860 mm) |
| Main Spindle: |
| Spindle Nose: A2-8 |
| Chuck Size: 10″ |
| Spindle Speed: Up to 3,500 – 4,500 RPM |
| Spindle Bore: ~86 mm |
| Spindle Motor: 18.5 / 22 kW (~25–30 HP) |
| C-Axis: Full C-Axis Indexing |
| Sub Spindle: |
| Spindle Nose: A2-5 / A2-6 |
| Chuck Size: 6″ – 8″ |
| Spindle Speed: Up to 4,000 – 6,000 RPM |
| Spindle Motor: 5.5 / 9 kW |
| Bar Capacity: ~36 mm |
| Function: Full Part Transfer & Back Machining |
| Travels: |
| X-Axis Travel: 9.25″ (235 mm) |
| Y-Axis Travel: ±2.05″ (±52.5 mm) |
| Z-Axis Travel: 22.8″ (580 mm) |
| ZB Axis (Sub-Spindle): 580 mm |
| Rapid Traverse (X/Y/Z): 18 / 12 / 24 m/min |
| Turret / Tooling: |
| Turret Type: Servo Bi-Directional |
| Stations: 12 (24 Index) |
| Tool System: BMT65 |
| Live Tool Speed: 5,000 RPM |
| Tool Size: 25 × 25 mm / 50 mm Boring |
| Index Time: ~0.2 sec |
| Construction: |
| 30° Slant Bed Design |
| Meehanite Casting Structure |
| Box Guideways for Heavy Cutting |
| Thermal Stability Design |
| Electrical: |
| Power Requirement: 220V / 3 Phase / 50-60 Hz |
| General: |
| Machine Weight: ~5,000 – 7,500 kg |
| Floor Space: ~3,600 × 1,930 mm |
| Axis Configuration: X, Y, Z, C (Main & Sub) |
