*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2023 |
| Make: | SNK |

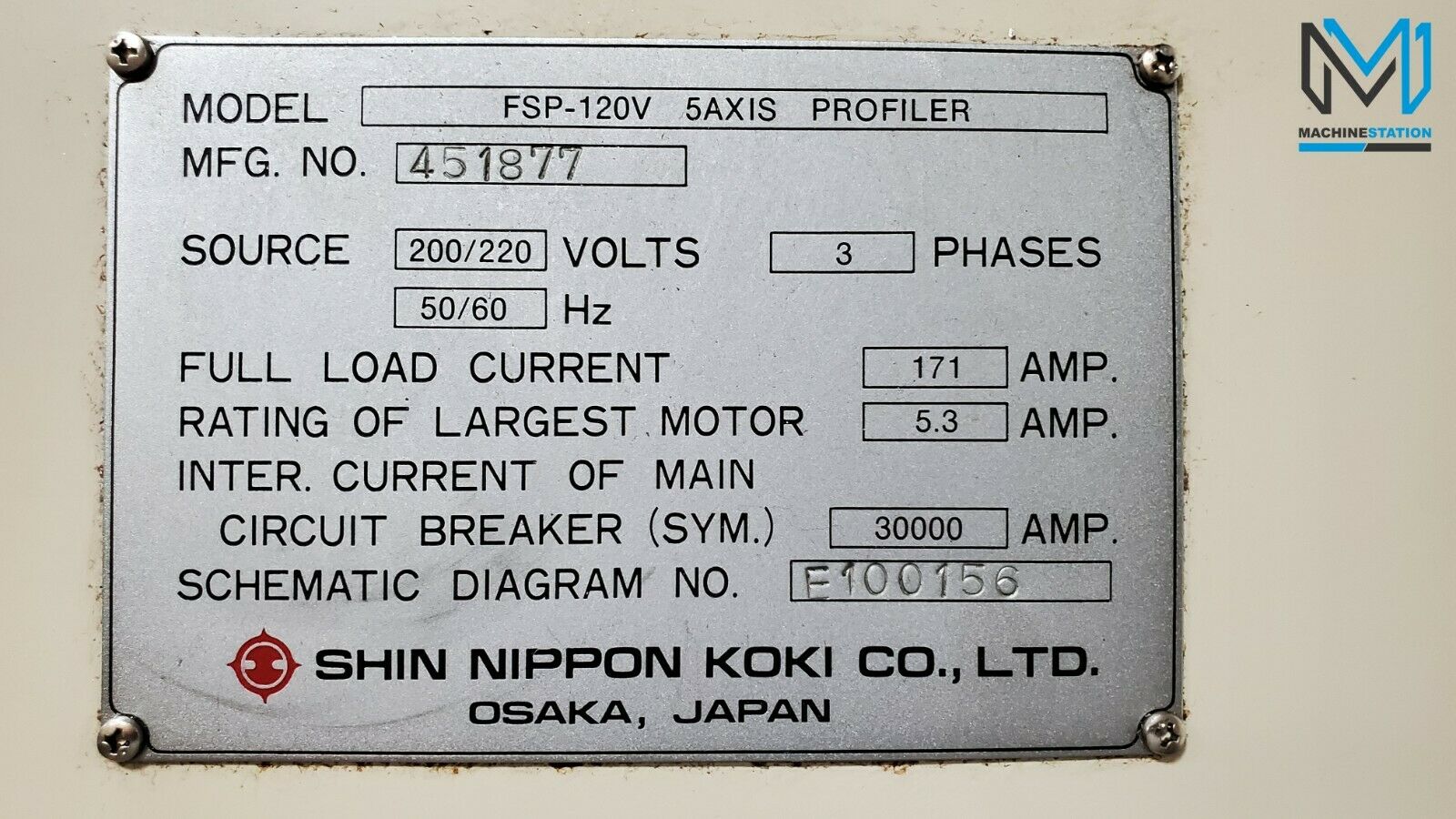

| Model: | FSP-120V |
| Serial: | 451877 |
| Condition: | Very Good |
| Features: |
|---|

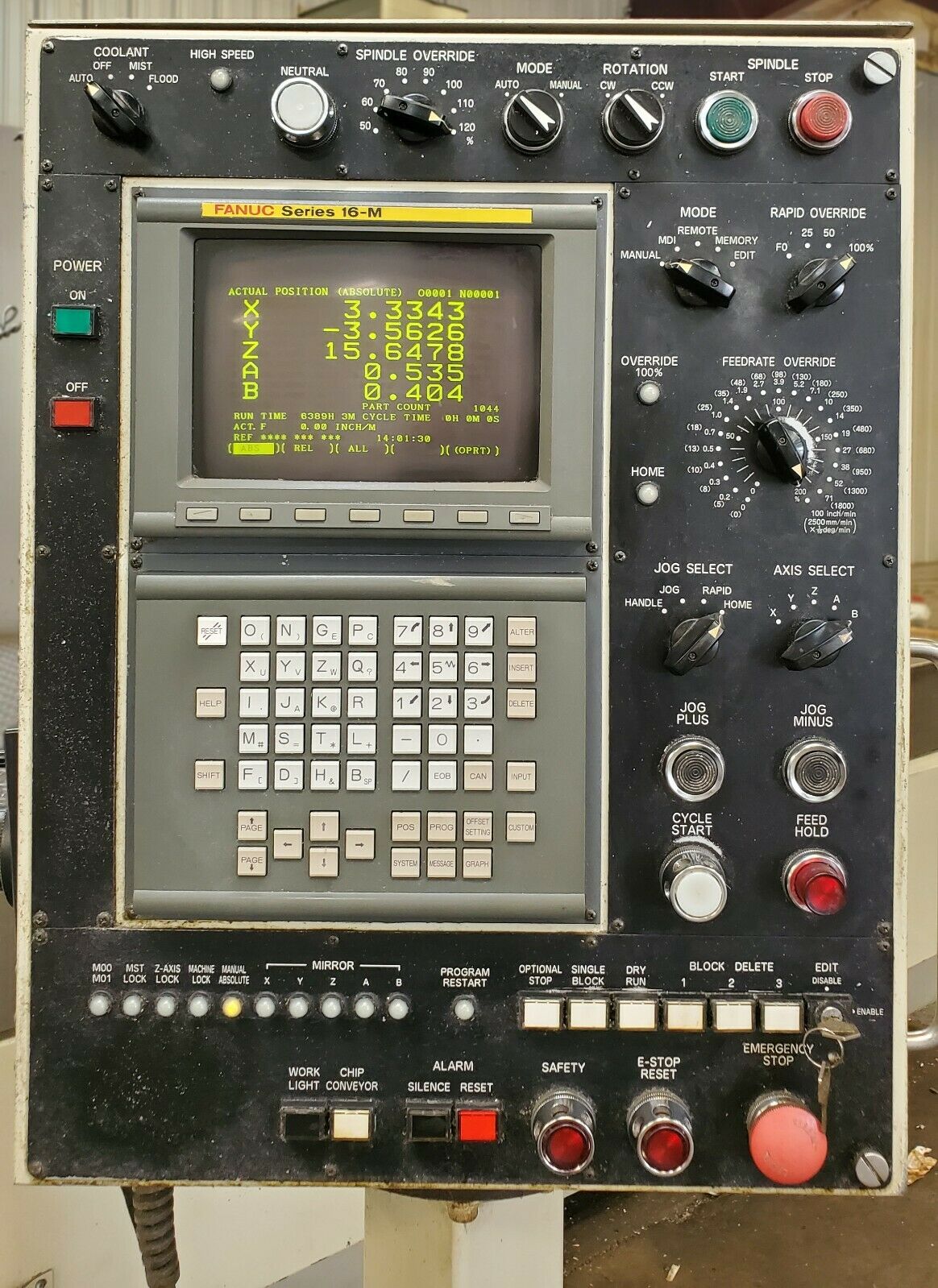

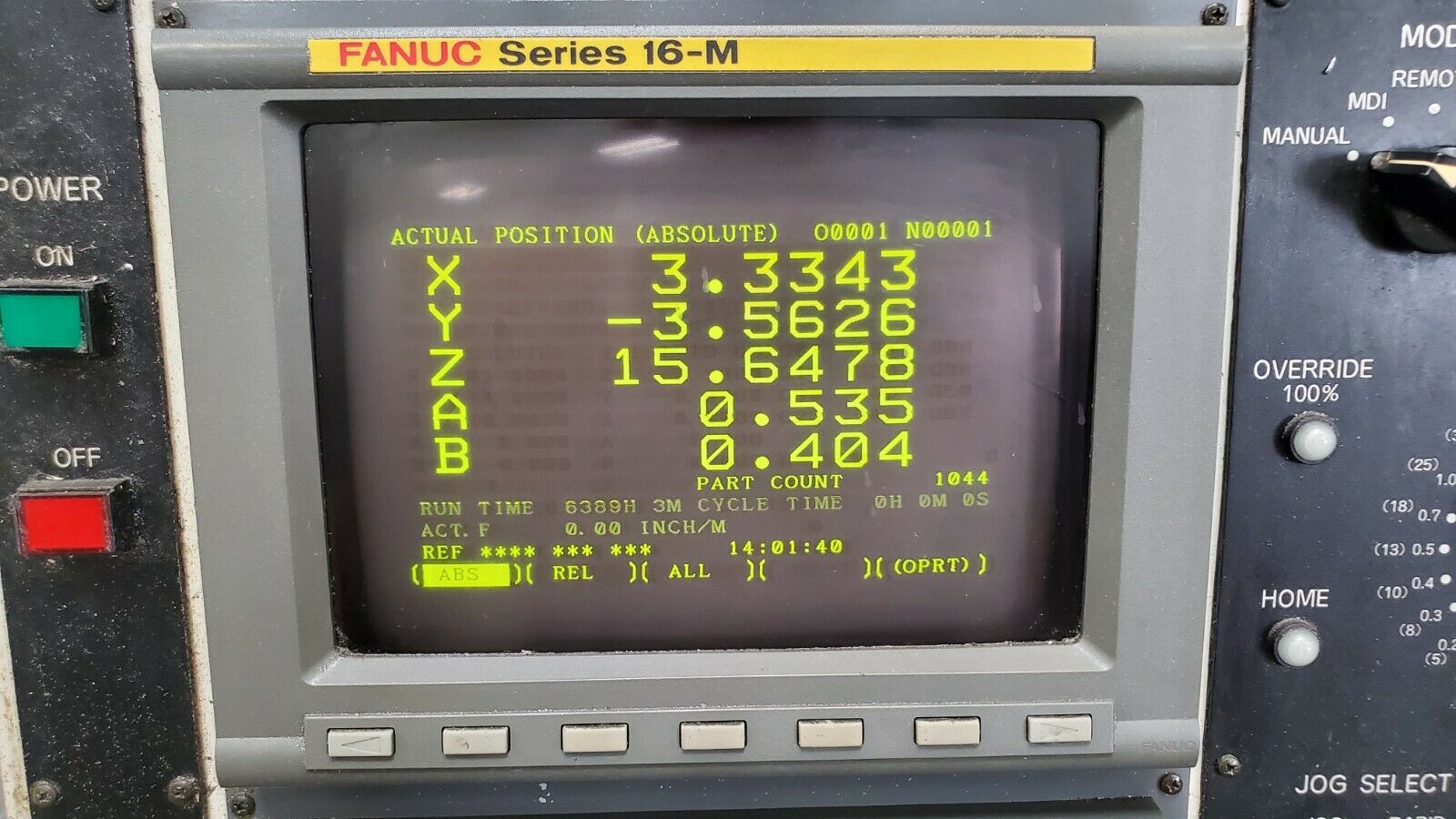

| Fanuc 16M 5 Axis Simultaneous Contouring Control |

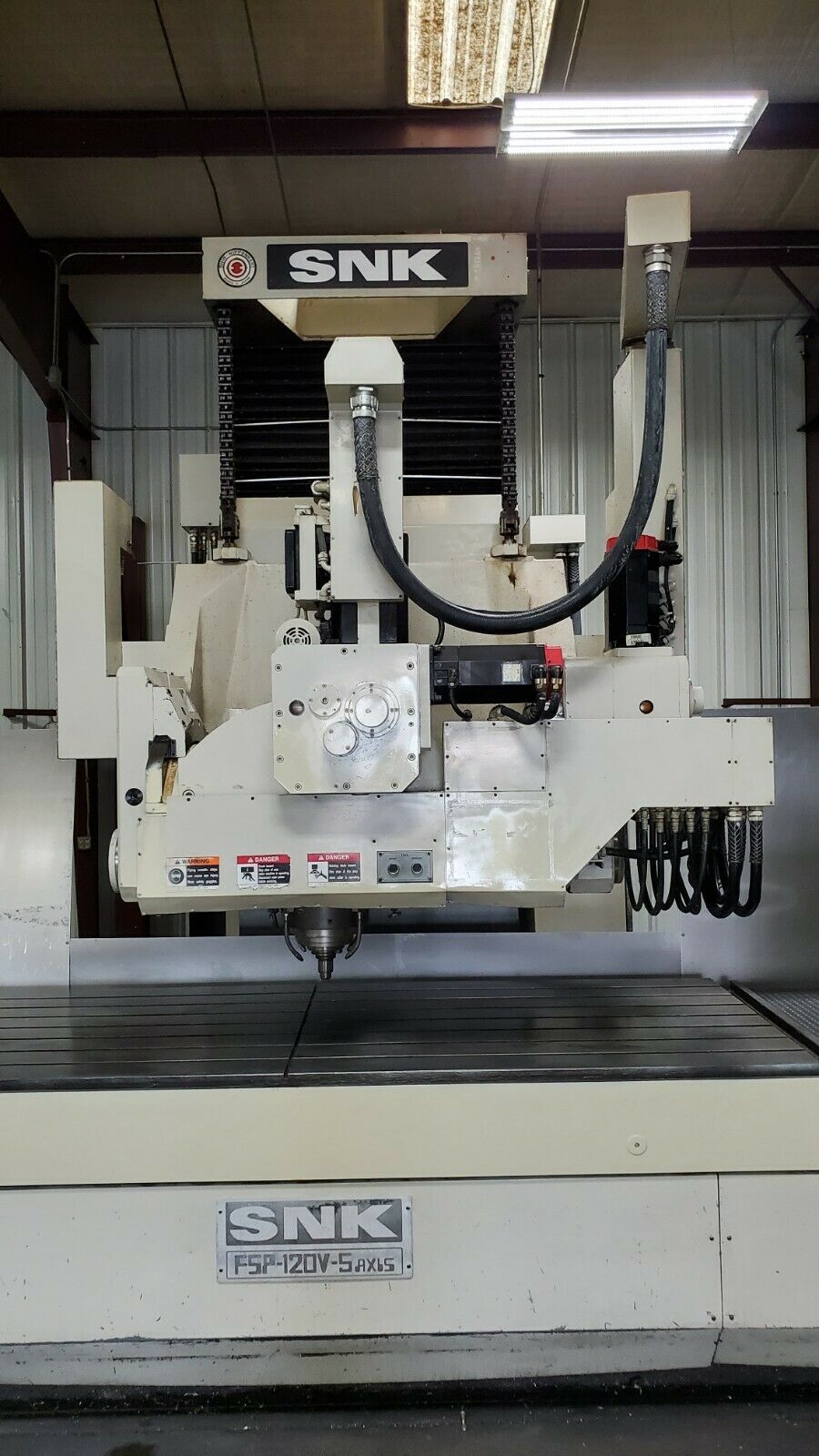

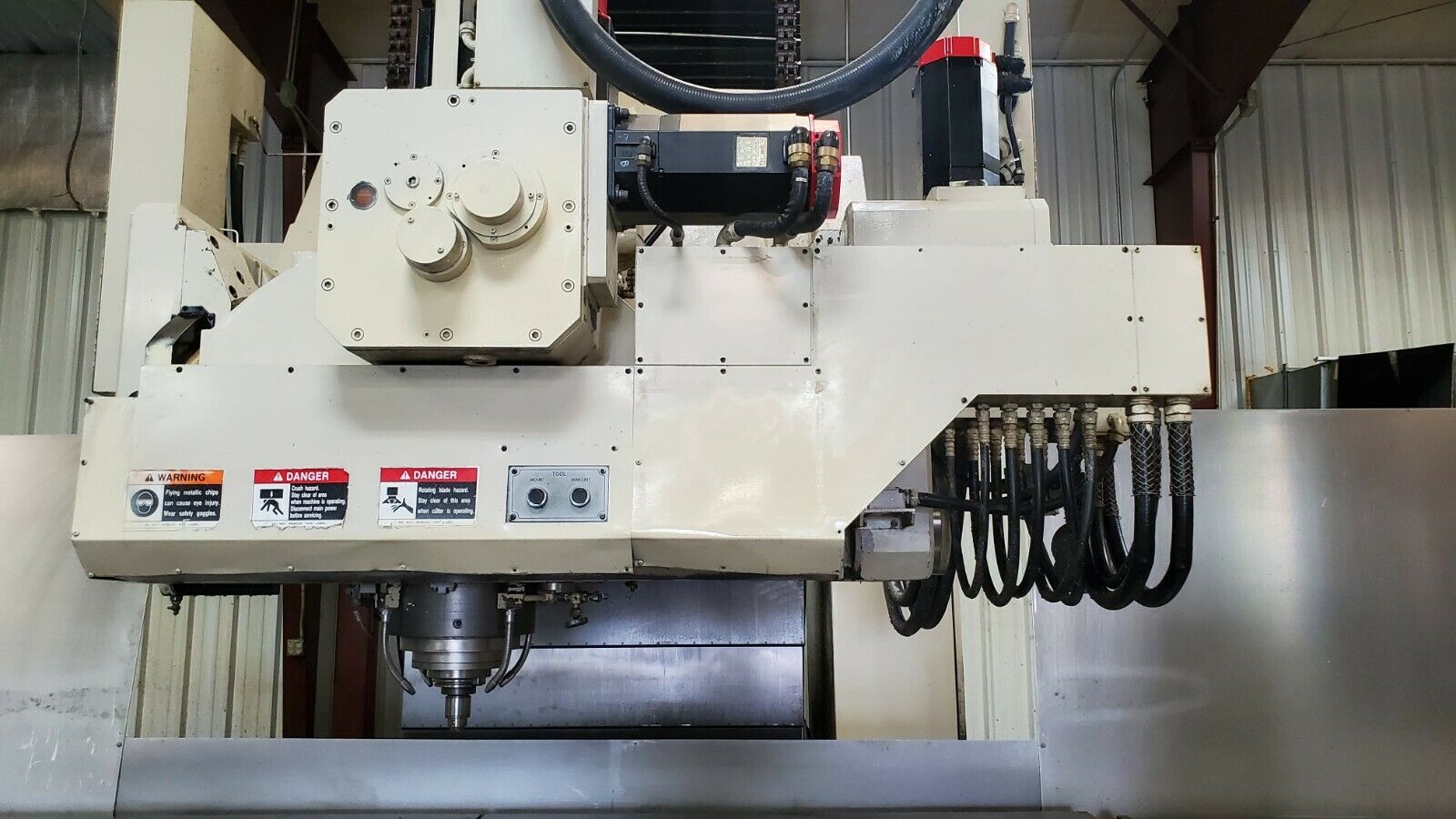

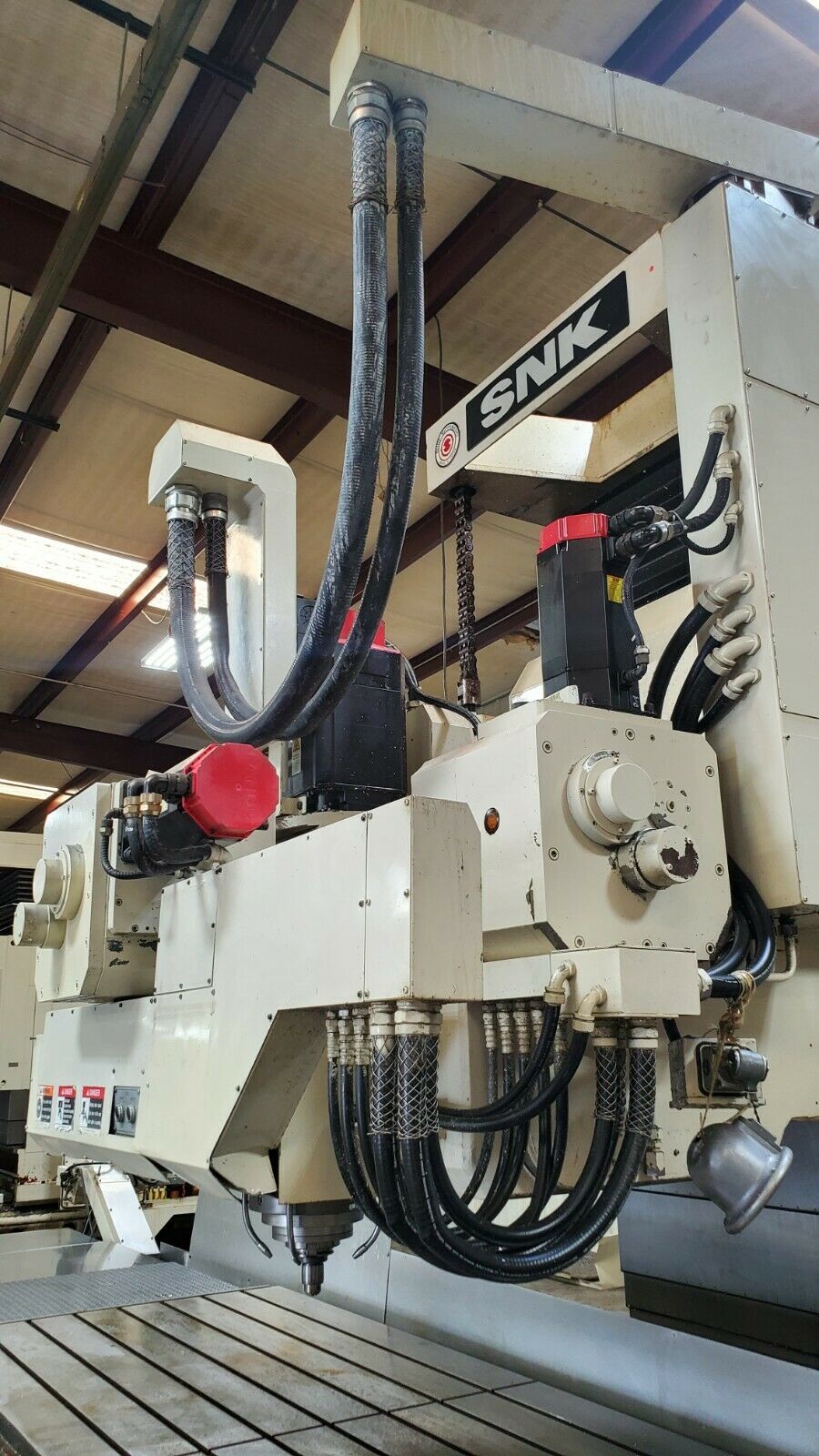

| Articulating Spindle Head |
| Travelling Column Box Way Heavy Construction |
| 30 HP High Torque Spindle Motor |
| 50 Taper 4000 RPM Geared Head Spindle |
| MPG Control |
| Rigid Tapping |
| RS-232 Port |
| Telescopic way covers |
| Coolant Tank |
| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 120.0″ |
| Y-Axis: 50.0″ |
| Z-Axis: 24.0″ |
| A-Axis: +/- 25° degrees |
| B-Axis: +/- 25° degrees |
| Rapid Traverse Rates: 200 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.0″ – 33.0″ |

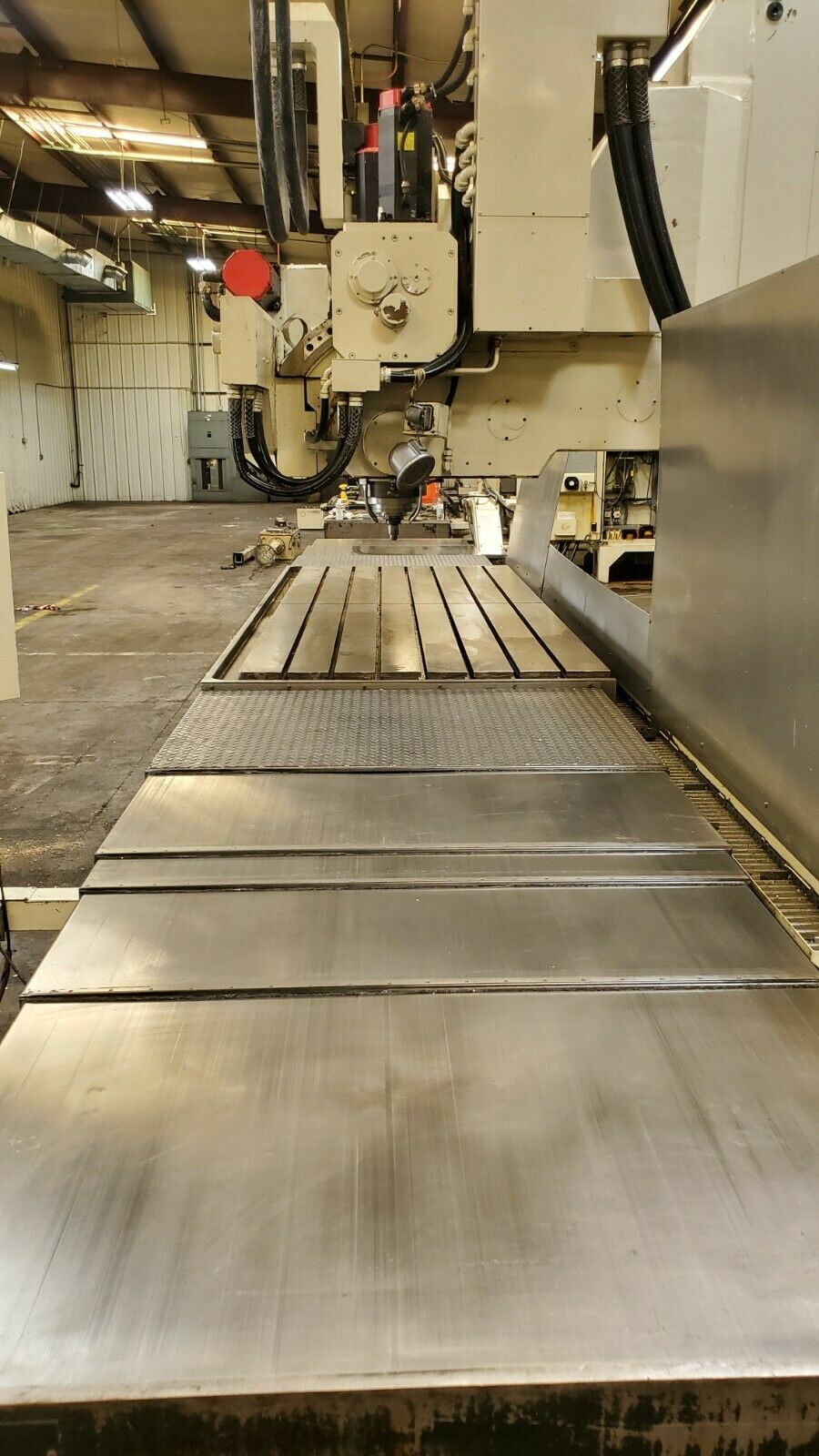

| Table: |
|---|
| Length: 124.0″ |
| Width: 48.0″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 22,000 lbs |

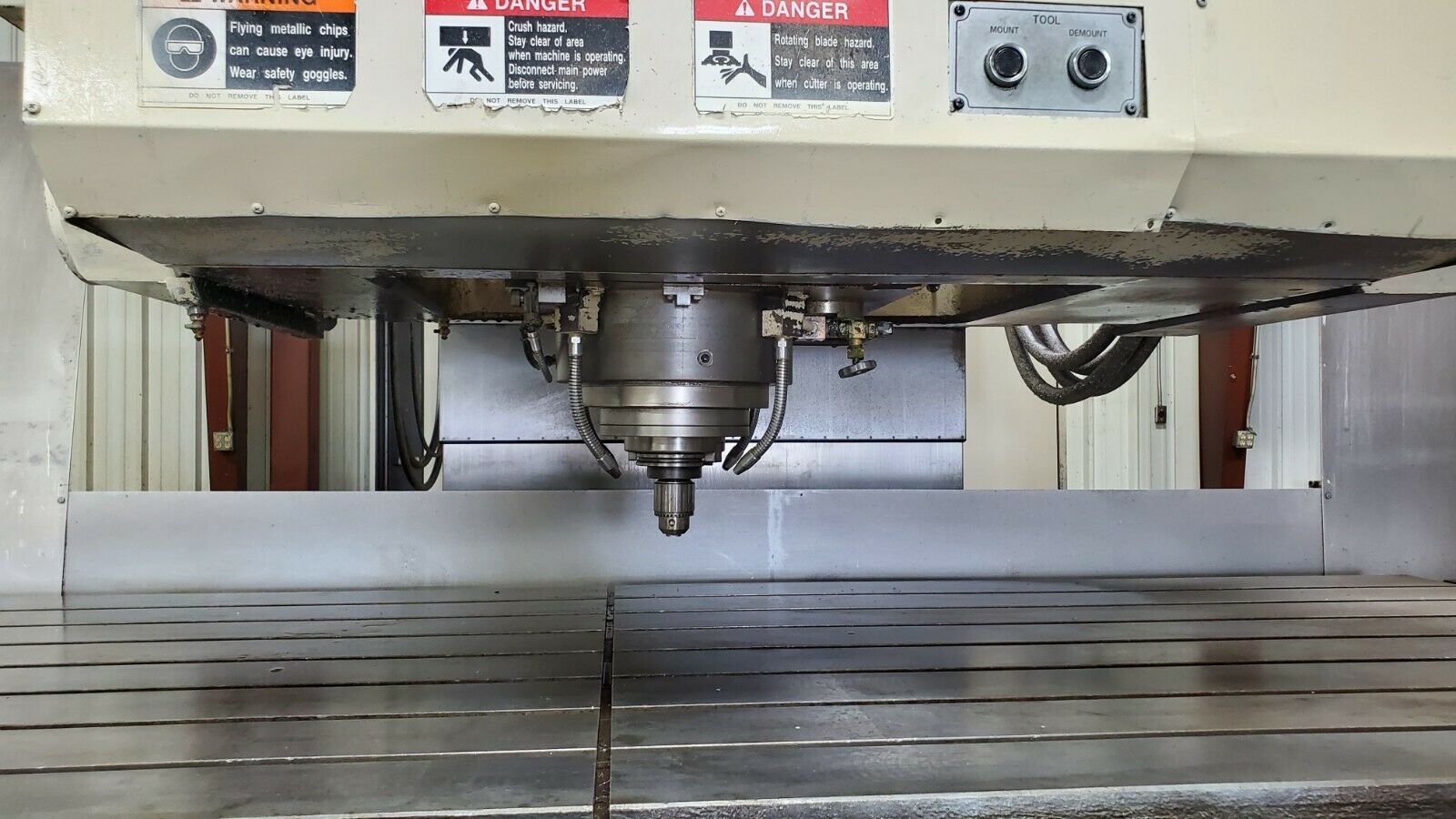

| Spindle: |
|---|
| Articulated 5 Axis |
| Taper Size: 50 |
| Speed Range: 4000 RPM |
| Spindle Power: 30 HP |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 315″ x 170″ x 138″ High |
| Weight: 97,000 lbs |
