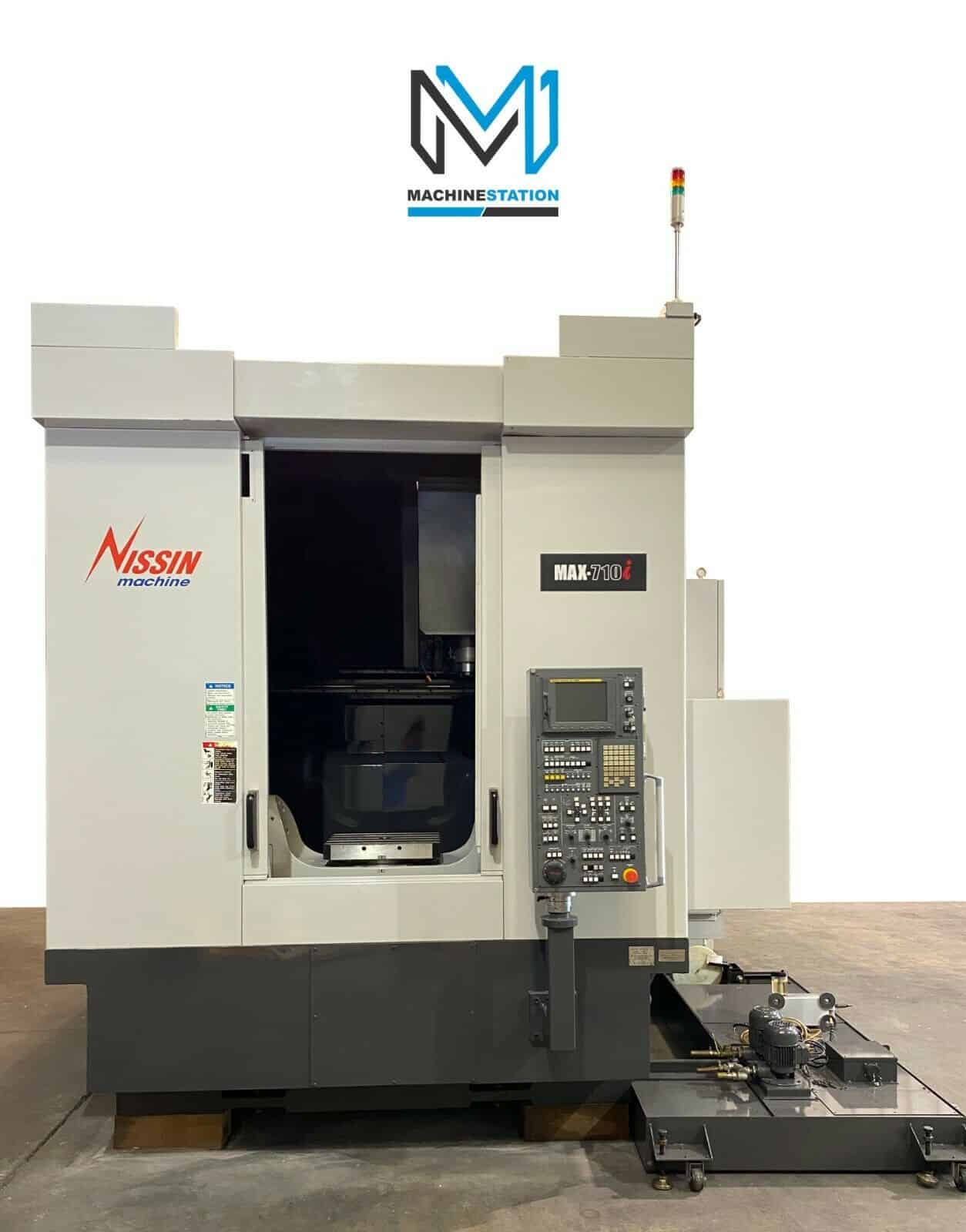

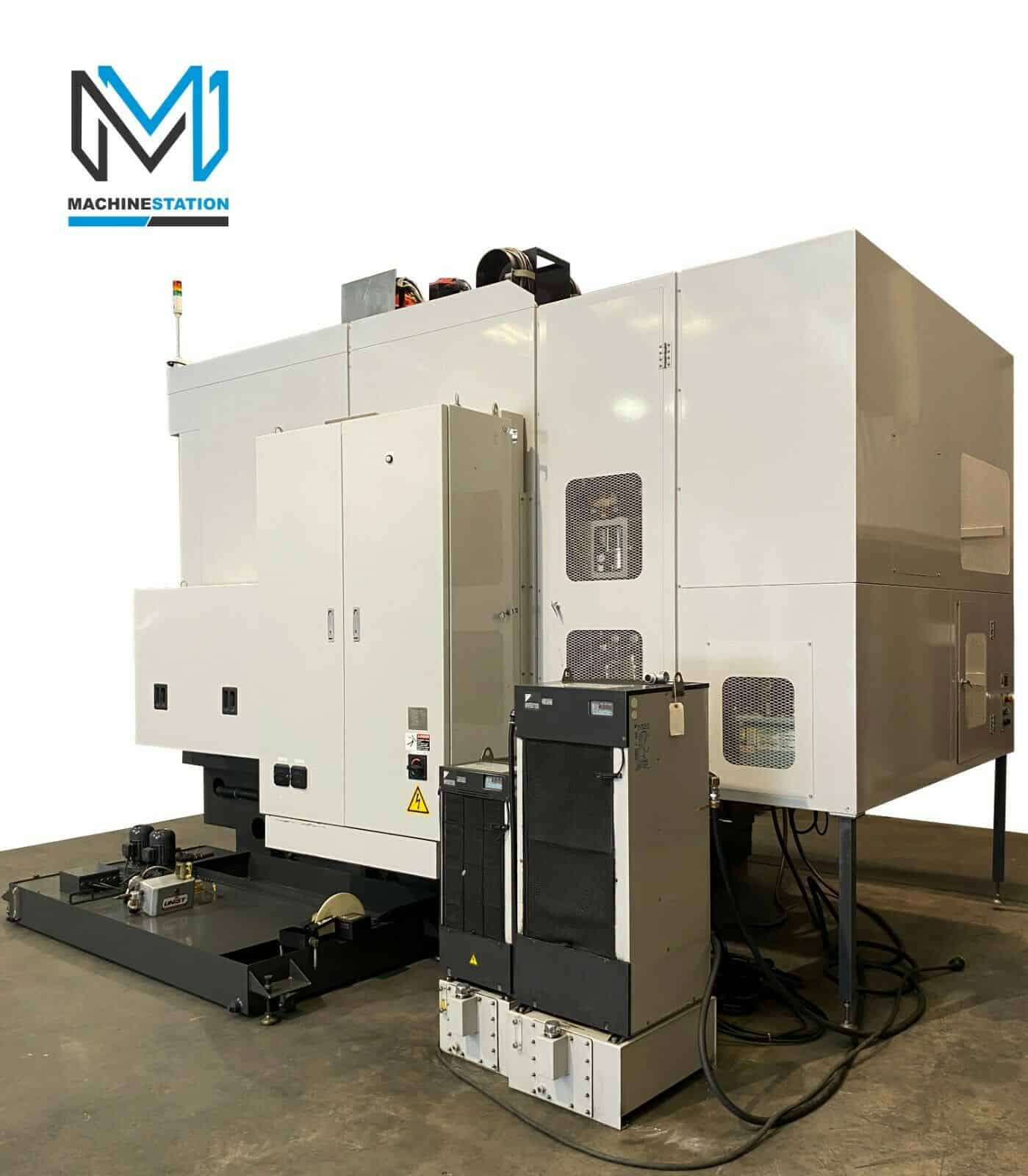

SNK Nissin MAX-710i 5 Axis CNC Mill

$2,835.00

*Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details*

Qty =

Product Description

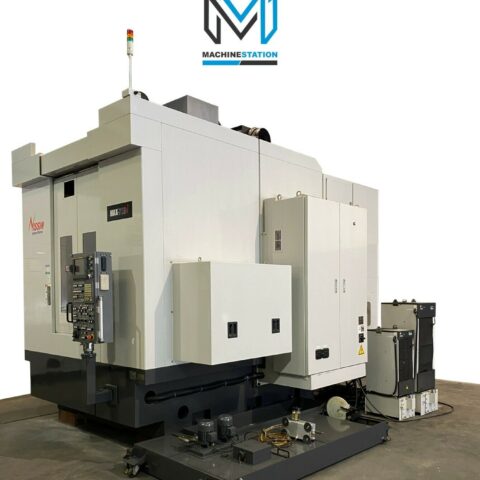

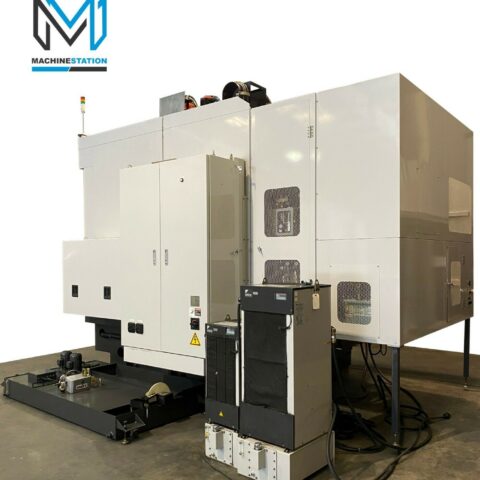

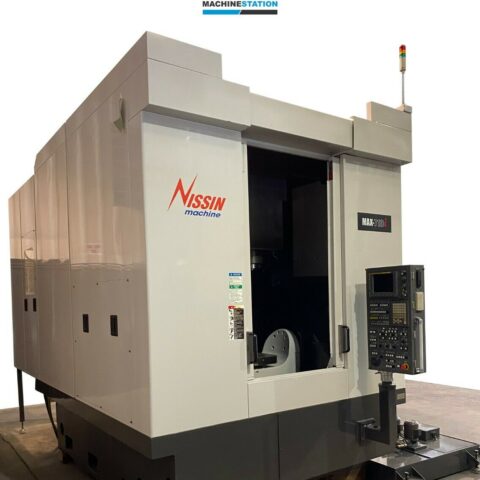

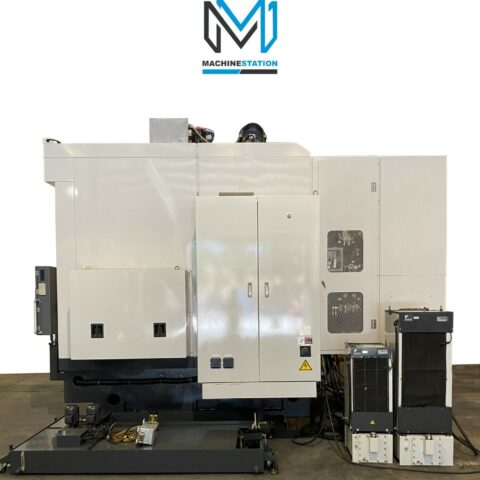

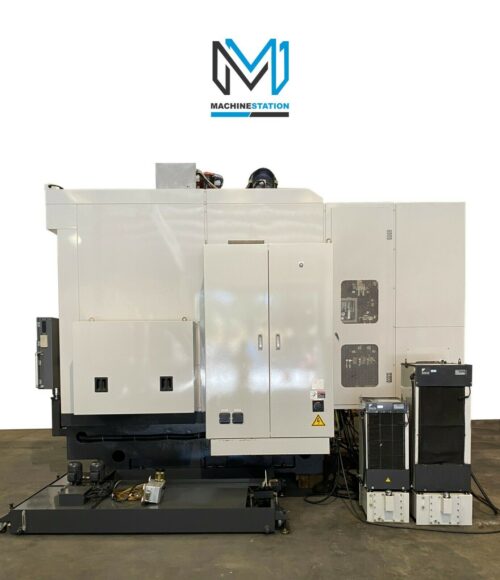

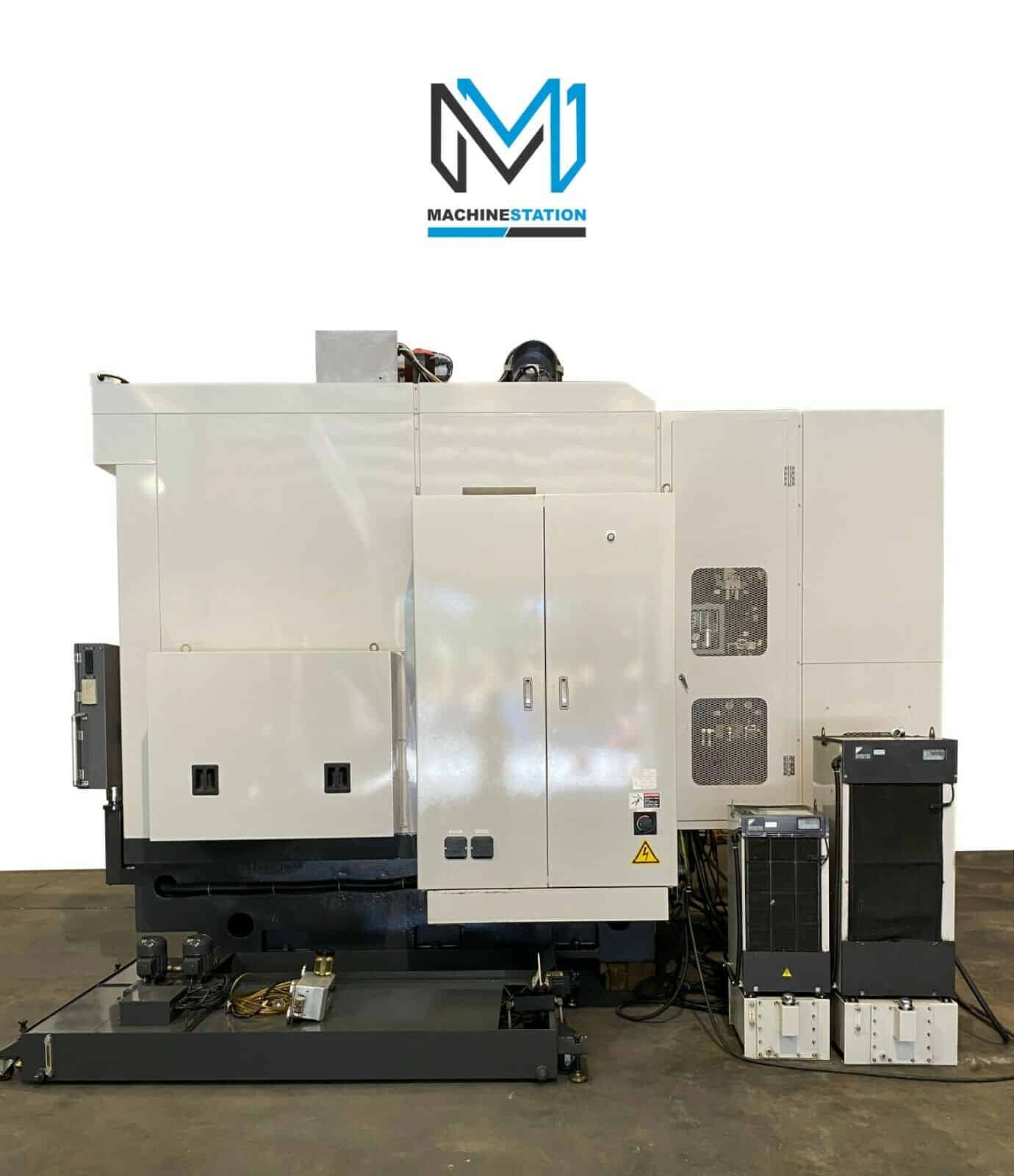

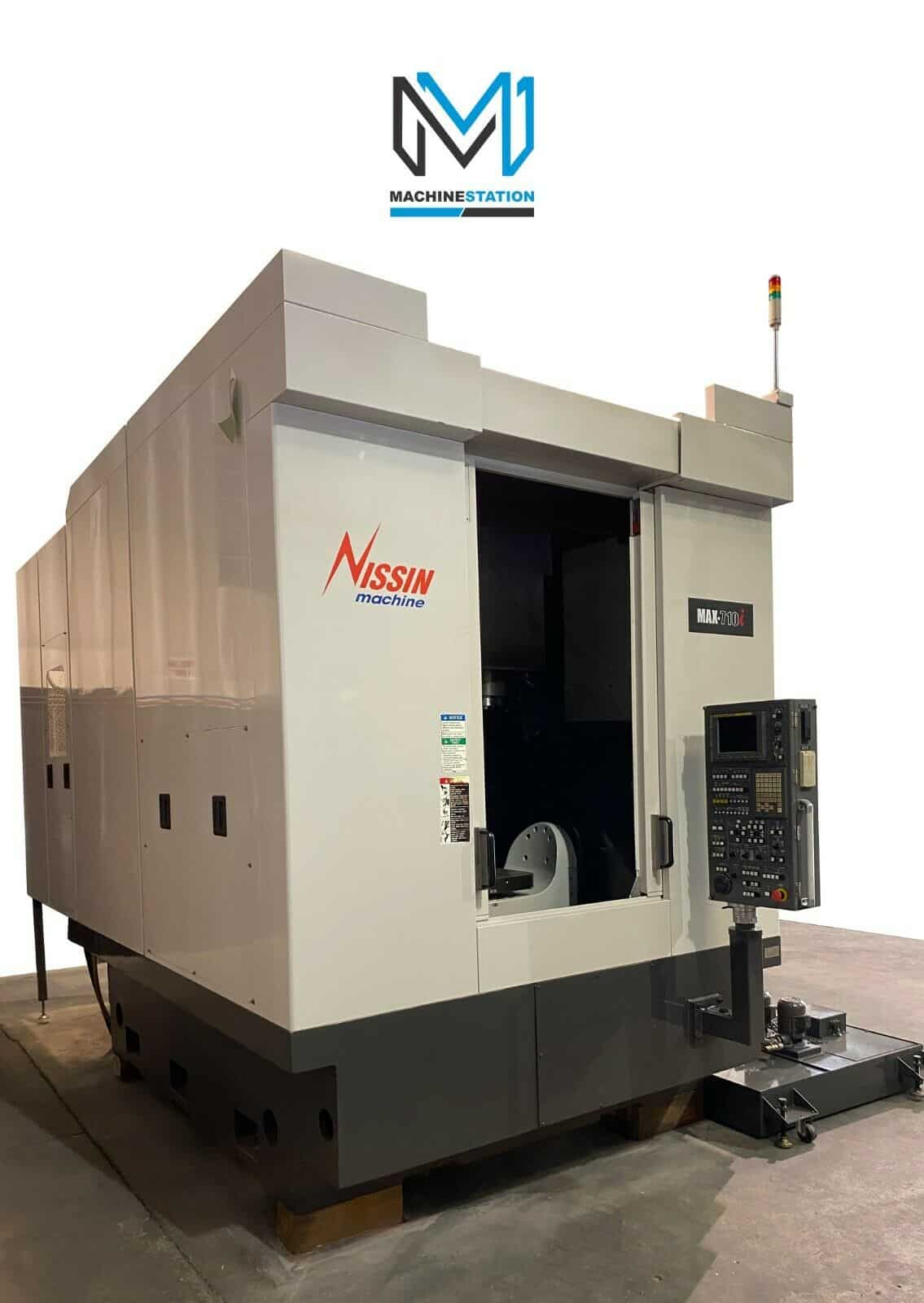

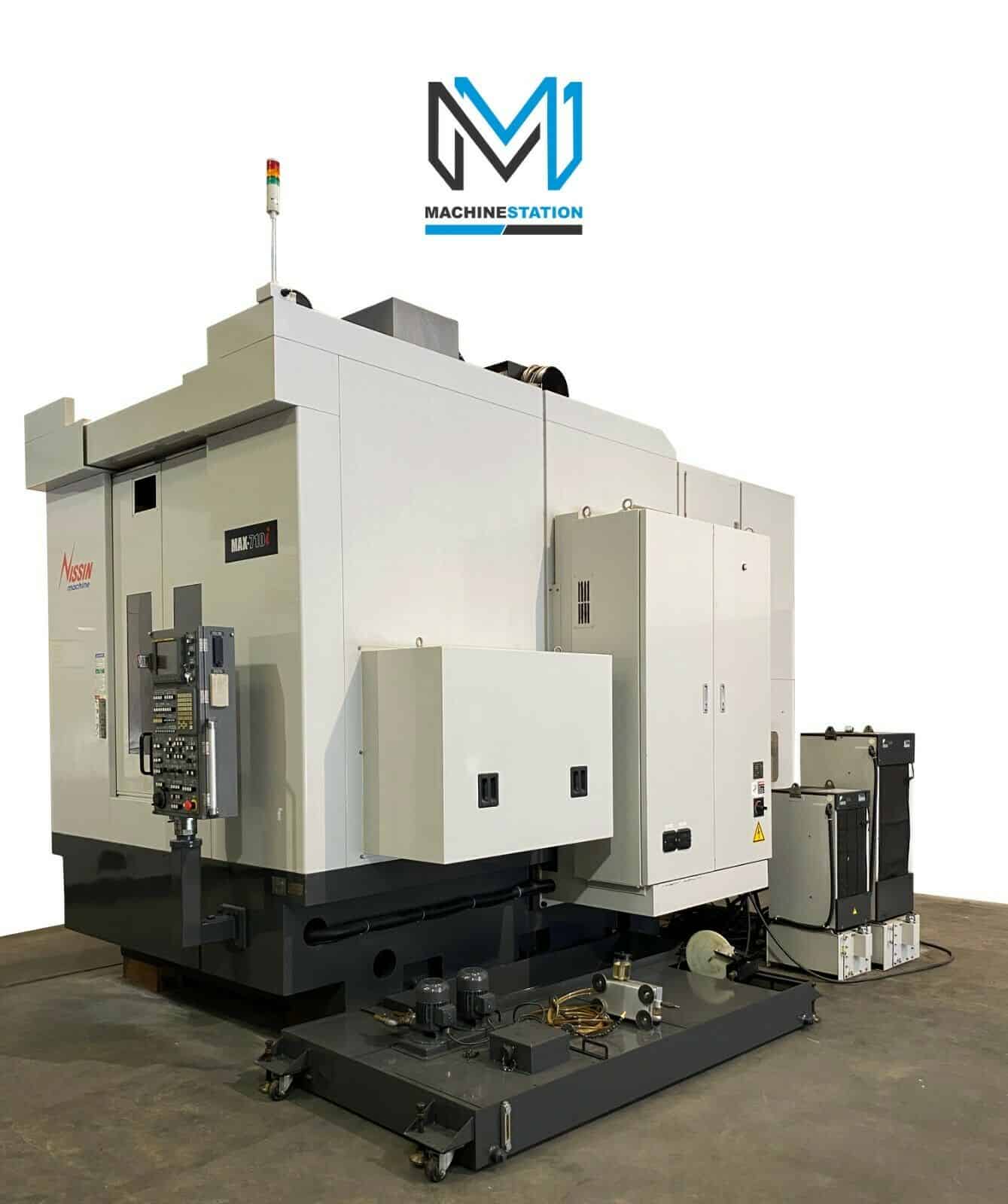

SNK NISSIN MAX-710i 5 AXIS CNC MILL
SKU # 2122

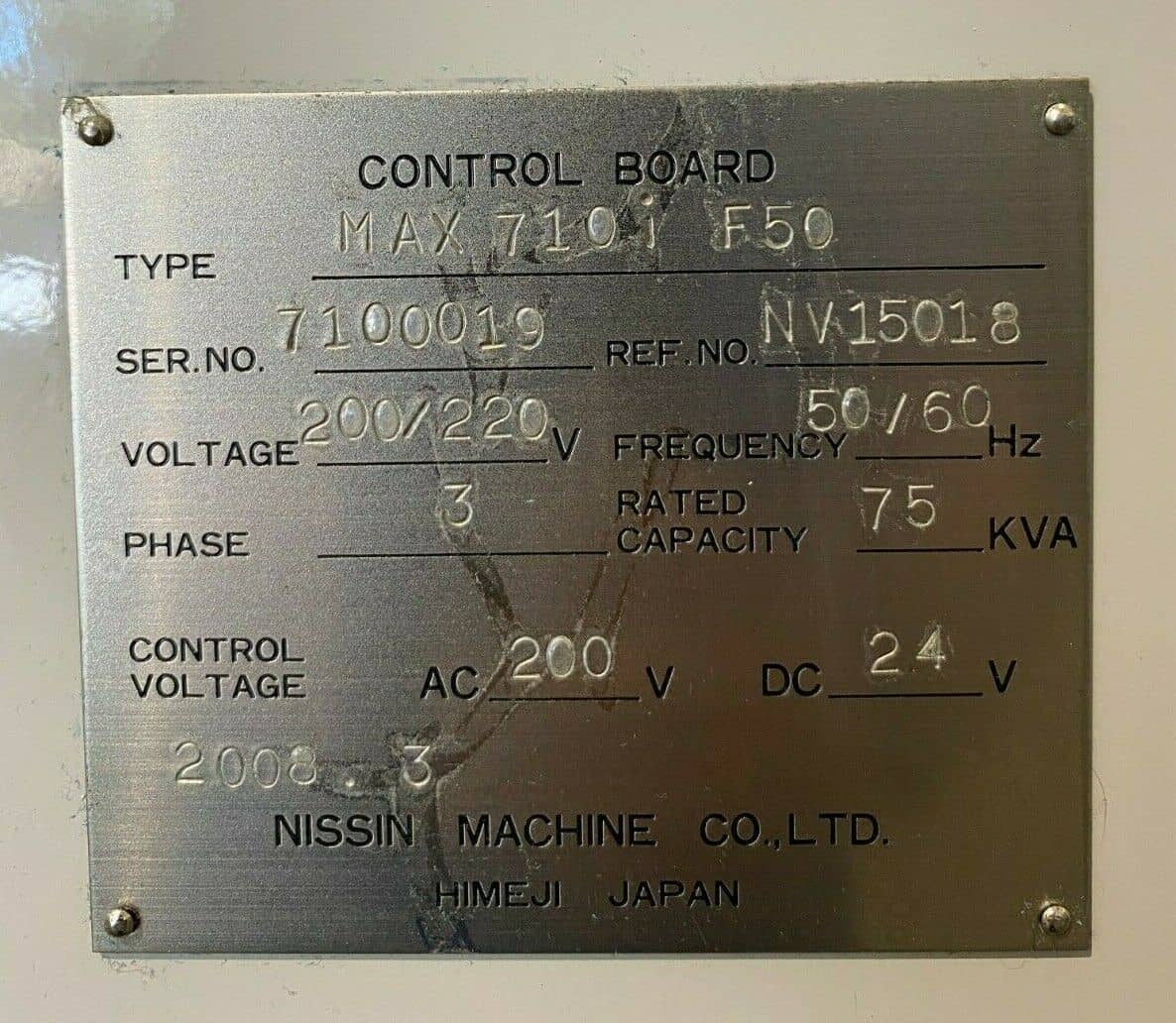

Make: SNK NISSIN
Model No.: MAX-710i F50
Year: 2008-09

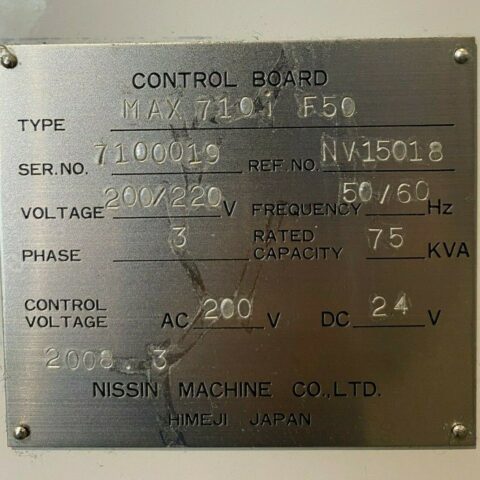

Serial # 7100019
Condition: Very Good
Cutting Hours:

All specifications are approximations, and are subject to verification.

SNK Nissin MAX-710i 5 Axis CNC MIll Features:

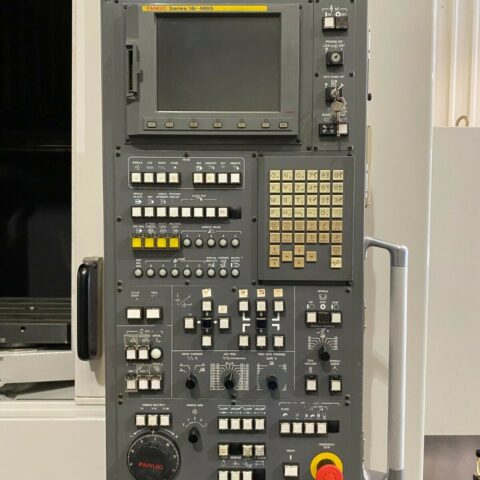

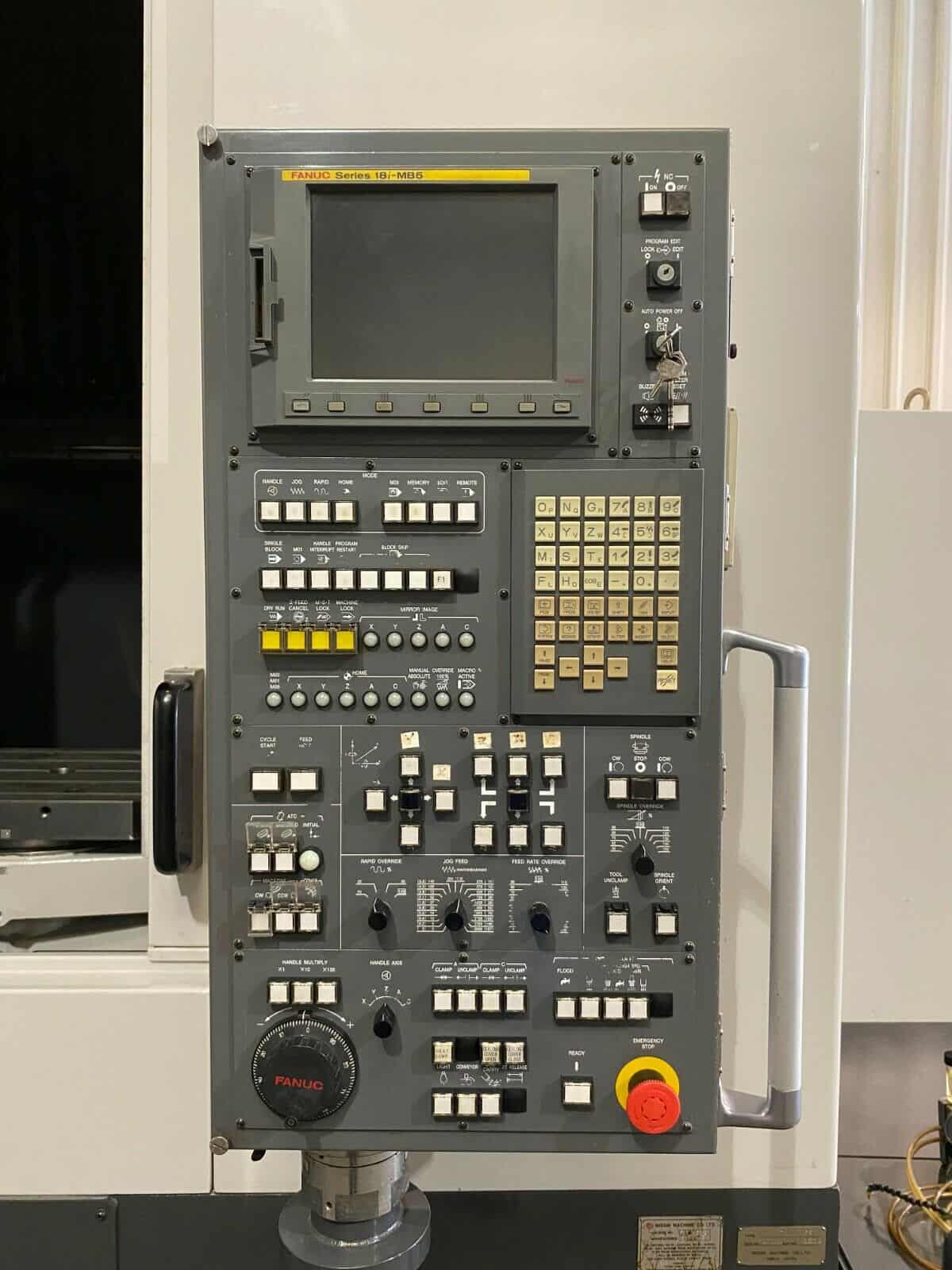

Fanuc 18iMB5 CNC Control
Simultaneous/Contouring 5 Axis Cutting
20,000 RPM High Precision Spindle
Coolant through Spindle

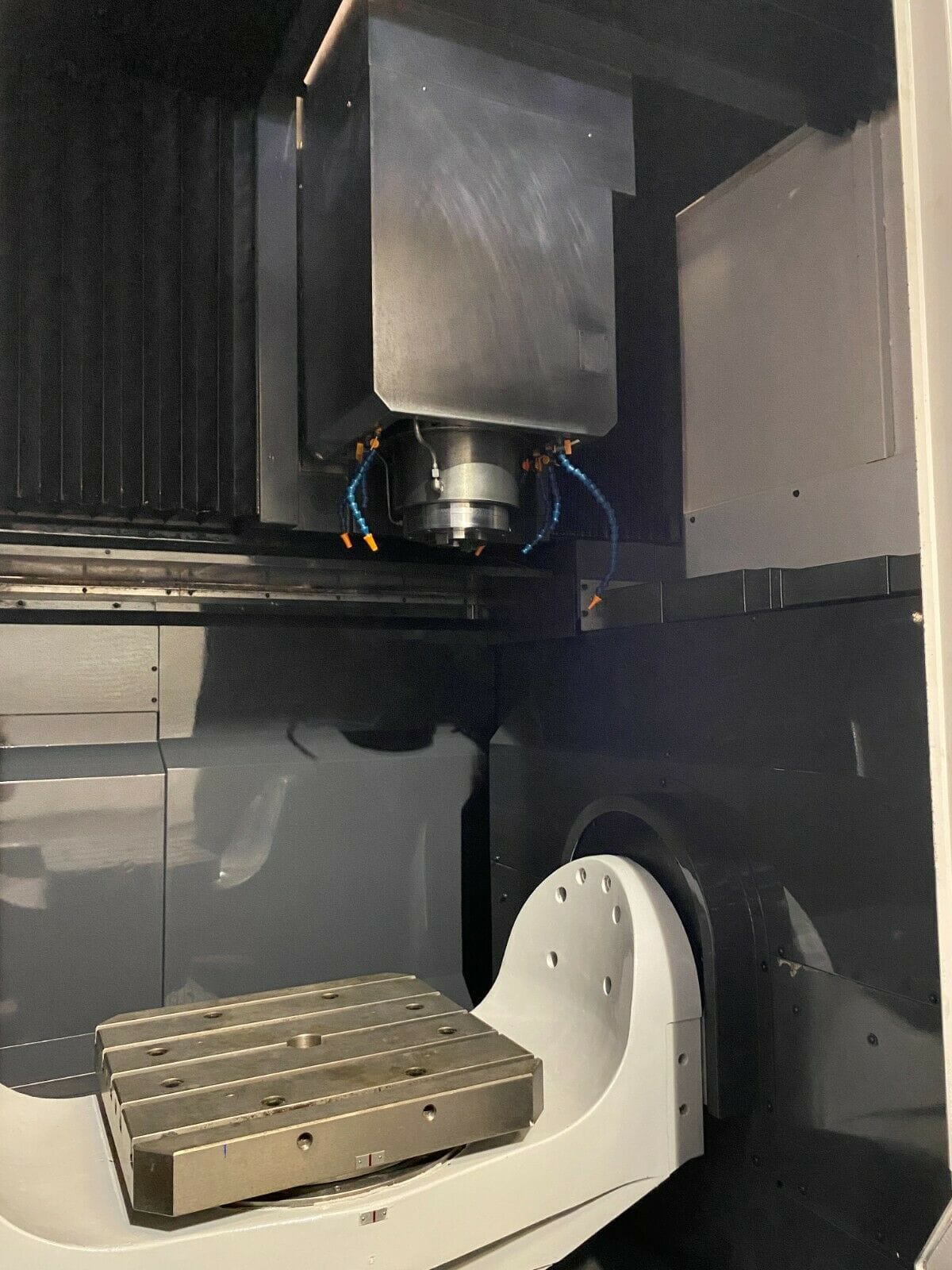

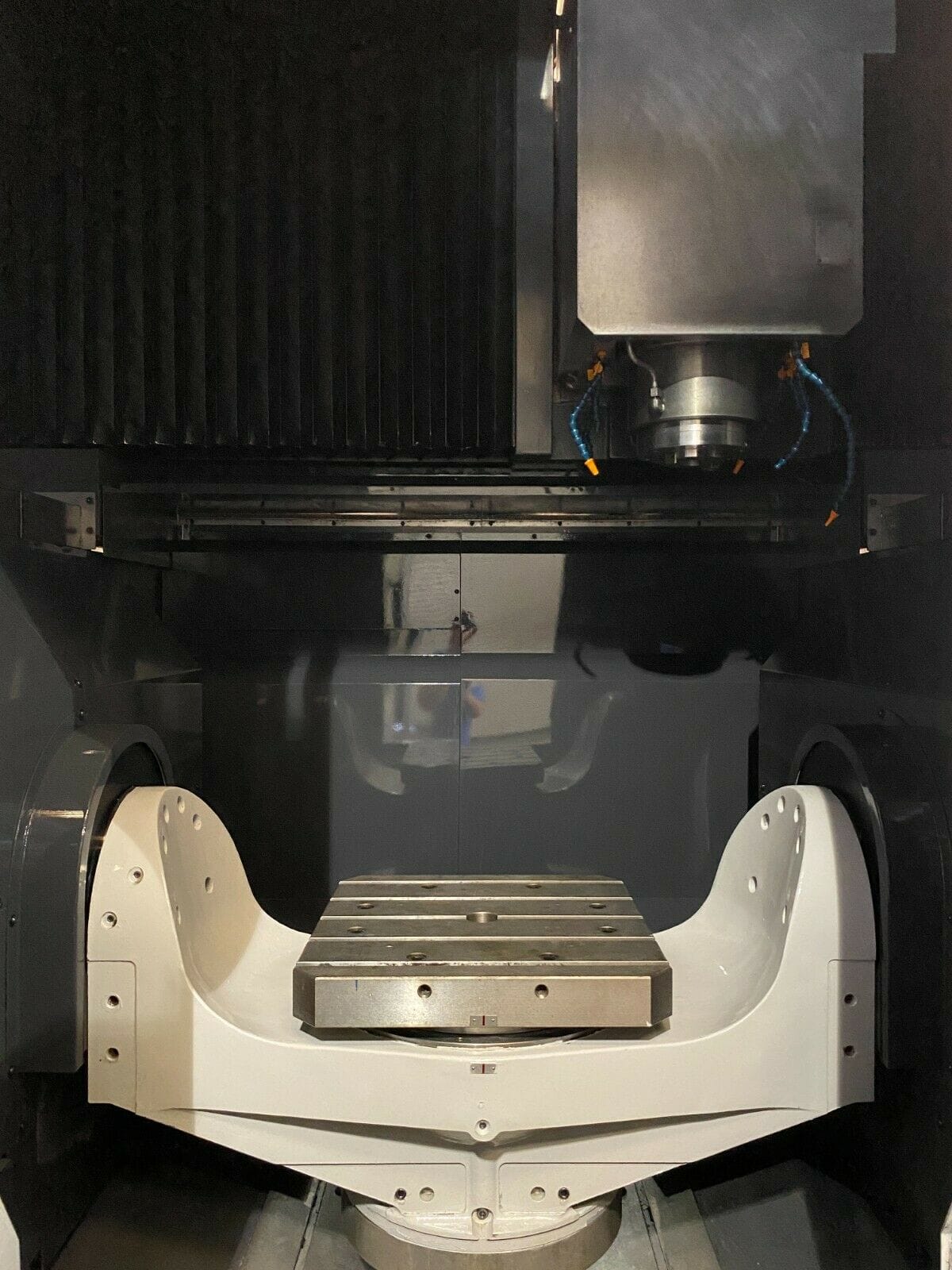

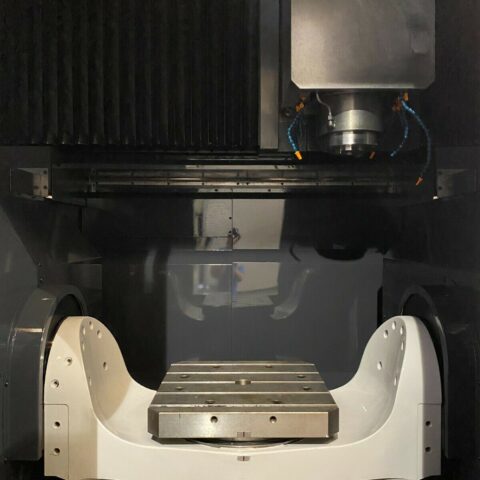

Multi-Directional Turn Table
MPG Control
Bridge Type Cast Iron Rigid Built
High Speed Machining
PCMCIA Card Slot
Expanded Memory
Spindle Chiller
Spindle Orientation
Helical Interpolation
Rigid Tapping
Absolute Incremental Programming
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank
Chip Conveyor
Work light
Books and Manuals.

SNK Nissin MAX-710i 5 Axis CNC MIll Specifications:
Travels:
X Axis: 31.49″
Y Axis: 27.95″
Z Axis: 22.04″
A Axis: -120° -15° ( Table Tilt )
C Axis: 360° ( Table Rotate )
Min. Increment: 0.001°

Table:
Length: 19.7″
Width: 19.7″
Max Weight on Table: 110 lbs
T-Slot : 0.6″ X 3 Slots
Table to Spindle Nose: 3.9″ – 23.6″

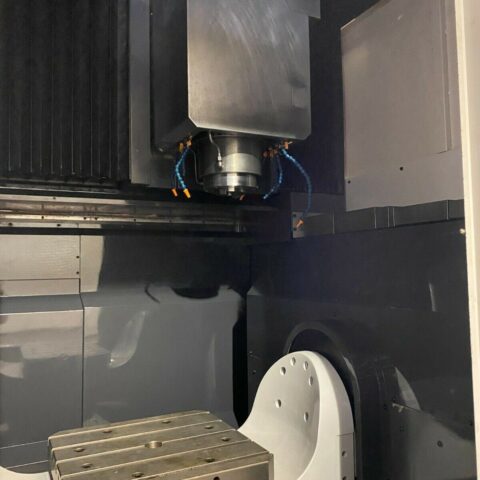

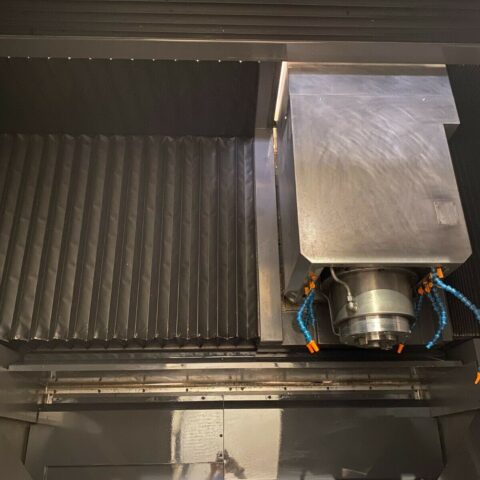

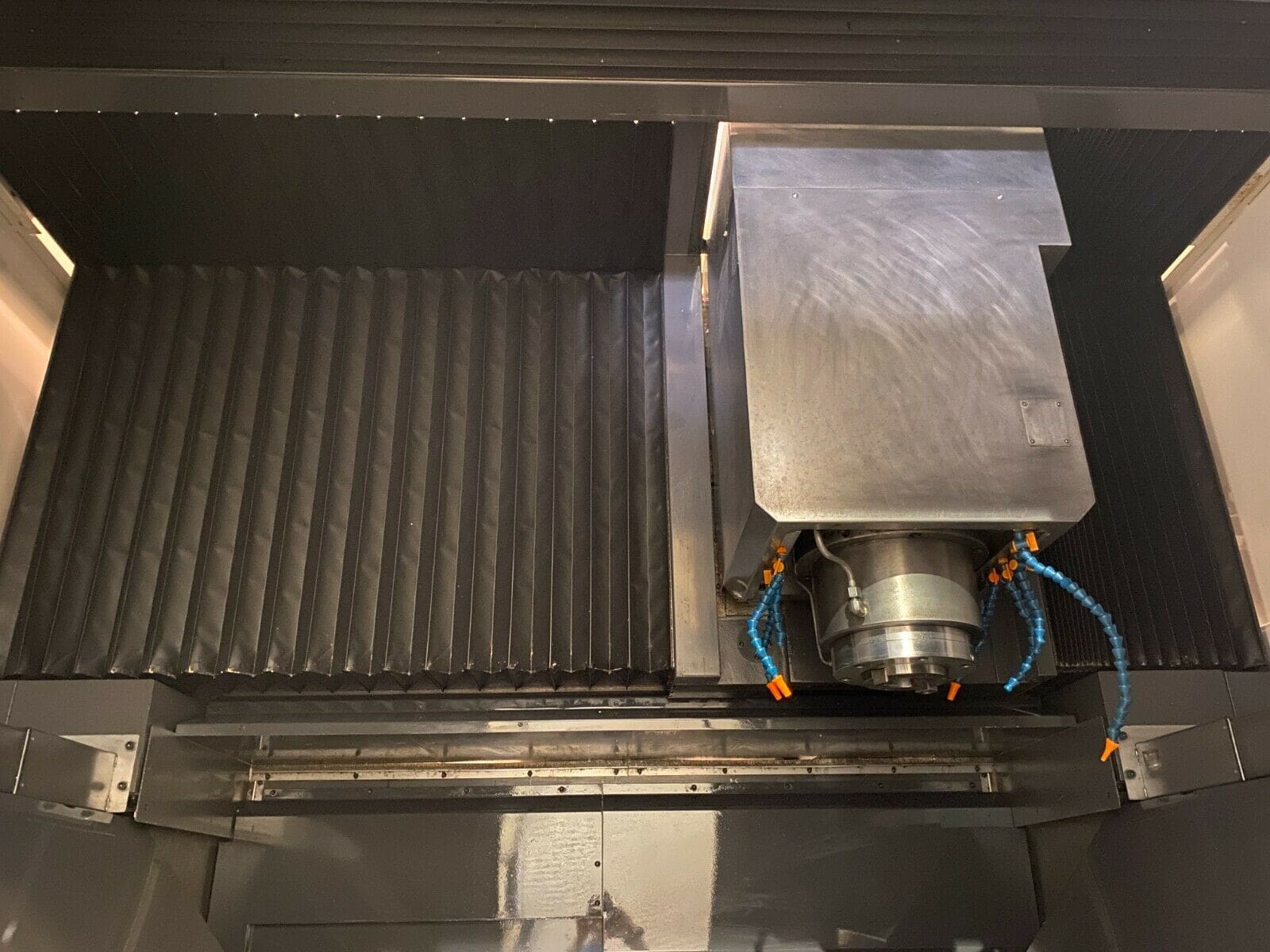

Spindle:
Taper Size: HSK63
Speed Range: 200 – 20,000 RPM
Spindle Power: 25 HP 60NM Torque

Feed rates:
Rapid X & Y : 1575 Inch Per Minute
Rapid Z : 1260 Inch Per Minute
Rapid A : 25 RPM
Rapid C : 125 RPM
Cutting Feedrate: 984 Inch Per Minute

Tool changer:
Capacity: 28 Tools
Taper: HSK-63A
Max Tool Size: 5.91″ X 11.8″
Max Tool Weight: 22 lbs.
Tool Change Time: 1.7 Second

General:
Air Required: 80 psi, 4 scfm
Power: 63kva / 205-220v / 3-Phase
Overall Dimensions: 120″ X 173″ X 116″ High
Weight: 40,000 lbs

“No Charges for loading at list Price”
