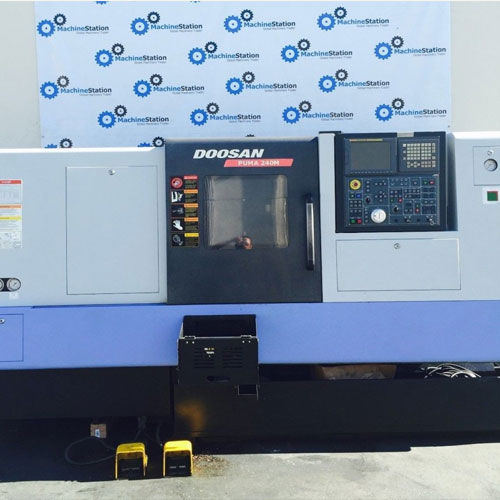

DOOSAN PUMA 240MB CNC TURNING MILL LATHE
Sold Out!
  • DOOSAN PUMA 240MB
  • DOOSAN PUMA 240MB

DOOSAN PUMA 240MB CNC TURNING

Out of stock

Product Description


DOOSAN PUMA 240MB CNC TURNING MILL LATHE

Make: Doosan
Country of Origin: Korea
Model #: PUMA 240MB
Serial #: P24M3302
Condition: Excellent
Date of Manufacture: 05/2007


DOOSAN PUMA 240MB Features:

    • LNS Q. L Servo 65 Barfeeder.
    • Fanuc 21i-TB CNC Control.
    • SamChully 8″ 3-Jaw Big Bore Chuck #HH-208.
    • Eppinger Live Tooling Holders (3).
    • Dead Tool Holders (7).
    • Programmable Tailstock.
    • Chip Conveyor.
    • Bar Feed Interface.
    • Ethernet Port.
    • RS-232 Port.
    • High Pressure Coolant Pump.
    • Oil Separator.
    • Coolant Tank.
    • 12-Station Turret.

DOOSAN PUMA 240MB Specifications:

Turning Diameter: 11.81″

Turning Length: 20.19″

X-Axis Travel: 8.07″

Y-Axis Travel: 22.83″

Bar Working Diameter: 2.55″

Spindle Speeds: 4,500 RPM

Power Source: AC 200/220 V, Three Phase, 50/60 Hz

Rated Capacity: 34.01 kVA

Largest Load: 15.0 kW

Full Load Current: 89.26 Amps

Interruption Capacity: 17,000 Amps

Weight (Not Including Barfeeder): 4140 Kgf

Overall Dimensions: 176″ x 63″ x 70″ tall

DOOSAN PUMA 240MB and Comes as shown in pictures and video


GUARANTEE: If any machine guaranteed by us does not prove satisfactory mechanically, the Purchaser may return it freight prepaid within 14 days from date of shipment and we will refund the purchase price in full. This does not apply to machine sold “as is” or “subject to inspection”. This guarantee applies only to machines which we own. The machine must be returned in the same condition that it left our warehouse. MachineStation shall not be responsible for any damage done by truckers, riggers, or other parties. Machine damaged in shipping are not covered under the return privilege.

WARRANTY: Seller makes no warranties of any kind whatever, expressed, or implied. All specifications and descriptions of said goods are approximate, not binding and meant only as a guide. It is the Buyer’s responsibility to inspect the goods and ascertain if the specifications, description and condition of the goods confirm to the Buyer’s requirement.

MACHINE USE AND SAFETY: Buyer acknowledges that the goods described herein are pre-owned used goods which were neither designed or manufactured by the Seller, nor has the Seller knowledge of, or control over, the prior use or misuse of said goods: nor does the Seller have knowledge or control over the application of these goods by the Buyer. It is the Buyer’s (user’s), responsibility to provide proper safety devices, equipment and instructions for any particular use, and to take all necessary steps to confirm to all Federal, State or Local Government Safety Standards and including OSHA.

BUYER IS RESPONSIBLE FOR SCHEDULING TRANSPORTATION OF THIS MACHINE, AS WELL AS ALL COST TO MOVE IT. IF YOU NEED HELP WITH SCHEDULING, PLEASE CONTACT US AND WE WILL ASSIST YOU. WE SHIP GLOBALLY.
