All specifications are approximations and are subject to verification.
-
Features:

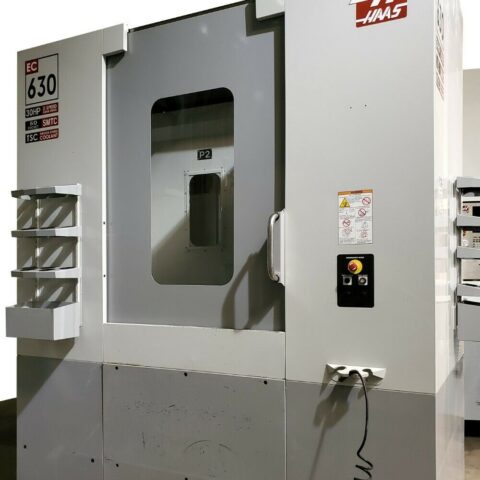

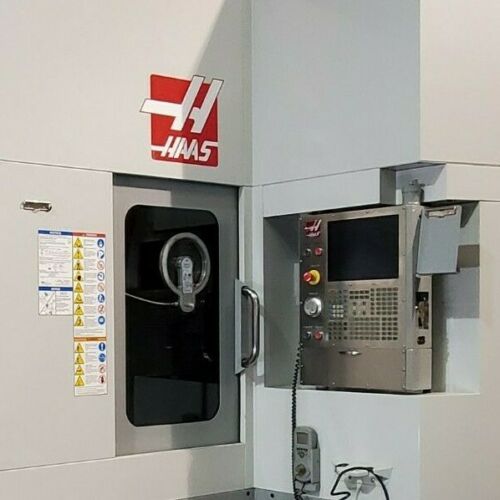

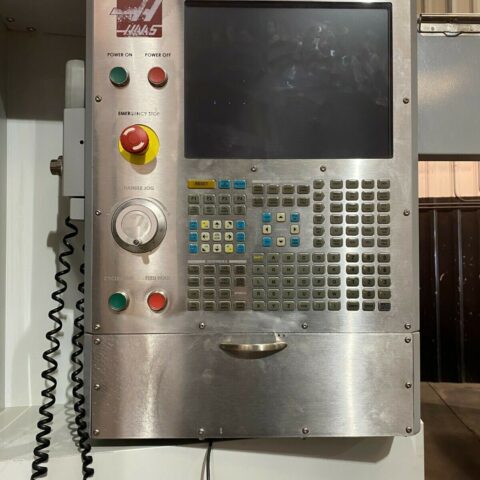

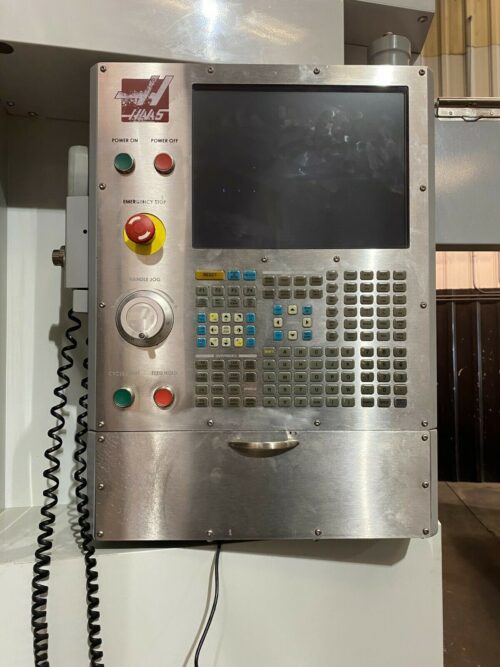

- Haas CNC Control
- Full 4th Axis
- 30 HP, 50 Taper Spindle
- 6,000 RPM Gear Head Spindle
- Through Spindle Coolant
- High Speed Machining
- WIPS Probing System
- Coordinate Rotation & Scaling

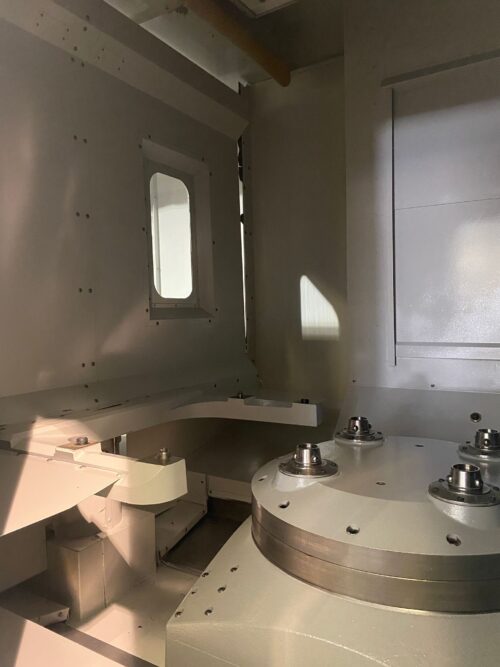

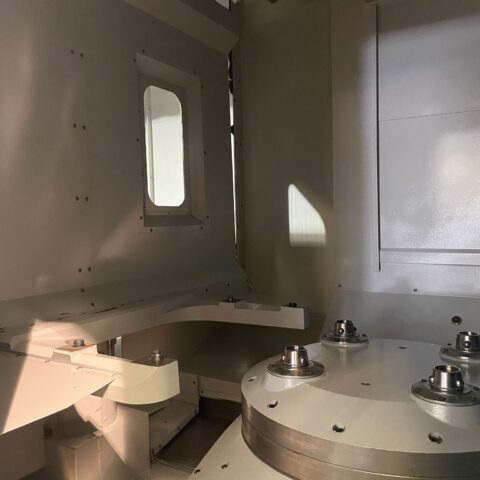

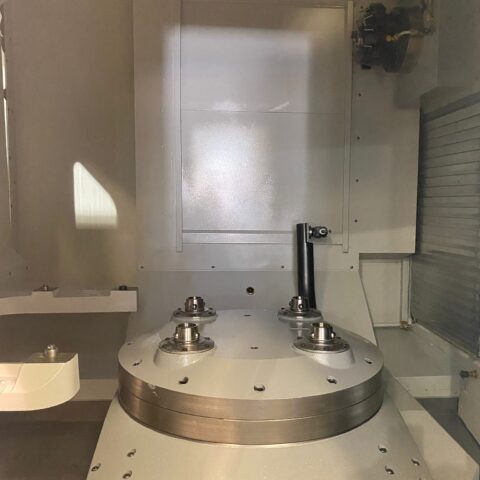

- Twin Pallet Changer
- 50 Station Tool Changer
- Programmable Coolant Nozzle
- MPG Control w/ Color Display
- Macros
- 8 Spare M Functions
- Second Home Position
- Early Power Detection Module
- USB Drive, Hard Drive, Ethernet Connectivity
- 16MB Upgraded Memory
- Pallet Seat Detection
- Spindle Orientation
- Rigid Tapping
- Flood coolant with large coolant tank
- High Pressure Coolant Pump

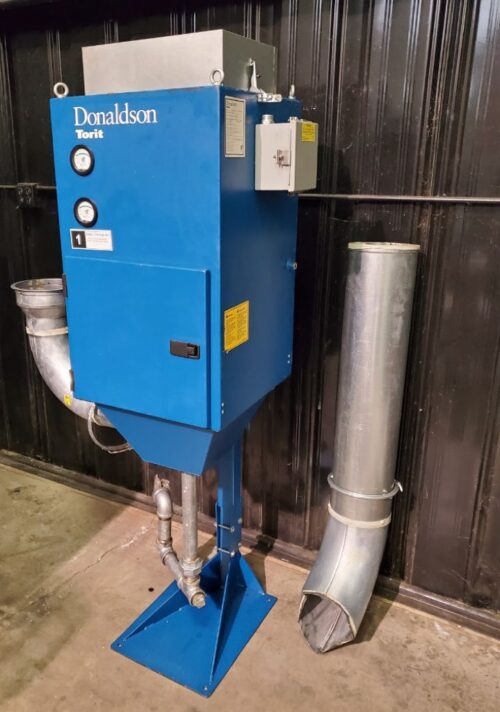

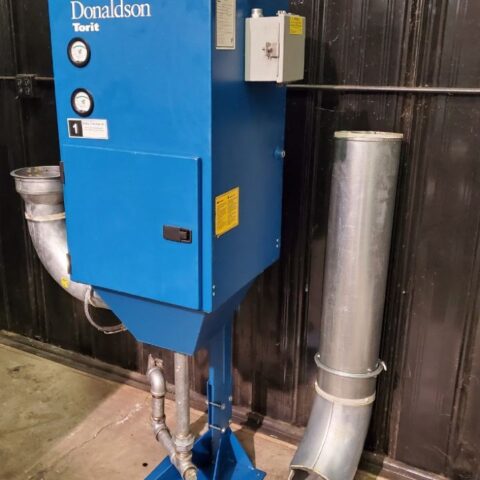

- Donaldon Air Filteration
- Haas Coolant Filteration

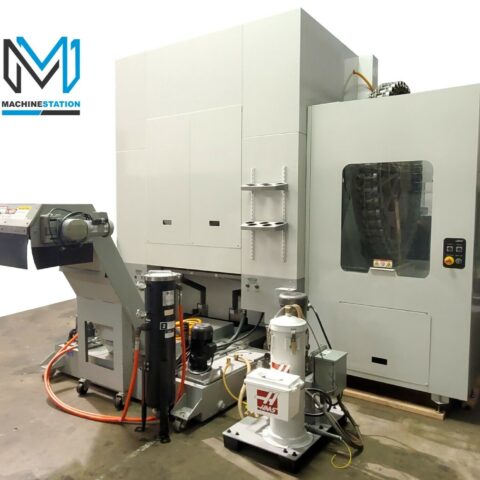

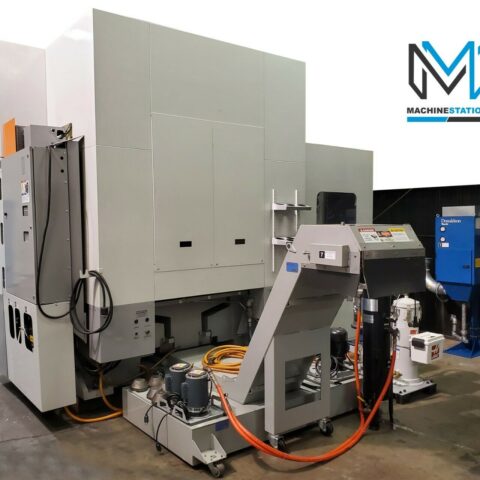

- Chip Conveyor
- Work light
-
Specifications:
- Travels:
- X Axis: 40.4″
- Y Axis: 33.5″
- Z Axis: 35.4″
- B Axis: 0.001° (Full 4th)
- Spindle Nose to Table Center: 3.9″ – 43.3″
- Spindle Center to Table Top: 2.9″ – 36.4″
-

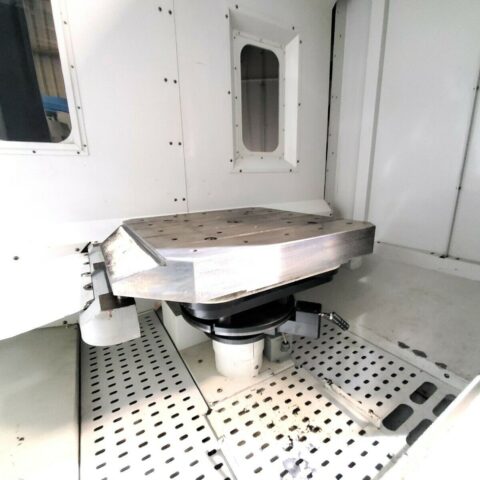

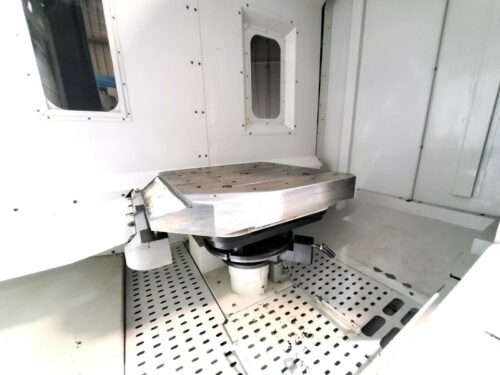

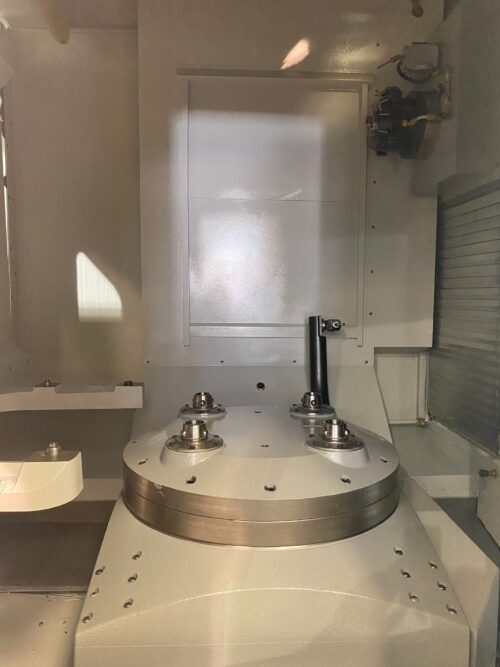

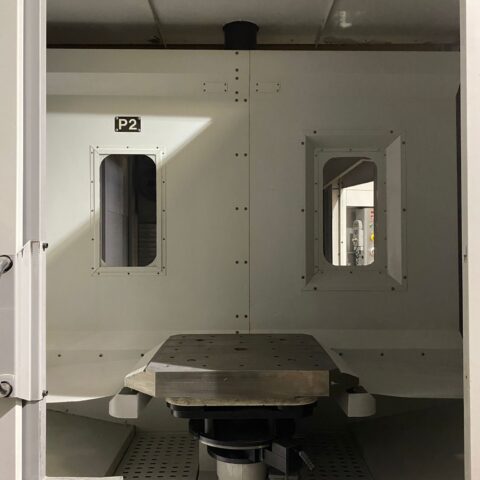

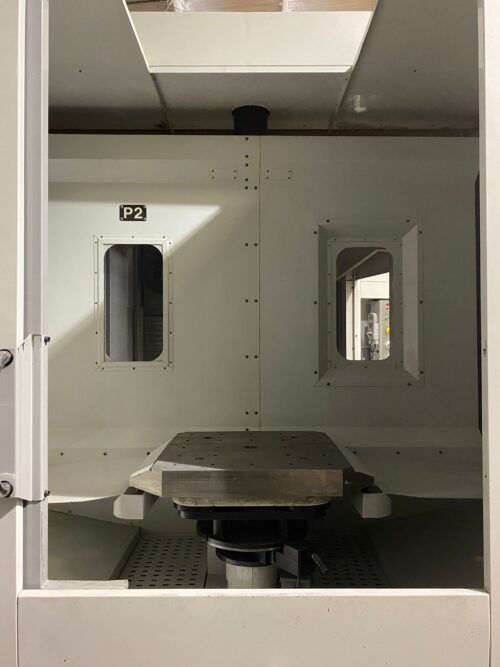

Pallet Table:
- Length: 24.8″
- Width: 24.8″
- Max Weight on Table: 2640 lbs
- Max Workpiece Width X Height: 39.8″ X 39.8″
- Index Time: 10.5 seconds
-
Spindle:
- Taper Size: 50
- Max. Speed: 6,000 RPM
- Power: 30 HP
- Torque: 678 ft/lb
-
Feed rates:
- Rapid X & Y : 710 Inch Per Minute
- Rapid Z : 710 Inch Per Minute
- Cutting Feedrate: 630 Inch Per Minute
-

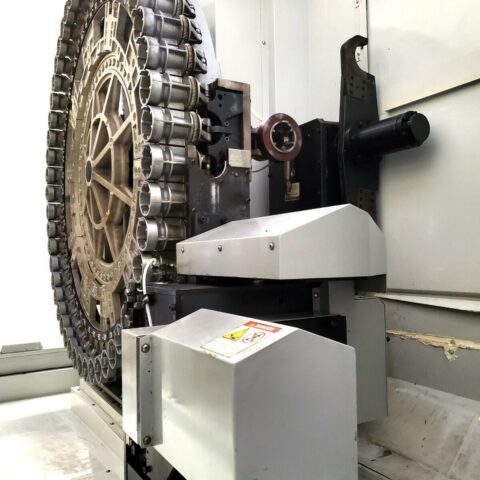

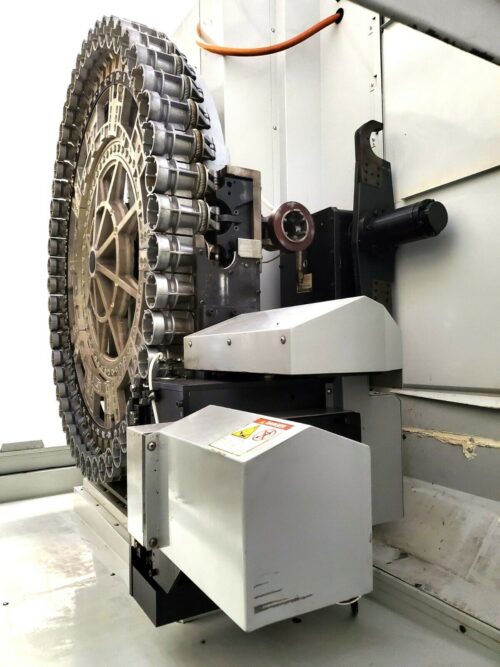

Tool changer:
- Capacity: 50 Tools
- Taper: CAT-50
- Max Tool Size: 12.6″
- Max Tool Length: 16.8″
- Max Tool Weight: 30.5 lbs.
- Tool Change Time: 4.2 Second
-

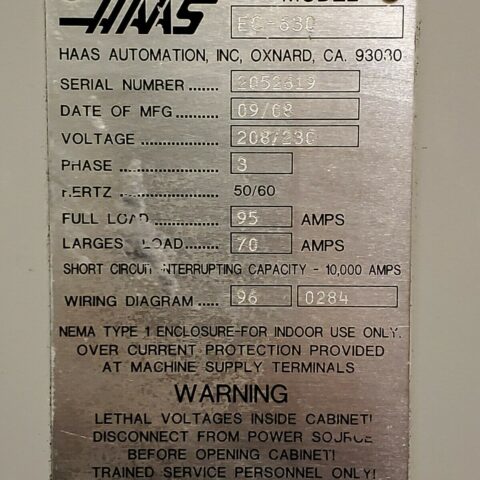

General:
- Air Required: 90 psi, 4 scfm

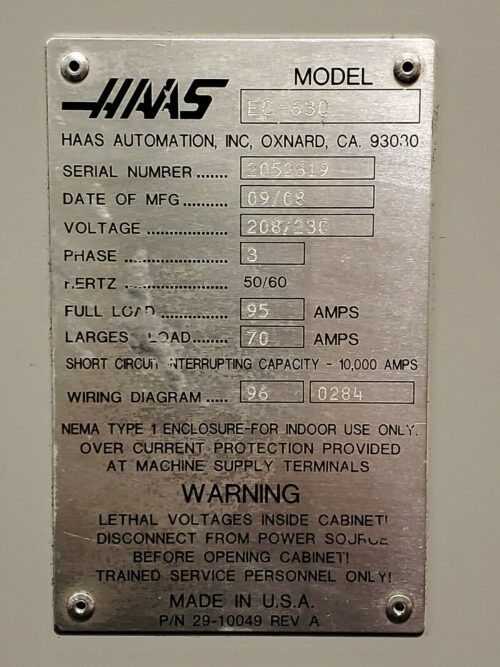

- Power: 75kva / 480v / 3-Phase
- Overall Dimensions: 275″ X 144″ x 140″ High ?
- Weight: 51,000 lbs
“No Charges for loading at list Price”
