All specifications are approximations and are subject to verification.
“This One Owner machine has Lots of Toolings, CBN Diamond Grinding Wheels, Coolant and Mist Filtration units, Universal head, filtration system. All Manuals Available.”
-

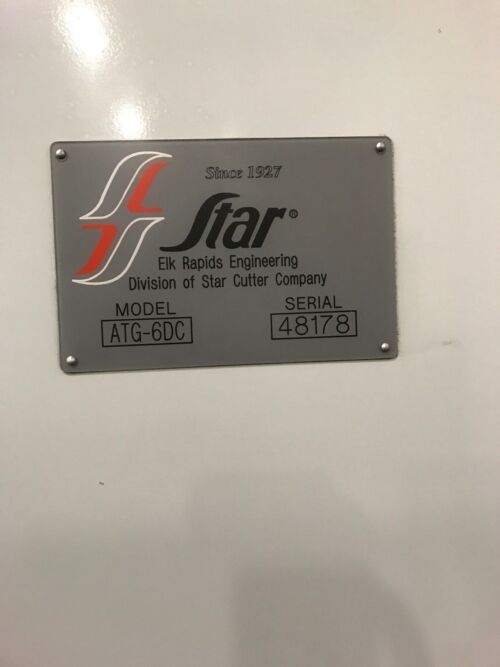

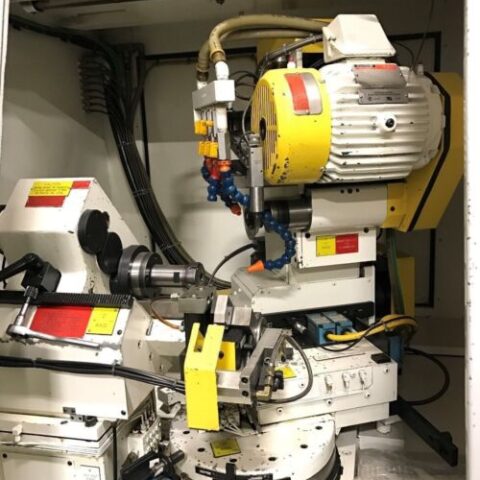

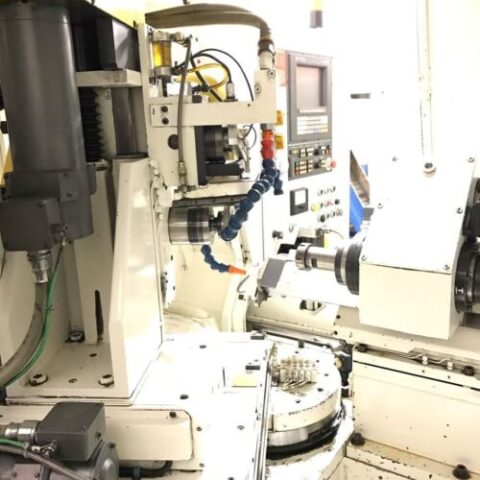

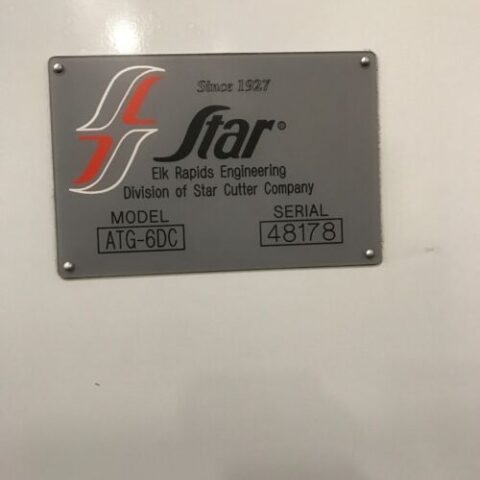

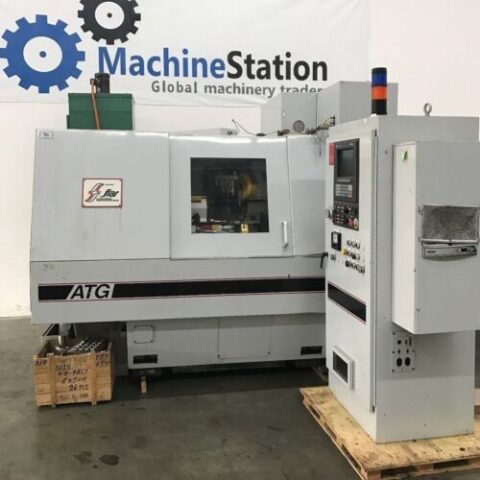

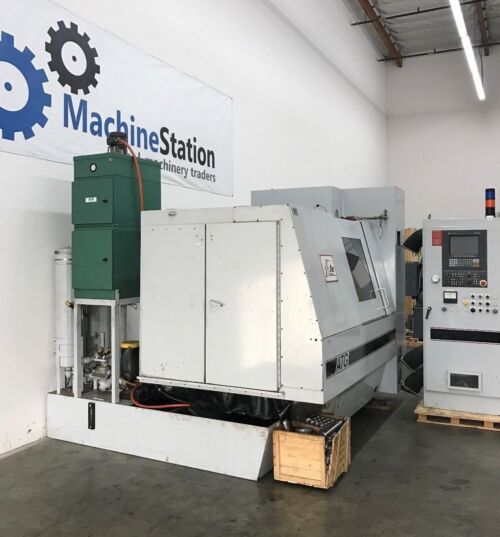

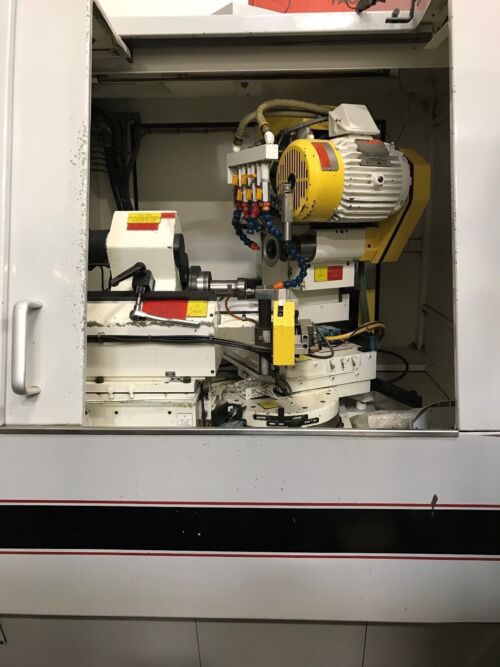

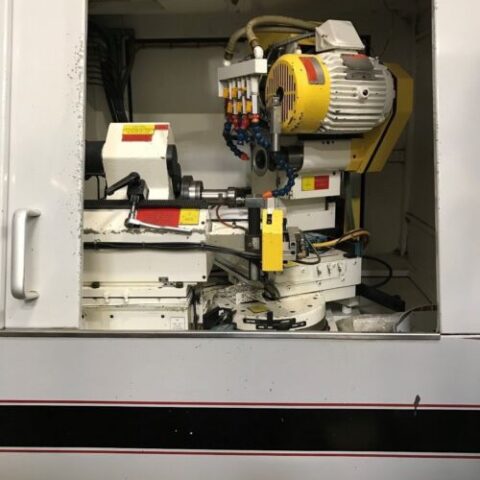

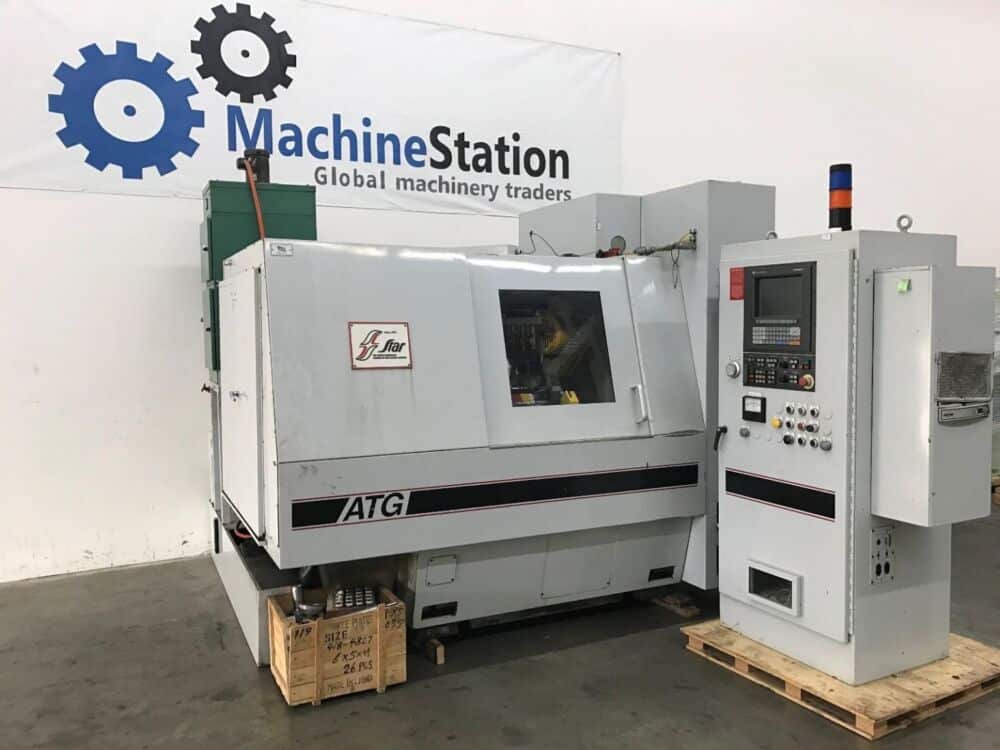

STAR ATG 6DC Equipped With:
- Allen Bradley 9/260 Control
- Parts Probe
- GLASS SCALES ON LINEAR AXIS
- RETRACTABLE END LOCATOR
- MULTIPLE WHEEL GANG CAPABILITY
- CYCLE INDICATOR LIGHT
- VARIABLE SPEED SPINDLE
- MANUAL PULSE GENERATOR

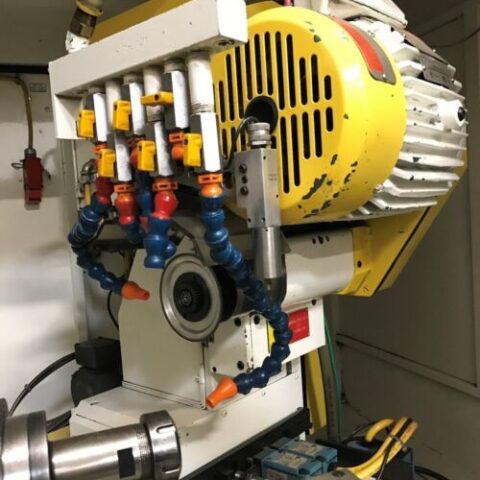

- 5 HP SPINDLE MOTOR
- MIST COLLECTOR
- Coolant filtration system
- Full Enclosure
- WorkLight
- Extended Memory
- RS-232 Port
-
Software on the machine:
- Ballnose Endmill
- Squarenose Endmill
- Multi-Step Angular Flute
- Multi-Step Twist Drill
- Single Flute Gun Drill-Facet Grind
- Single Flute Gun Drill –Slash Grind
- Single Flute Gun Reamer
- Multi-Step Bullnose

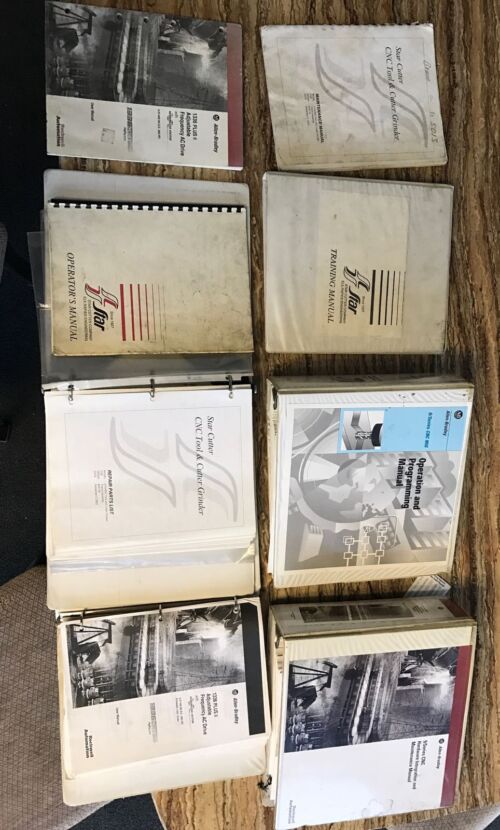

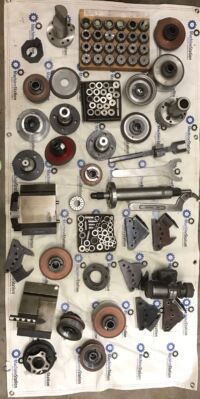

- Comes with All Original Manuals, books, wheel arbors, CBN Diamond Wheels and accessories.
-

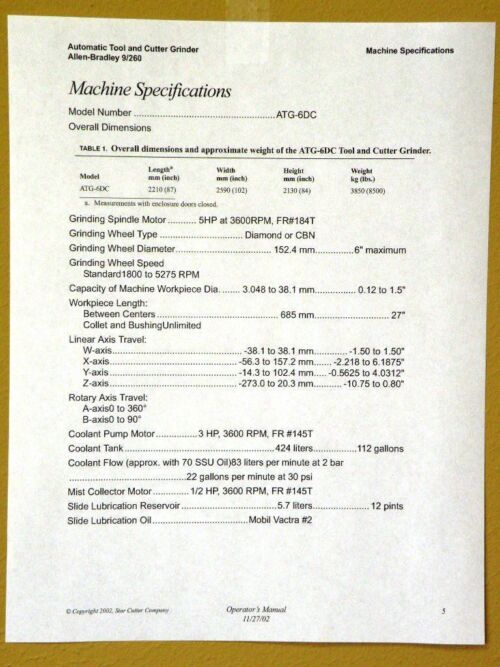

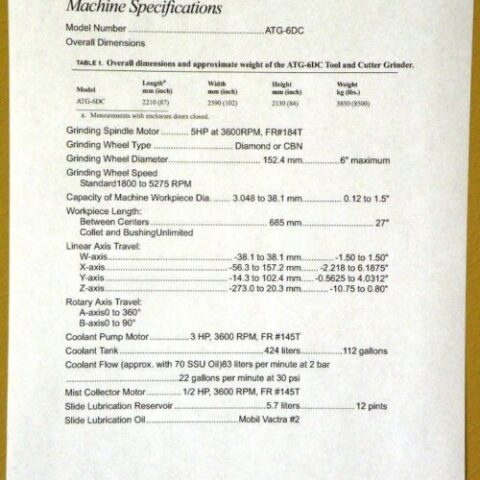

STAR ATG 6DC Specifications:
- Capacity of Workpiece Dia.: 0.12 – 1.50″
- WorkPiece Length between Centers: 27.00″
- Max. W Axis Travel: -1.50″ – 1.50″
- Max. X Axis Travel: -2.218″ – 6.1875″
- Max. Y Axis Travel: -0.5625″ – 4.0312″
- Max. Z Axis Travel: -10.75″ – 0.80″
- A Axis Rotary Travel: 0 to 360°
- B Axis Rotary Travel: 0 to 90°
- Grinding Spindle Motor: 5hp at 3600RPM
- Grinding Wheel Type: Diamond or CBN
- Grinding Wheel Dia. Max.: 6.00″
- Grinding Wheel Speed: 1800 to 5275
-
General:
- Air Required: 6 bar
- Total Power Requirement Max: 12kva
- Power: 220v / 60hz / 3-Phase
- Overall Dimensions: 106″ x 102″ x 90″ High
- Weight: 8500 lbs
