Sold

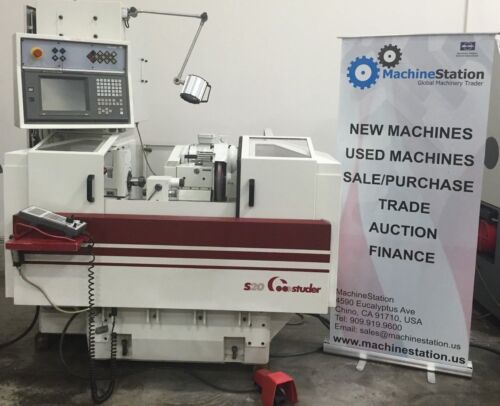

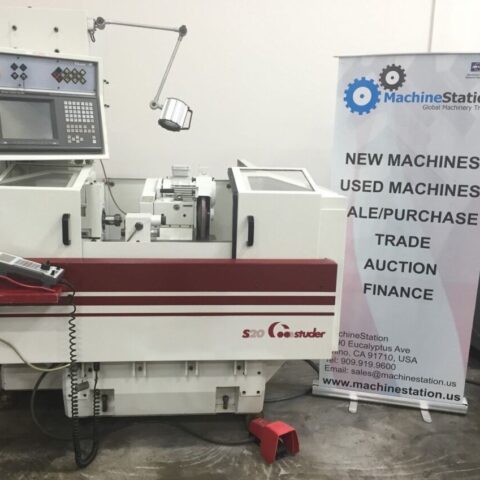

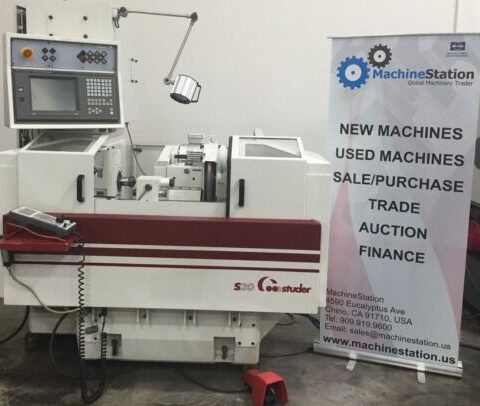

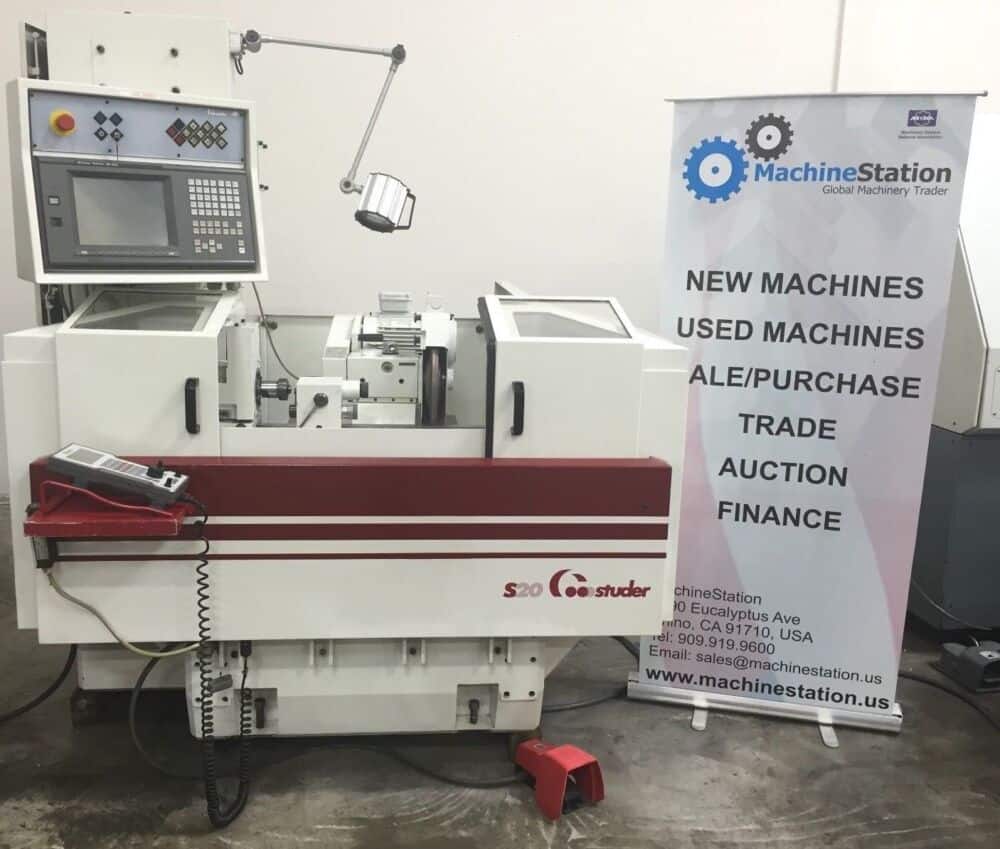

Studer S20 Universal Cylindrical CNC Grinder
Out of stock
| Make |
Studer |
| Model No. |
S20 CNC |
| Year of Manufacture: |
1995 |

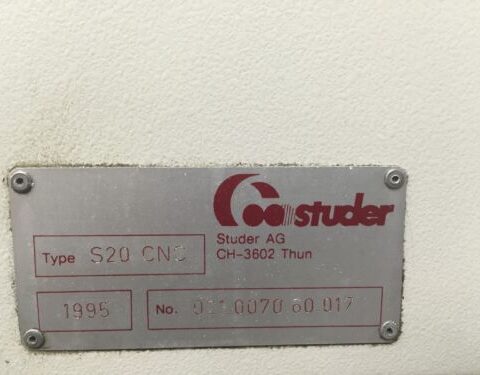

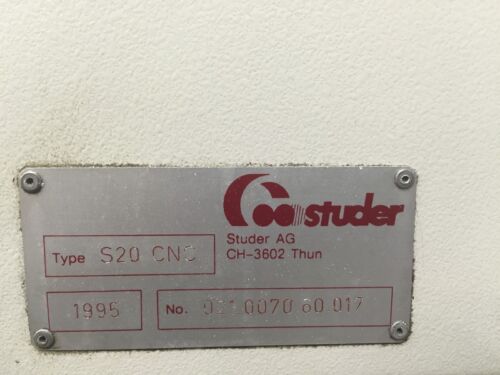

| Serial # |
021.0070.60.017 |
| Condition |
Very Good |
-
Studer S20 CNC Grinder Features:
- Fanuc 16GC 32 Bit ISO Programming Control
- Hydrodynamic spindle bearings
- Tailstock with fine adjustment knob and diamond holder for dressing grinding wheel
- Rego-Fix ER System Collet Chuck

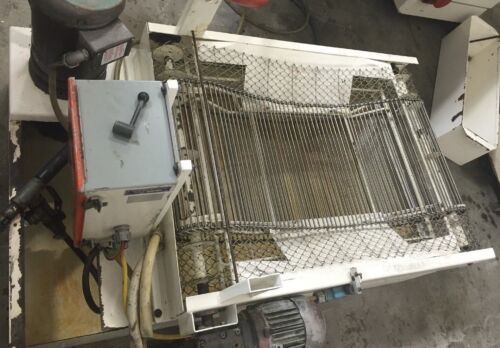

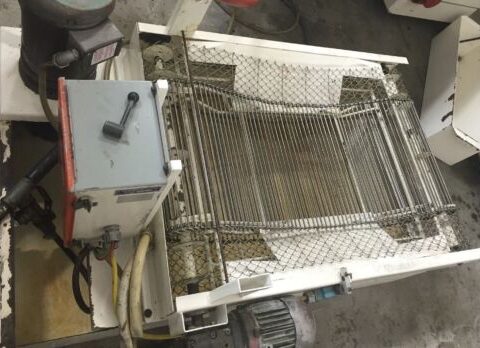

- Coolant filtration system with external pump and tank
- Remote Pendant Control
- Full Enclosure
- WorkLight
- Extended Memory
- RS-232 Port
- Comes with All Original Manuals
-
General:
- Air Required Required: 6 bar
- Total Power Requirement Max: 12kva
- Power: 400v / 60hz / 3-Phase
- Overall Dimensions: 68″ x 58″ x 70″ High
- Weight: 3500 lbs
-
Studer S20 CNC Grinder Specifications:
- Center Height: 4.0″
- Center Distance: 15.75″
- Max. Longitudinal Travel: 16.53″
- Max. Grinding Length: 15.75″
- Longitudinal Slide Speed : 0.001 – 10,000 mm/min
- Longitudinal Slide Resolution: 0.0001 mm
- Max. Swivel of Table: 15 Grad
- Max. Wheelhead Slide Travel: 5.90″
- Max. Wheelhead Slide Speed: 0.001 – 10,000 mm/min
- Slide Resolution: 0.0001 mm
- Wheelhead Power Requirement: 3kw
- Peripheral Speed: 35m/ sec
- Wheelhead Slide Coarse Adjustment: 4.72″
- Swivel Range to the Right: 30 Grad
- Workhead Swivel Range: 0-90°
- Workhead Speed Range: 30 – 1200 RPM
- Workhead Morse Taper: 4
- Collets: W-20
- Workhead Power Requirement: 0.5kw
- Max Workpiece Wight Between Centers: 45 lbs
- Live Grinding Load: 12Nm
- Tailstock Morse Taper: 2
- Travel Of Barrel: 0.79″
