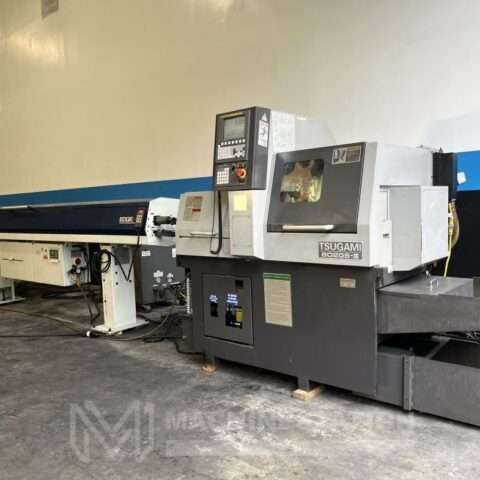

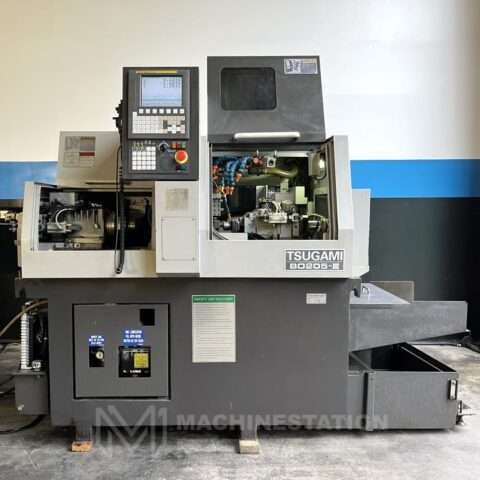

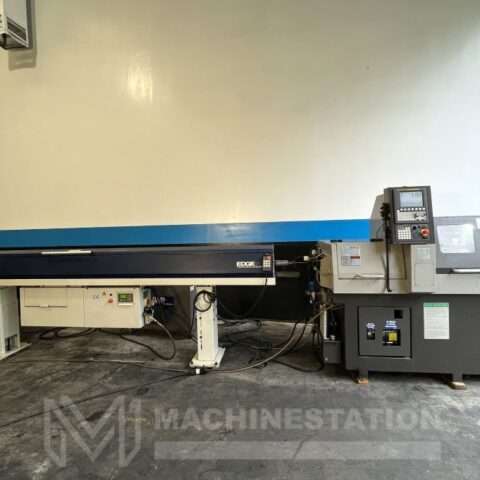

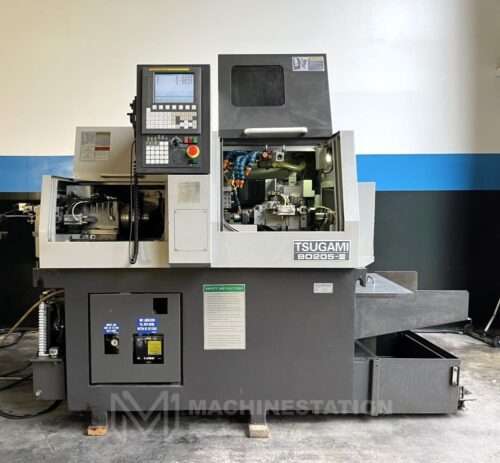

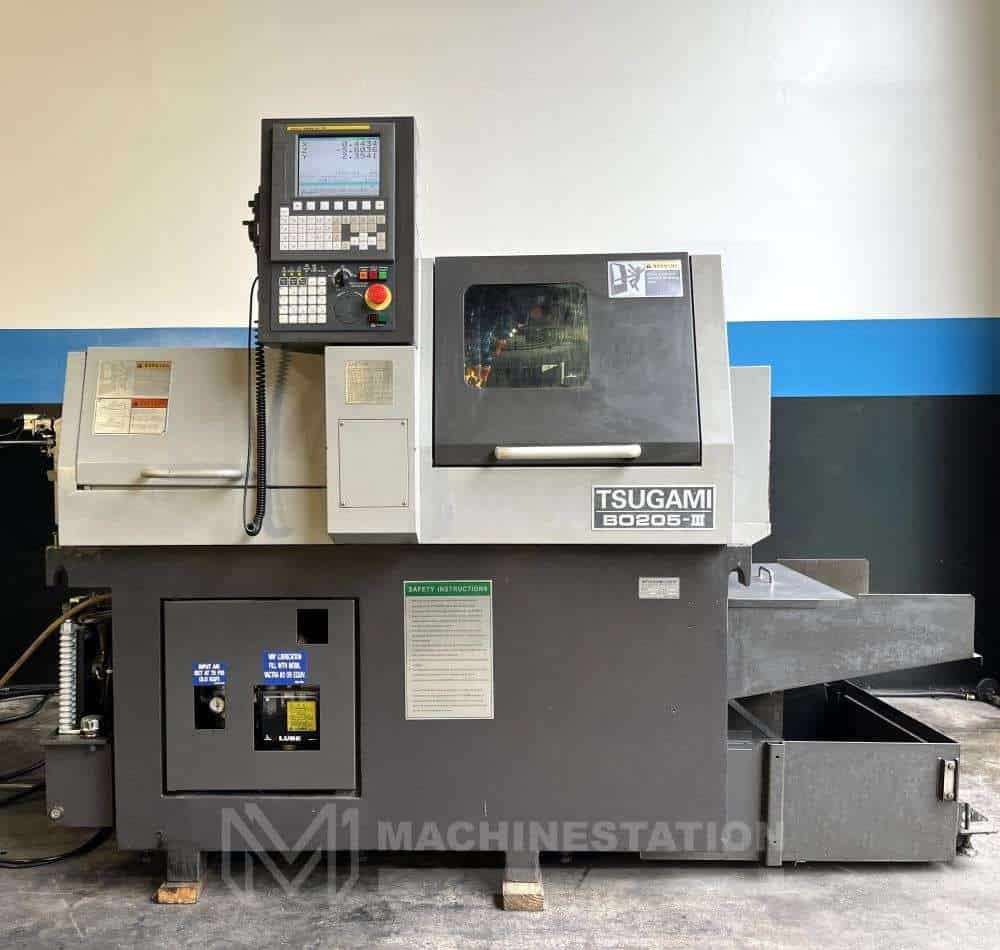

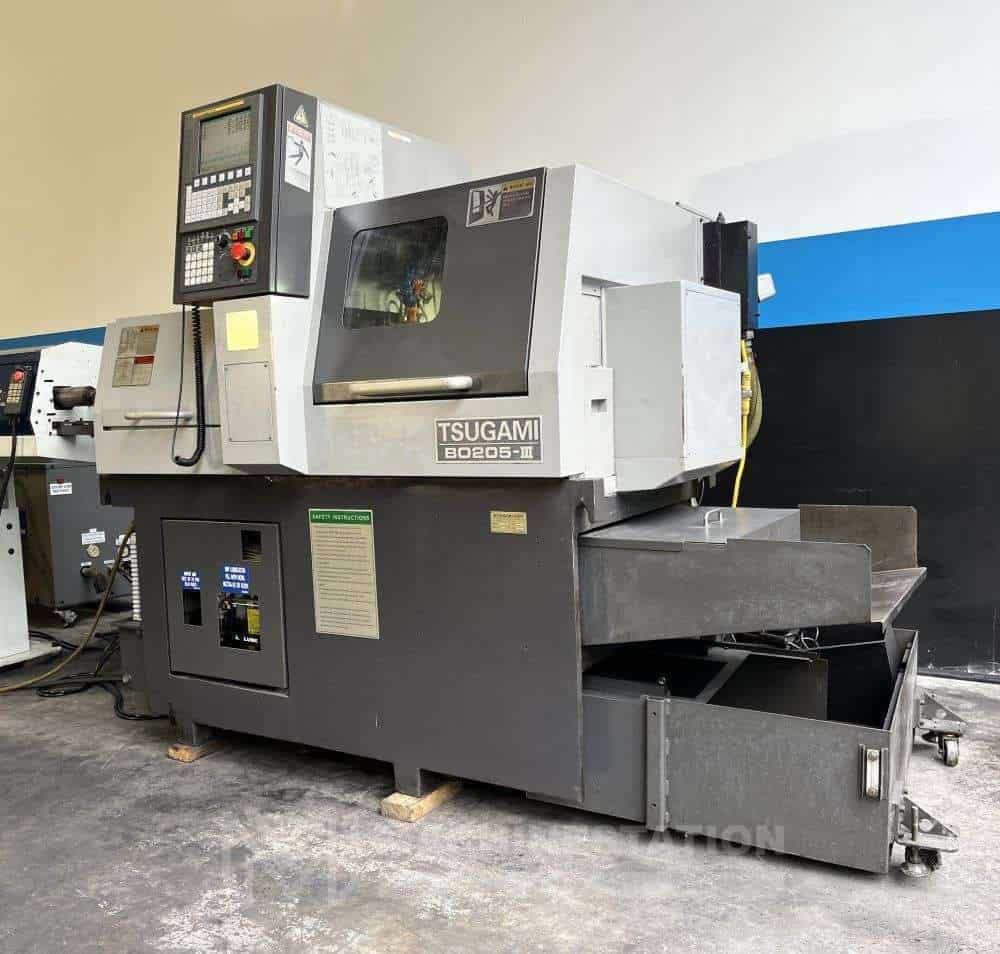

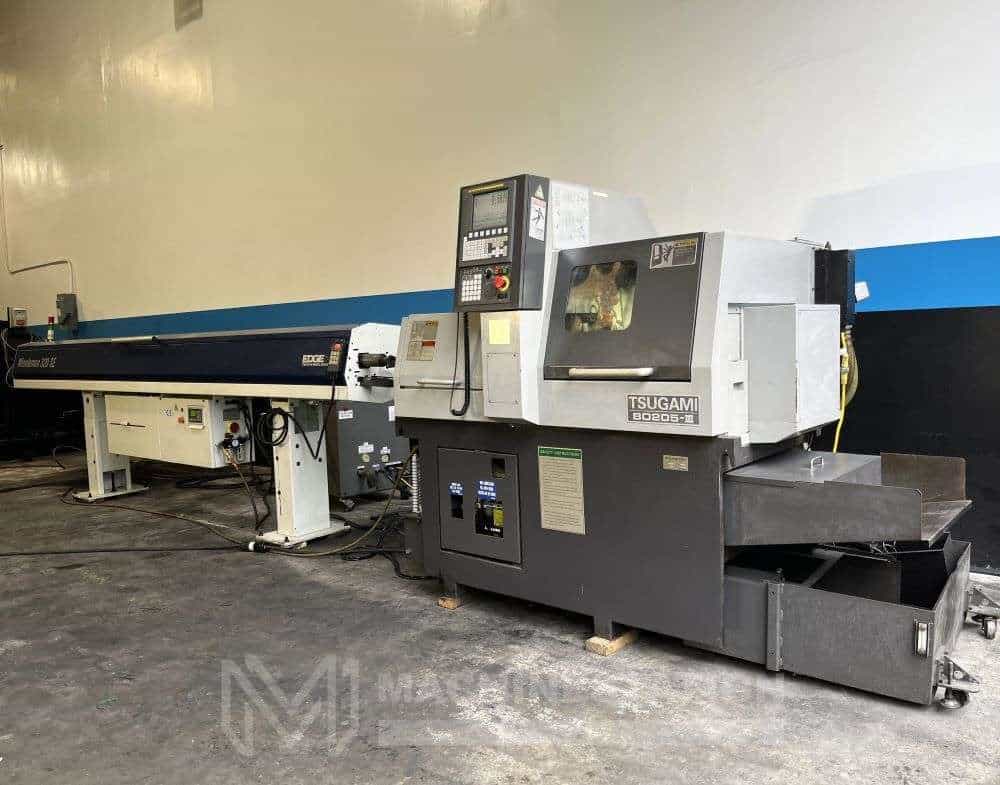

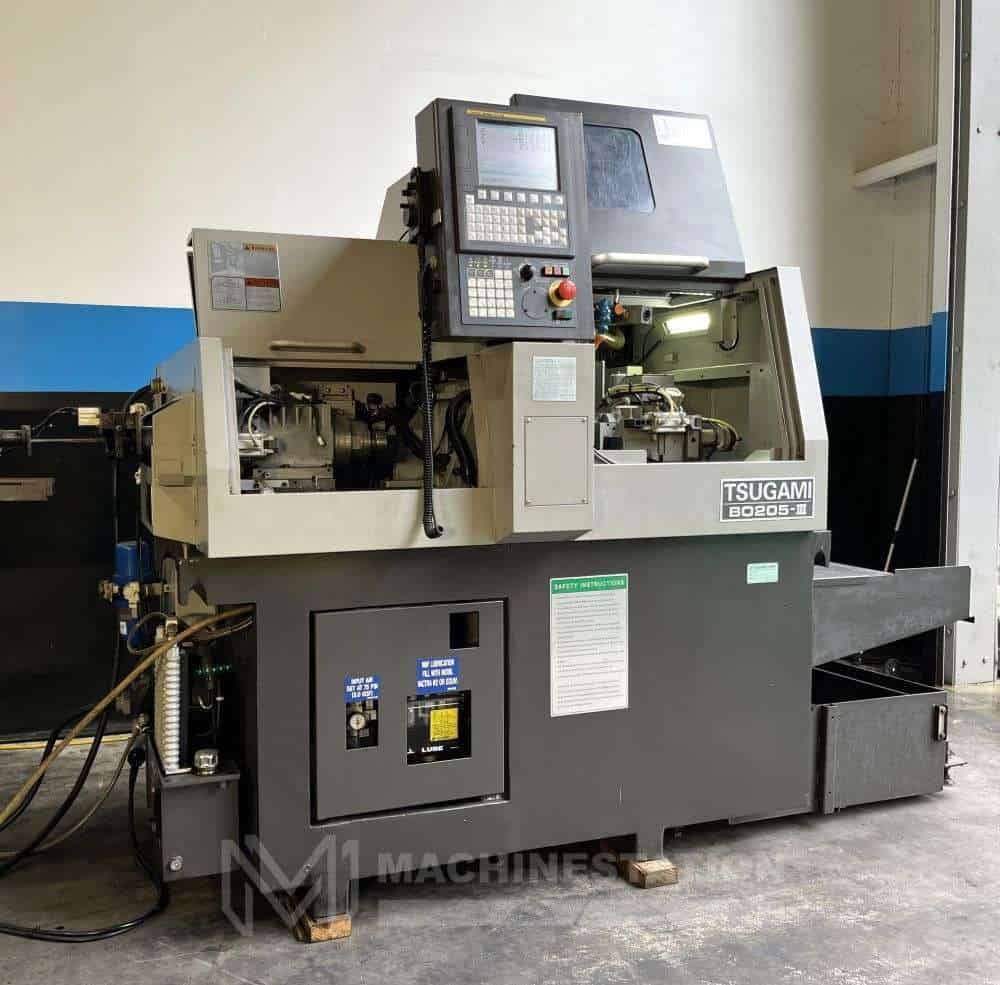

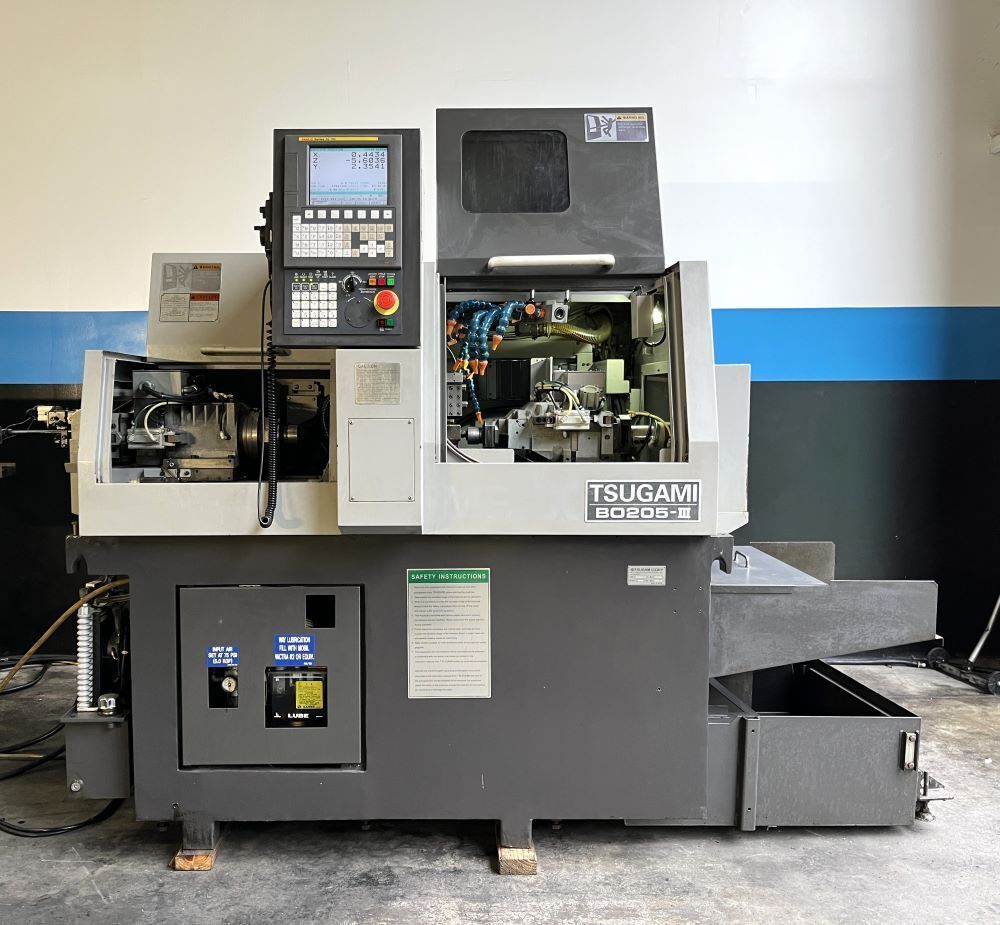

Tsugami B0205-III CNC Swiss Type Automatic Lathe

$69,300.00

1 in stock
Location: Lake Elsinore, CA
SKU: 2415
Make/Model: TSUGAMI B0205-III
Year: 2015

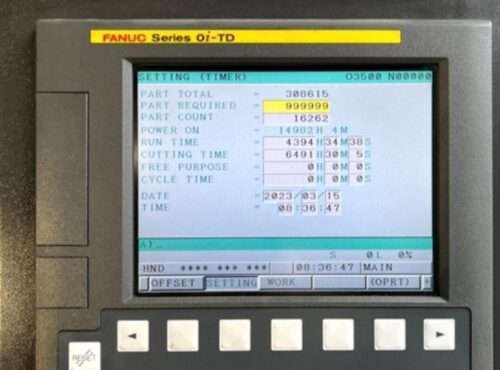

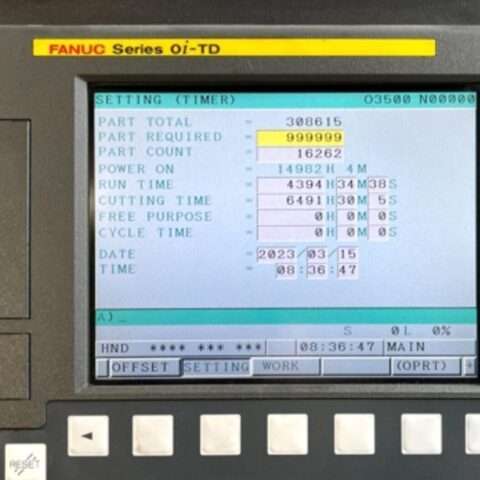

Cutting Time: 6,491 Hours
Video: On Request
SKU: 2415

*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

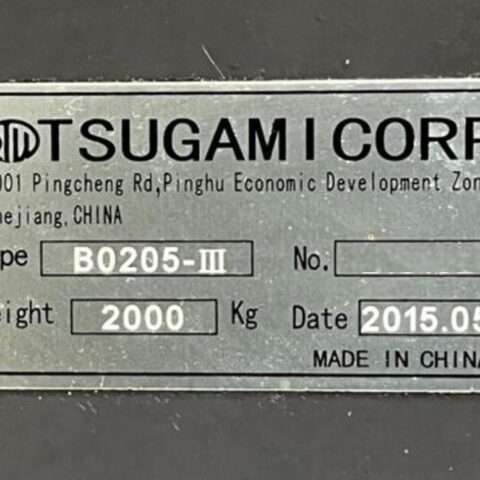

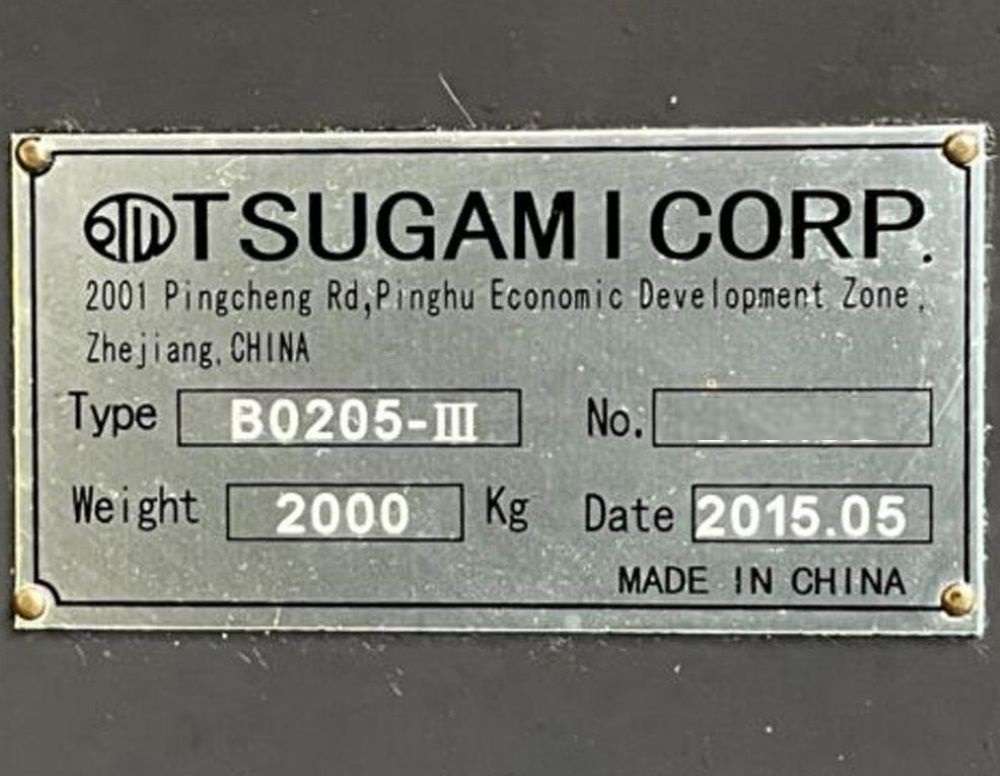

Make: TSUGAMI
Model: B0205-III
Year: 2015
Condition: Used – Good



Equipped With:

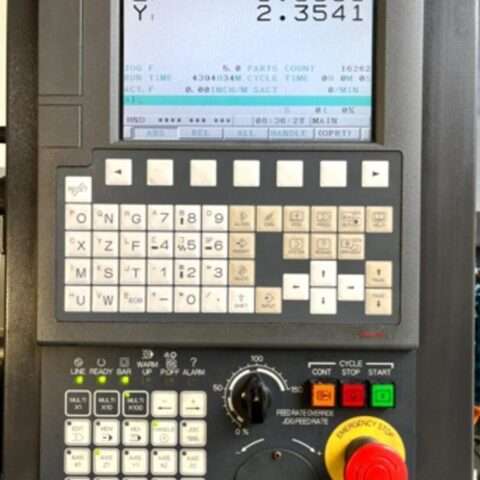

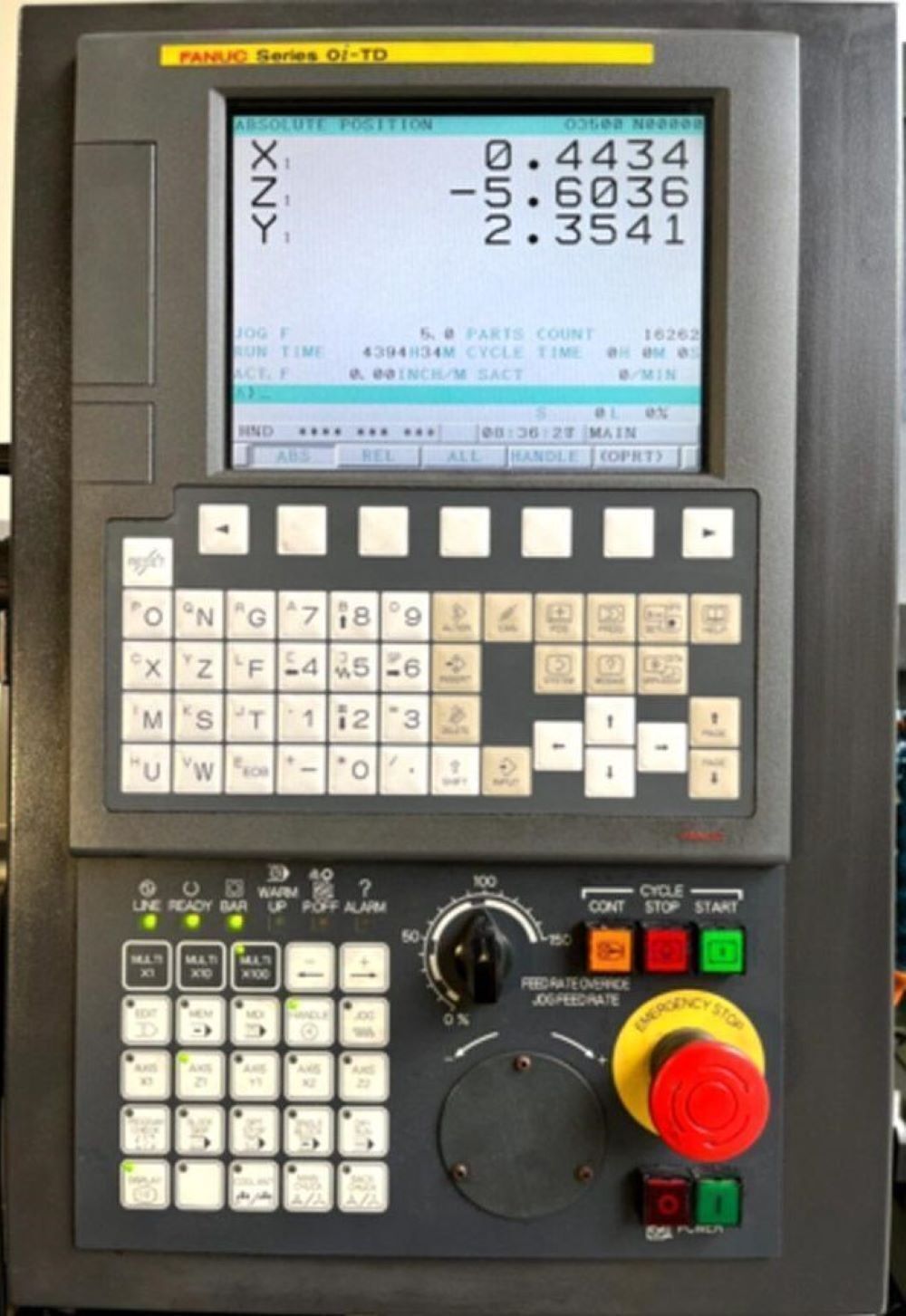

  • Fanuc Oi-TD CNC Control
  • Controlled Axes (Liner Axes) X1, X2, Y1, Z1, Z2

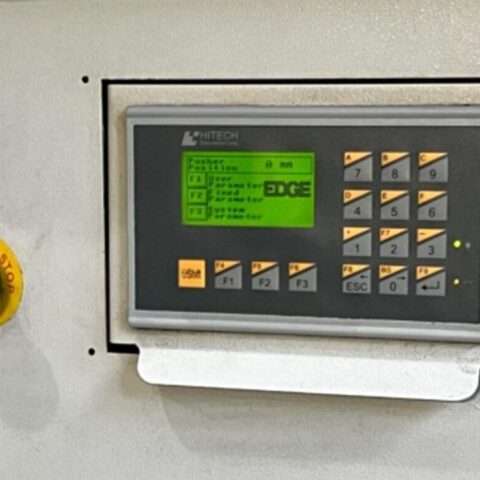

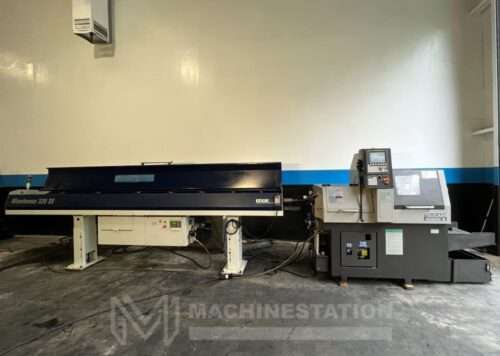

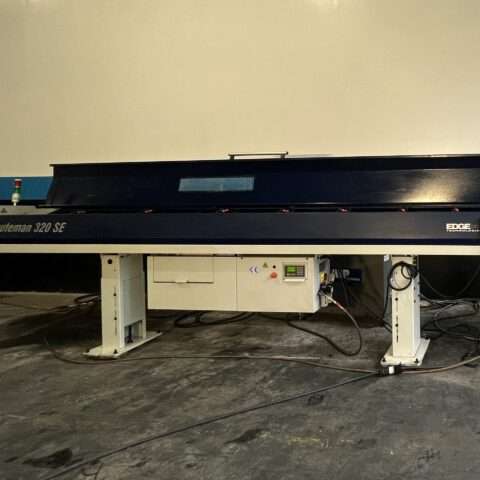

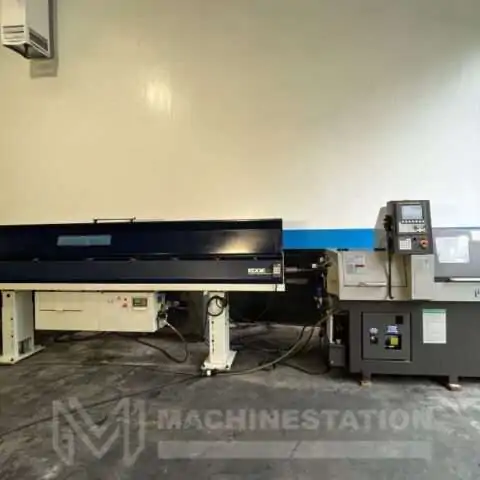

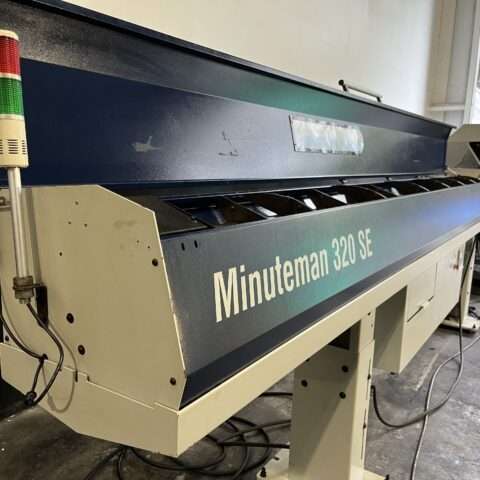

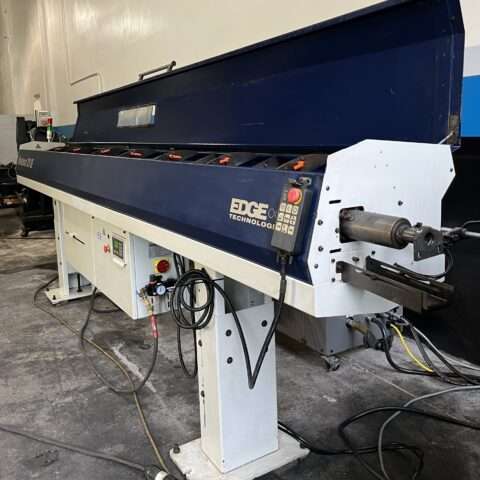

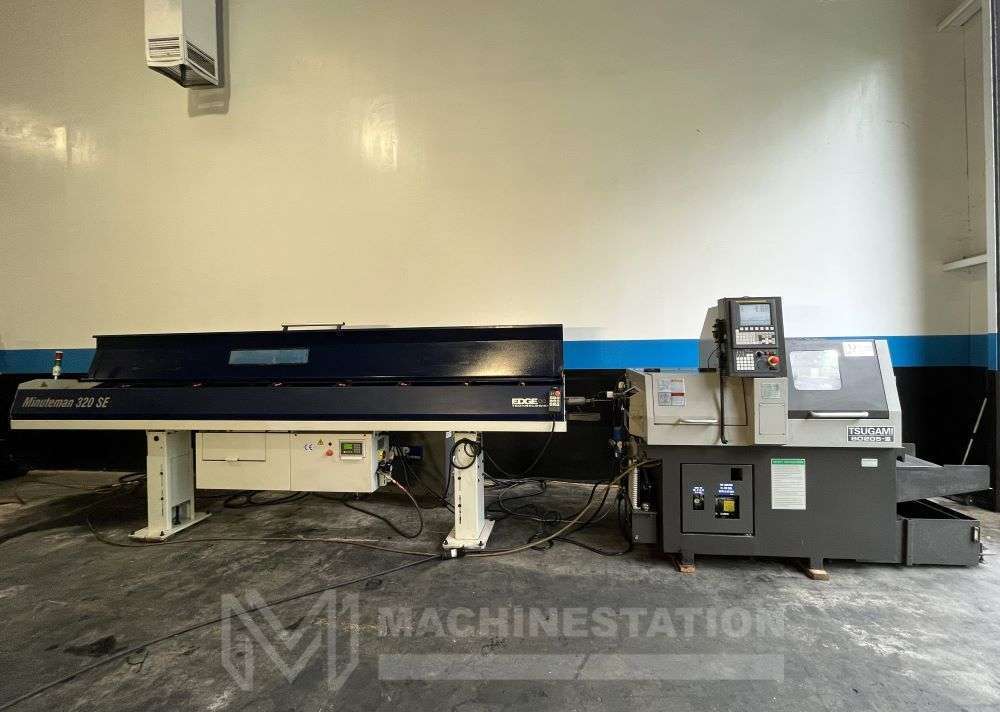

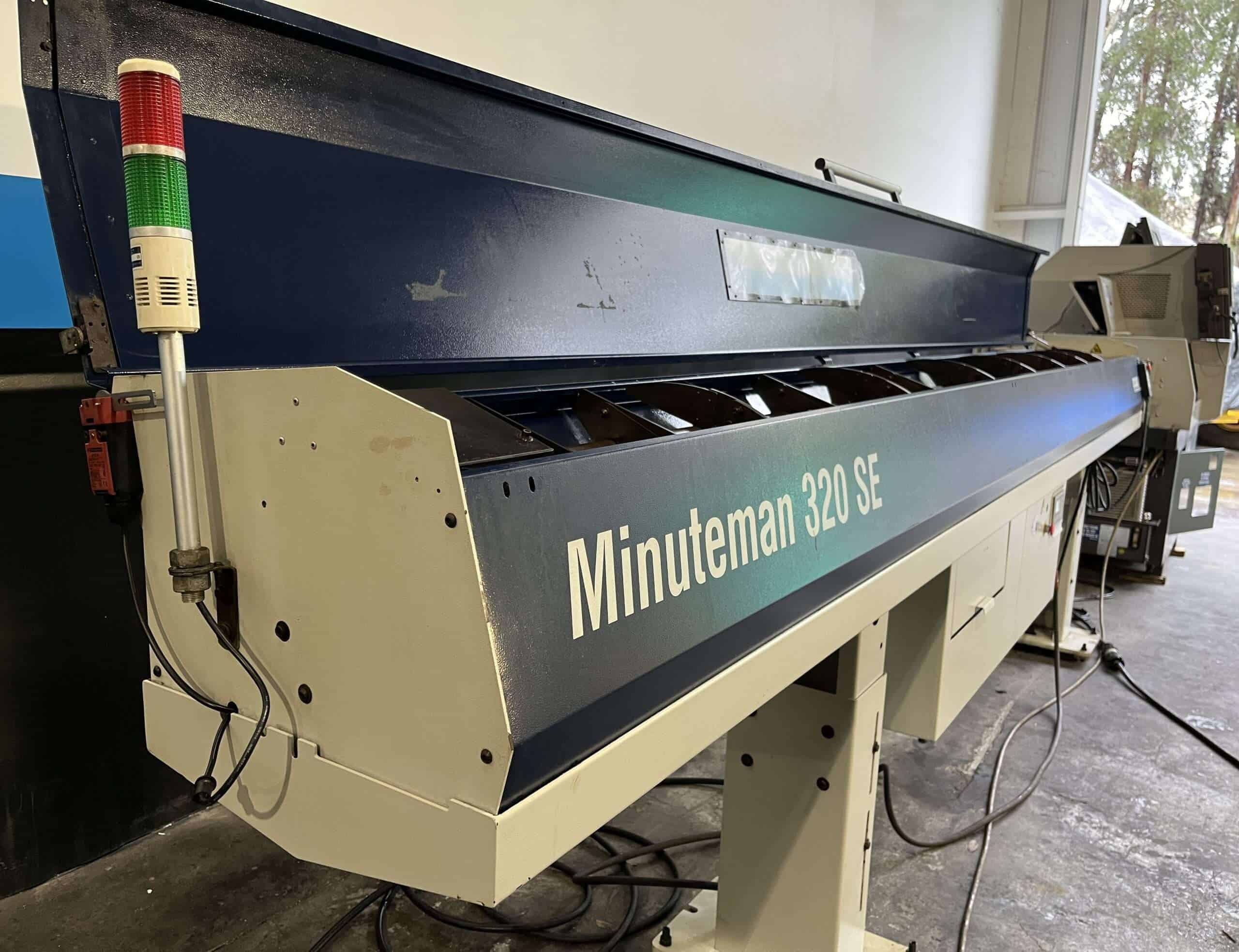

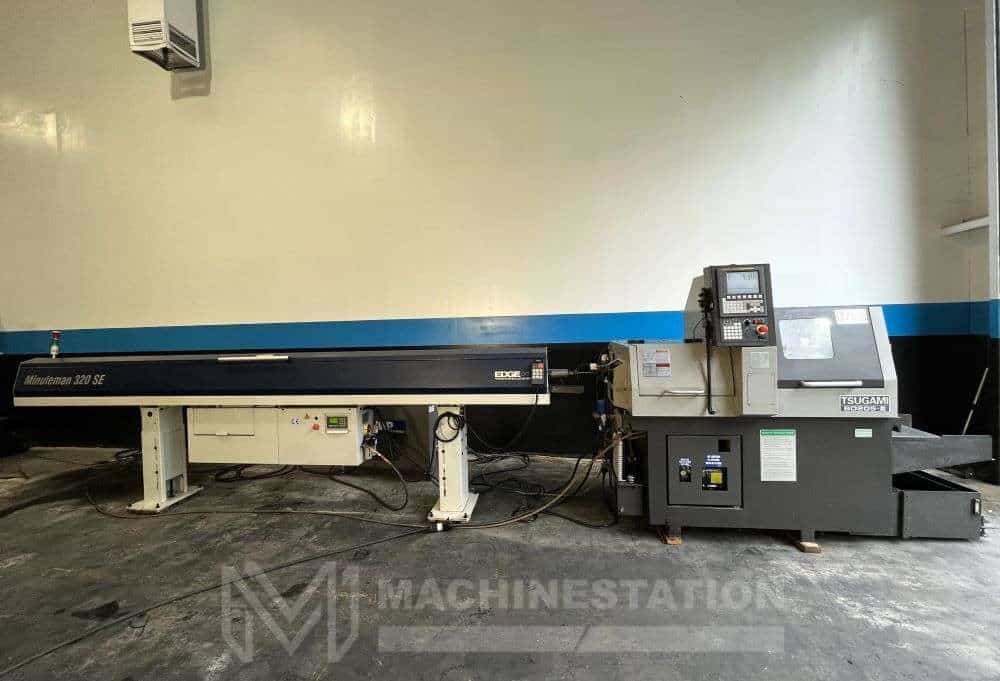

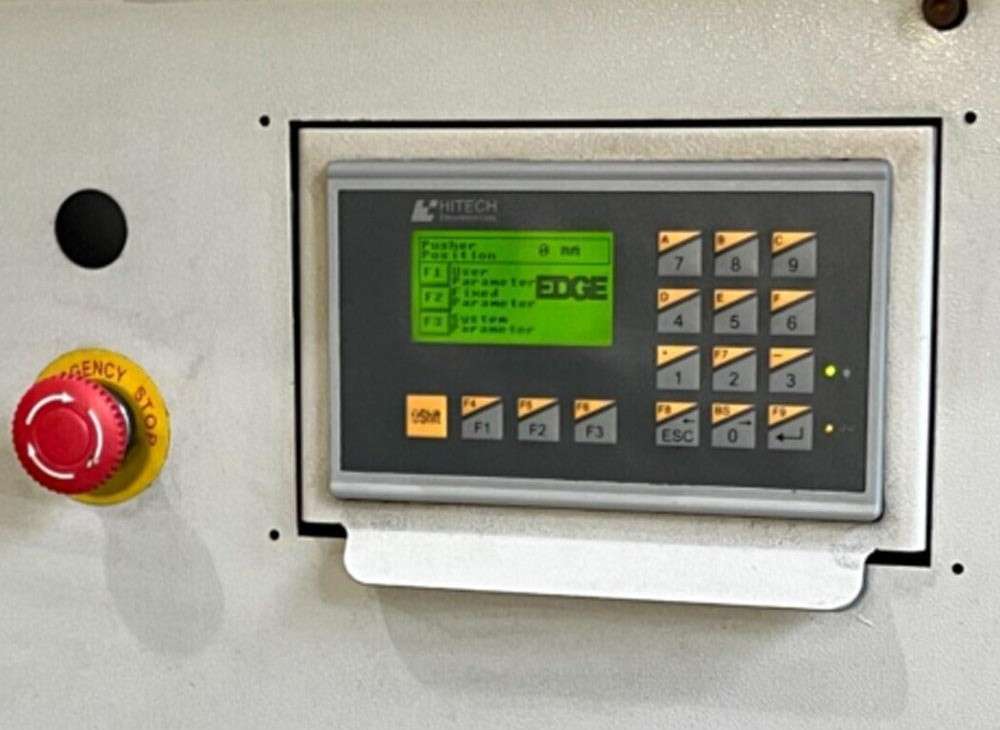

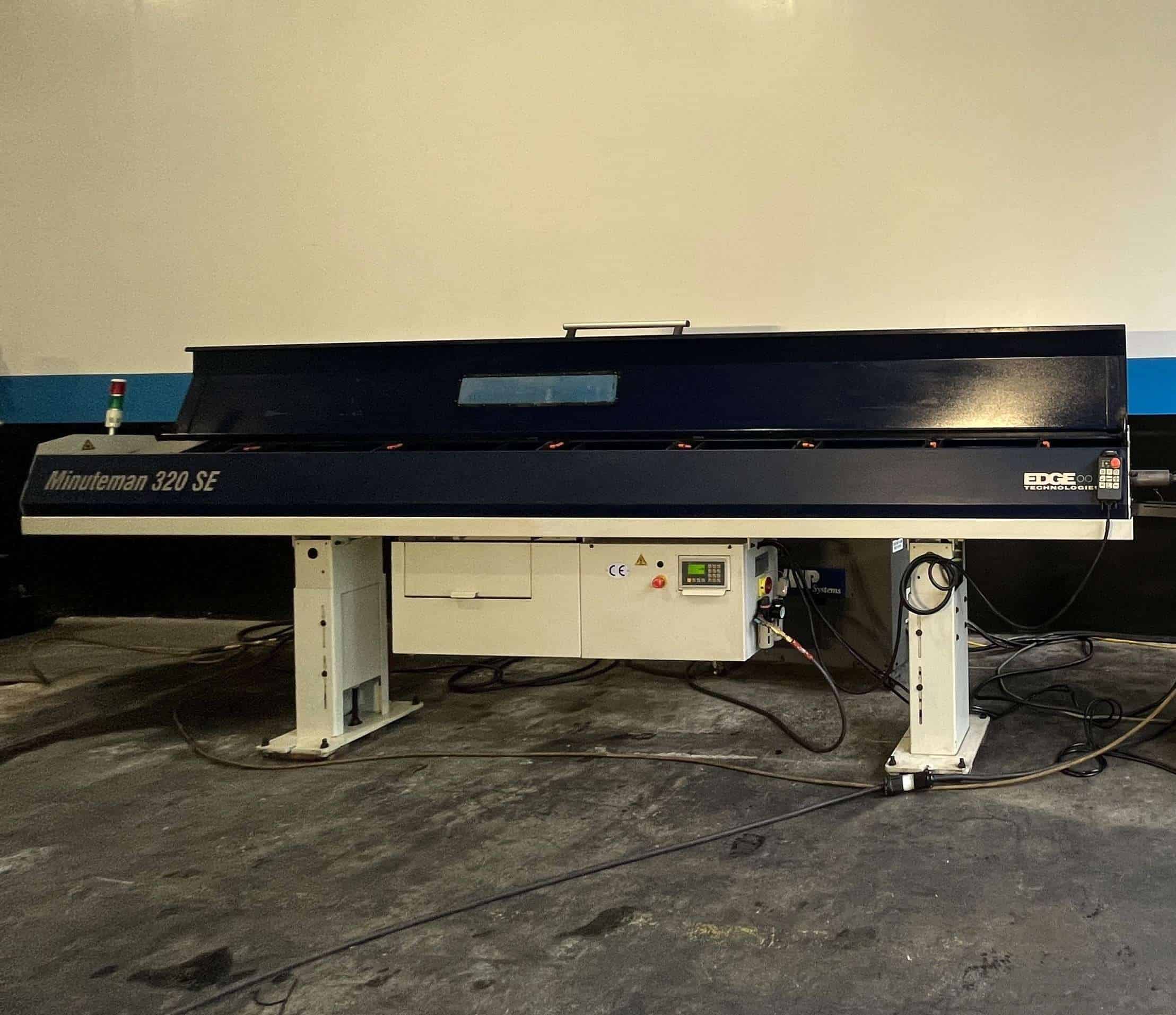

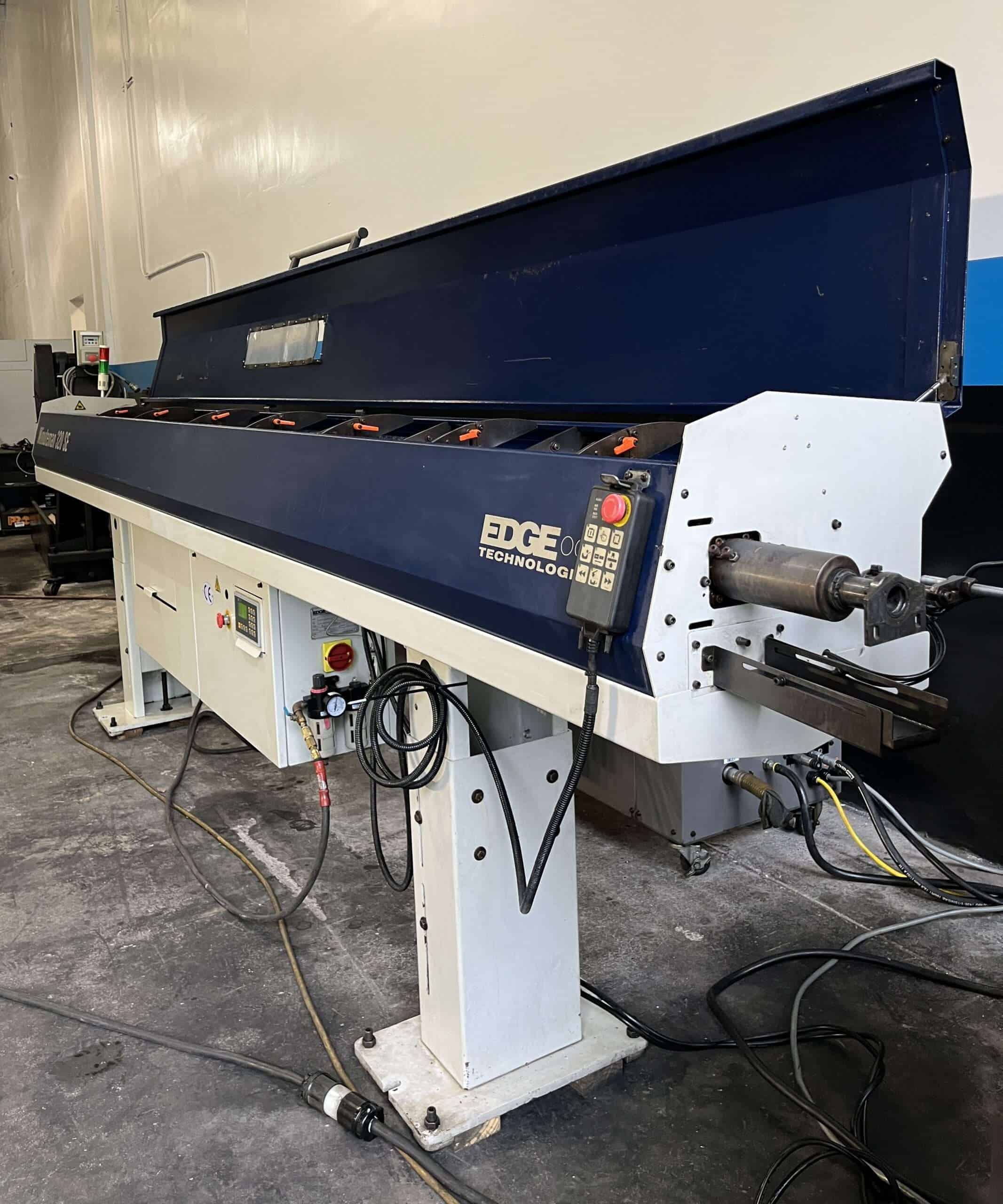

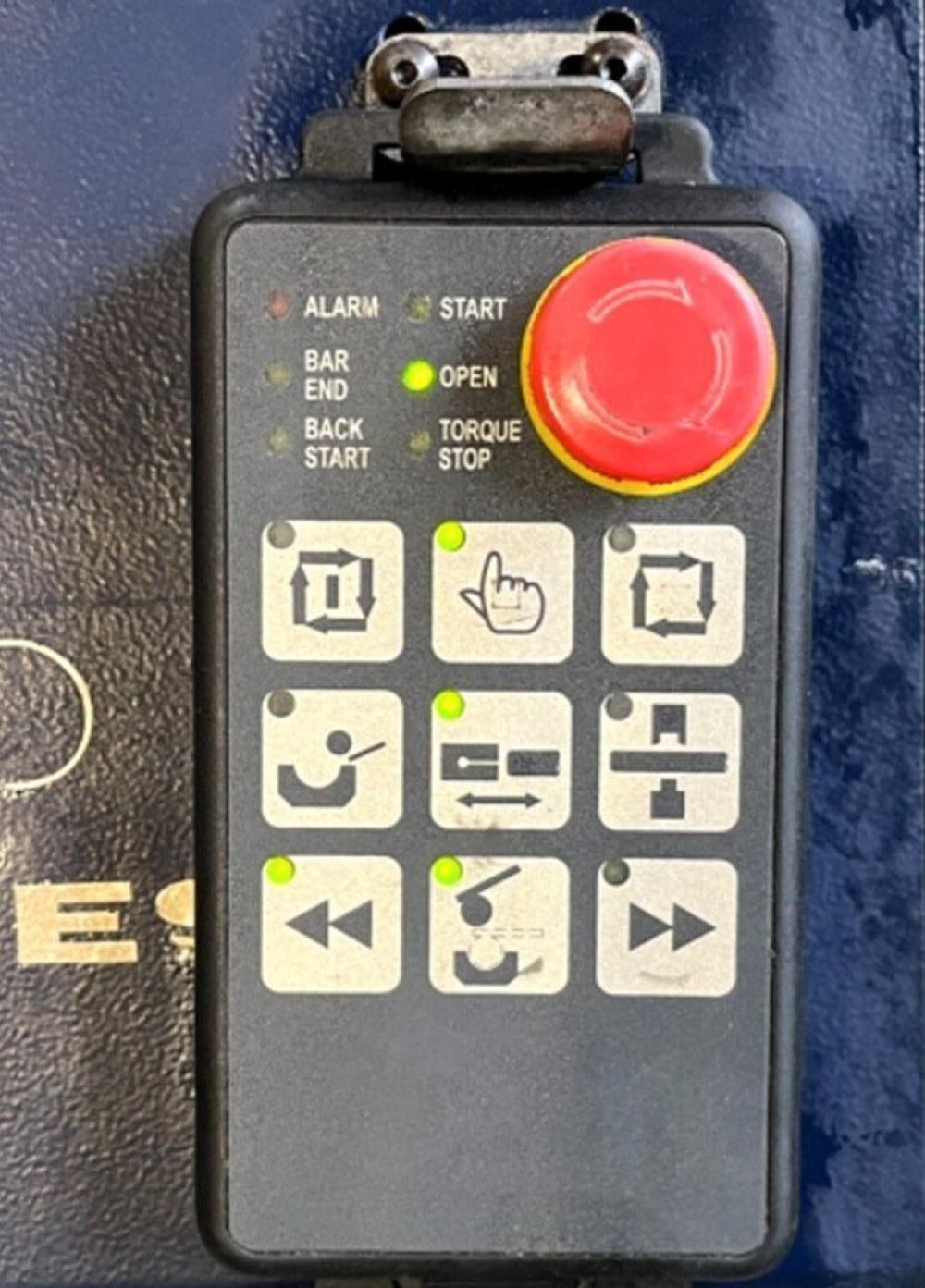

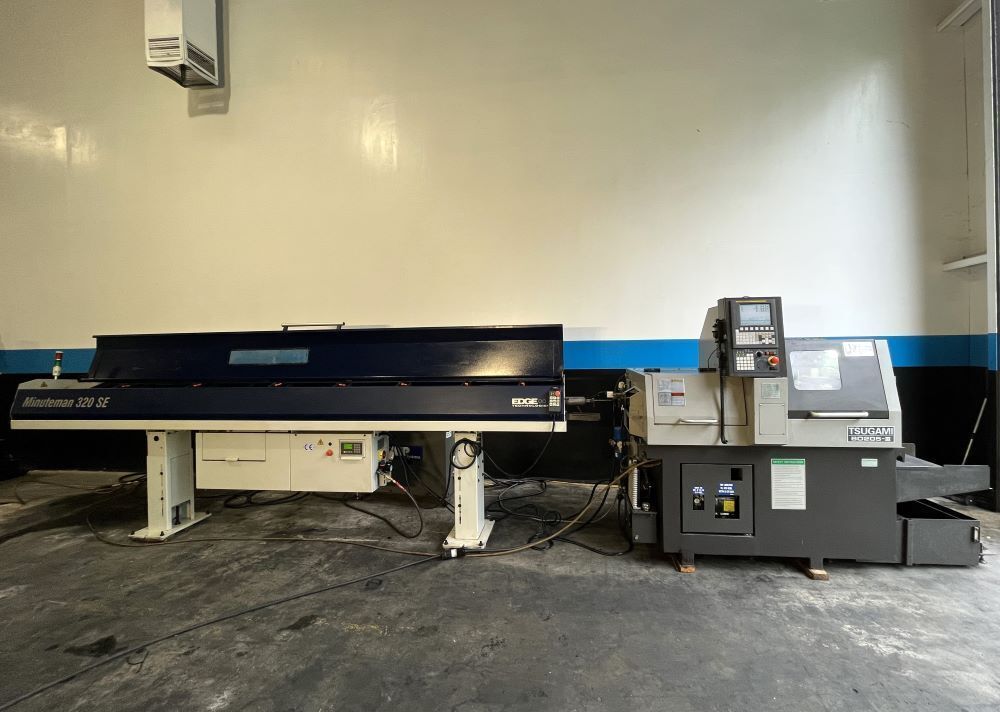

  • Comes with Edge Minuteman 320 SE Bar Feeder

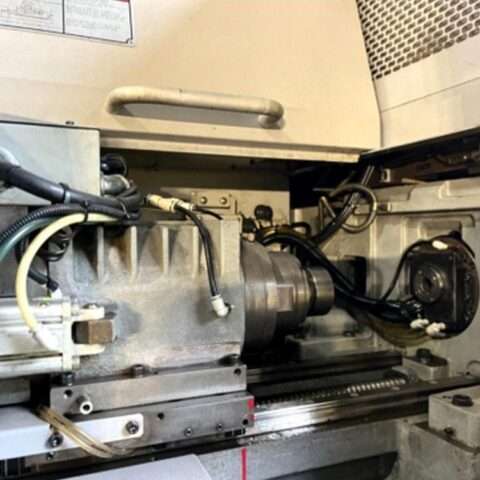

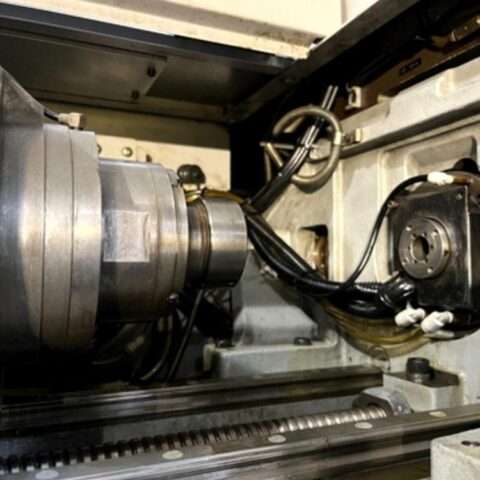

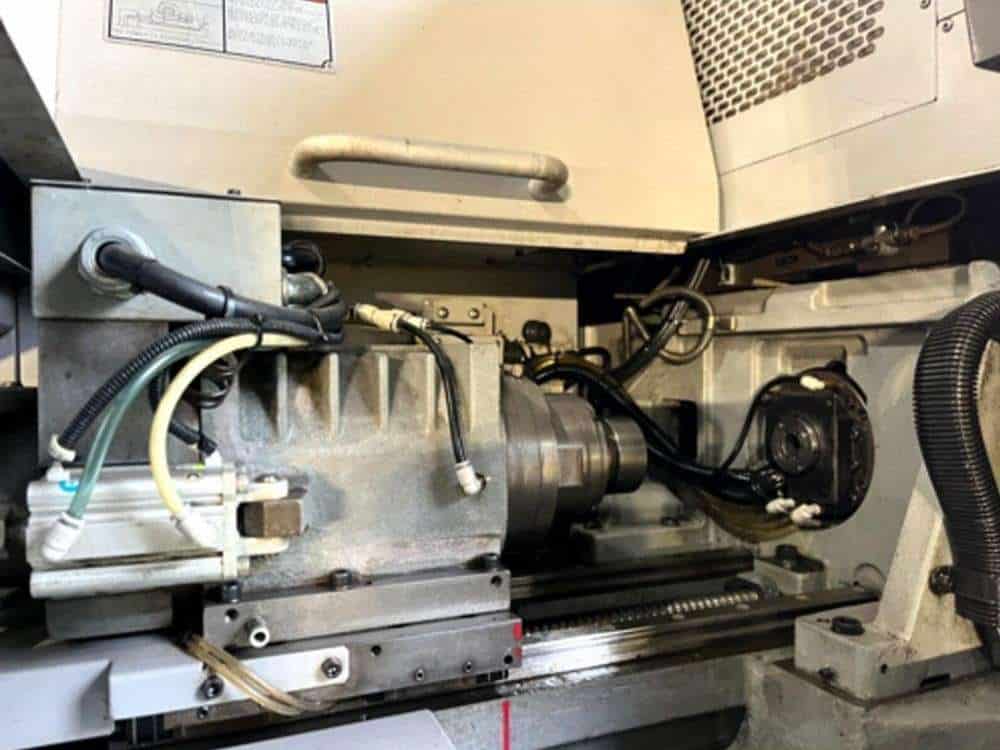

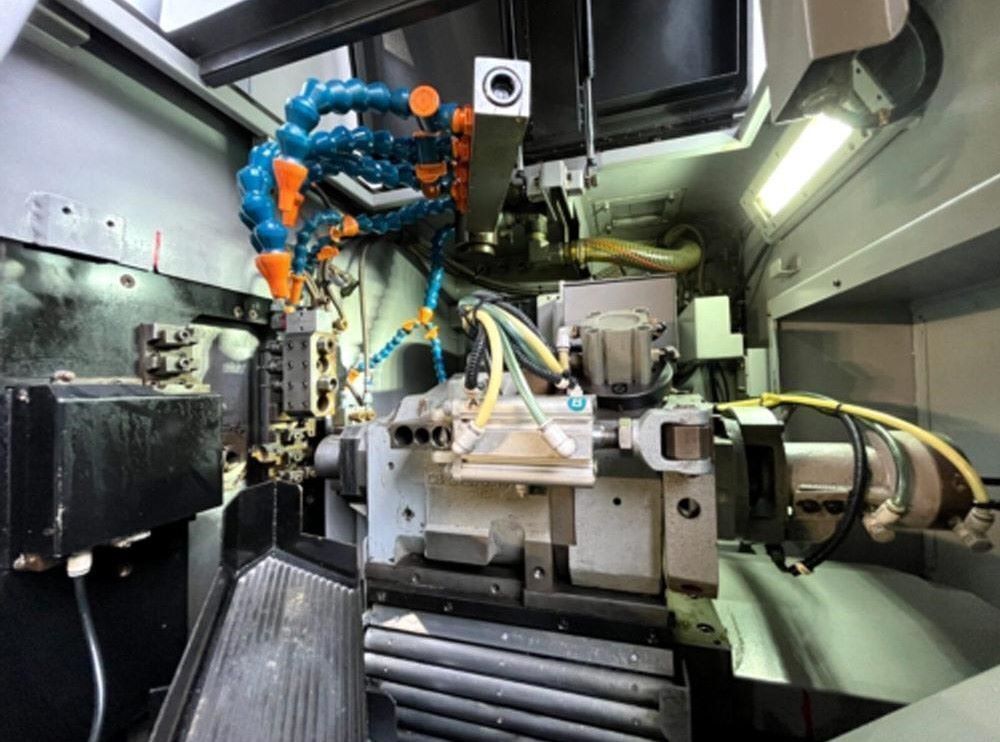

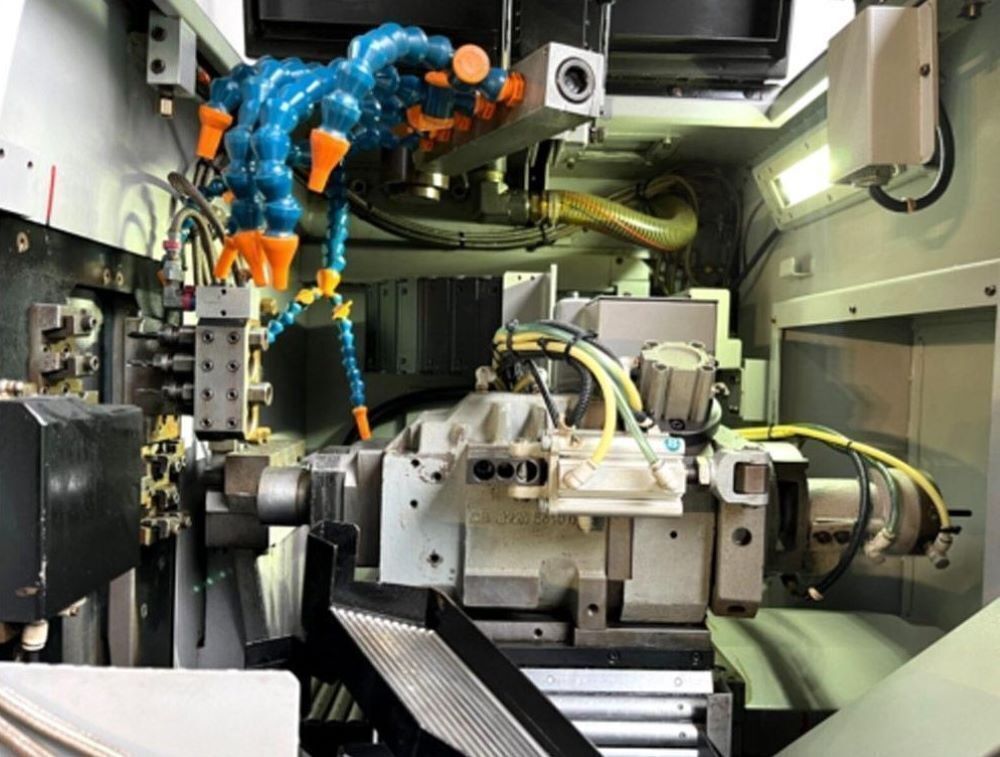

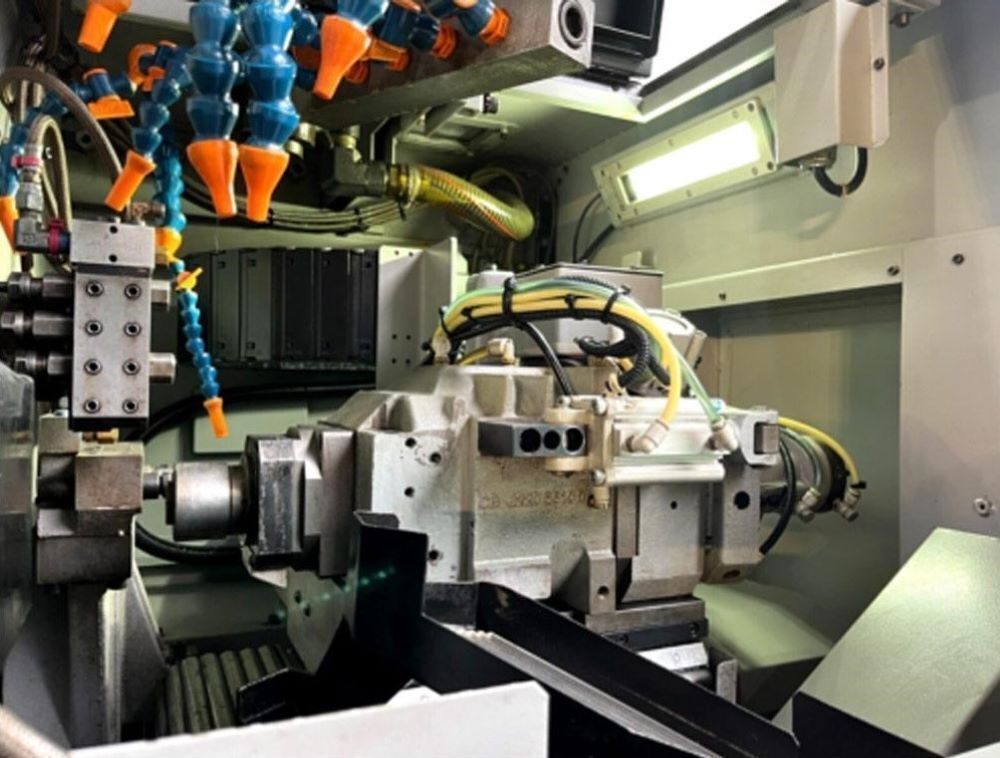

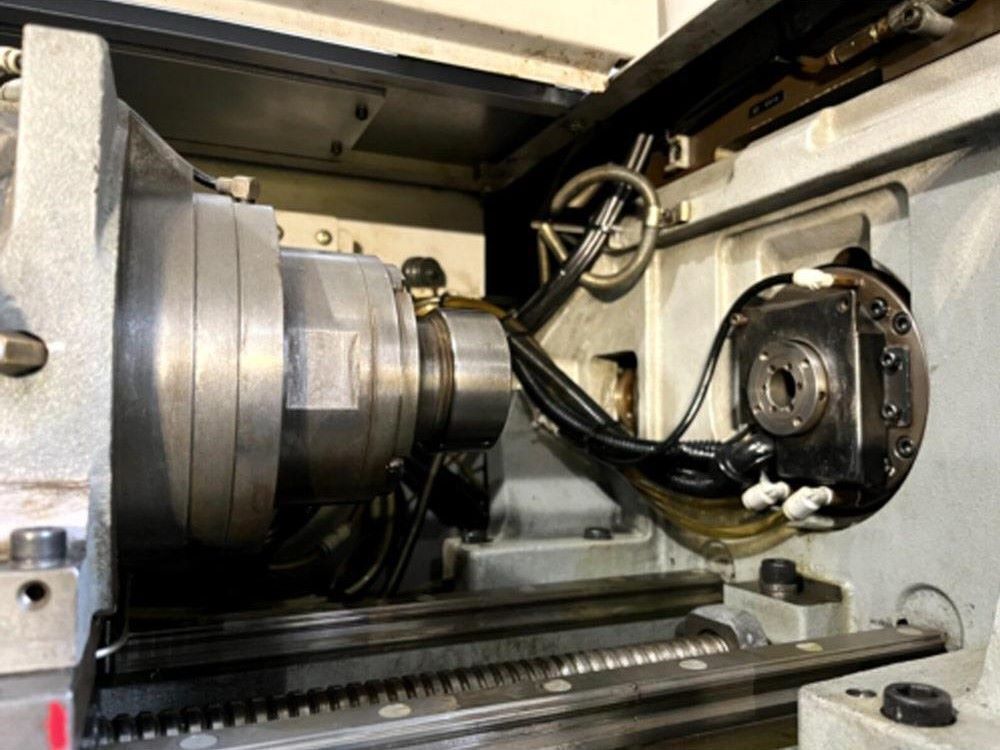

  • Back Spindle
  • C & Y Axis Capable
  • Live Tools Capable
  • Long Parts Capable
  • MPG Handwheel Control
  • Part Catcher
  • Part Conveyor
  • Main & Back Spindle Synchronization
  • High Speed Rapid Travers: 944 IPM
  • High Speed Program Processing
  • Absolute Position Detection
  • Automatic Lubrication System
  • Coolant Tank
  • Leveling Pads
  • Books and Manuals



Capacity:
  • Max Turning Diameter: 0.79″ (20 mm)
  • Max Turning Length: 8.3″ (210 mm)
  • Max Turning Length with Gripping Unit: 6.69″ (170mm)
  • Max Bar Capacity: 0.79″ (20 mm)
  • Max Tool Positions: 21
  • Max. Main Spindle Drilling Diameter: 0.39″ (10 mm)
  • Max. Main Spindle Tapping Diameter: M10
  • Max. Back Spindle Chucking Diameter: 0.79″ (20 mm)
  • Max. Back Spindle Drilling Diameter: 0.31″ (8 mm)
  • Max. Back Spindle Tapping Diameter: M8
  • Max. Cross Drilling Diameter: 0.275 ( 7 mm)/ER11 and 0.393″ (10 mm)/ER16
  • Max. Cross Tapping Diameter: M5 x 0.8 (option)
  • Max. Tool Spindle Slotting Cutter Diameter: 1.18″ (30 mm)
  • Max. Back Drilling Diameter: 0.275″ (7 mm)
  • Max. Back Tapping Diameter: M5



Spindle:
  • Main Spindle Indexing: 360° (Full C-Axis)
  • Main Spindle Bore: 0.79″ (20 mm)
  • Main Spindle Speed: 10000 RPM
  • Back Spindle Motor: 3.7 kw
  • Back Spindle Indexing: 360° (Full C-Axis)
  • Back Spindle Speed: 12000 RPM
  • Back Spindle Motor: 2.2 kw

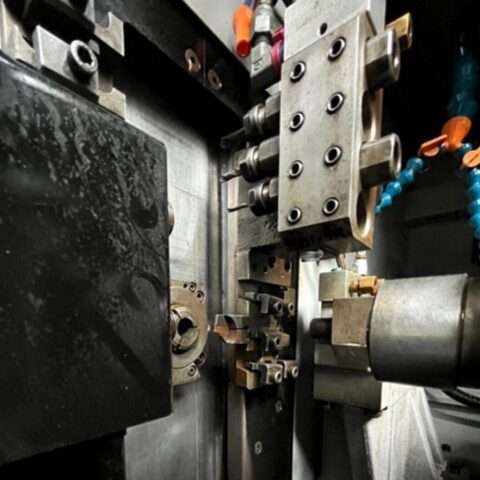

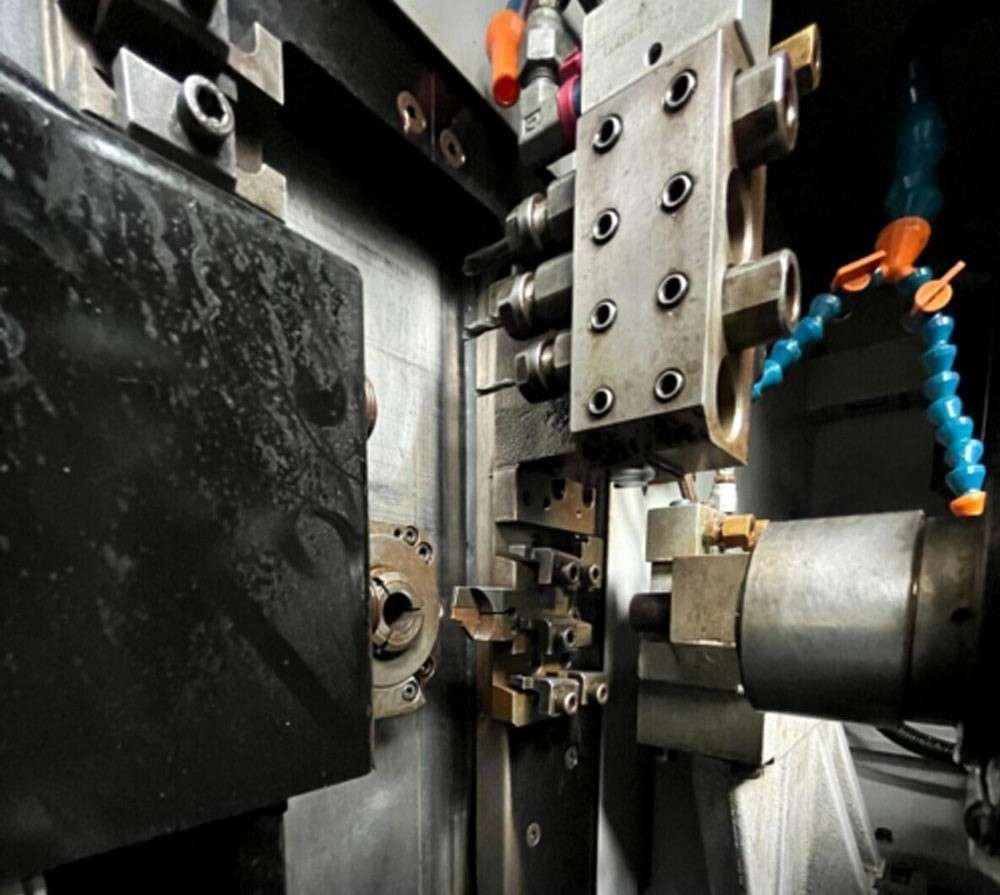

Standard Tools:
  • OD Tools: 9
  • Stationary Tools For Front Spindle: 4
  • Stationary Tools For Back Spindle: 4

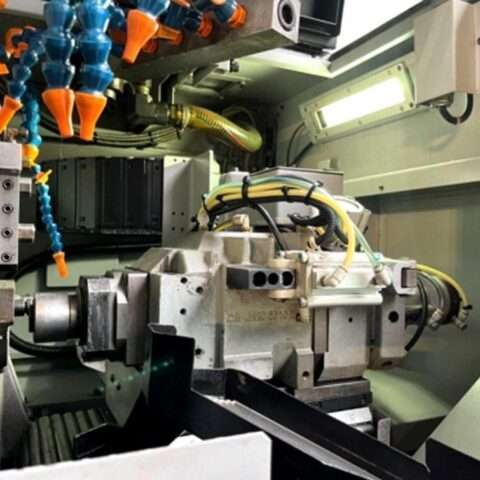

Power Driven Tools Attachment:
  • Power Driven Tools: 4
  • Driven Tool Speed: 8000 RPM
  • Driven Tool Motor: 1.2 kw



General:
  • Power Source: AC 220v / 3-Phase /60 Hz
  • Power Requirement: 11 kva
  • Overall Dimensions: 65.16″ X 44.29″ X 66.93″ High without Bar Feeder
  • Weight: 4409 lbs. Approx.
