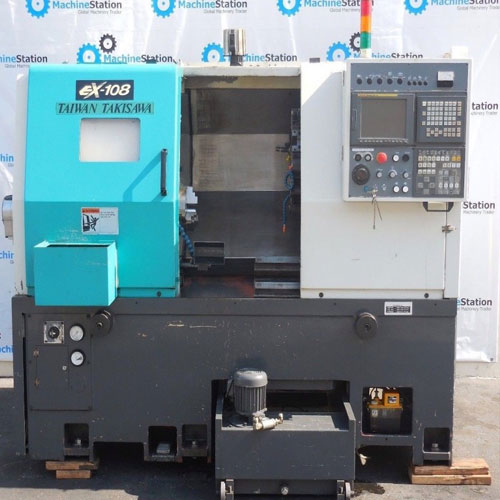

Used USED-TAKISAWA CNC HORIZONTAL LATHE Model EX-108

USED-TAKISAWA CNC HORIZONTAL LATHE Model EX-108

SKU 1183

Make/Model Takisawa EX108

Serial # C9901004-047

Condition Very Good

Video Play Video

Out of stock

SKU:	1183
Make/Model:	Takisawa EX108
Serial #	C9901004-047
Condition	Very Good
Video:	Play Video

SKU: 1183

All specifications are approximations and are subject to verification.

Features:
Fanuc 21i-T Control
12 Station Turret
Kitagawa 8″ 3-Jaw Power Chuck
Hydraulic Tailstock
3-J Collet Nose Piece
Parts Catcher
Coolant System

Specifications:
Work Station:
No. of Headstocks: 1
Spindle Direction: Horizontal
Spindle Power: 11 kW
Spindle Ranges: 1
Spindle Bore: 2.5″
Bar Capacity: 2″
Spindle Nose: A2-6
Spindle Speed: 4000 RPM
Chuck Size: 8″

Tool Changer:
Type: Drum Turret
Tool Stations: 12
Axis: X (Standard)
X Travel: 7″
X Power: 20 kW
Axis: Z (Standard)
Z Travel: 21″
Z Power: 24 kW

Tailstock:
Quill Travel: 4″
Quill Taper: 5 MT
Body Travel: 17″

General:
Type: Horizontal
CNC Control: Fanuc
Number of Axes: 2
Swing: 15.75″
Turning Diameter: 12.6″
Turning Length: 20.87″
Distance Between Centers: 25.4″
Net Weight: 9500 lbs
Overall Dimensions: 90″ x 60″ x 75″

GUARANTEE: If any machine guaranteed by us does not prove satisfactory mechanically, the Purchaser may return it freight prepaid within 14 days from date of shipment and we will refund the purchase price in full. This does not apply to machine sold “as is” or “subject to inspection”. This guarantee applies only to machines which we own. The machine must be returned in the same condition that it left our warehouse. MachineStation shall not be responsible for any damage done by truckers, riggers, or other parties. Machine damaged in shipping are not covered under the return privilege.

WARRANTY: Seller makes no warranties of any kind whatever, expressed, or implied. All specifications and descriptions of said goods are approximate, not binding and meant only as a guide. It is the Buyer’s responsibility to inspect the goods and ascertain if the specifications, description and condition of the goods confirm to the Buyer’s requirement.

MACHINE USE AND SAFETY: Buyer acknowledges that the goods described herein are pre-owned used goods which were neither designed or manufactured by the Seller, nor has the Seller knowledge of, or control over, the prior use or misuse of said goods: nor does the Seller have knowledge or control over the application of these goods by the Buyer. It is the Buyer’s (user’s), responsibility to provide proper safety devices, equipment and instructions for any particular use, and to take all necessary steps to confirm to all Federal, State or Local Government Safety Standards and including OSHA.

BUYER IS RESPONSIBLE FOR SCHEDULING TRANSPORTATION OF THIS MACHINE, AS WELL AS ALL COST TO MOVE IT. IF YOU NEED HELP WITH SCHEDULING, PLEASE CONTACT US AND WE WILL ASSIST YOU. WE SHIP GLOBALLY.

No detailed specifications listed for this machine yet — call us for full specs.

Make	Takisawa
