*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | TAKISAWA |
| Model: | EX308 |
| Machine Type: | CNC Turning Center / CNC Lathe |
| Control: | Fanuc Series 21i-TB CNC Control |
| Features: |
|---|
| Fanuc Series 21i-TB CNC Control |
| 8″ 3-Jaw Hydraulic Power Chuck |

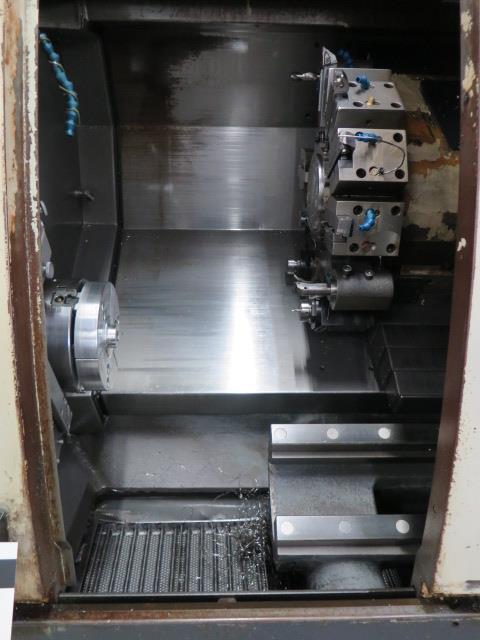

| 12-Station Servo Turret |
| Driven Tooling / Live Tooling |
| Hydraulic Tailstock with Programmable Quill |
| Tool Presetter |
| Chip Conveyor |
| Coolant System |
| Built-In Spindle Motor |
| Full C-Axis |
| Linear Guideways |
| Automatic Lubrication System |
| Parts Catcher |
| Capacity: |
|---|
| Swing Over Bed: 17.7″ |
| Maximum Turning Diameter: 10.2″ |
| Maximum Turning Length: 20.9″ |
| Distance Between Centers: 25.4″ |
| Bar Capacity: 2.05″ |
| Chuck Size: 8″ |
| Travels: |
|---|
| X-Axis Travel: 7.1″ |
| Z-Axis Travel: 20.9″ |
| X-Axis Rapid Traverse: 787 IPM |
| Z-Axis Rapid Traverse: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 2.48″ |
| Spindle Speed: Up to 4,000 RPM |
| Spindle Motor: 20 HP Class |
| Spindle Motor Type: Built-In / Oil-Cooled |
| Turret: |
|---|
| Turret Type: Servo Turret |
| Turret Capacity: 12 Stations |
| Driven Tool Stations: 12 |
| Driven Tool Speed: Up to 4,000 RPM |
| Driven Tool Motor: 1.1 / 3.7 kW |
| Tailstock: |
|---|
| Tailstock: Hydraulic |
| Tailstock Travel: 17.13″ |
| Quill Travel: 3.94″ |
| General: |
|---|
| Machine Weight (Approx.): 9,480 lbs |
| Machine Dimensions (Approx.): 93″ L × 69″ W × 77.5″ H |
