*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

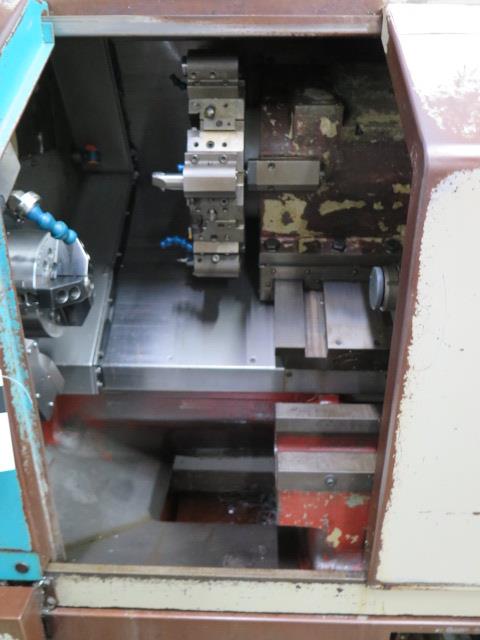

| Make: | TAKISAWA |
| Model: | TC-20 |
| Machine Type: | CNC Turning Center / CNC Lathe |
| Control: | Fanuc Series 21-T CNC Control |
| Equipped With: |
|---|
| Fanuc Series 21-T CNC Control |
| 7″ 3-Jaw Hydraulic Power Chuck |
| 12-Station Automatic Turret |
| Hydraulic Tailstock |
| Tool Presetter |
| Coolant System |
| Chip Conveyor |
| Automatic Lubrication System |
| Capacity: |
|---|
| Swing Over Bed: 16.5″ |
| Maximum Turning Diameter: 9.8″ |
| Maximum Turning Length: 12.1″ |
| Chuck Size: 7″ |
| Bar Capacity: 2.0″ |
| Travels: |
|---|
| X-Axis Travel: 5.5″ |
| Z-Axis Travel: 14.6″ |
| X-Axis Rapid Traverse: 790 IPM |
| Z-Axis Rapid Traverse: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.5″ |
| Maximum Spindle Speed: 2,500 RPM |
| Spindle Motor: 15 HP |
| Turret: |
|---|
| Turret Type: Automatic Turret |
| Turret Capacity: 12 Stations |
| Tool Stations: 12 |
| Tailstock: |
|---|
| Tailstock: Hydraulic |
| Tailstock Travel: 6.9″ |
| General: |
|---|
| Machine Weight (Approx.): 7,000 lbs |
| Machine Dimensions (Approx.): 81″ L × 49″ W × 83″ H |
