All specifications are approximations and are subject to verification.
-

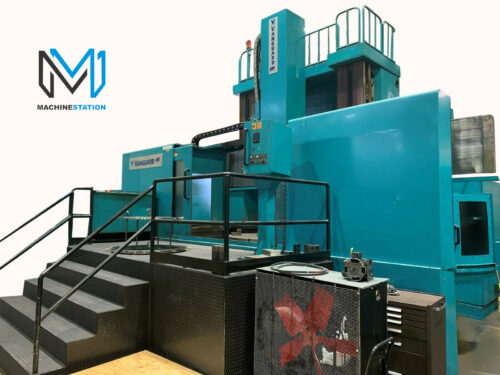

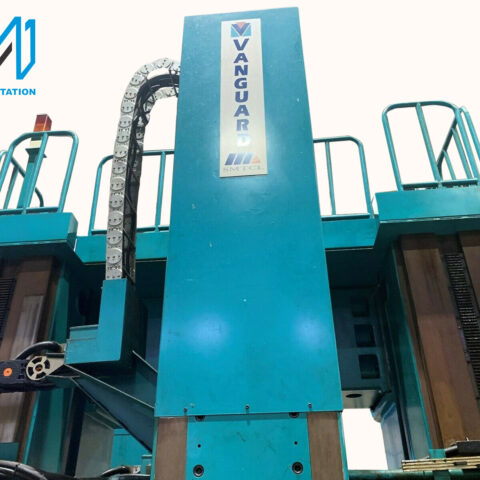

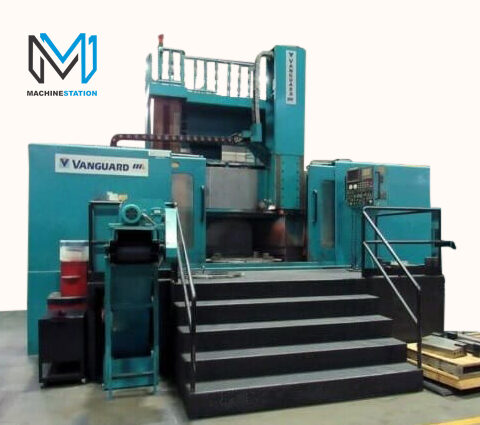

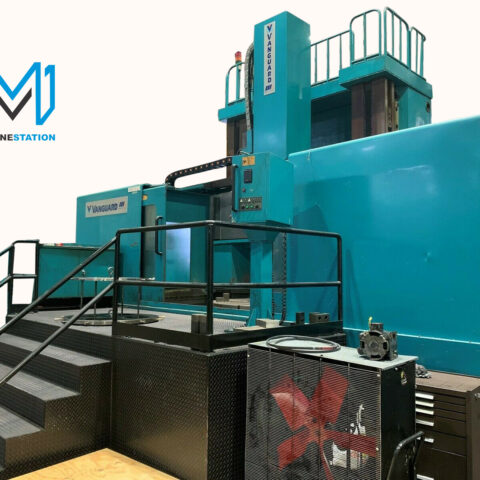

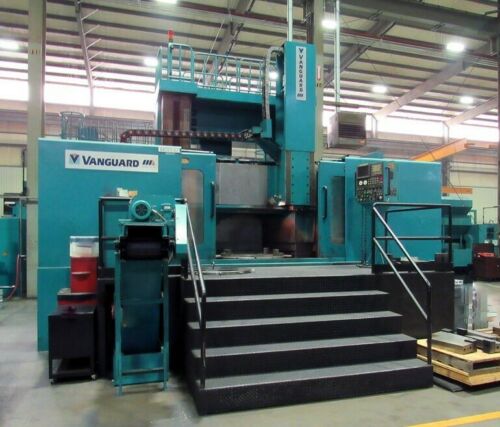

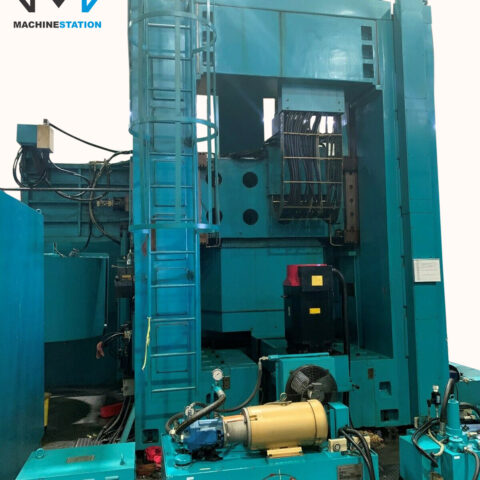

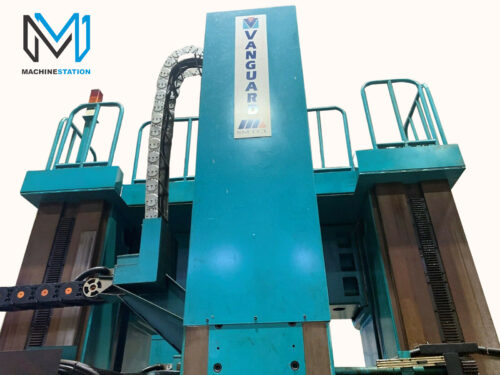

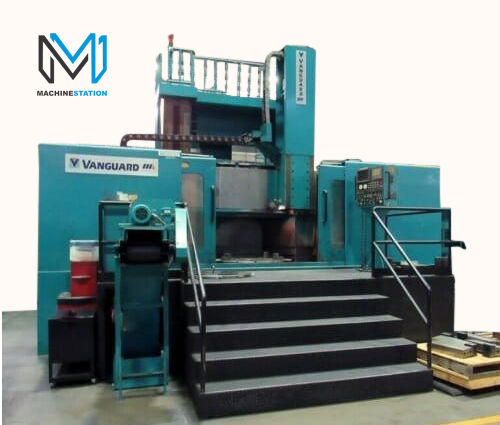

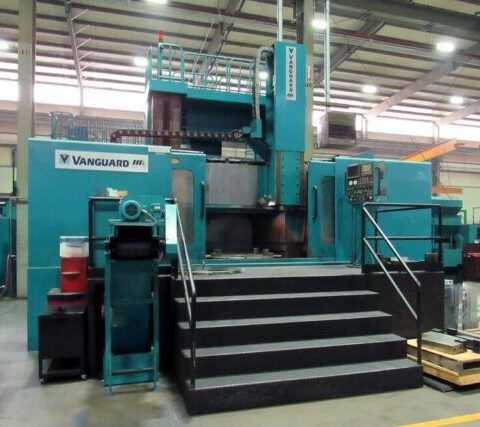

VANGUARD 78″ Equipped With:

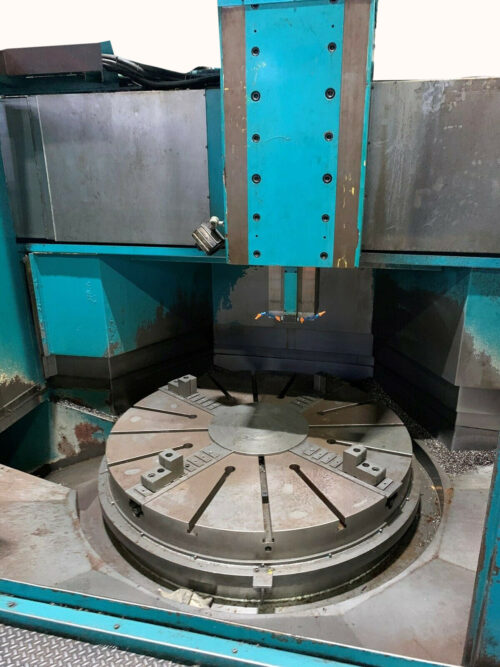

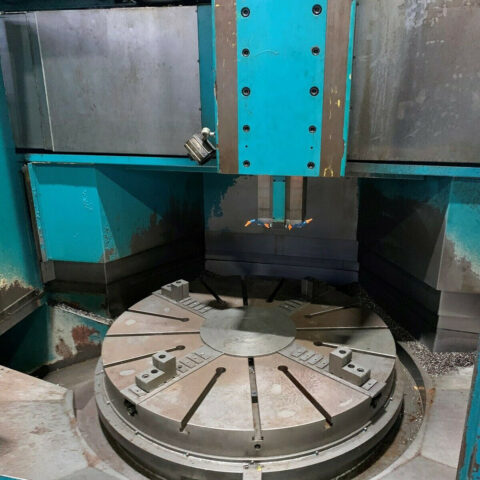

- 63″ 4 jaw Chuck

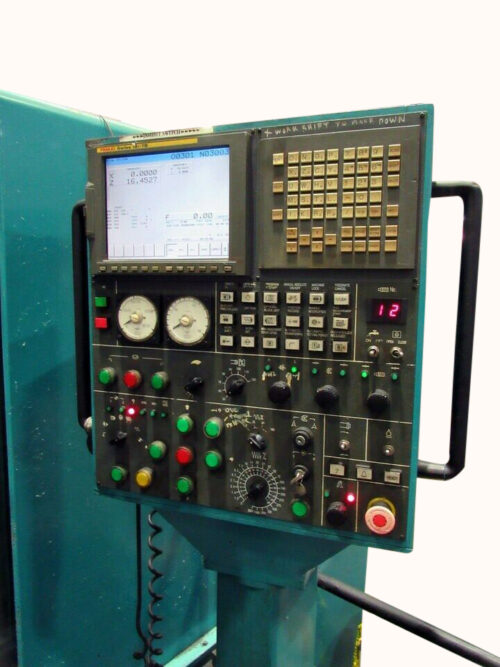

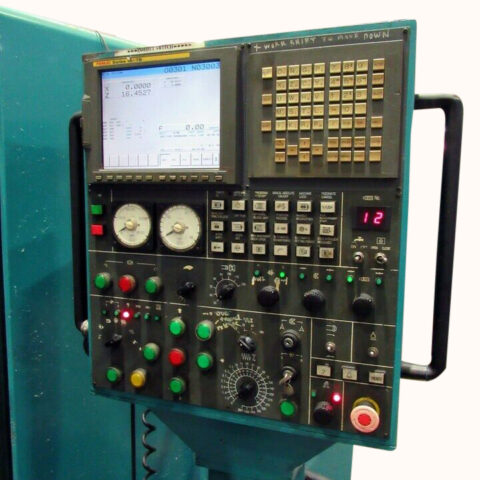

- Fanuc 0i-TB CNC Control
- PCMCIa Card Slot
- 16 Tool Automatic tool changer
- 75 Hp Spindle Motor

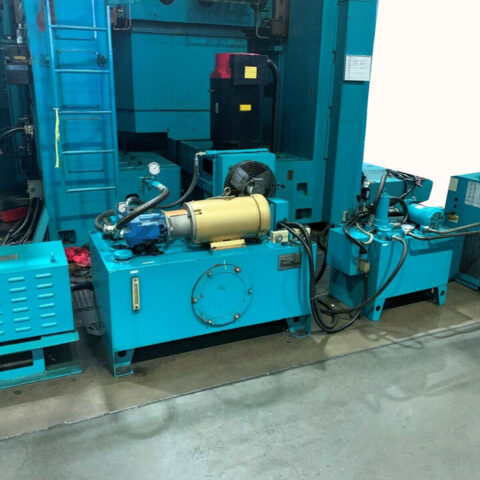

- Coolant System
- Spindle chiller
- Chip conveyor
- Front Operator Platform
- Books and Manuals
-
VANGUARD 78″ Specifications:
- Max Turning Diameter: 78.74″
- Max Turning Height: 62.99″
- Table Load Capacity: 17,600 lbs
-
Travel:
- X Axis Travel: -5.9 to +80.7″
- Z Axis Travel: 35.43″
- Cross Rail Travel: 9.84″
- Rapid feed rate: 315 IPM
- Cutting Feedrate: 196 IPM
- Ram cross Section: 8.66″ Square
- Tool Shank Size: 1.25″
- 16 Tools ATC
-
General:
- Dimensions: 283″ x 216″ x 198″ High
- Weight : 115,000 lbs Approx.
