*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us with any questions before purchasing. All sales are final.*

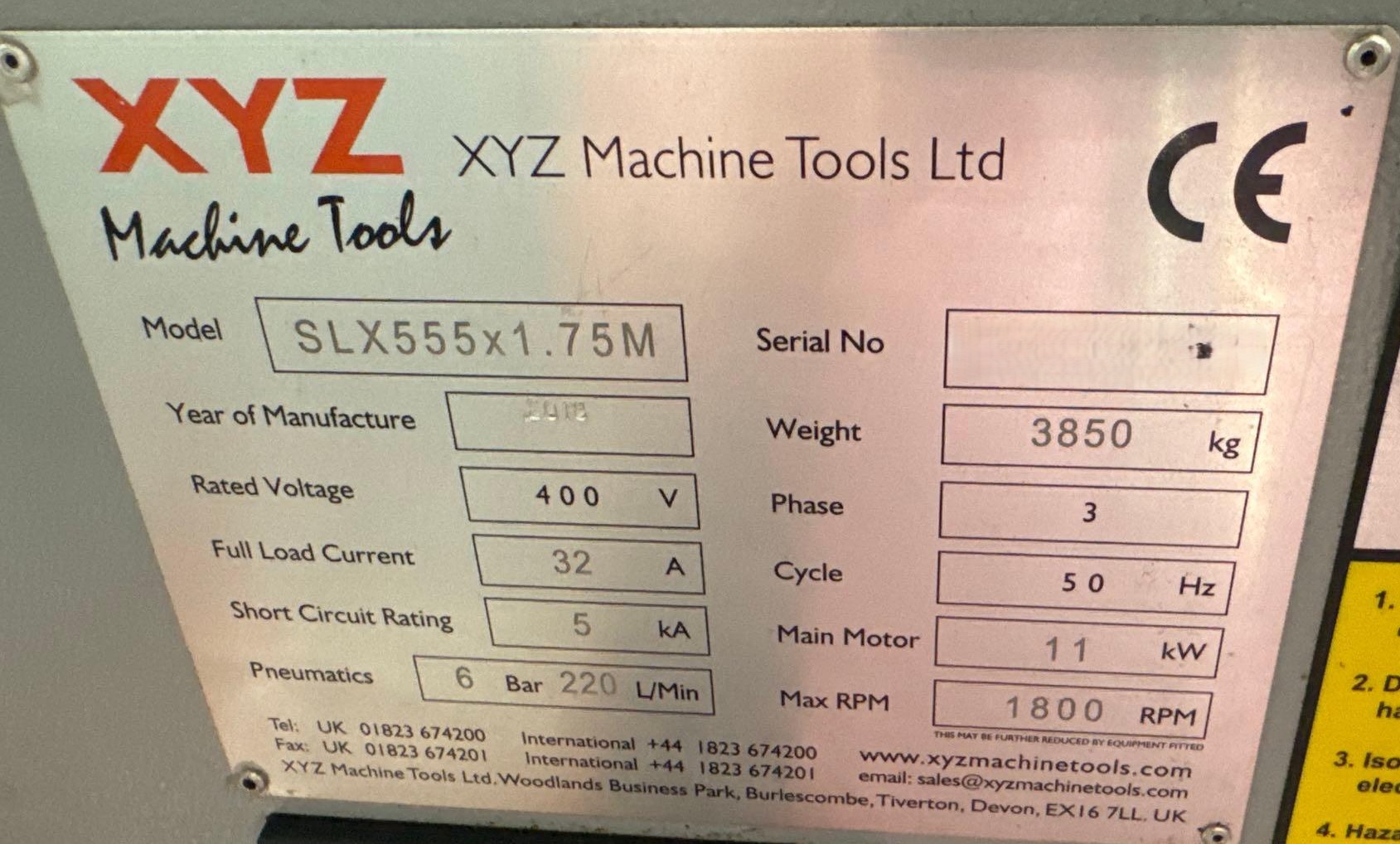

| Make: | XYZ |
| Model: | SLX 555 × 1.75M |
| Year: | 2018 |
| Machine Type: | CNC / Manual Gap-Bed Lathe |
| CNC Control: | ProtoTRAK SLX |

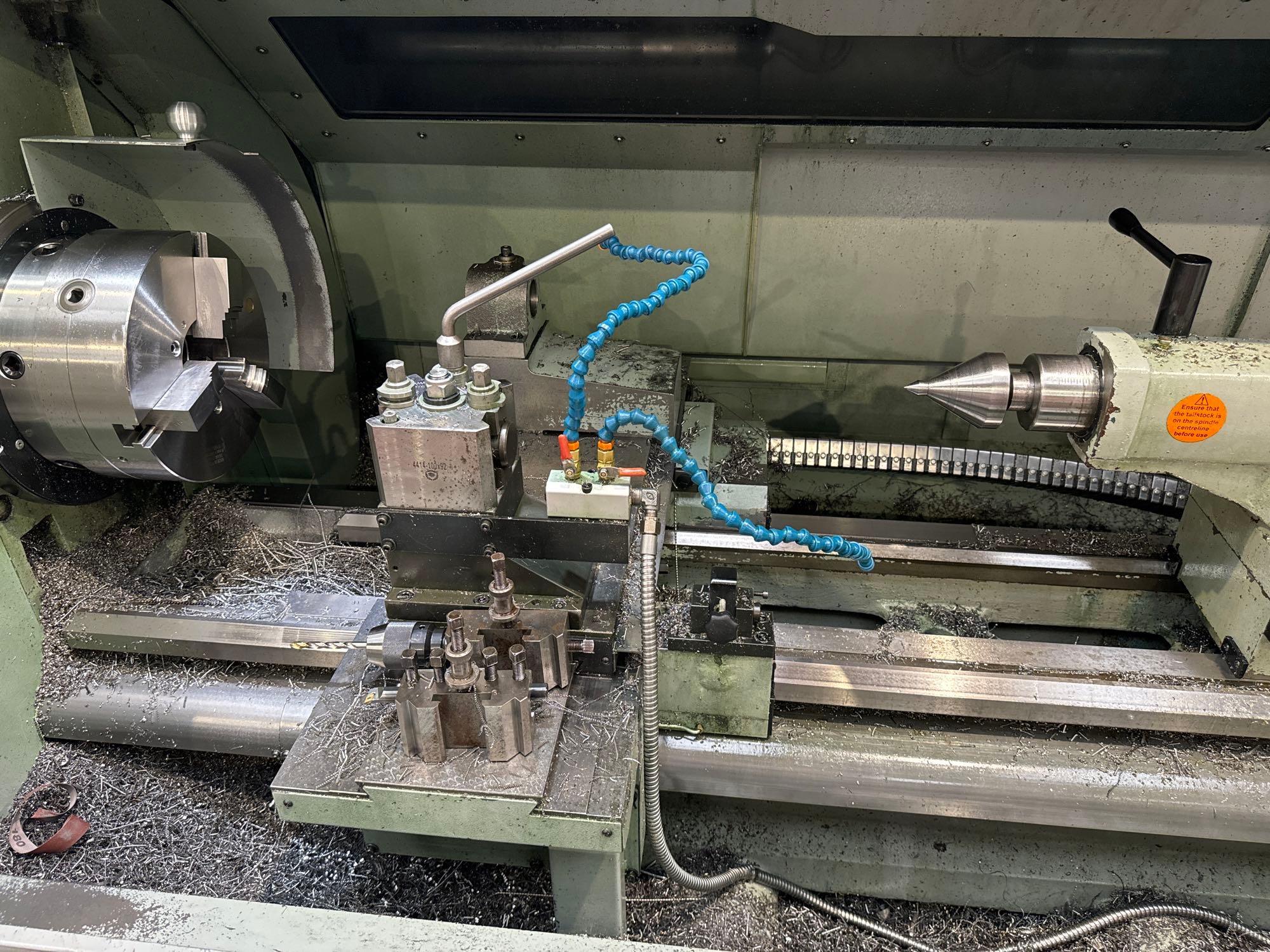

| Equipped With: |
|---|
| ProtoTRAK SLX CNC Control |
| CNC / Manual Operation |
| 3-Jaw Chuck |
| Quick-Change Toolpost with Toolholders |
| Tailstock with Air Assist |
| Interlocked Chuck Guard and Main Machine Guard |
| Flood Coolant System |
| Work Light |
| Automatic Lubrication |
| Constant Surface Speed |
| TRAKing® Conversational CNC Functionality |
| 2-Range Headstock |
| Rapid Traverse with Joystick |
| Gap-Bed Design |
| Pneumatic System |
| Capacity: |
|---|
| Swing Over Bed: 22.05″ |
| Swing in Gap: 30.71″ |
| Swing Over Cross Slide: 13.78″ |
| Distance Between Centers: 68.90″ |
| Maximum Cutting Length: 64.96″ |
| Gap in Front of Faceplate: 6.02″ |
| Cross Slide Travel: 11.02″ |
| Chuck Size: 12.40″ |
| Spindle: |
|---|
| Spindle Motor: 15 HP |
| Spindle Speed: 30–1,800 RPM |
| Spindle Range: 2 Ranges |
| Spindle Bore: 4.09″ |
| Spindle Nose: D1-11 Camlock |
| Spindle Taper: MT7 |
| Maximum Tool Section: 0.98″ × 0.98″ |
| Tailstock: |
|---|
| Tailstock Travel: 6.30″ |
| Tailstock Taper: MT-5 |
| Tailstock Quill Diameter: 3.54″ |
| General: |
|---|
| Power Source: 400v / 3-Phase / 50 Hz |
| Machine Weight (Approx.): 8,488 lbs. |
| Machine Dimensions (Approx.): 132″ L × 63″ W × 77″ H |
