This machine has been tested & is in Good working condition
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112462 |

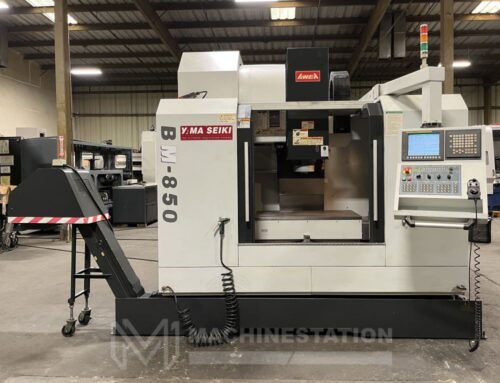

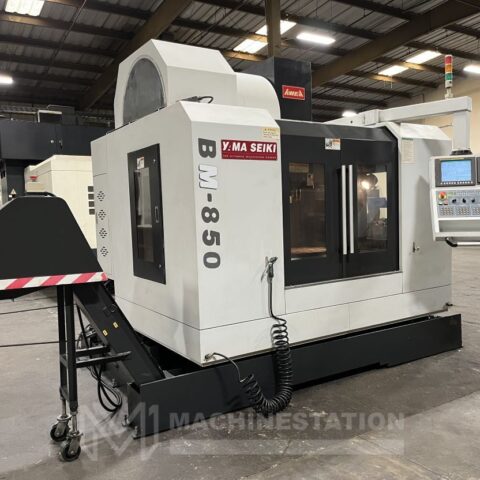

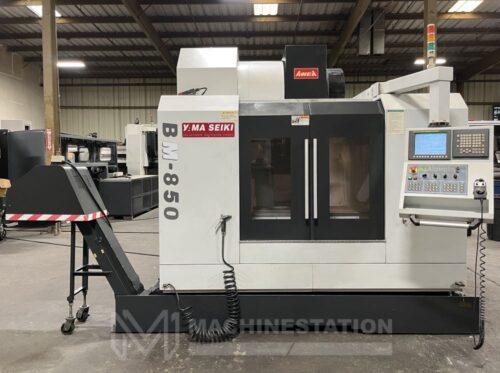

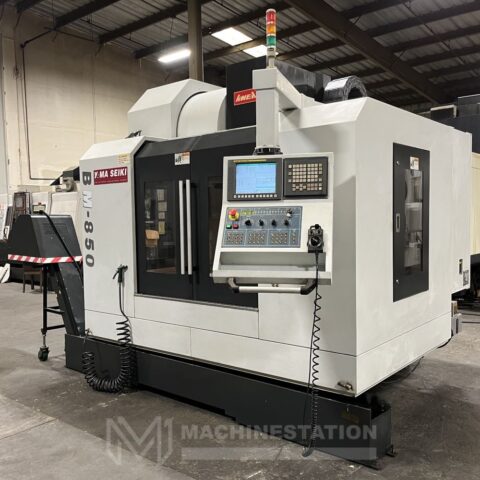

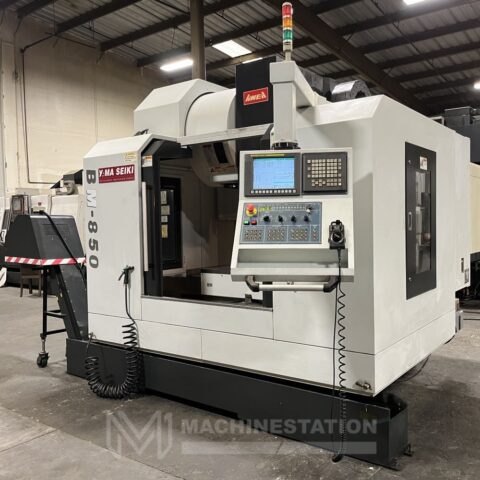

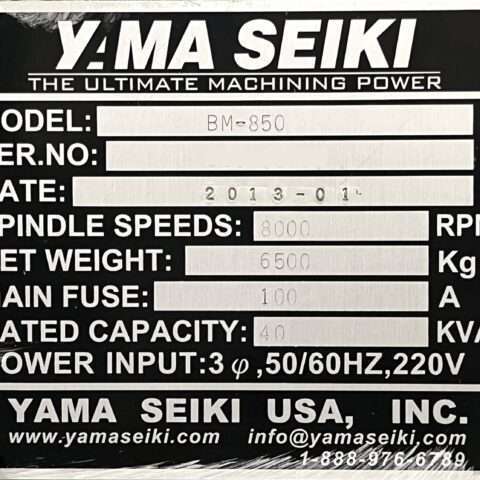

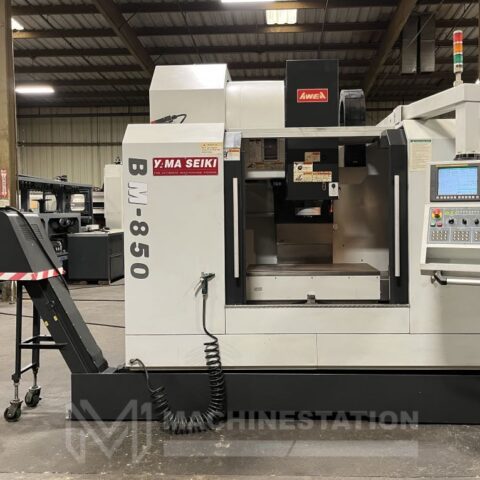

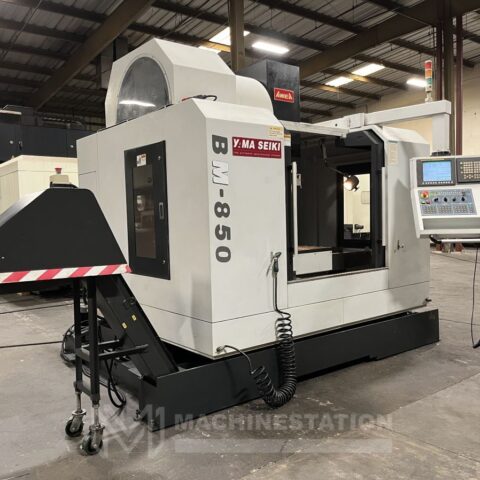

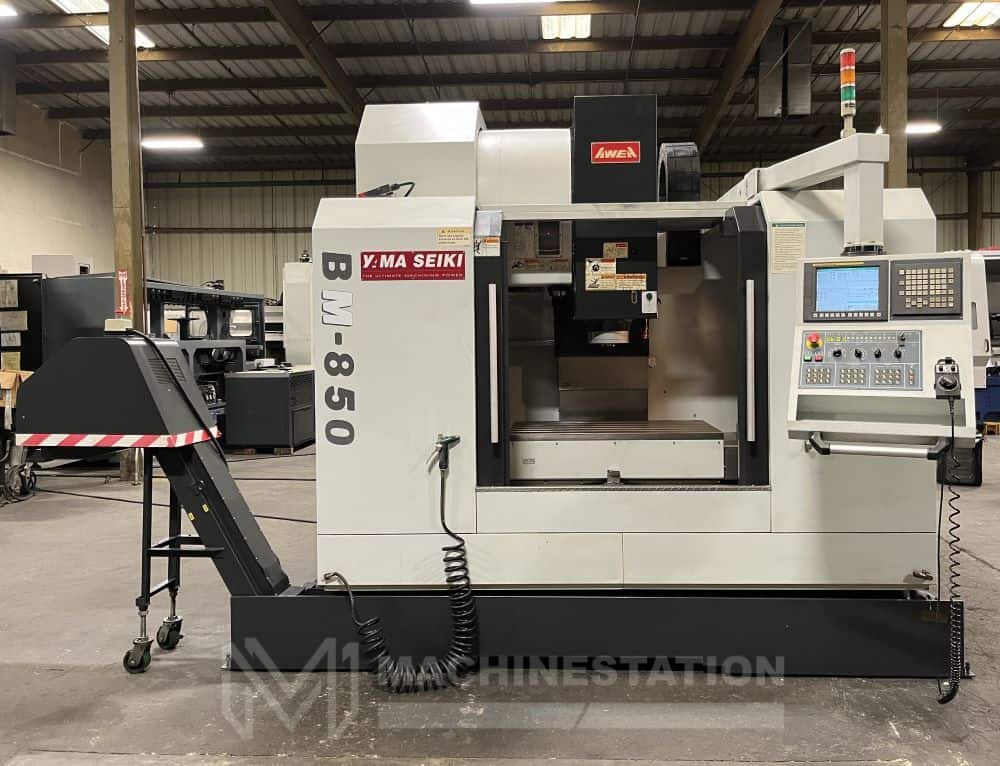

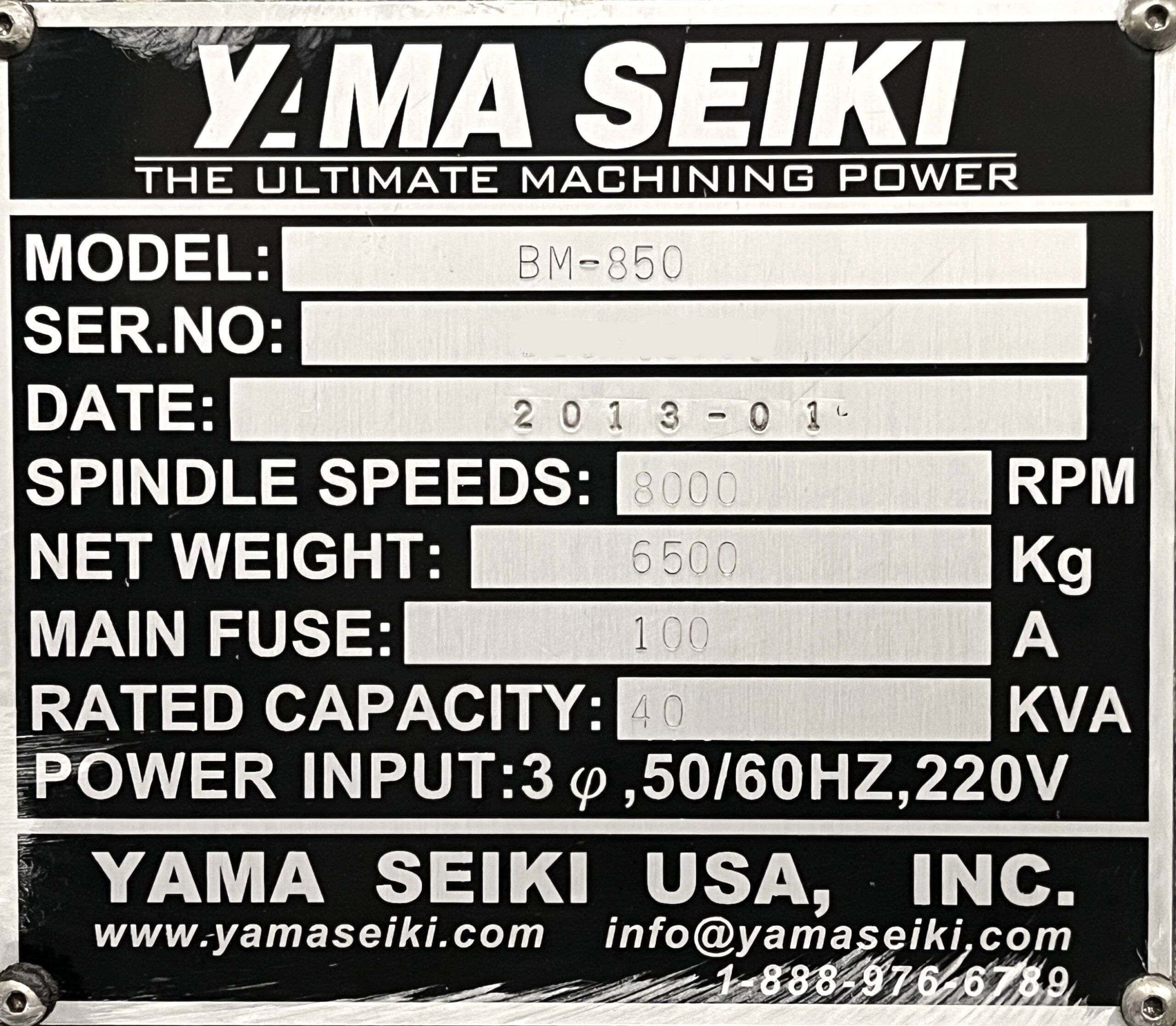

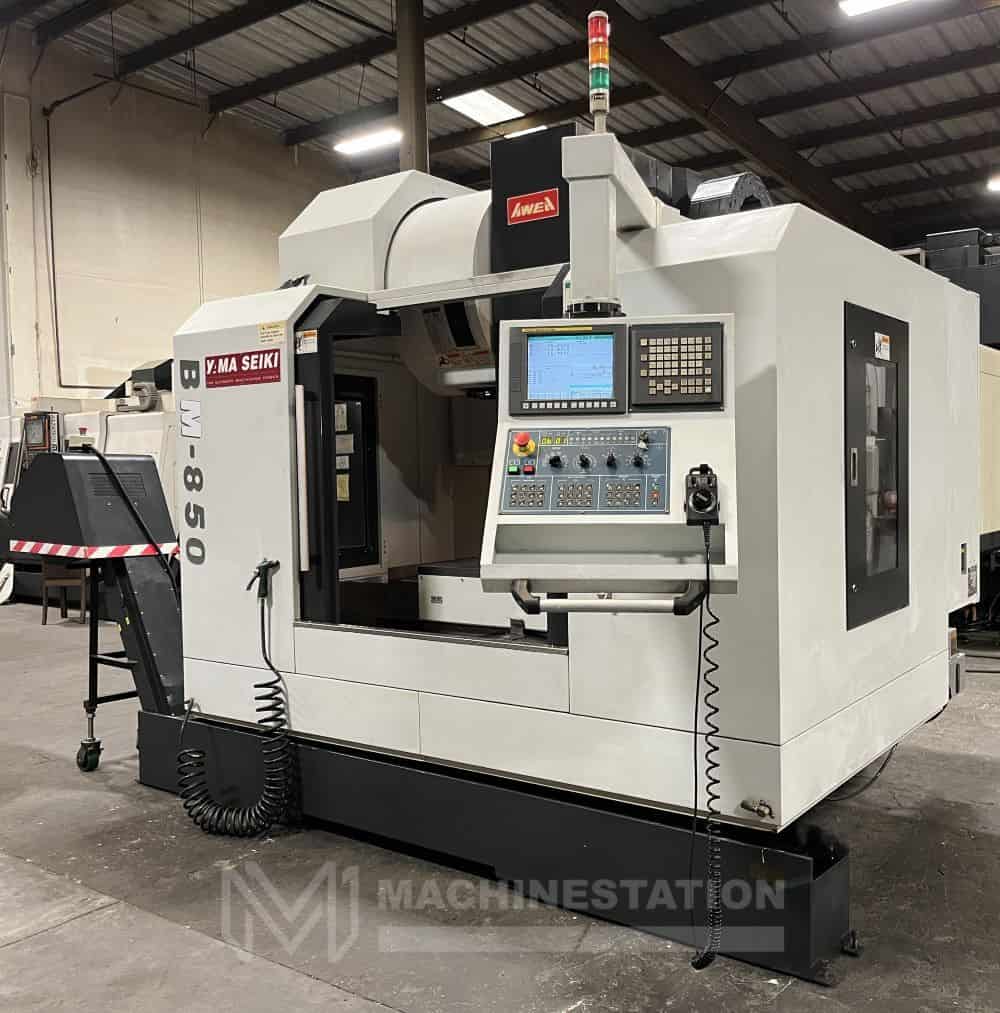

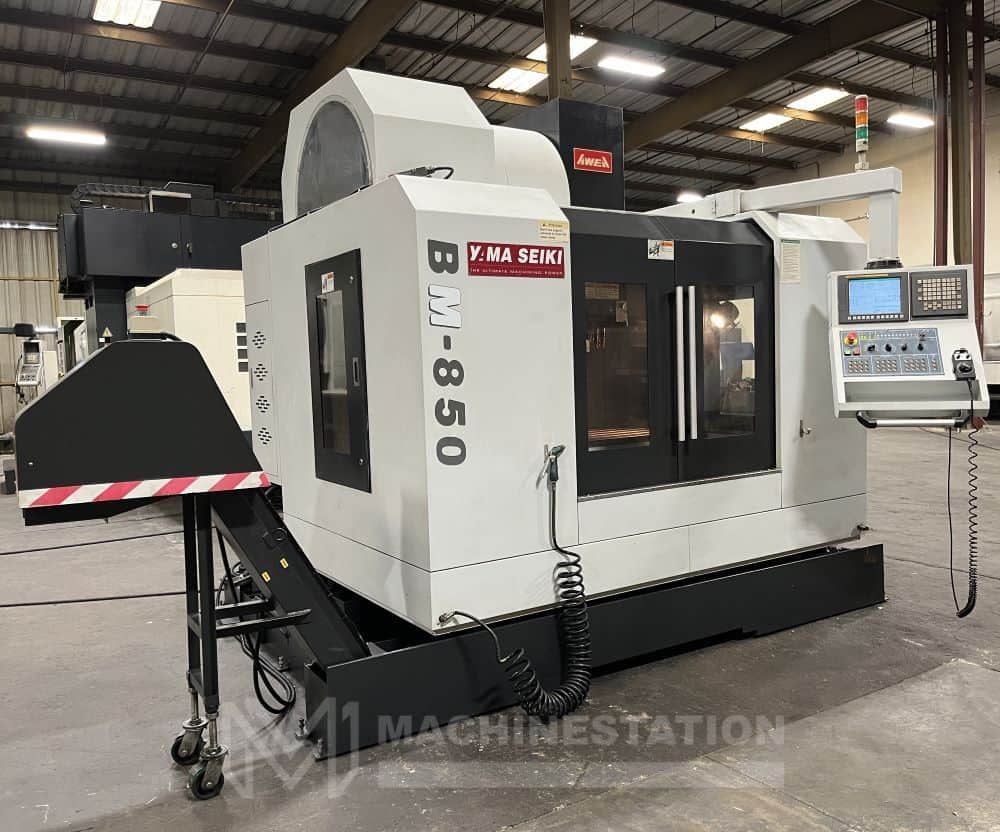

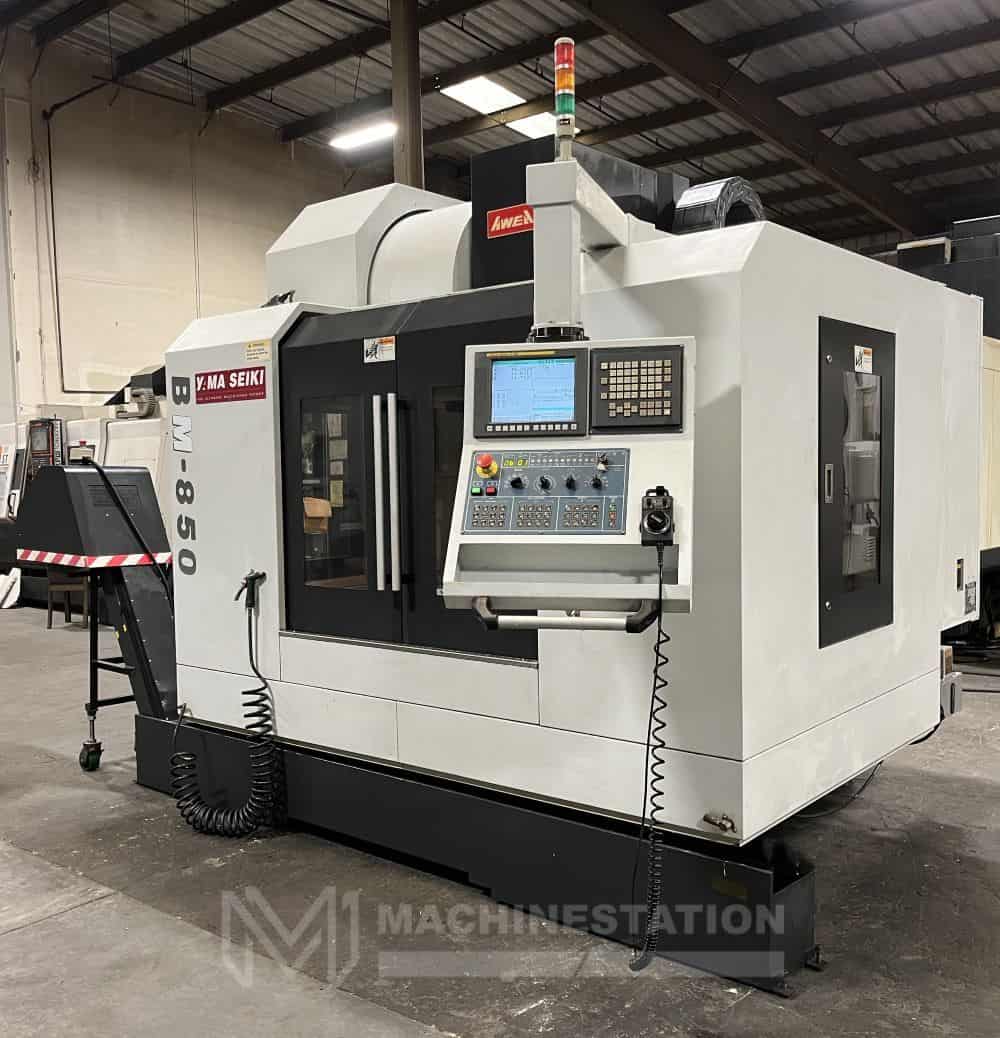

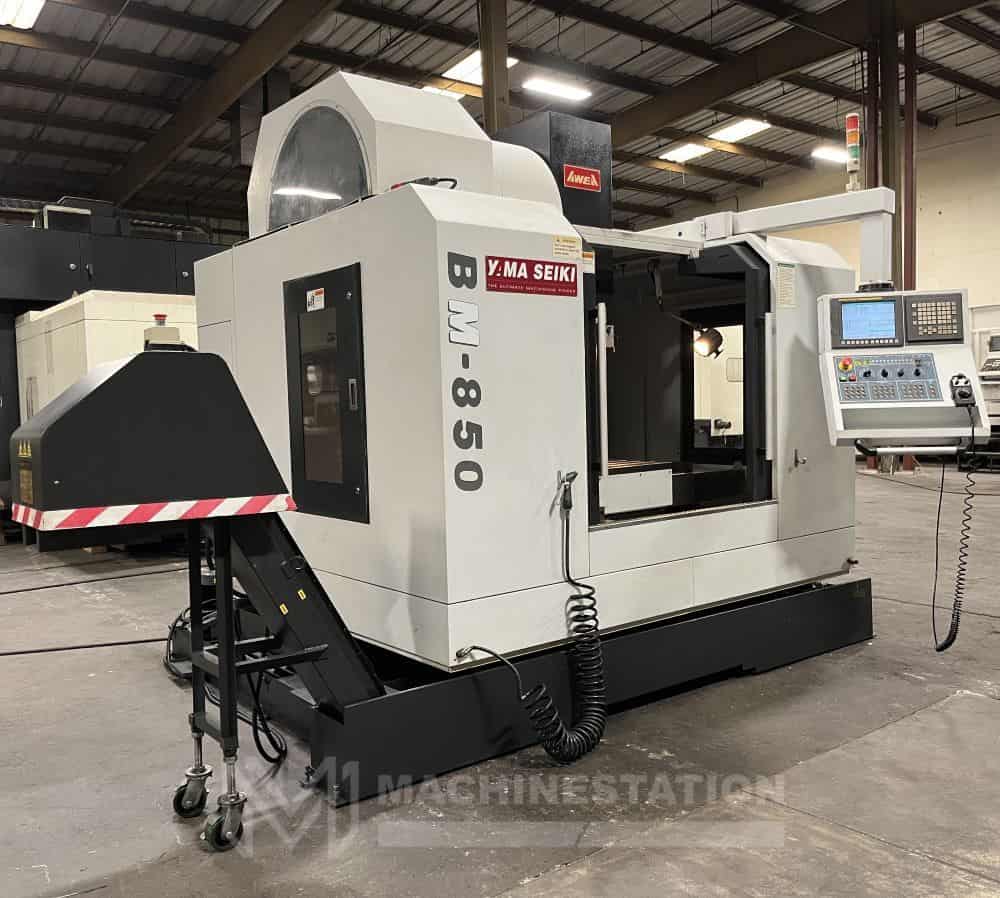

| Make: | Yama Seiki |
| Model No.: | BM850 |
| Year of Manufacture: | 2013 |

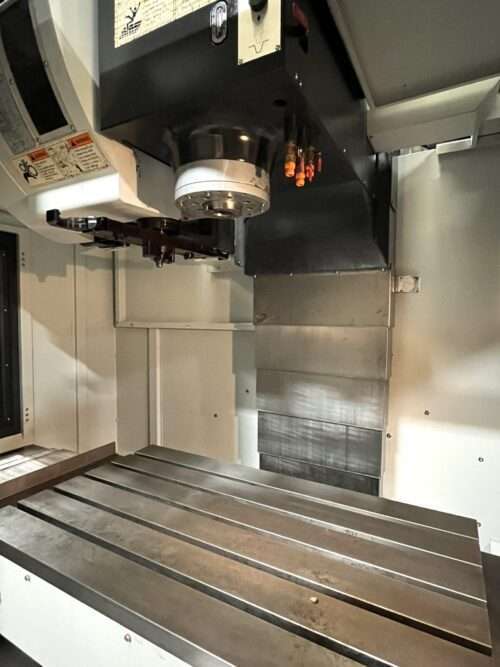

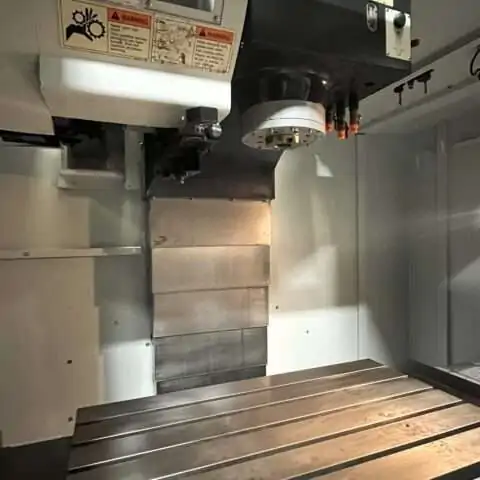

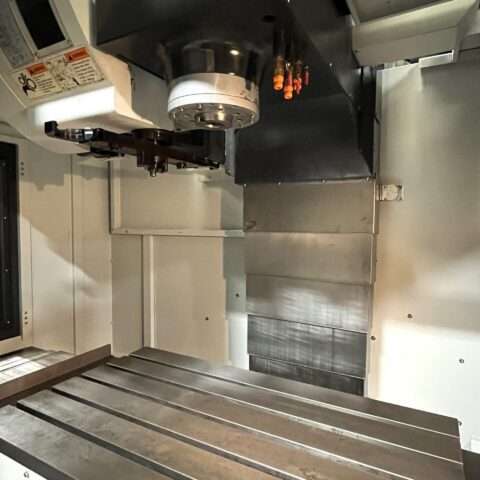

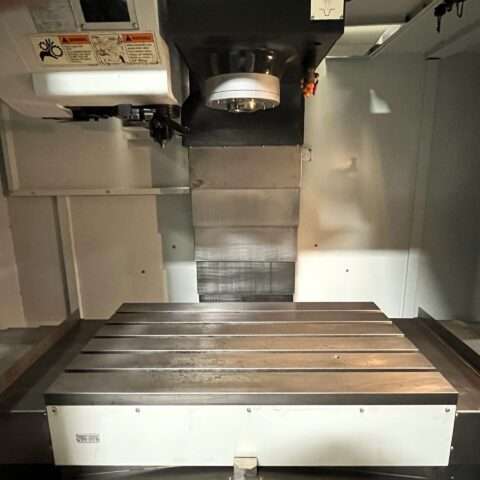

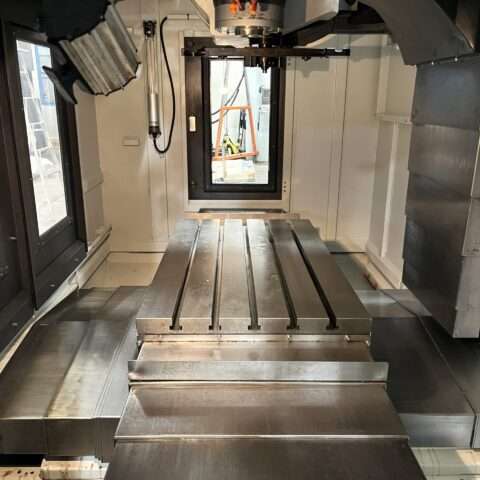

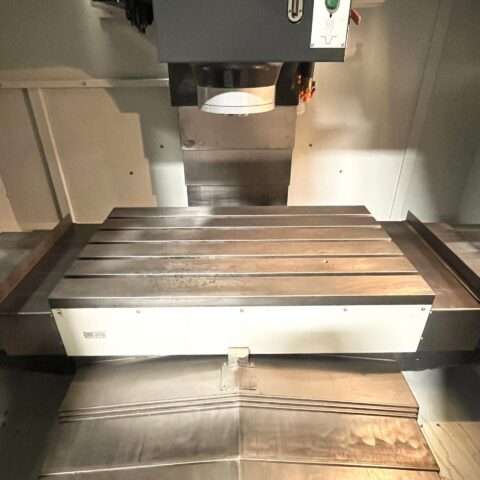

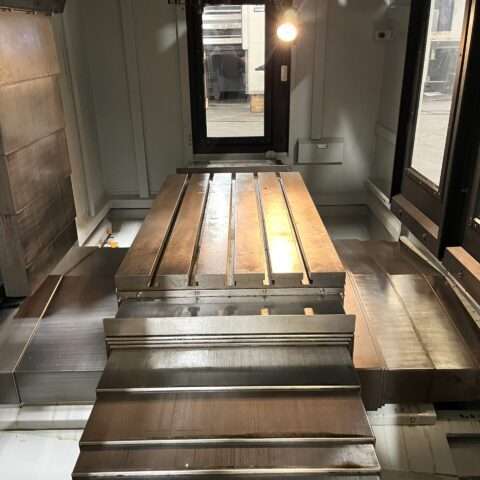

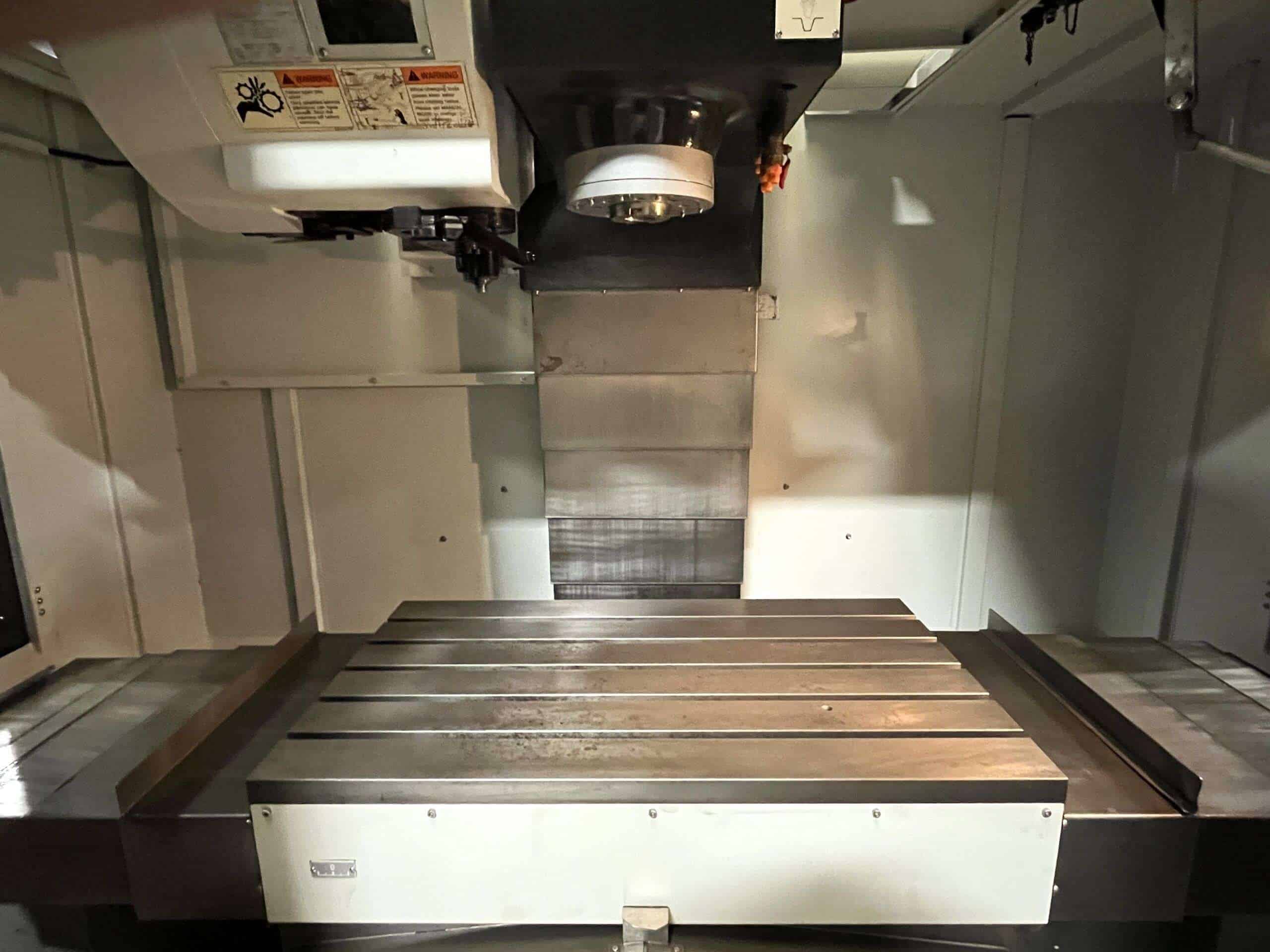

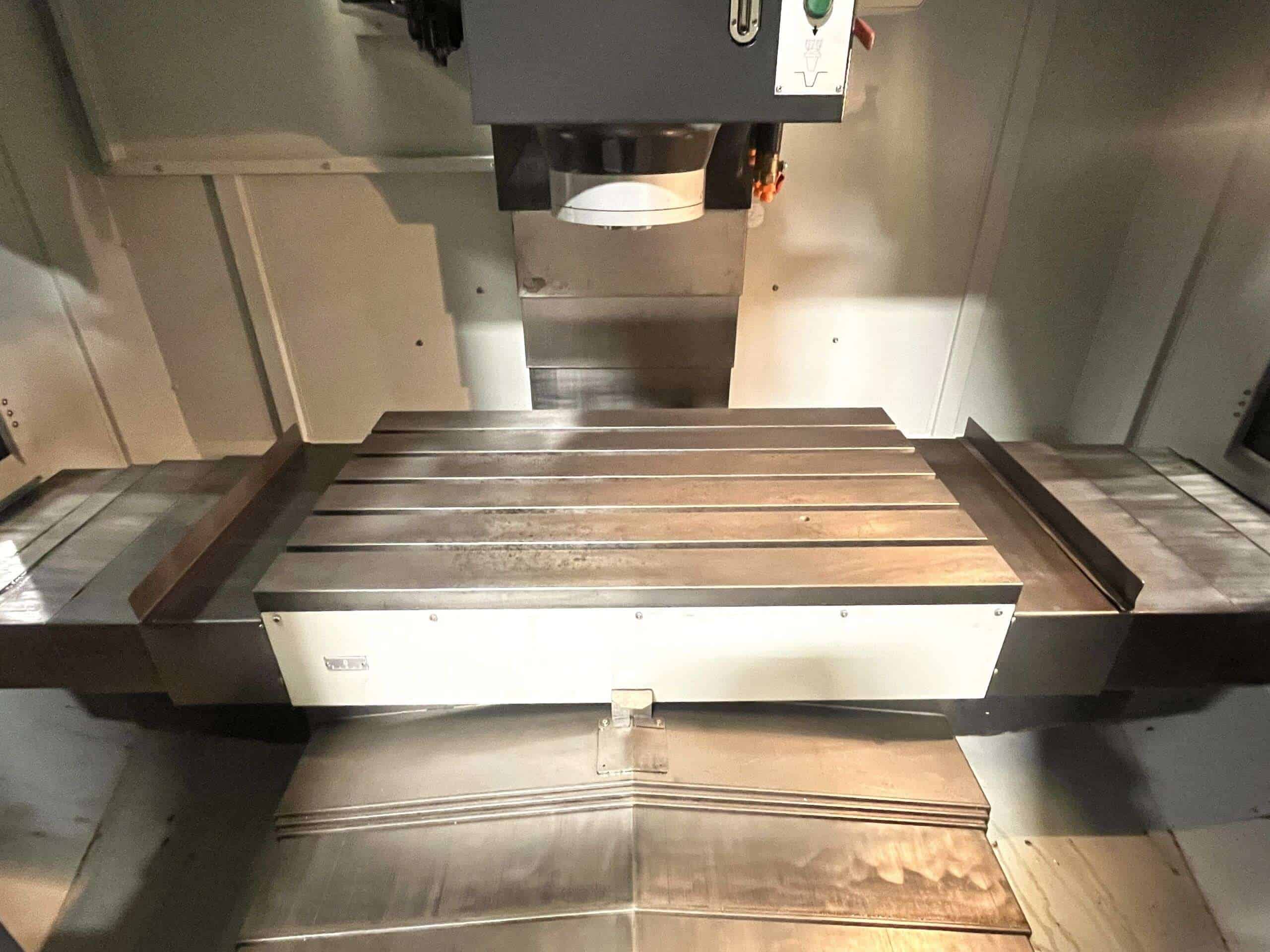

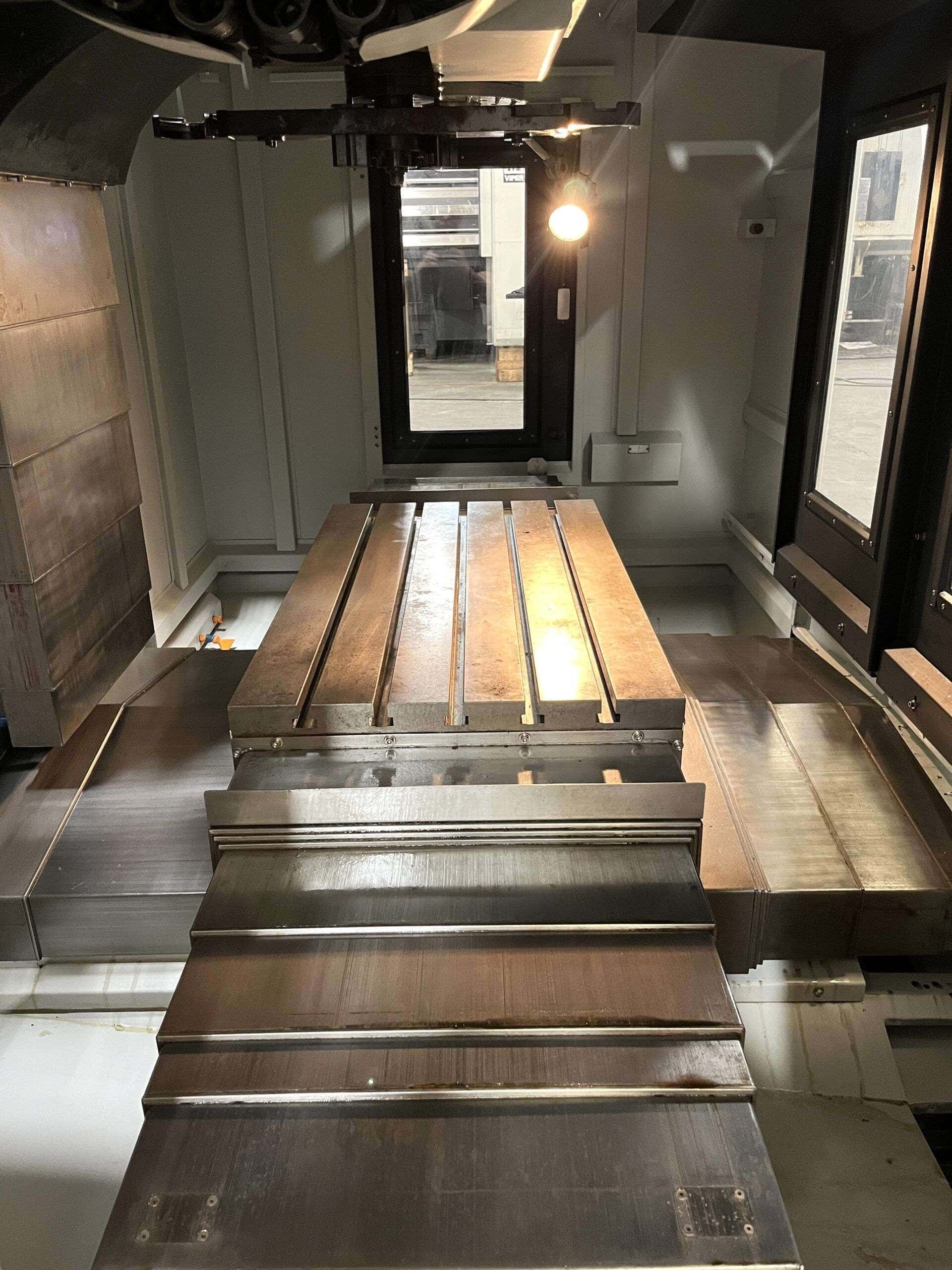

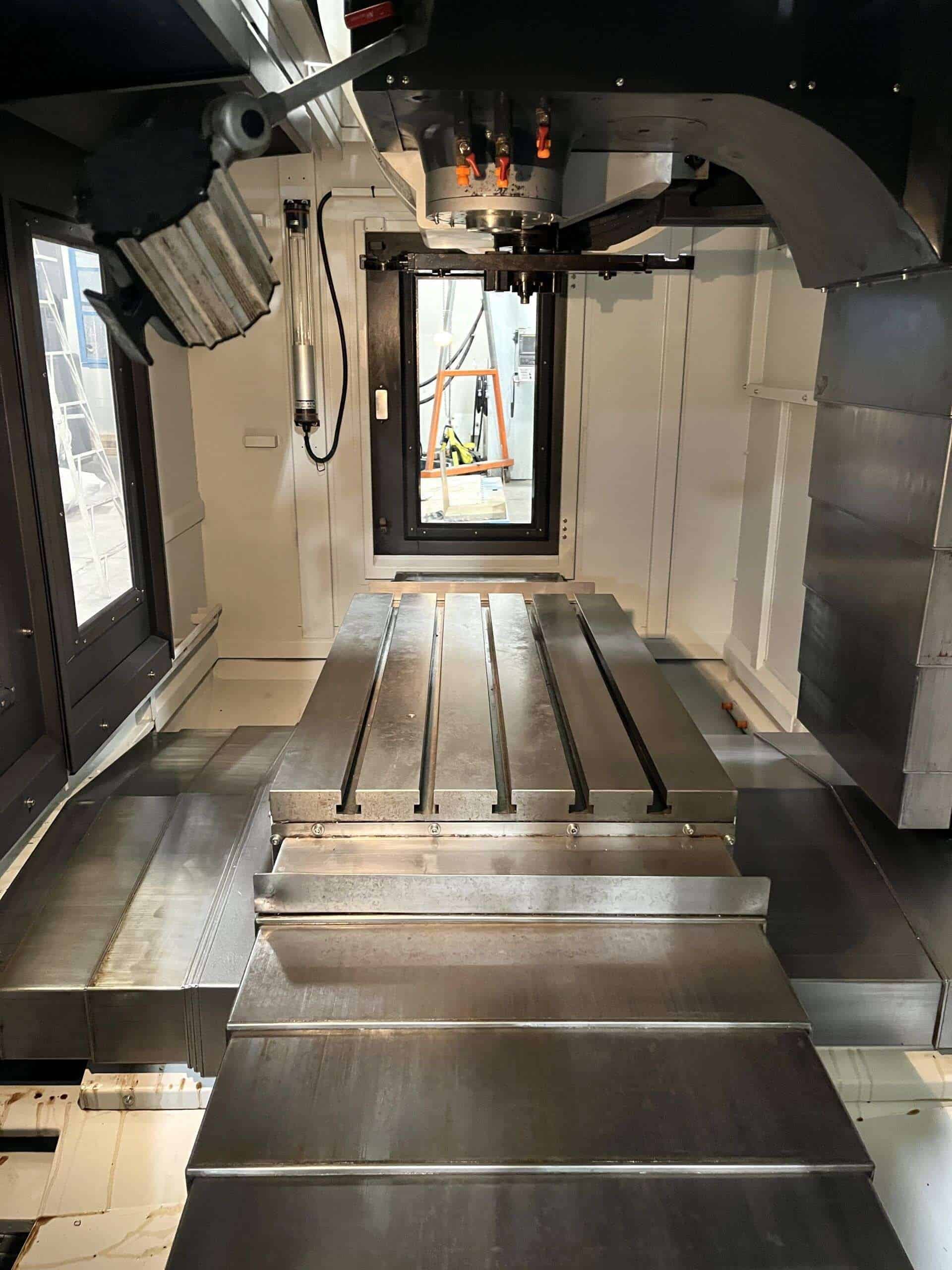

| Table: |
|---|
| Length: 41.3″ |
| Width: 23.6″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1870 lbs |
| Travel: |
|---|
| X-Axis: 33.5″ |
| Y-Axis: 23.6″ |
| Z-Axis: 23.6″ |
| Rapid Traverse Rates: 945 Inch Per Minute |
| Cutting Feed Rates: 393 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4.9″ – 28.5″ |
| Equipped With: |
|---|

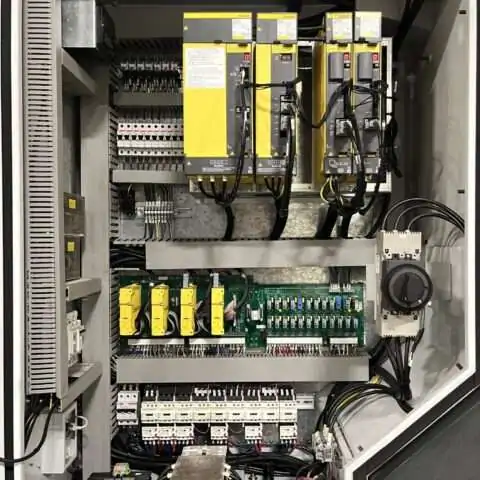

| Fanuc Oi-MD CNC Control |
| 4th Axis Ready |
| Box Way Construction |
| 8,000 RPM Gear Head Spindle |
| 36 Station Automatic Tool Changer |
| PCMCIA Card Slot & USB Port |
| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Orientation |
| Telescopic way covers |

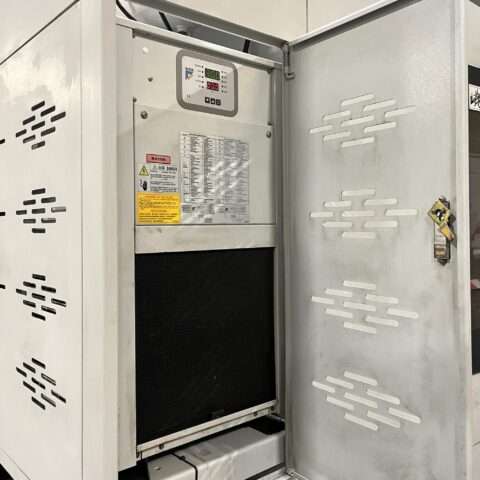

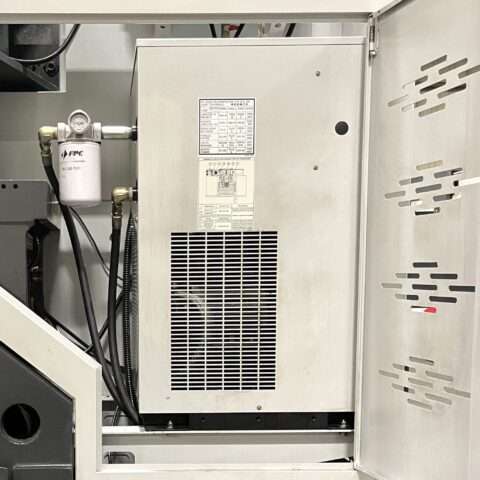

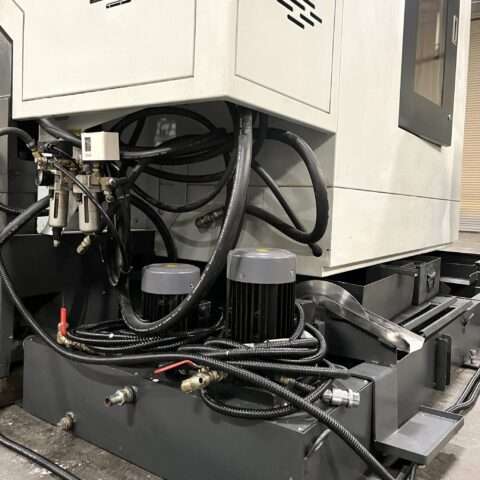

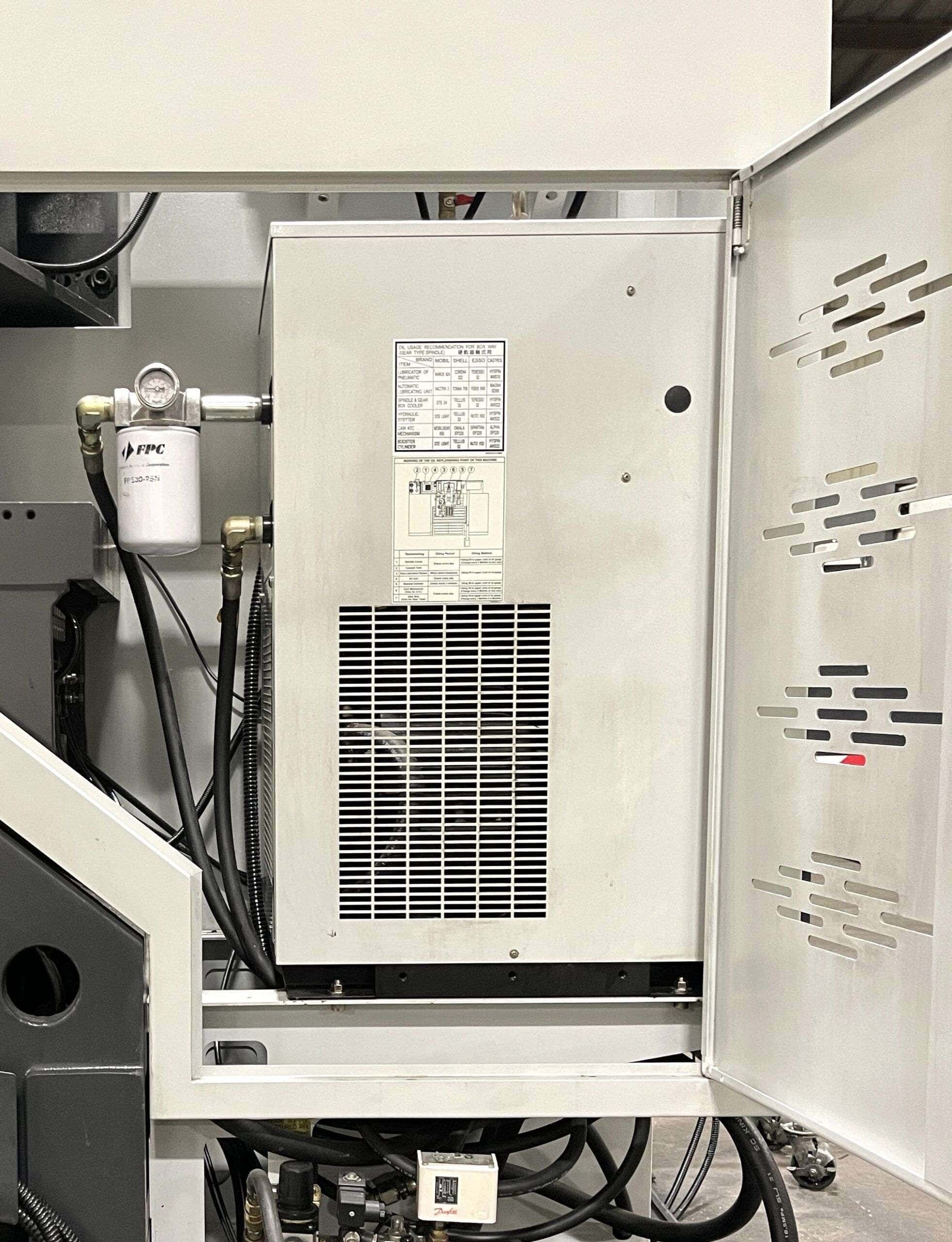

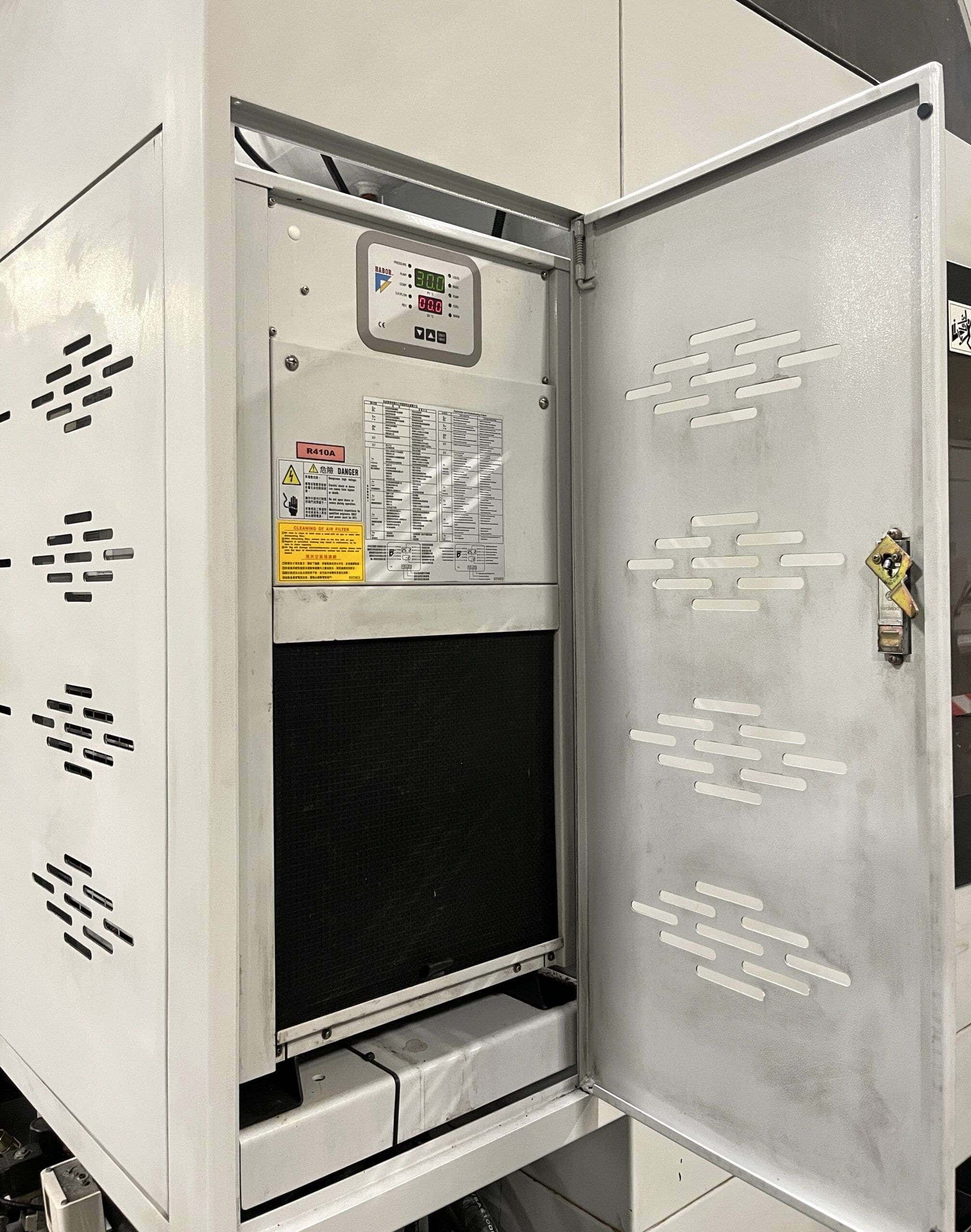

| Spindle Chiller Unit |

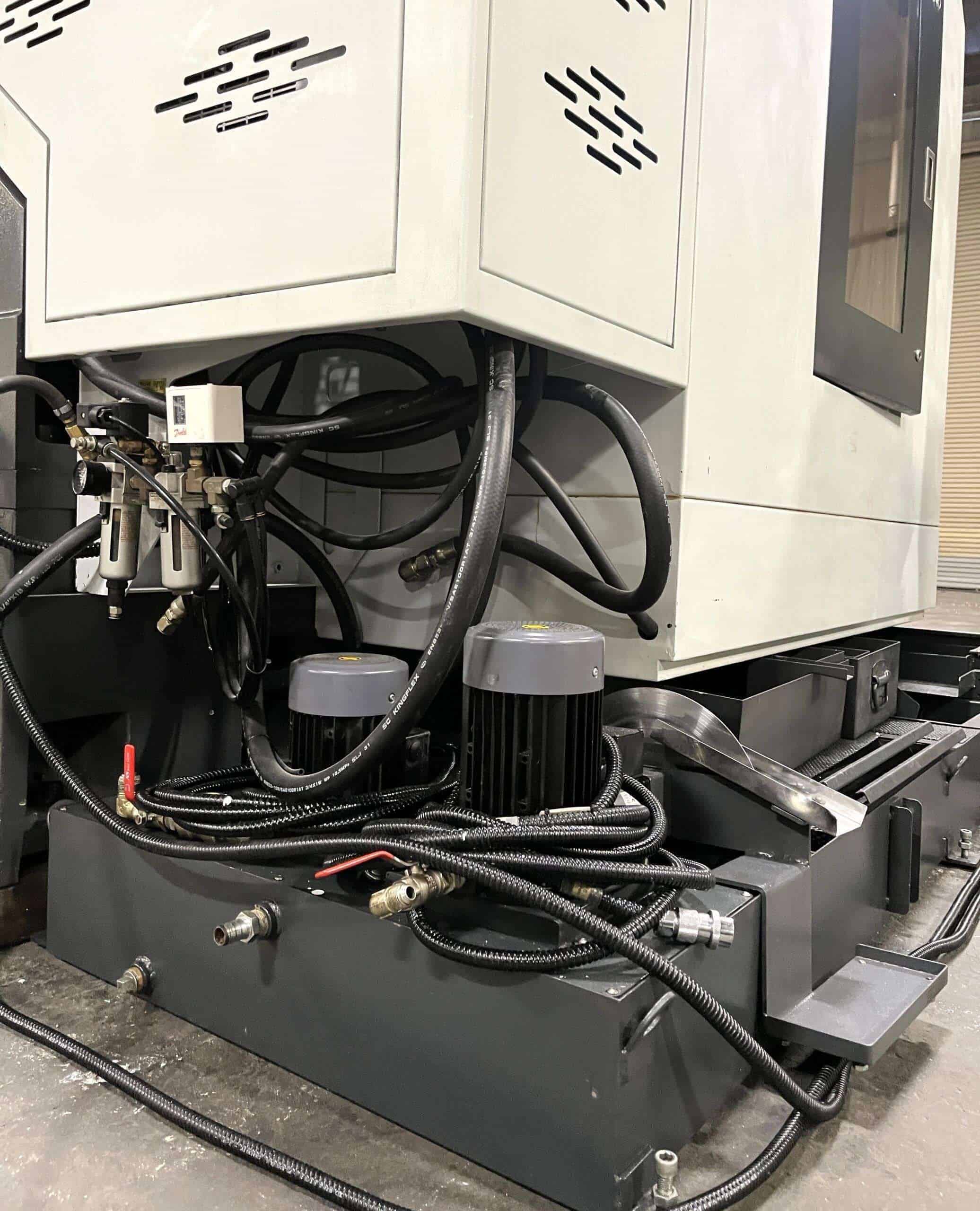

| Flood Coolant system |

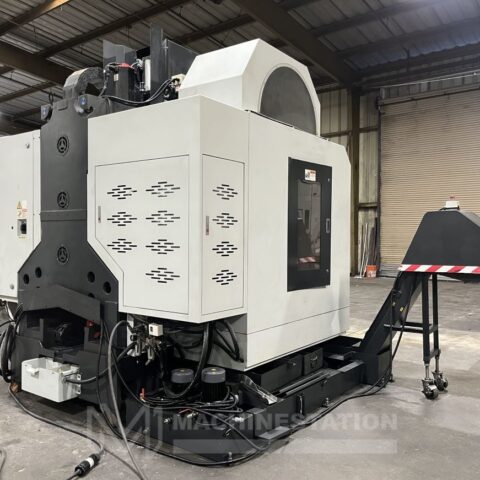

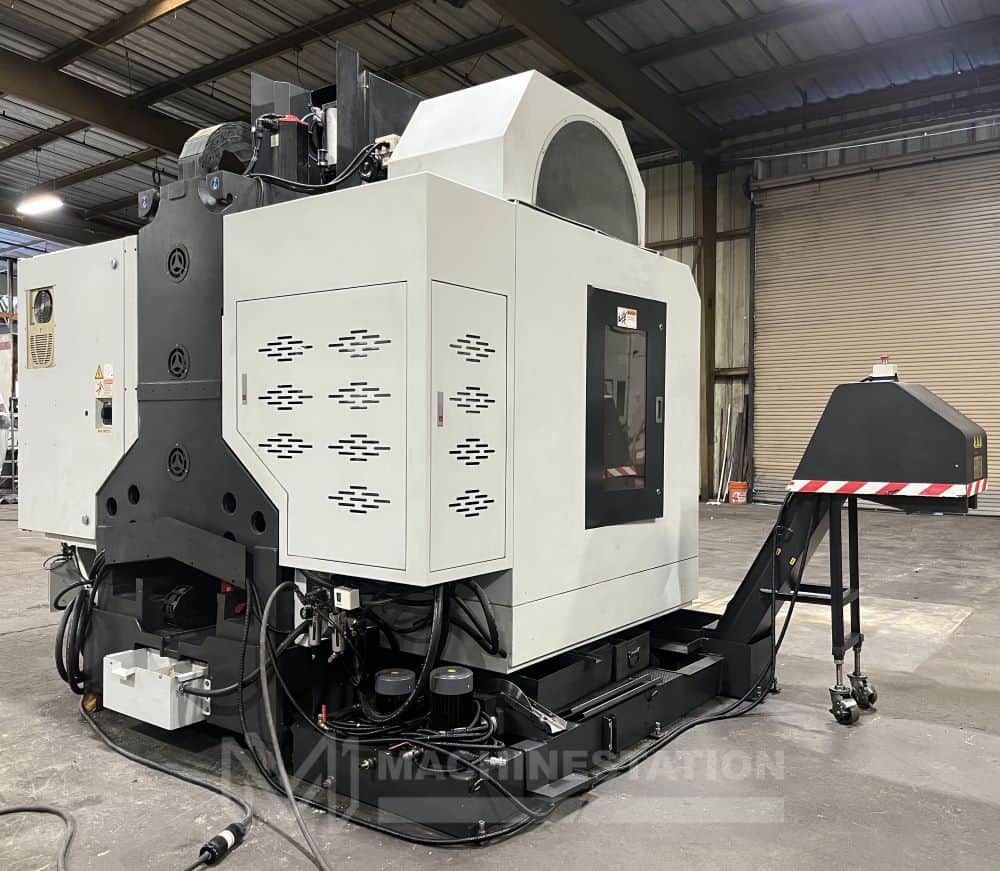

| Chip Conveyor |

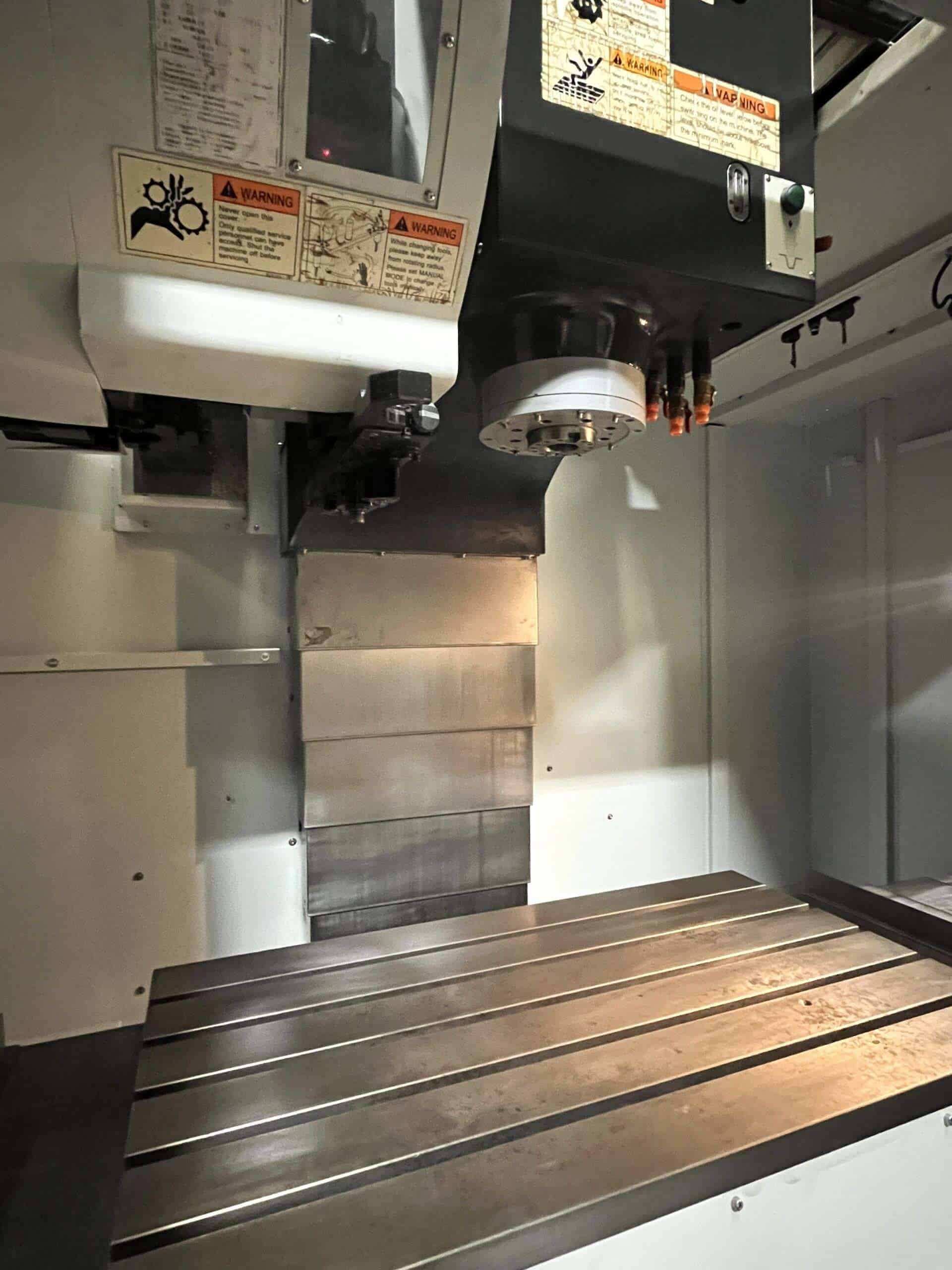

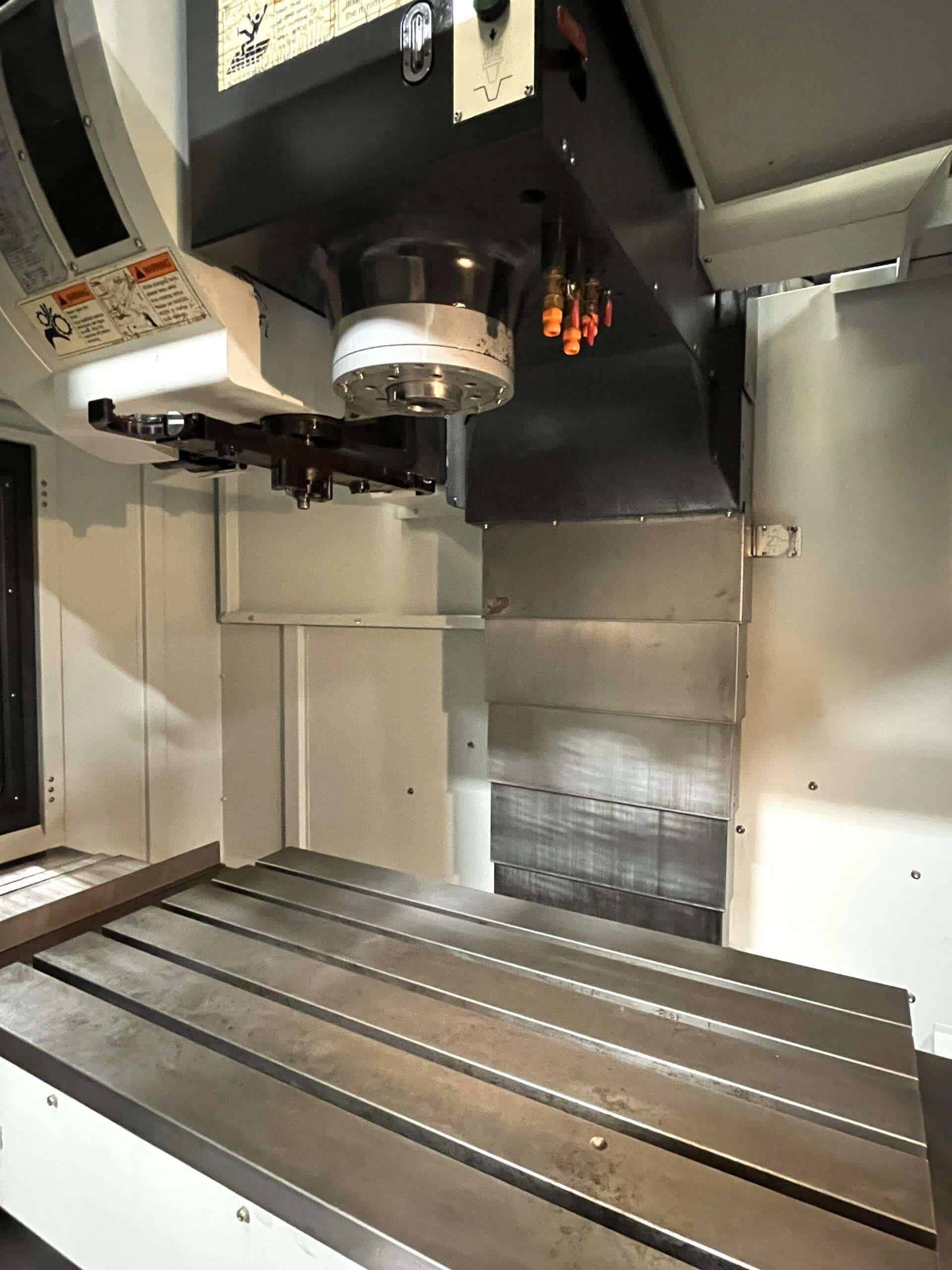

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 0 – 8000 RPM |
| Spindle Type: Gear Head |
| Spindle Power: 20 HP |

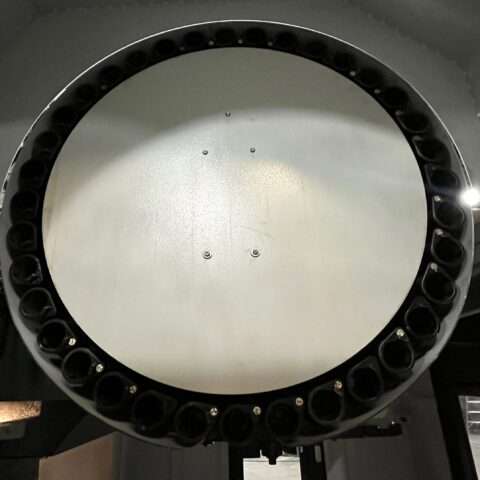

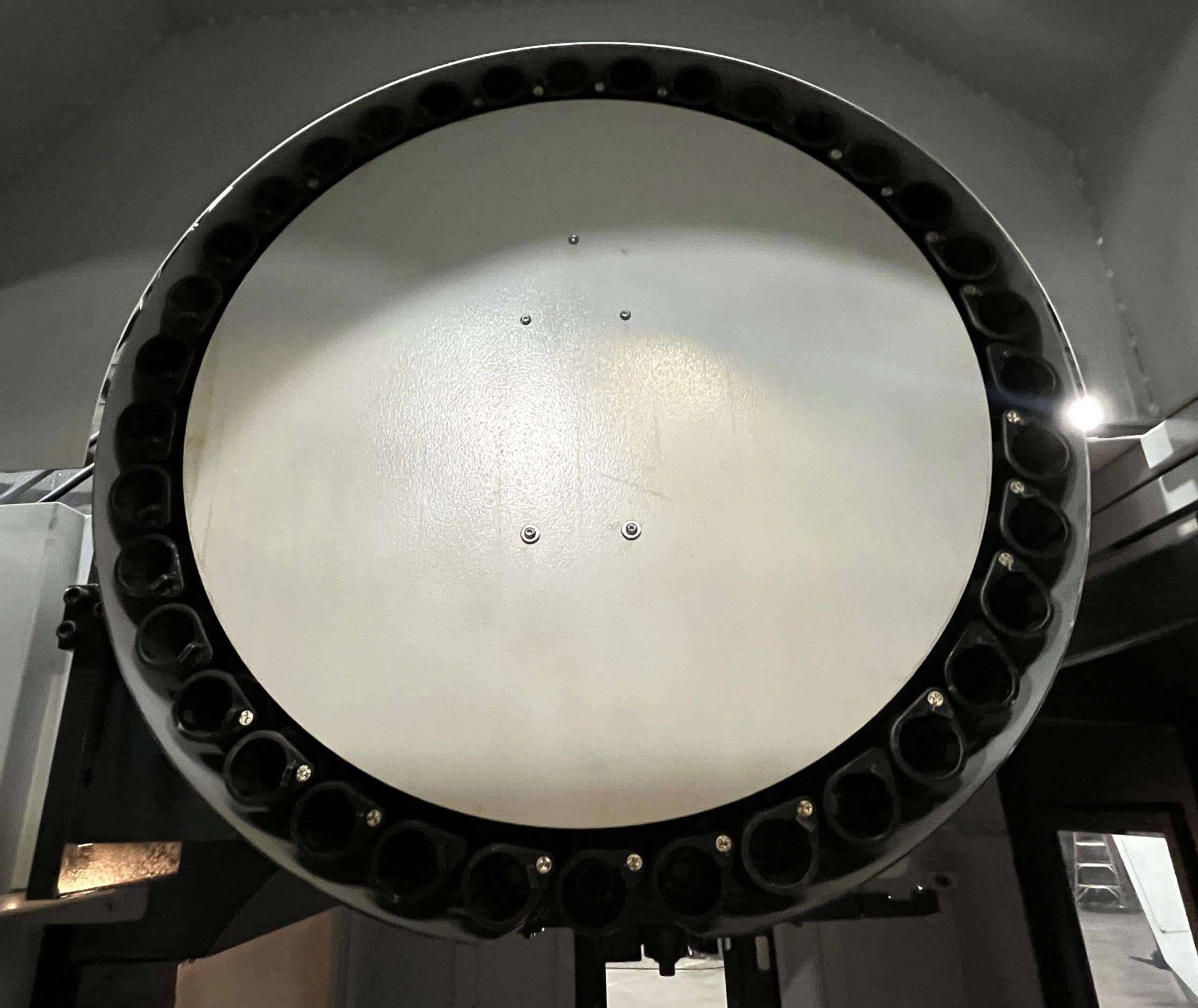

| Automatic Tool Changer: |
|---|
| Capacity: 36 Tools |
| Max Tool Weight: 18 lbs |
| Max Tool Dia: 3.5″ – 5.9″ |
| Max Tool Length: 9.84″ |
| Tool Changing Time: 1.3 Seconds |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |
| Power: 220v / 40KVA / 3-Phase |
| Overall Dimensions: 140″ x 100″ x 110″ High |
| Weight: 14330 lbs. |
