Sold
Yama Seiki BM 1020 (2)
Yama Seiki BM 1020 (4)
Yama Seiki BM 1020 (3)

Yama Seiki BM-1020 4-Axis CNC Vertical Machining Center

SKU 11769
Make/Model Yama Seiki M-1020
Year 2012
Video On Request
Out of stock
SKU: 11769
Make/Model: Yama Seiki M-1020
Year: 2012
Video: On Request
SKU: 11769

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: YAMA SEIKI
Model: BM-1020
Year: 2012
Machine Type: 4-Axis CNC Vertical Machining Center
Control: Fanuc Series 0i-MB CNC Control
Features:
Fanuc Series 0i-MB CNC Control
Hand Wheel
4th Axis
40-Station Automatic Tool Changer
CAT-40 Taper Spindle
Chip Conveyor
Coolant System
Automatic Lubrication System
Travels:
X-Axis Travel: 40.2″
Y-Axis Travel: 23.6″
Z-Axis Travel: 23.6″
X-Axis Rapid Traverse: 945 IPM
Y-Axis Rapid Traverse: 945 IPM
Z-Axis Rapid Traverse: 788 IPM
Table:
Table Size: 44.1″ × 23.6″
Table Load Capacity: 2,210 lbs
T-Slot: 0.7″ × 5
Spindle:
Spindle Taper: CAT-40
Maximum Spindle Speed: 8,000 RPM
Spindle Motor: Approx. 20 HP
Distance From Spindle Nose to Table: 4.9″–28.5″
Automatic Tool Changer:
ATC Type: Automatic Tool Changer
Tool Capacity: 40 Stations
Tool Taper: CAT-40
General:
Power Input: 220v / 3 Phase / 50/60 Hz
Machine Weight: 14,991 lbs
Machine Dimensions (Approx.): 128″ × 98″ × 110″
Travels:
X-Axis Travel: 1,021 mm
Y-Axis Travel: 599 mm
Z-Axis Travel: 599 mm
X-Axis Rapid Traverse: 945 IPM
Y-Axis Rapid Traverse: 945 IPM
Z-Axis Rapid Traverse: 788 IPM
Table:
Table Size: 1,120 mm × 599 mm
Table Load Capacity: 2,210 lbs
T-Slot: 18 mm × 5
Spindle:
Spindle Taper: CAT-40
Maximum Spindle Speed: 8,000 RPM
Spindle Motor: Approx. 20 HP
Distance From Spindle Nose to Table: 124 mm–724 mm
Automatic Tool Changer:
ATC Type: Automatic Tool Changer
Tool Capacity: 40 Stations
Tool Taper: CAT-40
General:
Power Input: 220v / 3 Phase / 50/60 Hz
Machine Weight: 14,991 lbs
Machine Dimensions (Approx.): 3,251 mm × 2,489 mm × 2,794 mm
CategoriesCNC Vertical Machining Centers
MakeYama Seiki
ModelM-1020
  • Fanuc Series 0i-MB CNC Control
  • Hand Wheel
  • 4th Axis
  • 40-Station Automatic Tool Changer
  • CAT-40 Taper Spindle
  • Chip Conveyor
  • Coolant System
  • Automatic Lubrication System

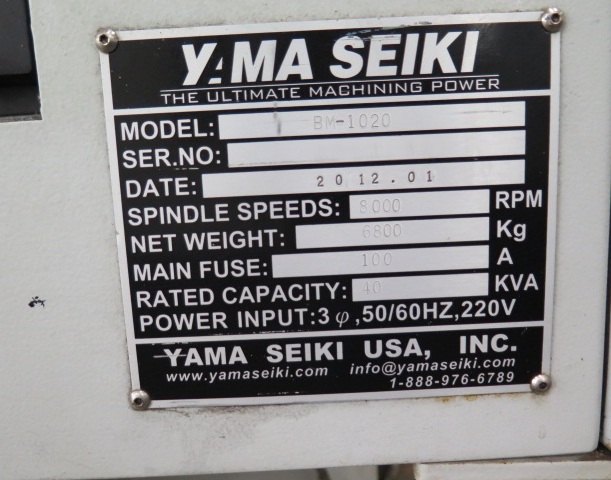

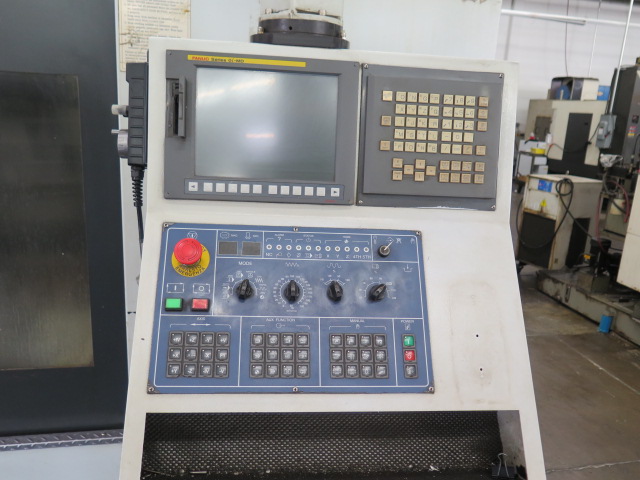

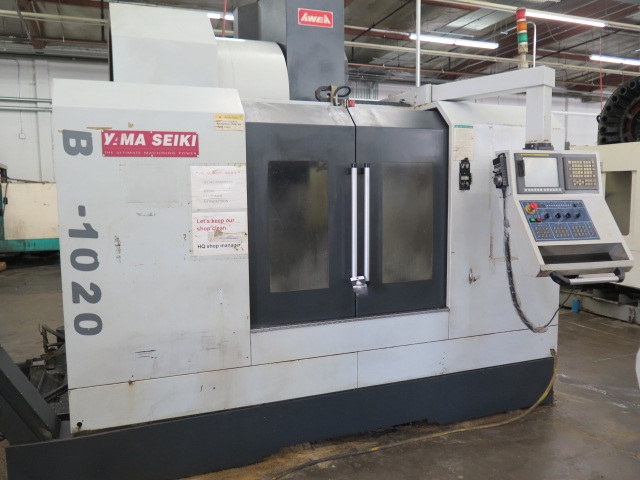

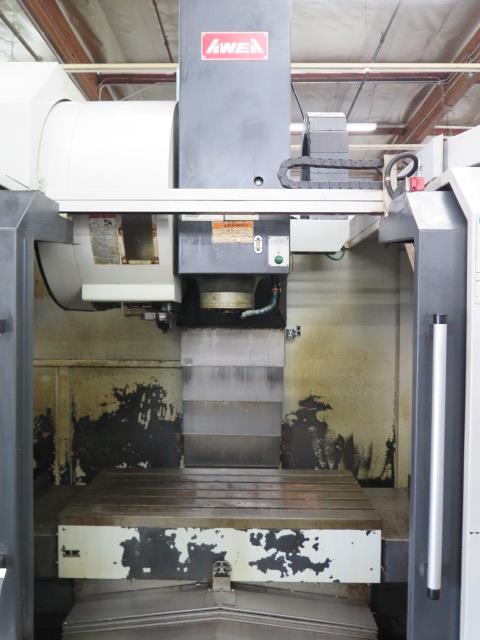

Yama Seiki BM 1020 (2)Yama Seiki BM 1020 (4)Yama Seiki BM 1020 (3)

Payment Terms

Up to 3 buyers can reserve the same machine. If you're 2nd or 3rd in line, we'll tell you your place, and you'll get the next chance if the first buyer doesn't proceed.

Shipping & Logistics

We coordinate domestic and international shipping, including loading, containerization, and freight arrangements through trusted logistics partners.

Machine Inspection

Buyers can request a live video demonstration, machine inspection, or schedule an on-site visit before completing the purchase.

Export & Documentation

For international orders, we can assist with export documentation, commercial paperwork, and pre-shipment inspection requirements.
