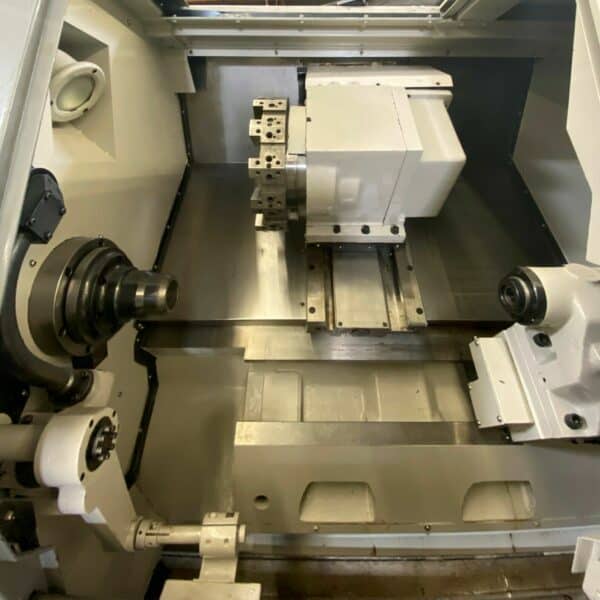

Daewoo Doosan 240LB CNC Turning Center

All specifications are approximations and are subject to verification.

• Doosan Doosan 240LB Equipped With:

• Daewoo Fanuc i series CNC Control
• Long Bed Box way construction
• Rigid Tapping
• Hydraulic Collet Chuck (8″ Capable )
• A2-6 Gear Head Spindle
• Tool Presetter
• Parts Catcher
• Hydraulic Programmable Tailstock and Quill
• PCMCIA Card Slot
• RS-232
• Coolant System
• Barfeed Interface
• 12 Station Automatic Turret
• Foot Switch
• Turbo Chip Conveyor

• Daewoo Doosan 240LB Specifications:

• Capacity:
• Max Turning Diameter: 13.8″
• Max Turning Length: 21.6″
• Max Bar Capacity: 2.54″
• Swing Over Bed: 21.8″
• Swing Over Carriage: 15.4″
• Distance Between Centers: 26.8″

• Travel:

• X Axis Travel: 9.53″
• Z Axis Travel: 22.8″
• Rapid Traverse X Axis: 787 IPM
• Rapid Traverse Z Axis: 945 IPM

• Spindle:

• Spindle Nose: A2-6
• Spindle Bore: 2.99″
• Spindle Speed: 45 – 4500 RPM
• Spindle Motor: 25 HP

• Turret:

• Turret Capacity: 12 Stations
• Turret Index Time: 0.3 Second
• TailStock:
• Tailstock Taper: MT-4
• Tailstock  Quill Dia.: 3.07″
• Tailstock Quill Travel: 3.7″

• General:

• Power: 35 kva, 220v / 3-Phase
• Overall Dimensions: 130″ x 77″ x 80″ High
• Overall Dimensions: 148″ x 77″ x 80″ High with Chip Conveyor
• Weight: 10600 lbs
