*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | AMADA |
| Model: | ASTRO II 100NT / HDS-1030 |
| Year: | 2014 |
| Machine Type: | CNC Robotic Press Brake Cell |
| Control: | AMNC II CNC Control |
| Capacity: |
|---|
| Capacity: 110 Ton |
| Overall Bed Length: 10′ |
| Distance Between Frames: 106″ |
| Stroke: 7.87″ |
| Throat Depth: 16.33″ |
| Open Height: 19.7″ |
| Robot Specifications: |
|---|
| ASTRO-100 NT Bending Robot |
| Robot Weight: 450 KG |
| Maximum Capacity Including Gripper: 20 KG |
| Number Of Controlled Axes: 5 |
| Linear Axis Length: 3080MM |
| Maximum Material Thickness: 0.6 – 2.5MM |
| Maximum Blank Size: 800 X 1000MM |
| Maximum Blank Size: 300 X 1800MM |
| Drive System: AC Servo Motors |
| ASTRO-MP20 Loading / Unloading Robot: |
|---|
| Maximum Capacity Including Gripper: 20 KG |
| Number Of Controlled Axes: 6 |
| Stack Height Raw Material: 500MM |
| Drive System: AC Servo Motors |
| Features: |
|---|

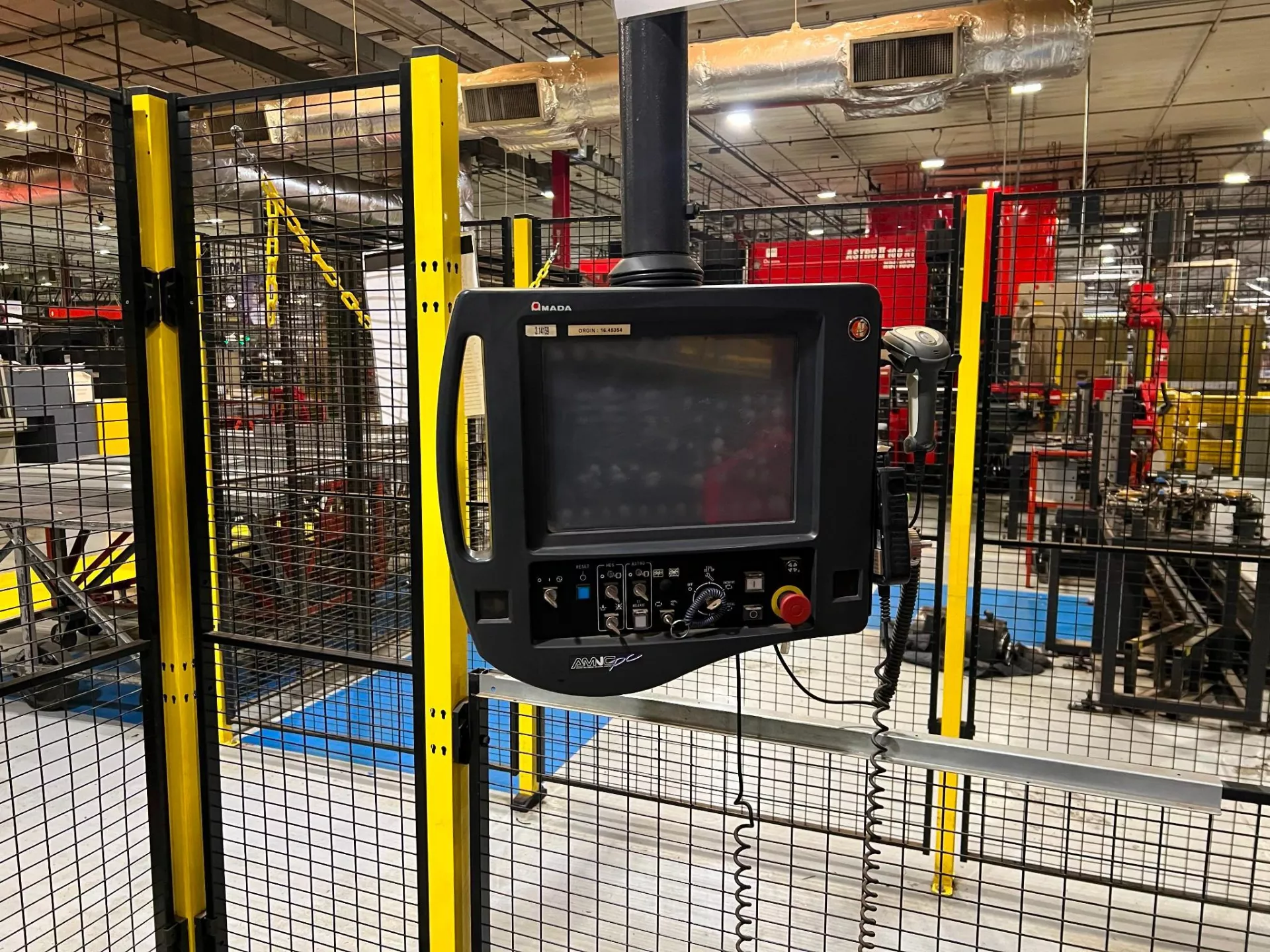

| AMNC II CNC Control |
| ASTRO-CAM Software |
| Automatic Tool Changer (ATC) |
| 6-Axis CNC Backgauge |
| ASTRO-100 NT Bending Robot |
| ASTRO-MP20 Loading & Unloading Robot |

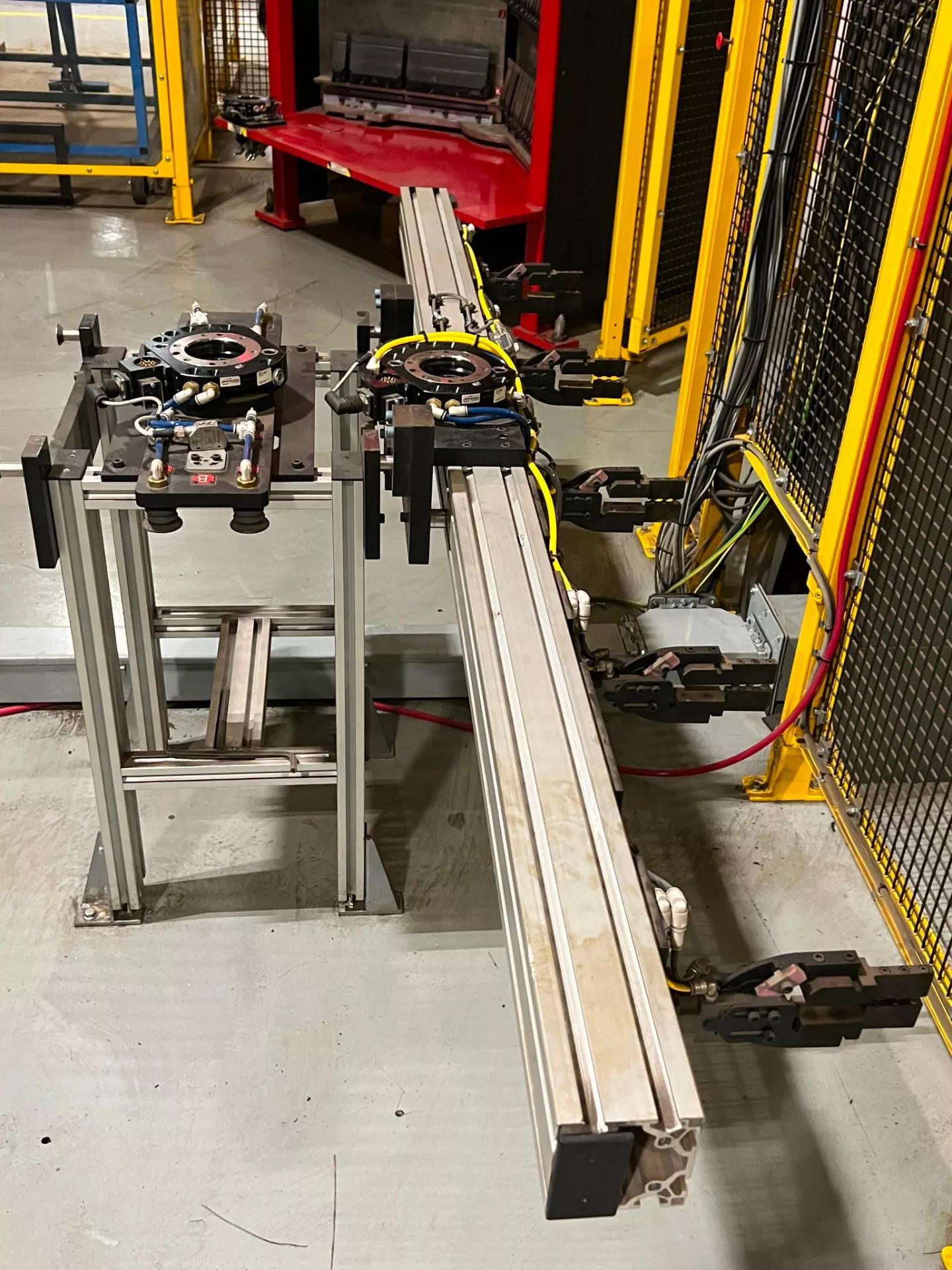

| Automatic Sheet Loading System |

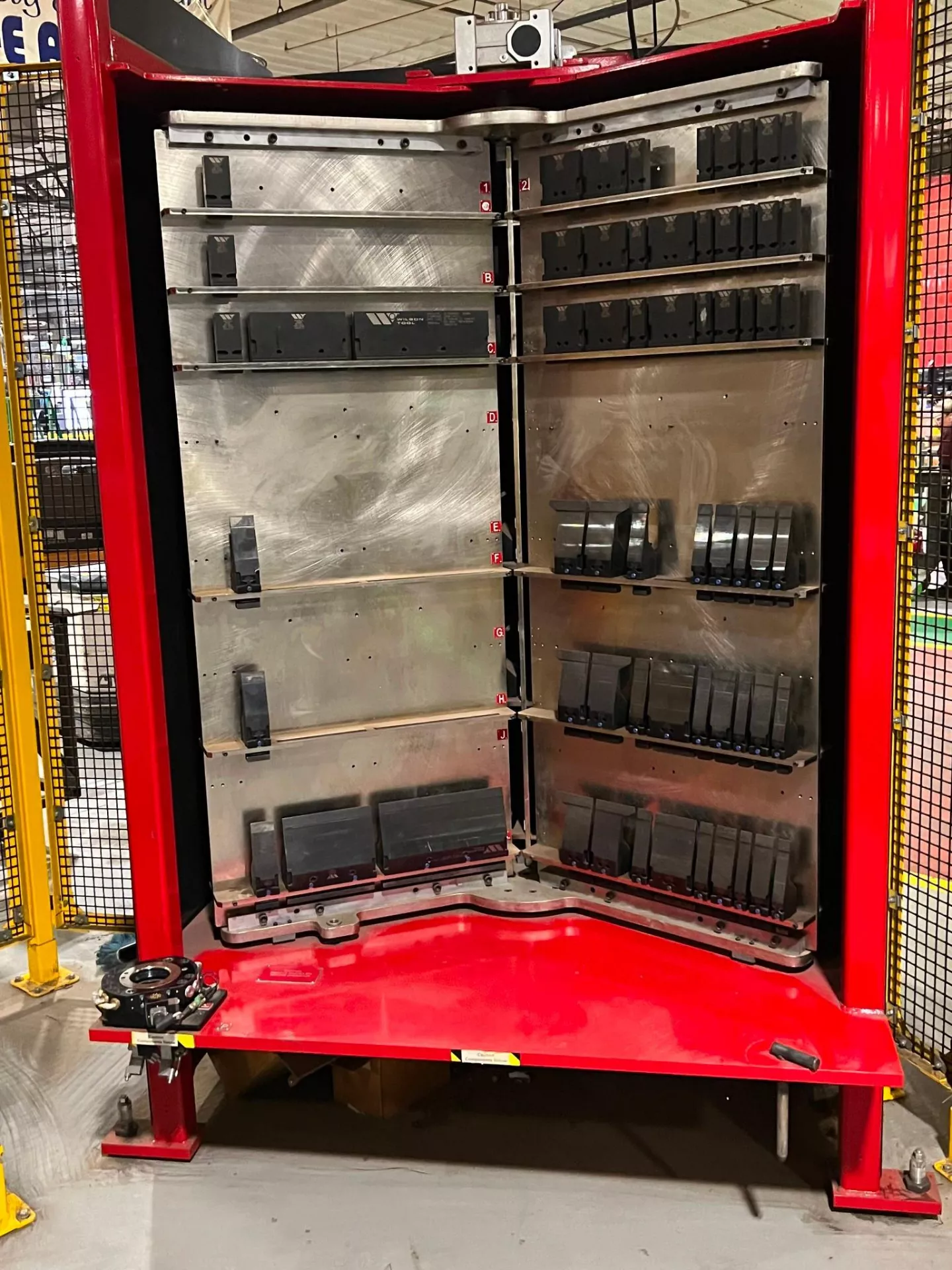

| Tool Storage Rack |
| Safety Fencing |
| Servo Driven Robotic System |
| Books & Manuals |
| Dimensions & Weight: |
|---|
| Press Brake Dimensions: 14′ L X 8′ W X 9′ H |
| Approximate Weight: 20,000 LBS. |
