*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

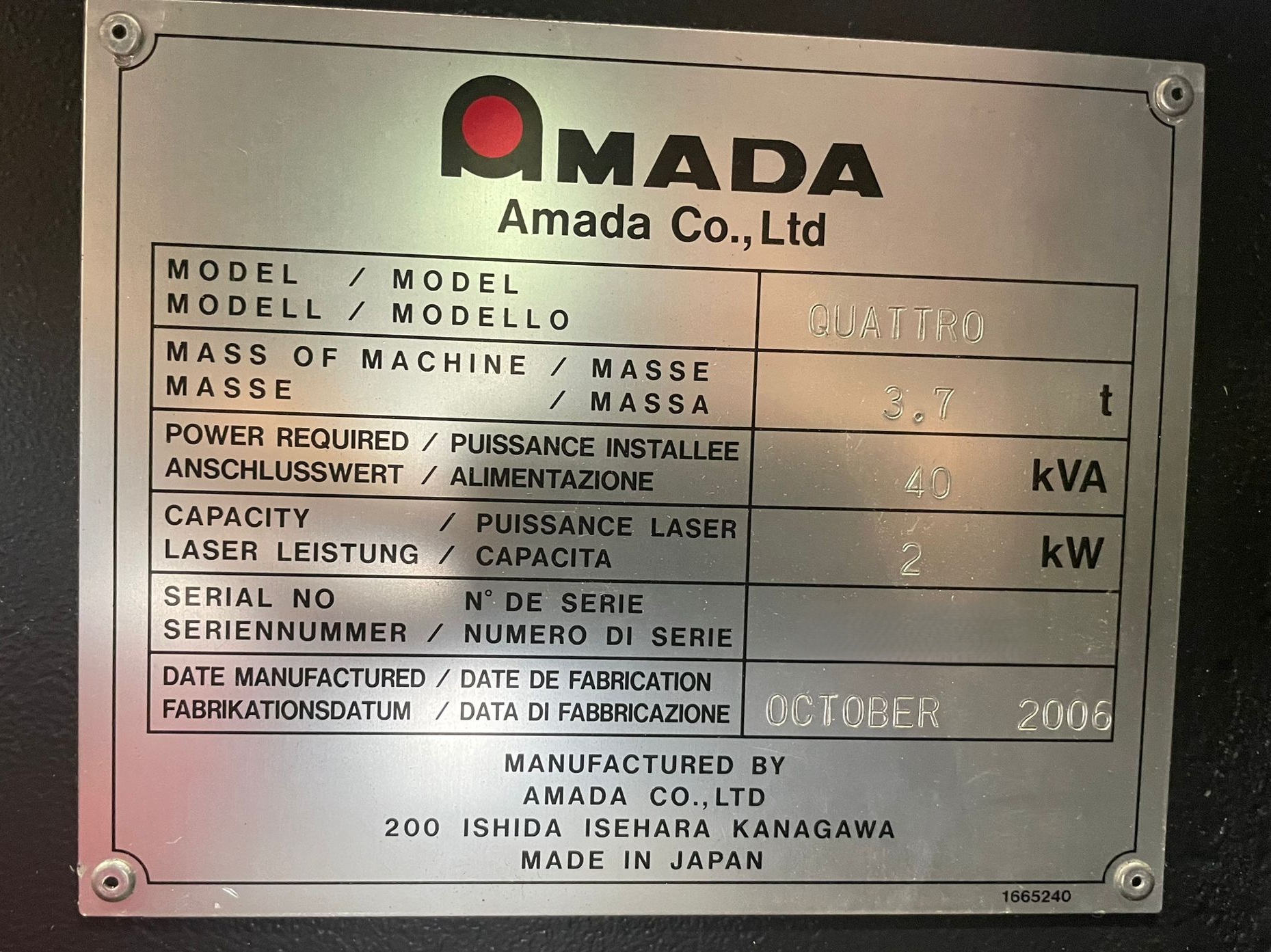

| Make: | Amada |
| Model: | Quattro |
| Year: | 2006 |
| Machine Type: | CNC CO₂ Laser Cutting Machine |
| CNC Control: | Fanuc Series 16i-L |
| Equipped With: |
|---|
| Fanuc 16i-L CNC Control |
| AF2000E Laser Resonator |
| HS Capacitive Laser Cutting Head |
| Automatic Gas Pressure Control |
| High-Pressure Cutting / CleanCut |
| Aluminium Cutting / AluCut |
| Dust Collection / Extraction System |
| Chiller / Cooling Unit |
| Diode Positioning Laser |
| Auxiliary Gas Filter |
| Roller Sheet Support |
| Laser: |
|---|
| Laser Type: CO₂ |
| Laser Power: 2 KW |
| Laser Resonator: AF2000E |
| Laser Wavelength: 10.6 µm |
| Laser Frequency: 5–2,000 Hz |
| Laser Gas Consumption: 10 L/hr |
| Cutting Capacity: |
|---|
| Maximum Cutting Area: 49.6″ × 49.6″ |
| Maximum Material Thickness – Mild Steel: 0.47″ |
| Maximum Material Thickness – Stainless Steel: 0.24″ |
| Maximum Table Load: 353 lbs. |
| Travels: |
|---|
| X-Axis Travel: 49.6″ |
| Y-Axis Travel: 49.6″ |
| Z-Axis Travel: 3.9″ |
| Feedrate: |
|---|
| X/Y Positioning Speed: 1,181 IPM |
| Z-Axis Positioning Speed: 591 IPM |
| Simultaneous Positioning Speed: 1,654 IPM |
| General: |
|---|
| Power Source: 110v / 3-Phase / 50/60 Hz |
| Machine Weight (Approx.): 8,157 lbs. |
| Machine Dimensions (Approx.): 114.4″ L × 92.8″ W × 84.6″ H |
