*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 115029 |

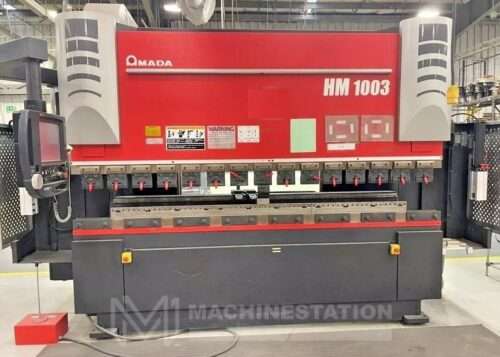

| Make: | Amada |
| Model: | HM-1003 |
| Condition: | Used – Excellent |
| Features: |
|---|

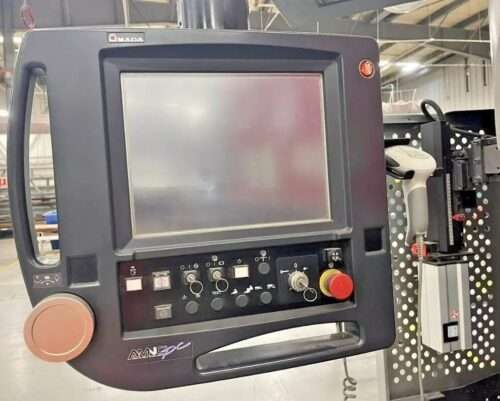

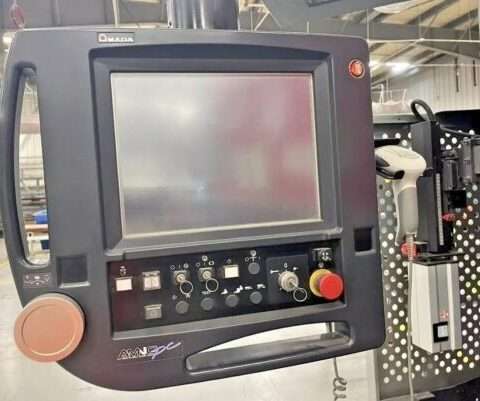

| Amada AMNC/PC Touchscreen CNC Control |
| (4) Axis Back Gauge |
| Remote Handwheel Depth Control |
| Laser Safety System |
| Pneumatic Fingers |
| Foot Treadle |
| Pressure Gauge |

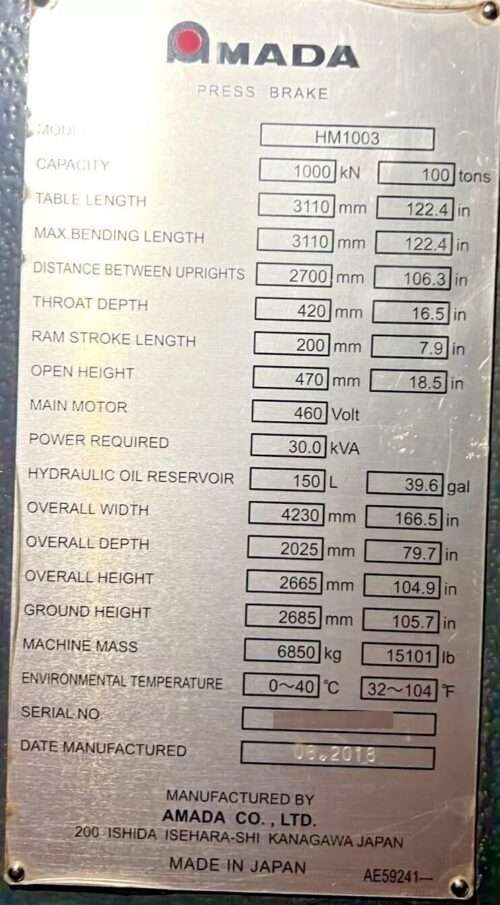

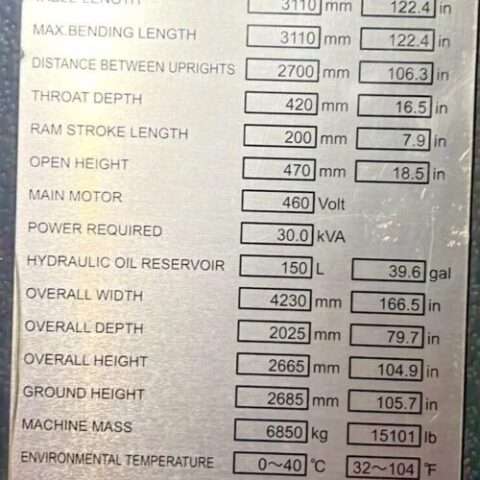

| Specifications: |
|---|
| Capacity: 100 Tons |
| Table Length : 122.4″ |
| Maximum Bending Length: 122.4″ |
| Distance Between Uprights: 106.3″ |
| Ram Stroke Length: 7.9″ |
| Open Height: 18.5″ |
| Throat Depth: 15.76″ |
| Approach Speed: 7.87” Per Second |
| Bending Speed: 0.78” Per Second |
| Return Speed: 7.87” Per Second |
| General: |
|---|

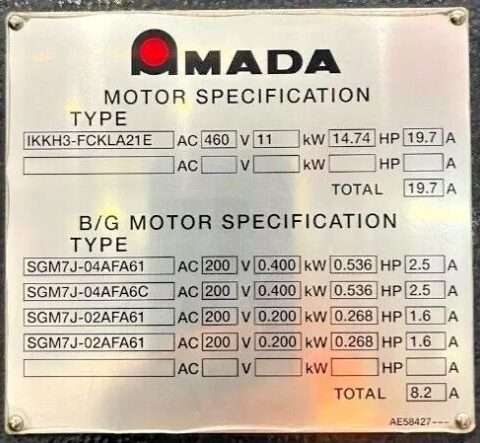

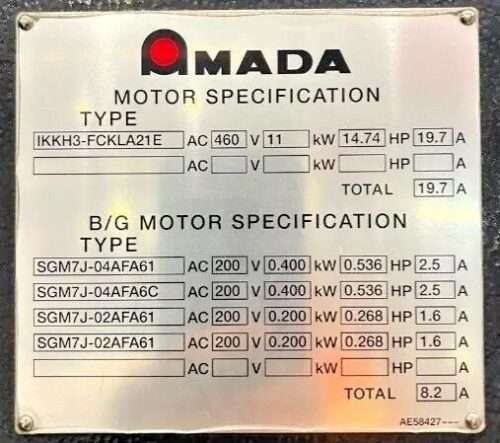

| Power Source: AC 460 V, Three Phase, 60 Hz |
| Power Requirement: 26.5 KVA |
| Overall Dimensions: 166.5″ X 79.7″ x 104.9″ High |
| Weight : 15,101 lbs Approx. |
