Product Description

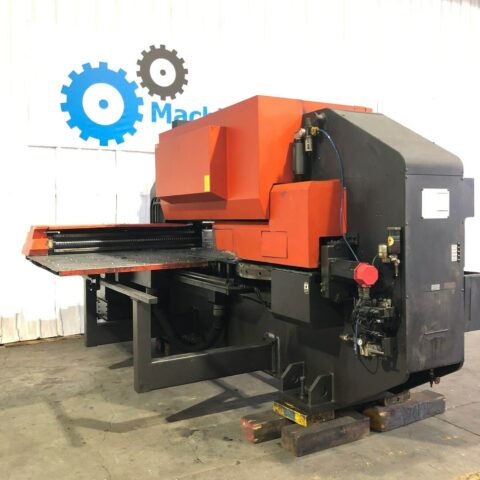

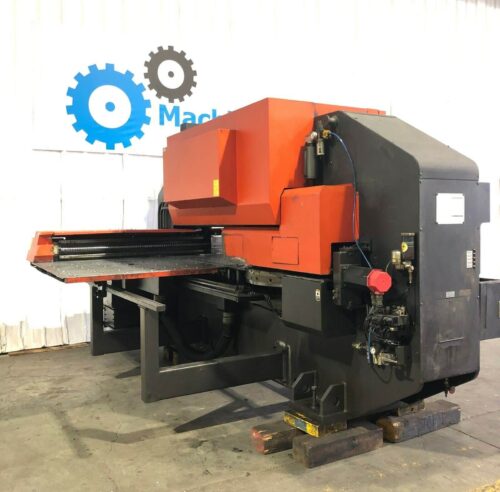

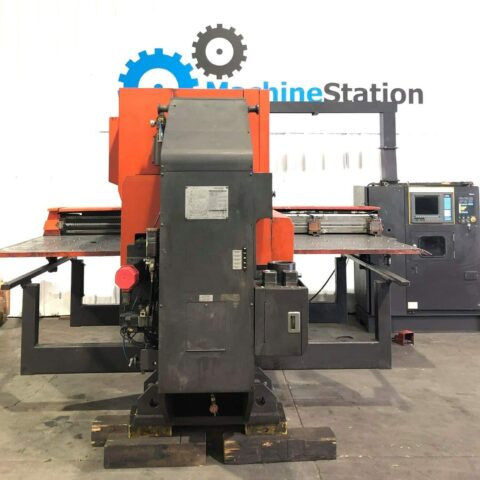

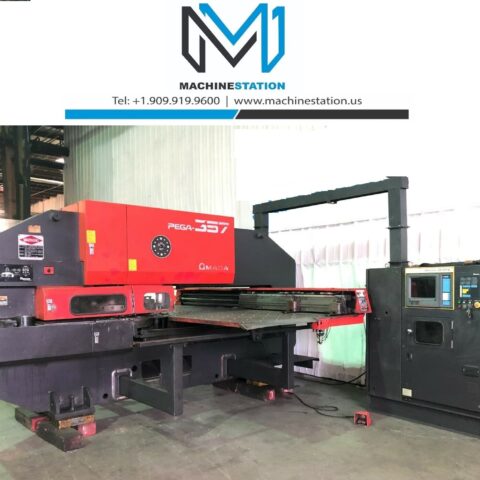

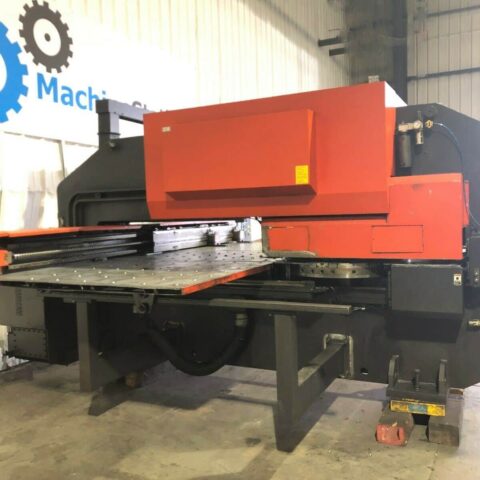

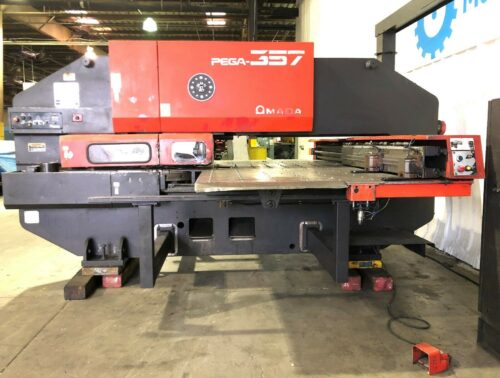

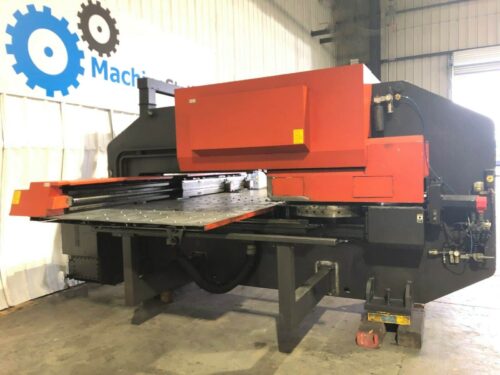

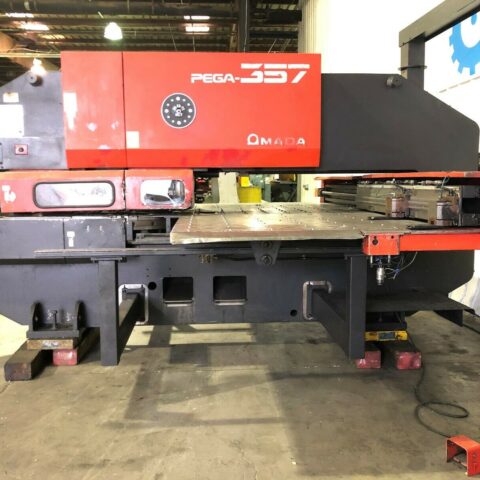

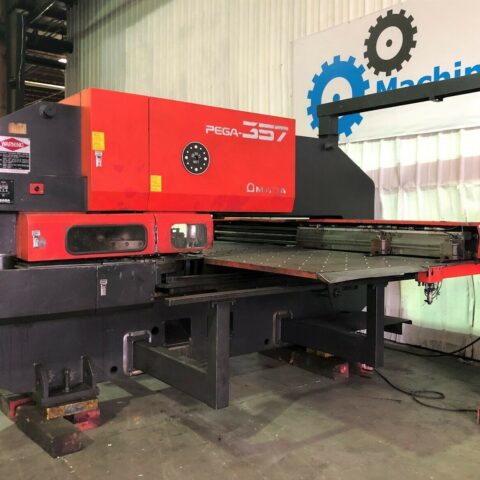

AMADA PEGA 357 CNC TURRET PUNCH PRESS

Make: AMADA
Model No.: PEGA 357

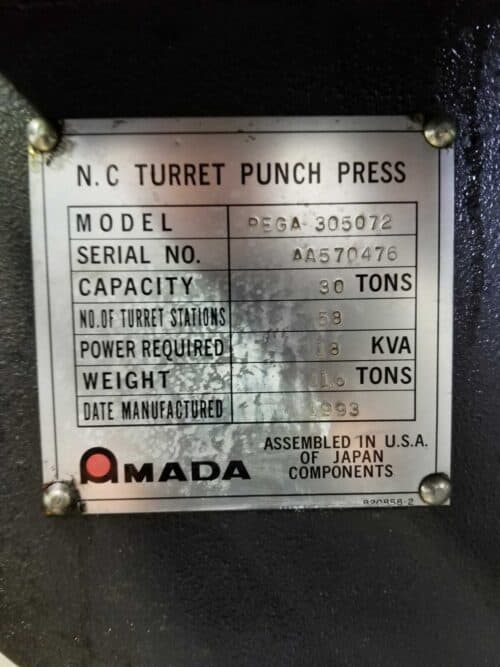

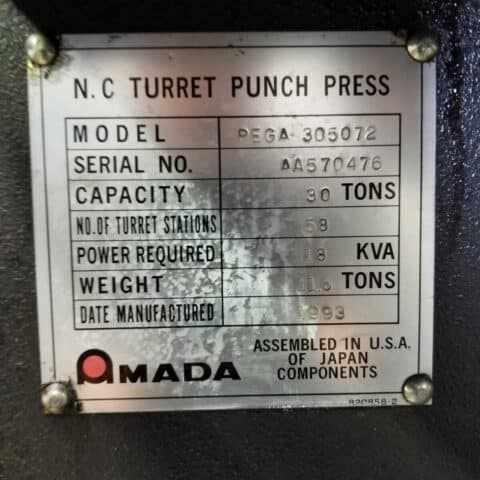

Serial No.: AA570476
Year: 1993
Condition: Very Good

All specifications are approximations, and are subject to verification.

Amada Pega 357 Equipped With:

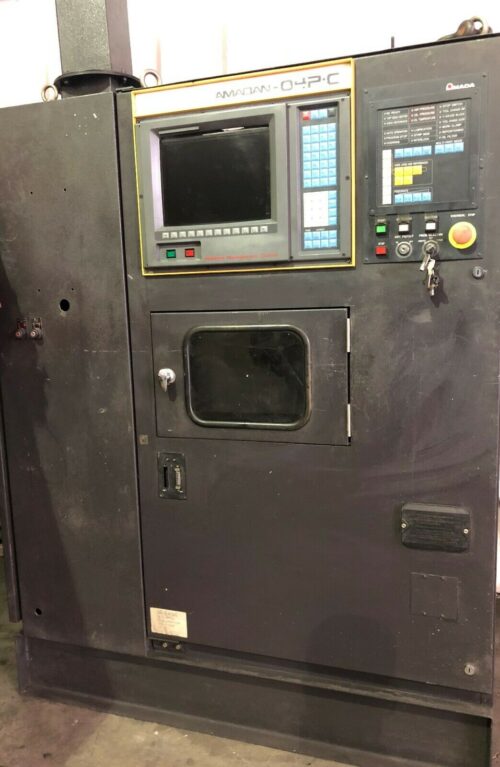

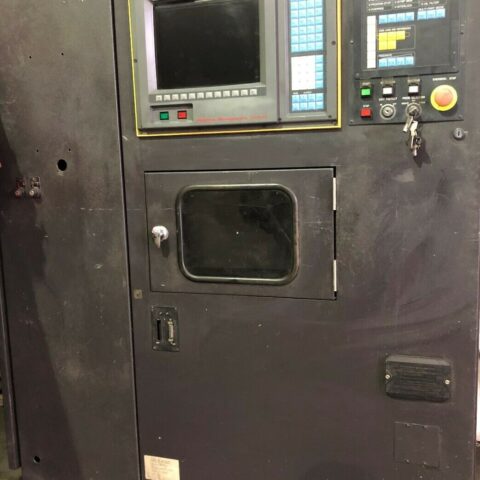

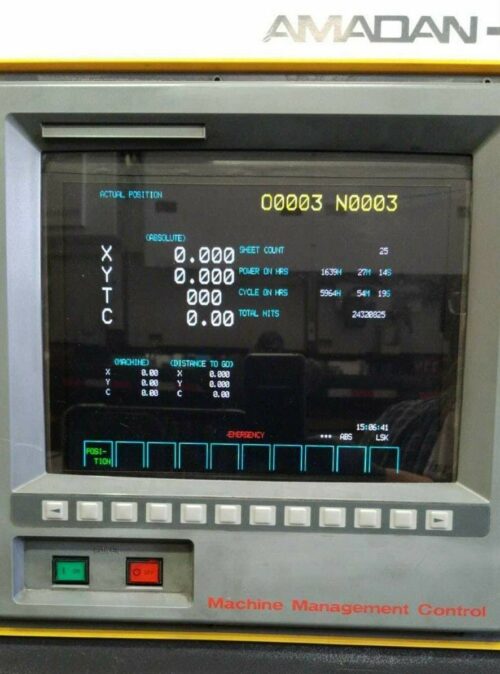

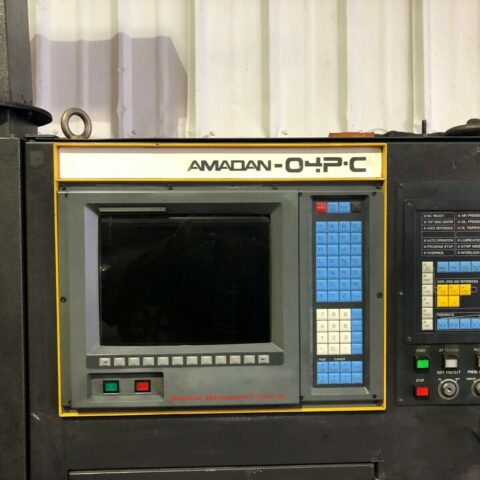

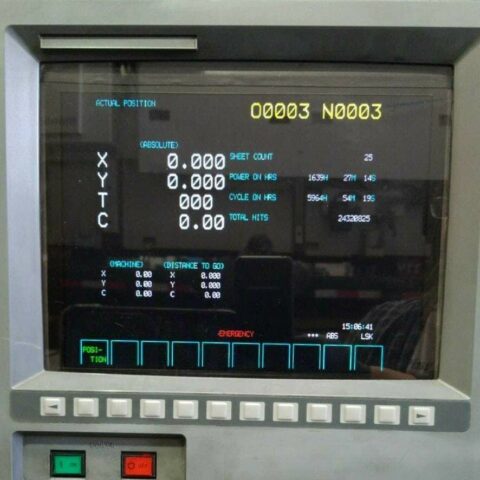

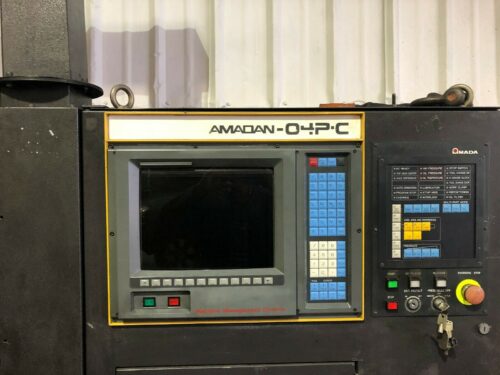

Amada Fanuc 04PC CNC Control
58 station Turret
Ball Transfer Table
Auto Repositioning
Auto Indexing
Foot Switch
Work clamps
Auto Lube System
Tool Holders

Amada Pega 357 Specifications:

Capacity: 30 Ton
Maximum Traverse: 50” X 72”
Maximum Sheet Size (With Repositioning): 50” X 144”
Maximum Punching Capacity (Mild Steel) : ¼”
Maximum Hits Per Minute : 350
Maximum Sheet Weight : 220 LBS
Maximum Positioning Speed : 2,795″ PER MINUTE
Total Tool Stations In Turret : 58
Turret Configuration: H-Type Thick Turret
36 @ 1/2″ DIA
12 @ 1-1/4″ DIA.
4  @ 2″ DIA.
2 @ 3-1/2″ DIA.
2 @ 4-1/2′ DIA.
2 @ AUTO ÍNDEX (1-1/4″ DIA.)

Auto Index Configuration
Angular Increment :                                            0.01 Degree
Maximum Nibbling Angle :                                     8 Degree
Indexing Station Drive :                                       Bi-Directional Rotation
Index Drive Type:                                              Ac Servo Drive
Index RPM:                                                     60 RPM

Turret Index Speed :                                           30 RPM
Air Requirement :                                              80 PSI
Main Motor Horsepower :                                        5.5 KW

General:
Power: 220v / 3-Phase
Overall Dimensions:  High
Weight: 23,000 lbs

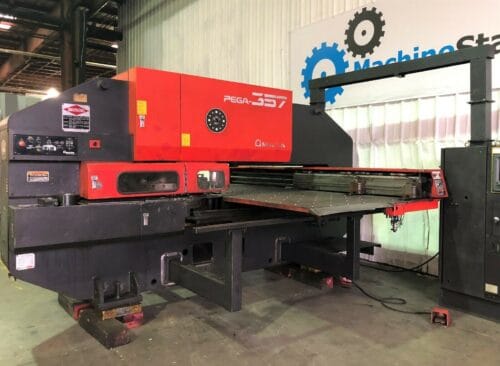

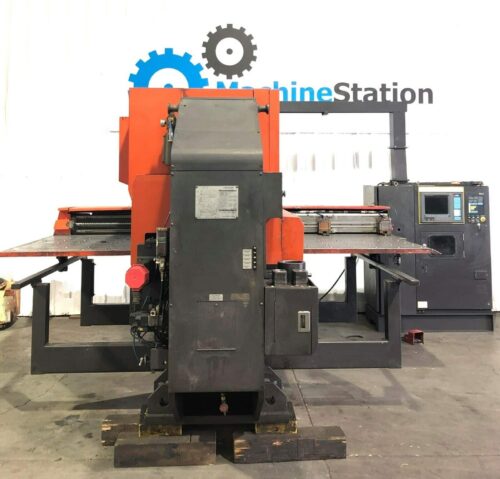

Amada Pega357 Comes as shown in pictures.
