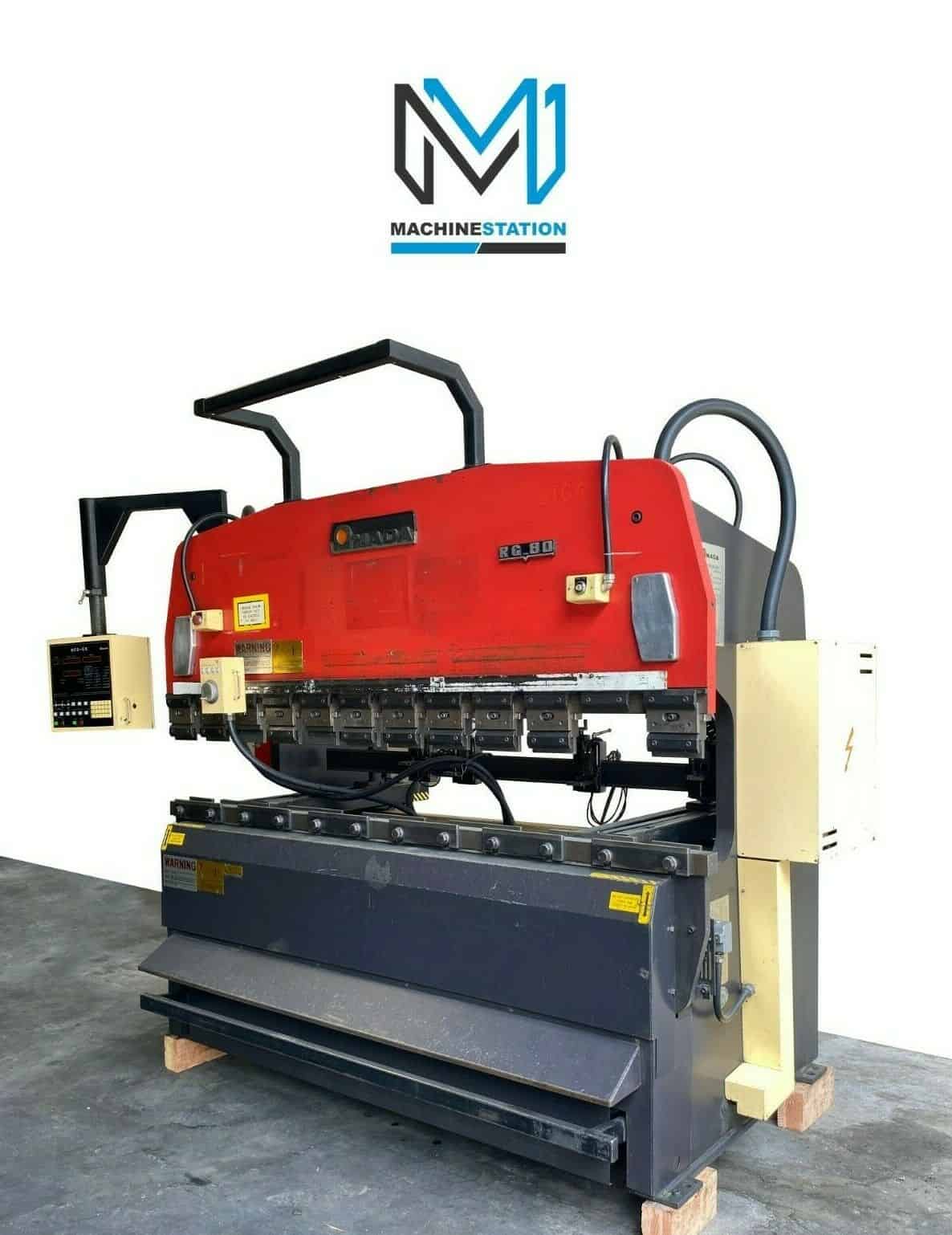

All specifications are approximations and are subject to verification.
| Equipped With: |
|---|

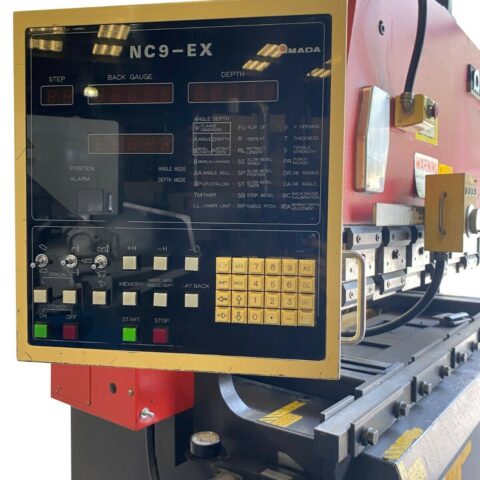

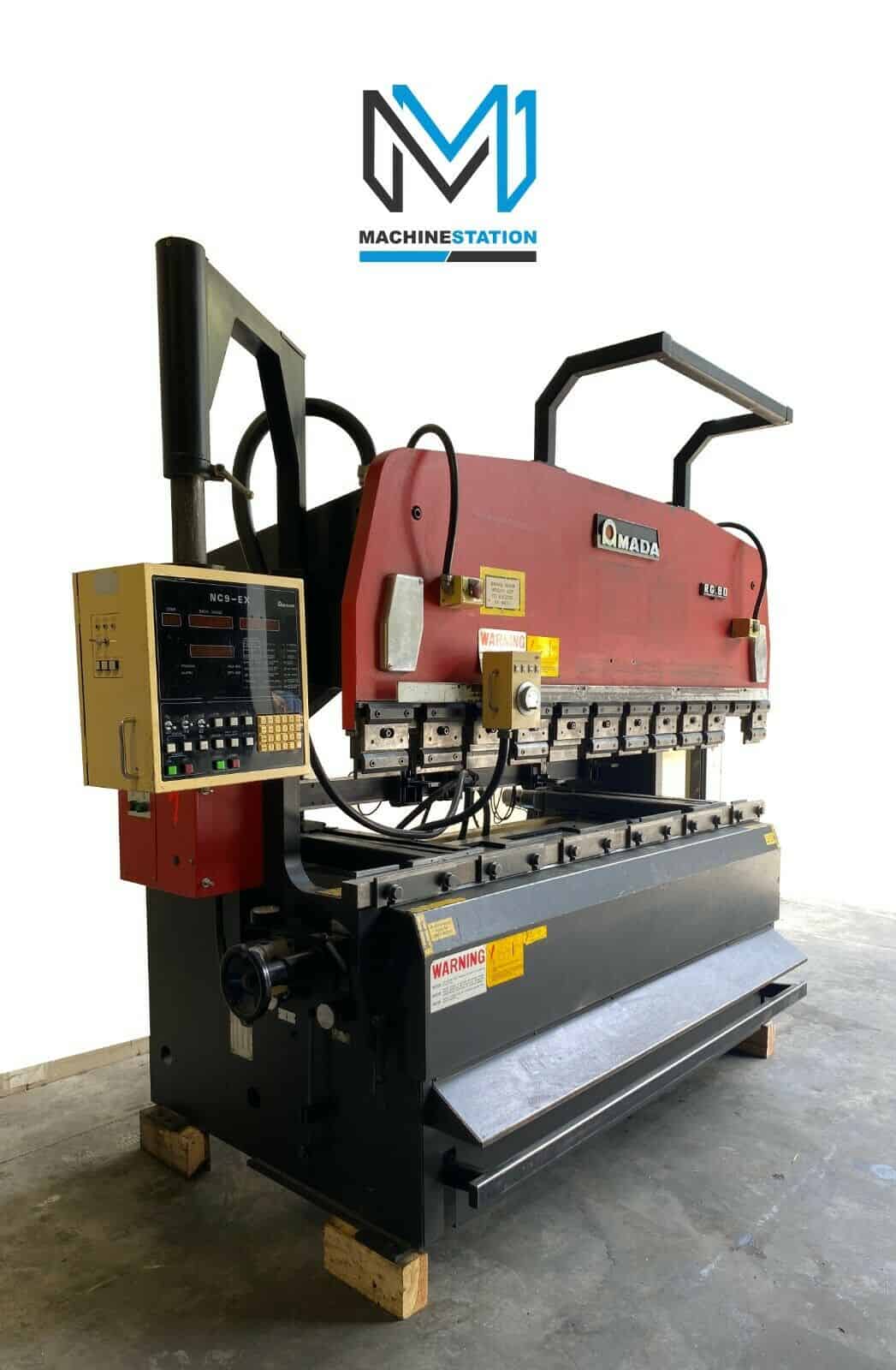

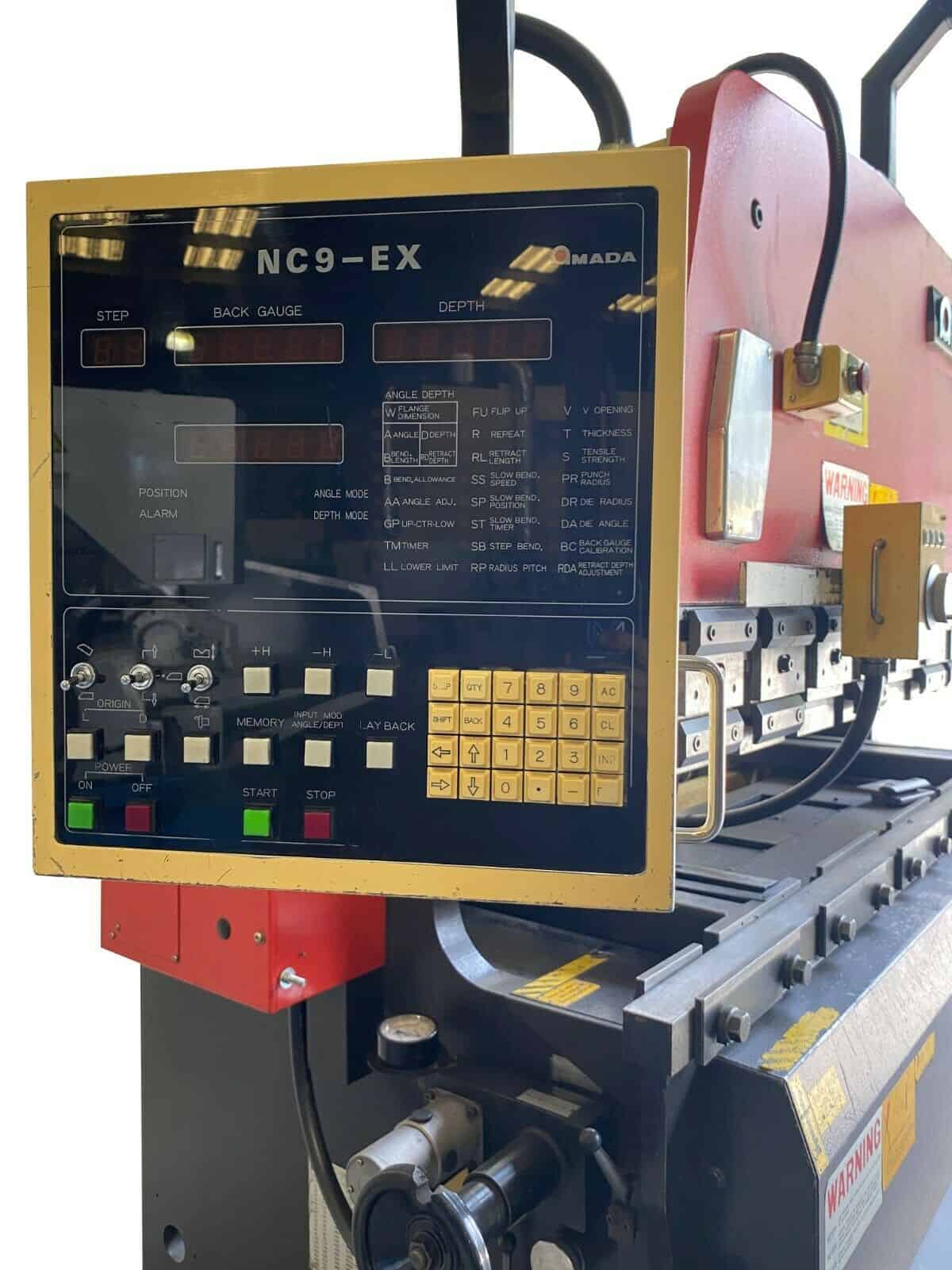

| NC9-EX CNC Control |

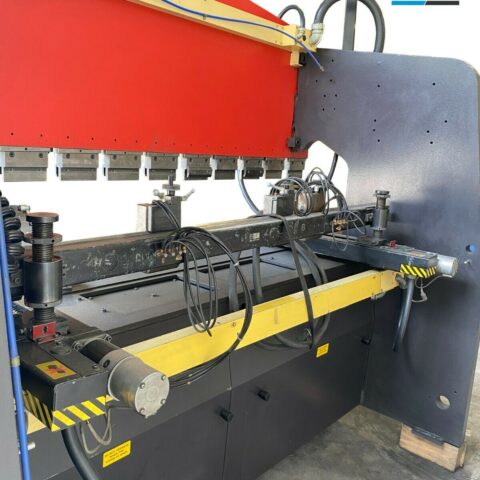

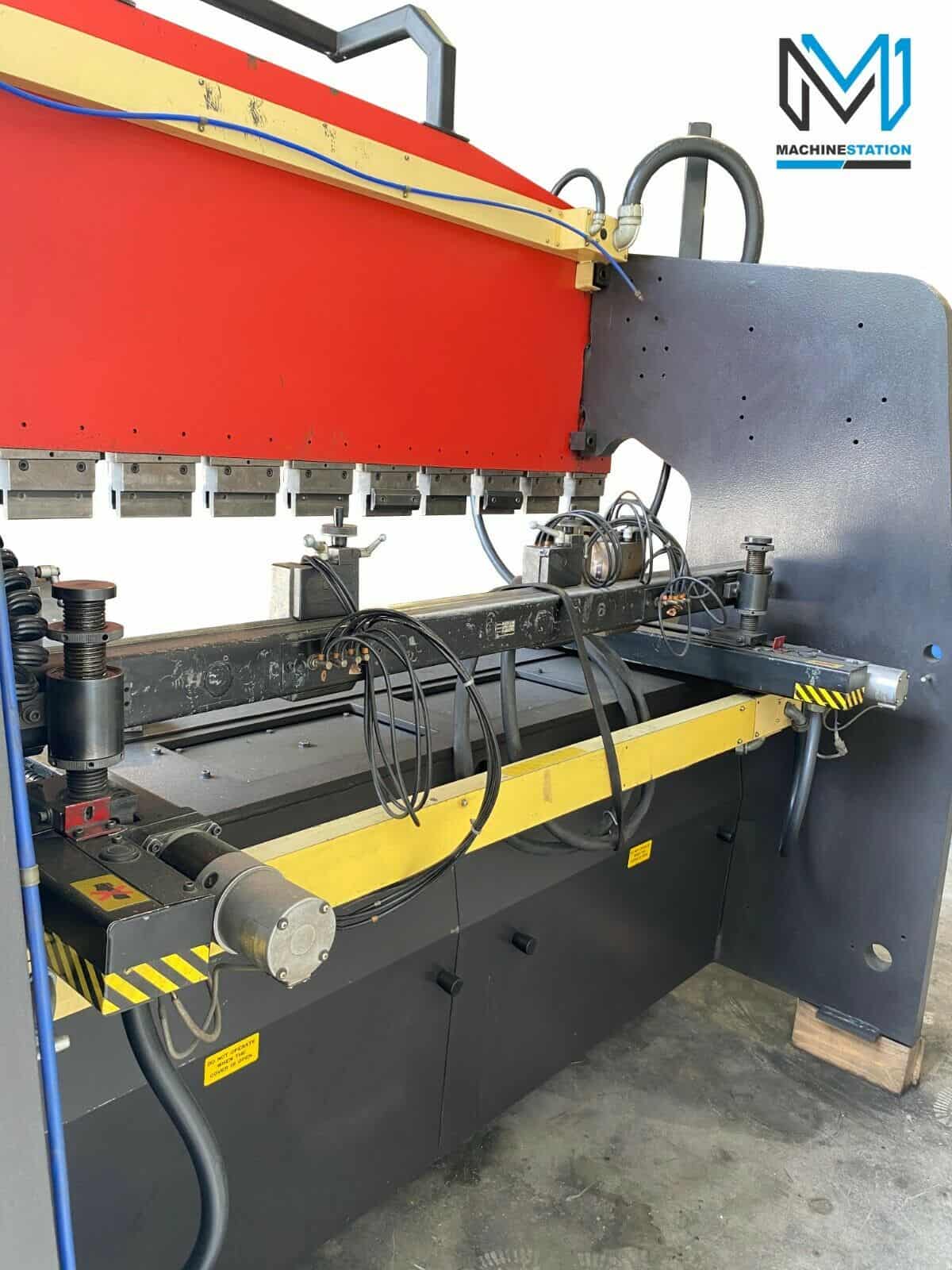

| 3 Axis Control and Back Gauge |

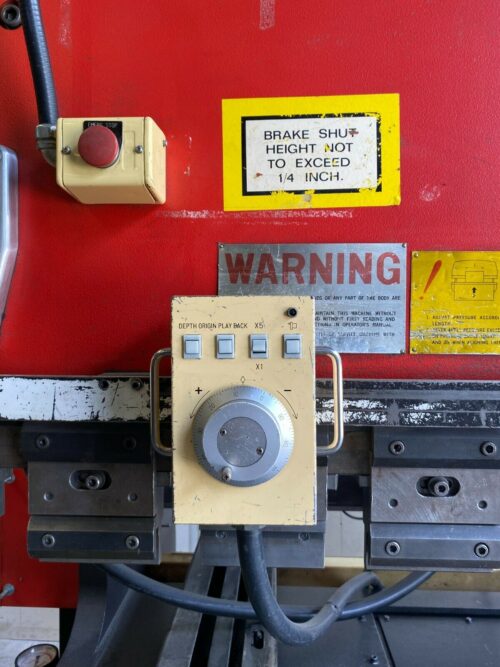

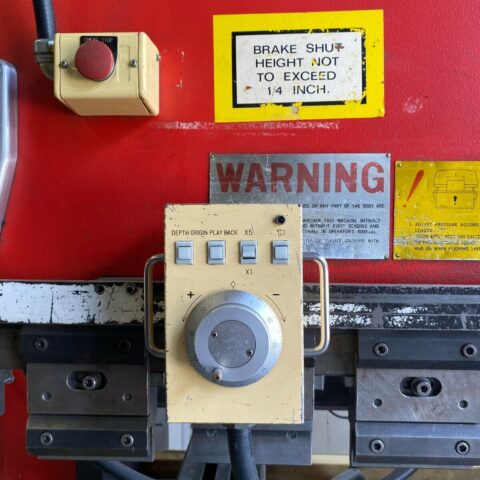

| Remote Handwheel Depth Control |
| Pneumatic Fingers |
| Foot Treadle |

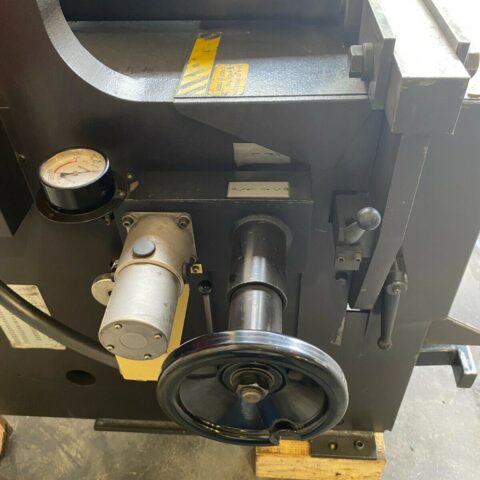

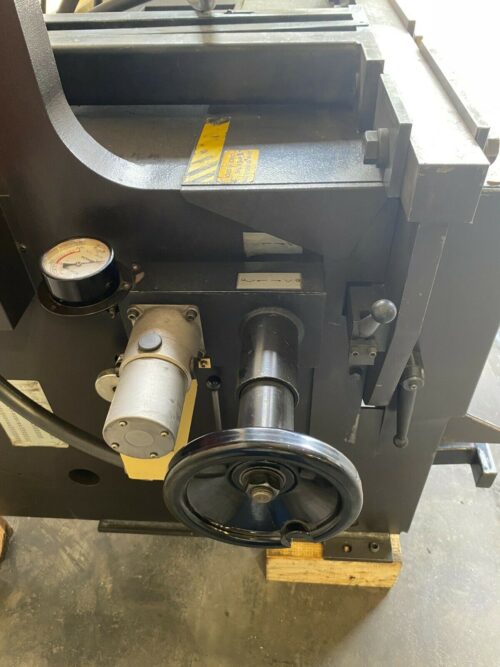

| Pressure Gauge |
| Specifications: |
|---|
| Capacity: 80 Ton |
| Overall Bending Length: 98″ |
| Distance Between Housings: 86″ |
| Stroke: 0″ – 3.94″ |
| Open Height: 14.57″ |
| Shut Height: 10.67″ |
| Throat Depth: 15.76″ |
| Back Gauge Travel: 19.6″ |
| Ram Speeds: |
|---|
| Approach: 106″ Per Minute |
| Forming: 19” Per Minute |
| Return: 122” Per Minute |
| Main Motor: 7.5 HP |
| General: |
|---|
| Power: 220v / 3-Phase |
| Overall Dimensions: 98″ X 60″ X 81″ High |
| Weight: 11,000 lbs |
