*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112581 |
| Make: | Amada |
| Model: | RG-80 |
| Condition: | Used – Good |
| Features: |
|---|

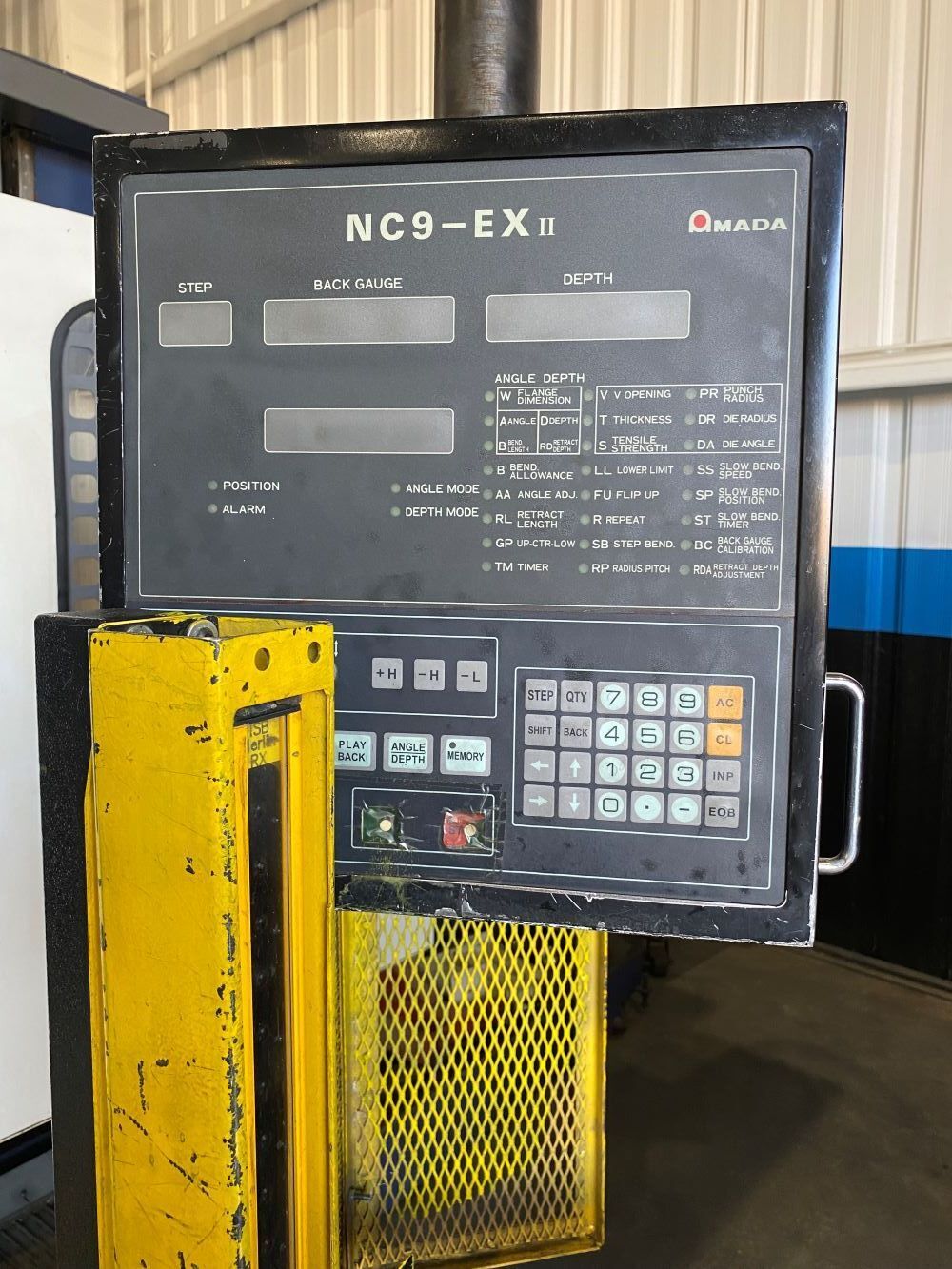

| NC9-EXII CNC Control |
| Back Gauge |
| Remote Handwheel Depth Control |

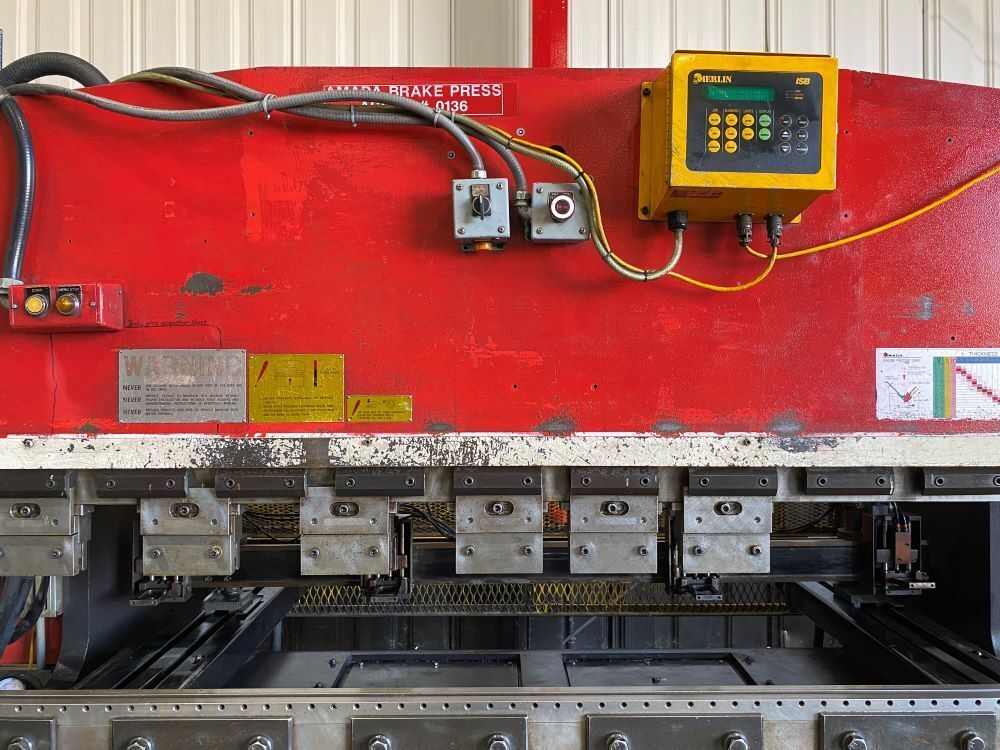

| ISB Laser Safety System |
| Pneumatic Fingers |
| Foot Treadle |
| Pressure Gauge |

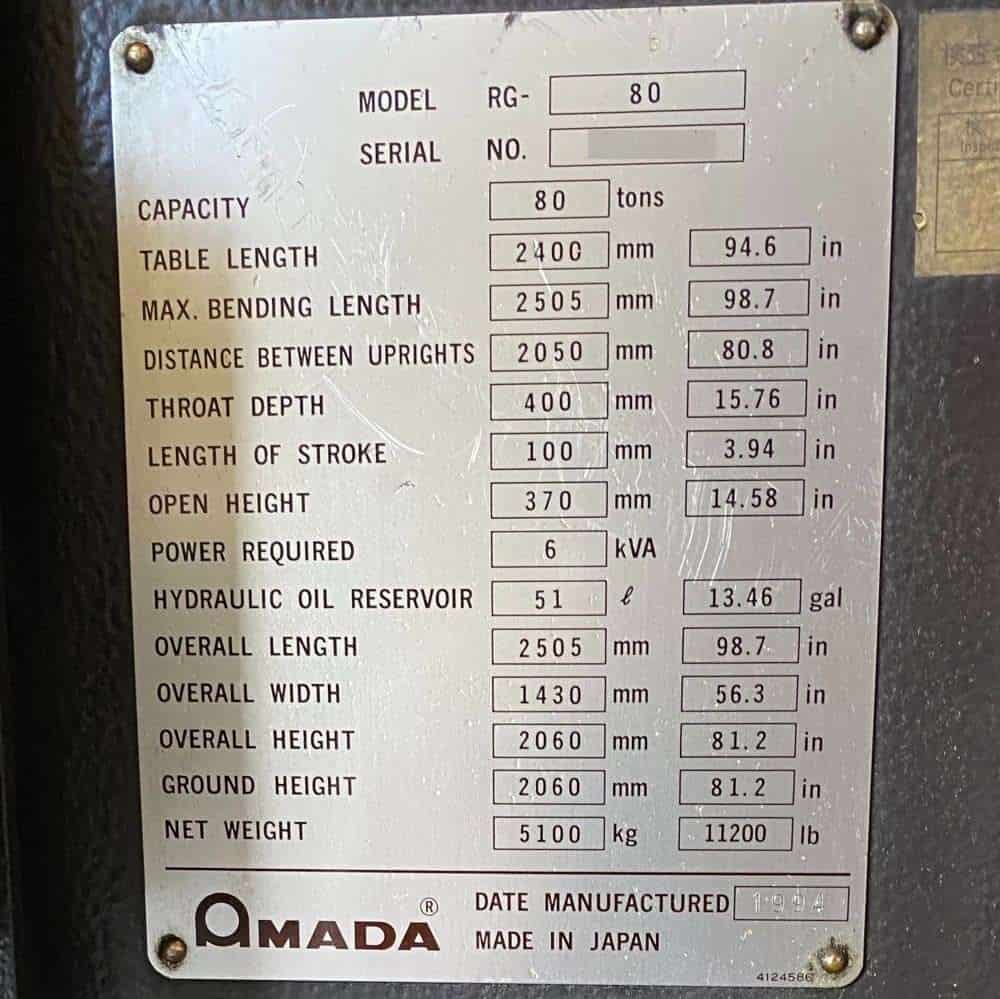

| Specifications: |
|---|
| Capacity: 80 Ton |
| Table Length : 94.6″ |
| Maximum Bending Length: 98.7″ |
| Distance Between Uprights: 80.8″ |
| Length of Stroke: 3.94″ |
| Open Height: 14.58″ |
| Shut Height: 10.67″ |
| Throat Depth: 15.76″ |
| Approach Speed: 2.04” Per Second |
| Bending Speed: 0.39” Per Second |
| Return Speed: 2.32” Per Second |
| General: |
|---|
| Power Source: AC 460 V, Three Phase, 60 Hz |
| Power Requirement: 6 KVA |
| Overall Dimensions: 98.7″ X 56.3″ x 81.2″ High |
| Weight : 11,200 lbs Approx. |
