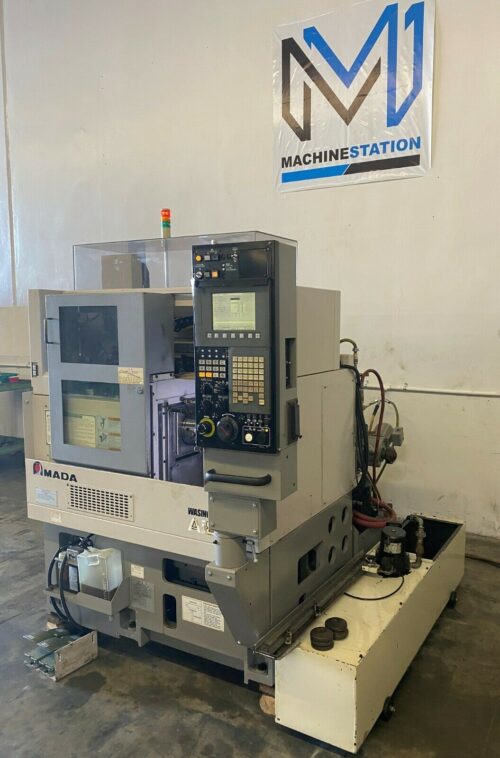

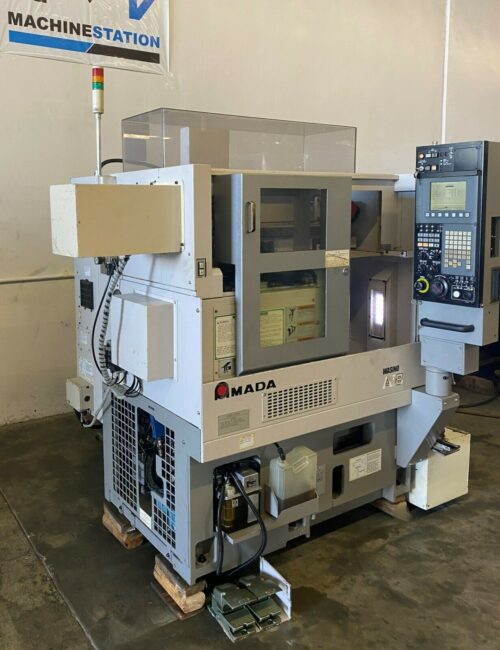

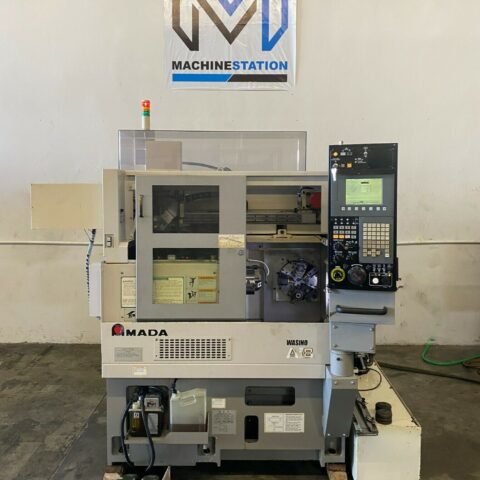

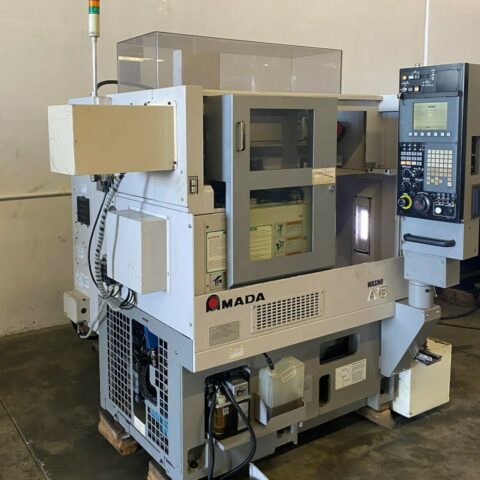

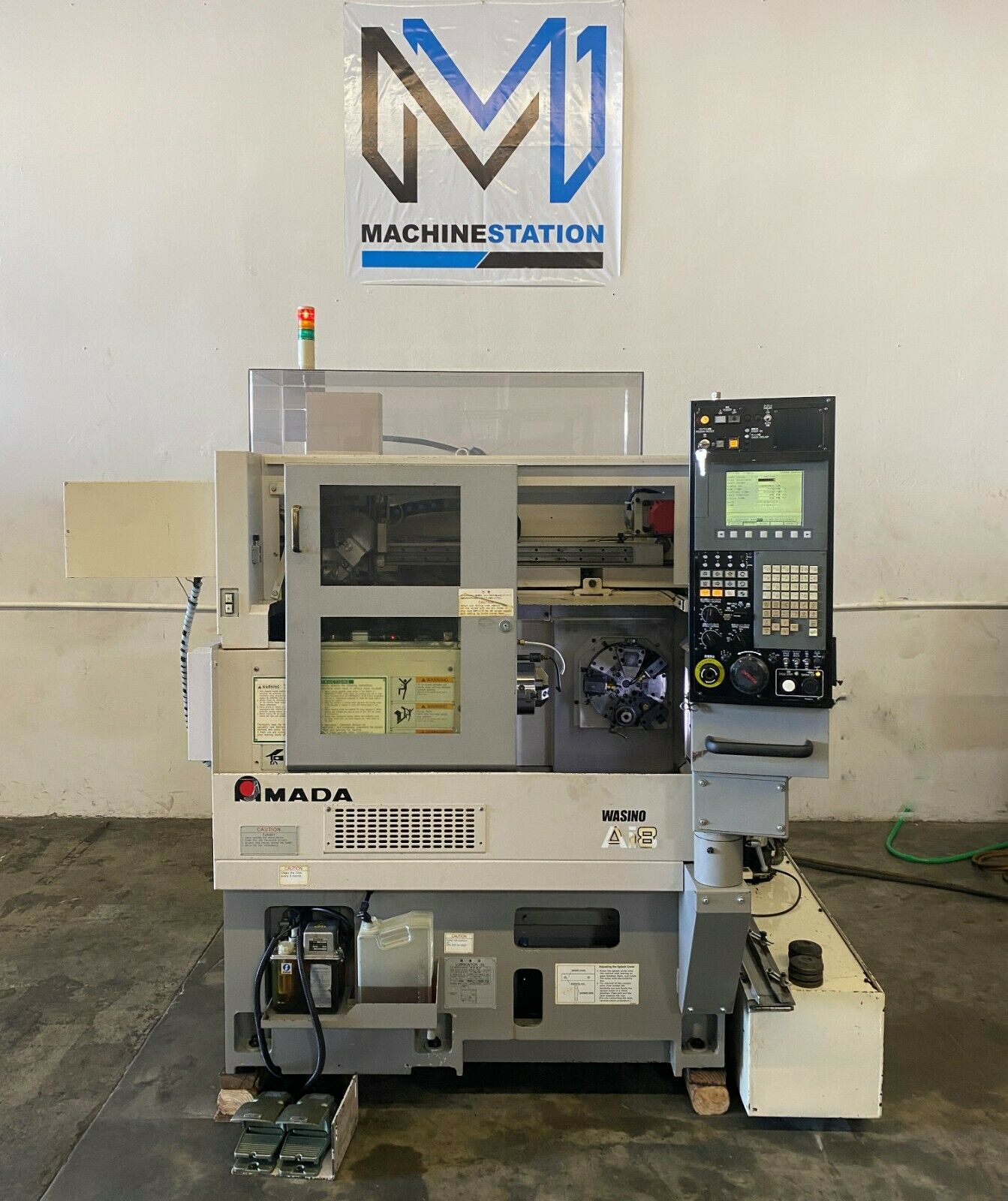

AMADA WASINO AI-8 CNC Multi Axis Turning Centre

$825.00

*Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details*



SKU:
1871
Categories: ,
Qty =

Video

Product Description

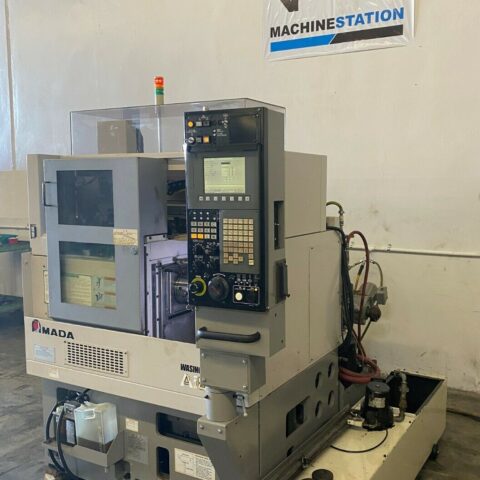

AMADA WASINO AI-8 CNC Multi Axis Turning Centre

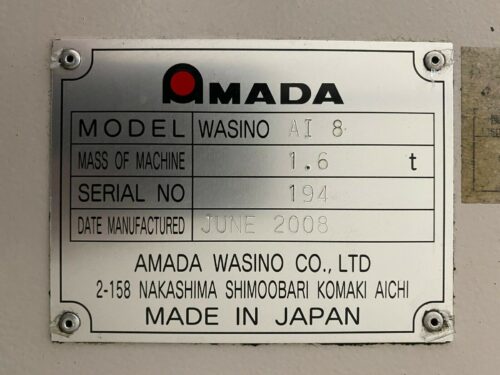

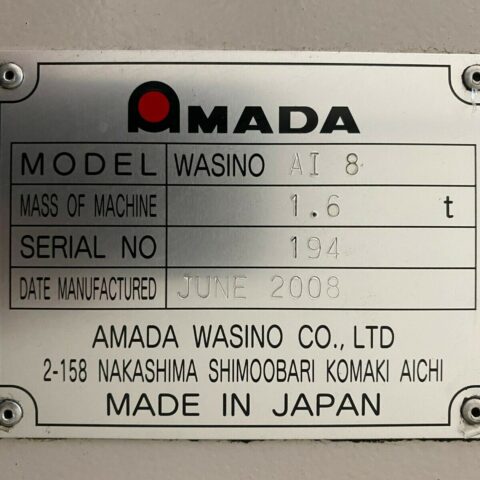

Make:  AMADA WASINO
Model No.: AI 8
Year: 2008
Serial No.:  194
Condition: EXcellent, Fully Working
Cutting Hours: 4580 Only

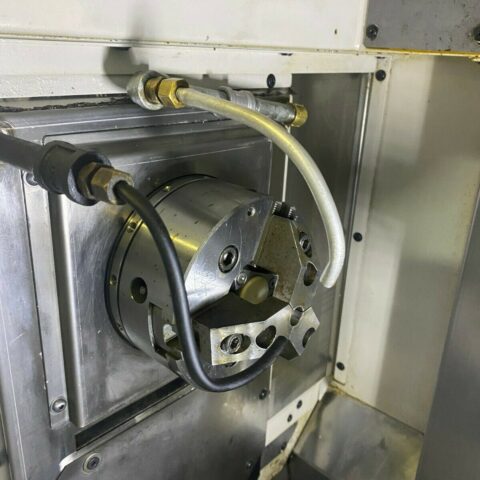

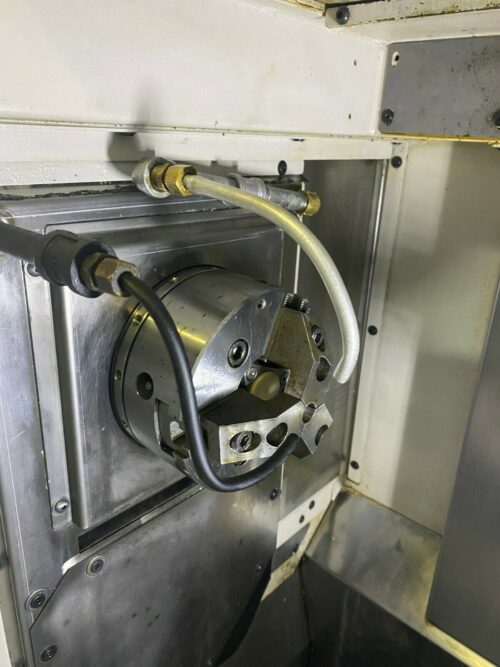

Comes with 5″ Chuck, Tool Holders, Autoloader, Robot & Chip Conveyor

All specifications are approximations, and are subject to verification.

AMADA WASINO AI-8 Equipped With :

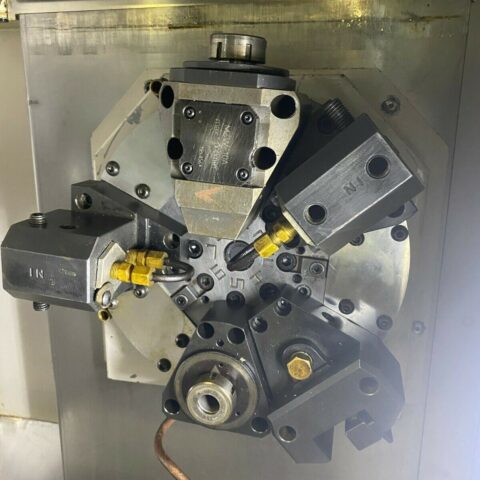

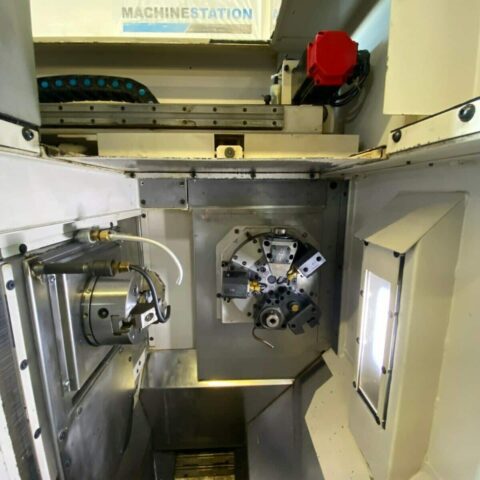

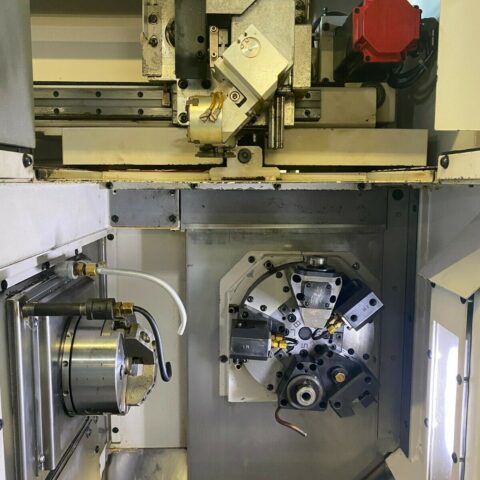

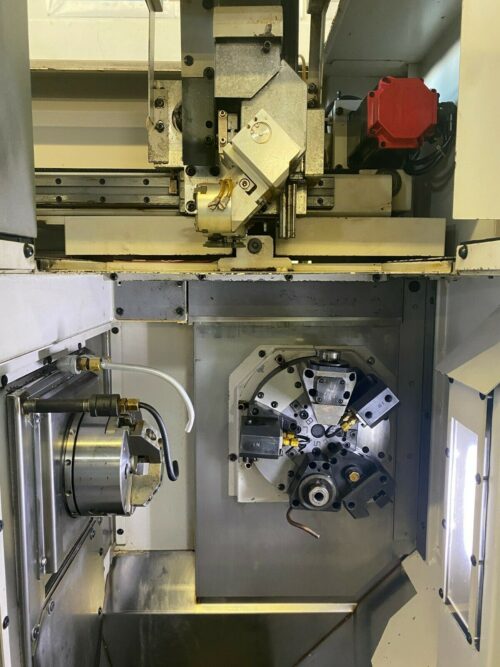

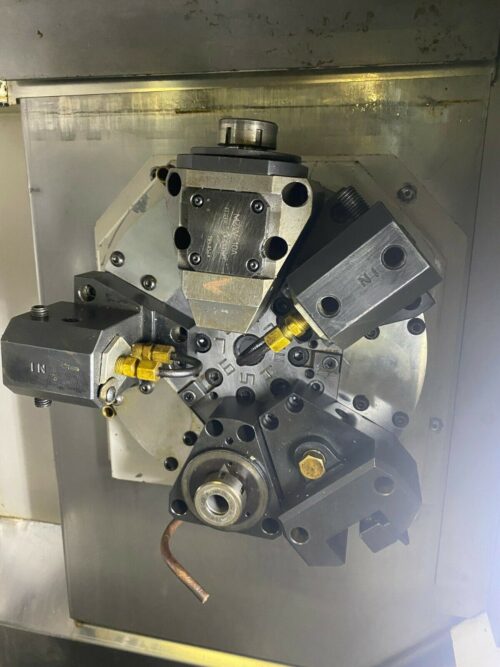

  • 8-Station Live Tool Turret With Y Axis Movement
  • 10,000 RPM High Speed Milling Spindle with Y-axis feed control
  • 4000 RPM traveling high-precision built-in main spindle
  • Servo Controlled Full C-Axis on the Spindle

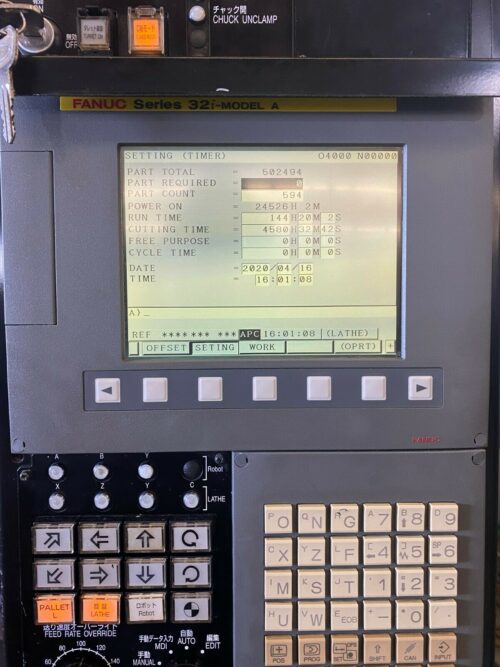

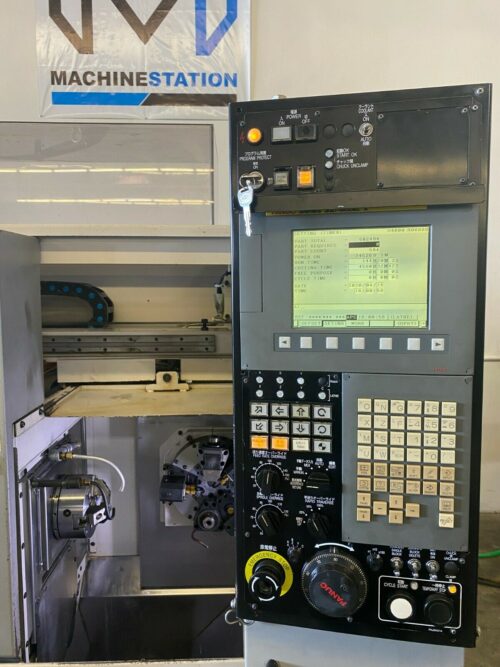

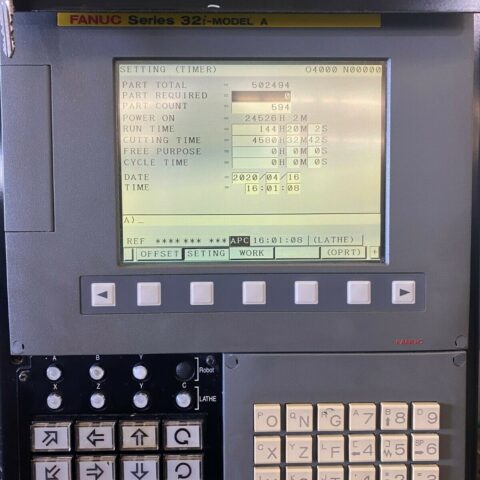

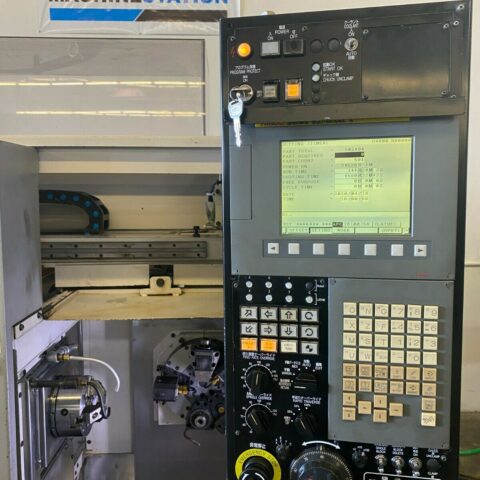

  • Fanuc 32i Simultaneous CNC Control for All-Round Machining
  • PCMCIA Card Slot

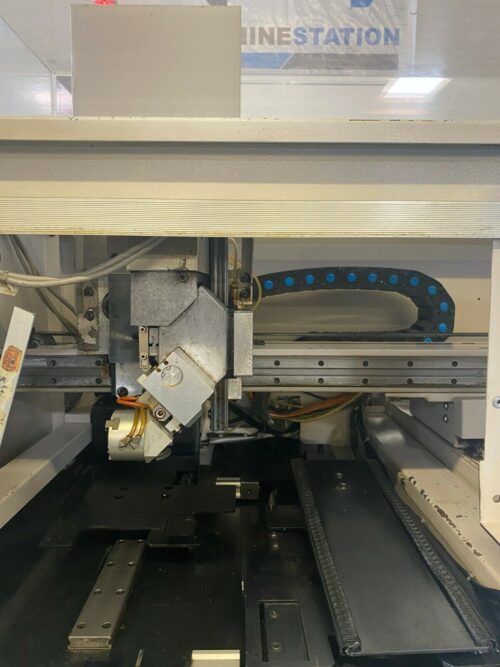

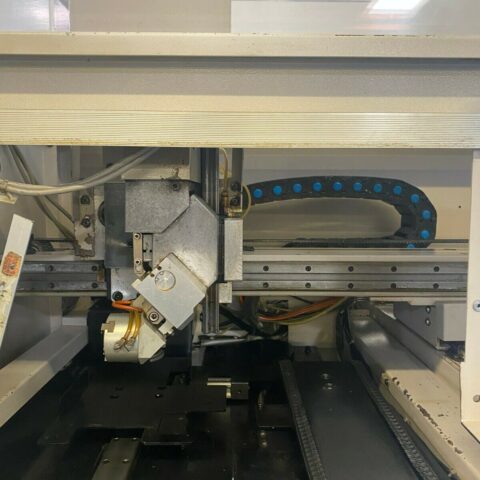

  • 3 Axis CNC Parts Loader Robot
  • Automatic coordinate setting
  • Tool nose radius R offset
  • Tool geometry and wear offset
  • Canned cycles for drilling -Y-axis offset
  • Rigid tapping -Stored pitch error compensation
  • Parts Conveyor
  • Foot Operated Control for Chuck
  • High Pressure Coolant System
  • Chip Conveyor
  • Comes with Live Tools & some Static Tool Holders
  • Machine requires the smallest-in-class floor area

AMADA WASINO AI-8 Specifications:
Capacity:
Max Turning Diameter: 2.09″
Max Turning Length: 2.1″
Max Bar Capacity: 1.77″

Travels:
X Axis Travel: ”
Z Axis Travel: ”
Y Axis Travel: ”
C Axis: 360° (0.001°) Both Spindle

Feedrate:
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM
Rapid Traverse Y Axis: 787 IPM

Spindle:
Main Spindle Bore: 2.0″
Main Spindle Nose:
Main Spindle Speed: 40-8000 RPM
Main Spindle Power: 10HP

Turret:
Capacity: 8 Live Stations Turret
Index Time: 0.1 Second Live
Tool Speed: 40-10,000 RPM

General:
Power: 25 kva, 220v / 3-Phase Overall
Dimensions: 70″ x 67″ x 72″ High
Weight: 4,500 lbs
