Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
| Features: |
|---|
| Auto Feed Control |
| Cast Iron Band Guiding Parts |
| Electrically Driven Chip Brush |
| Servo Down Feed System |
| Hydraulic Clamping |

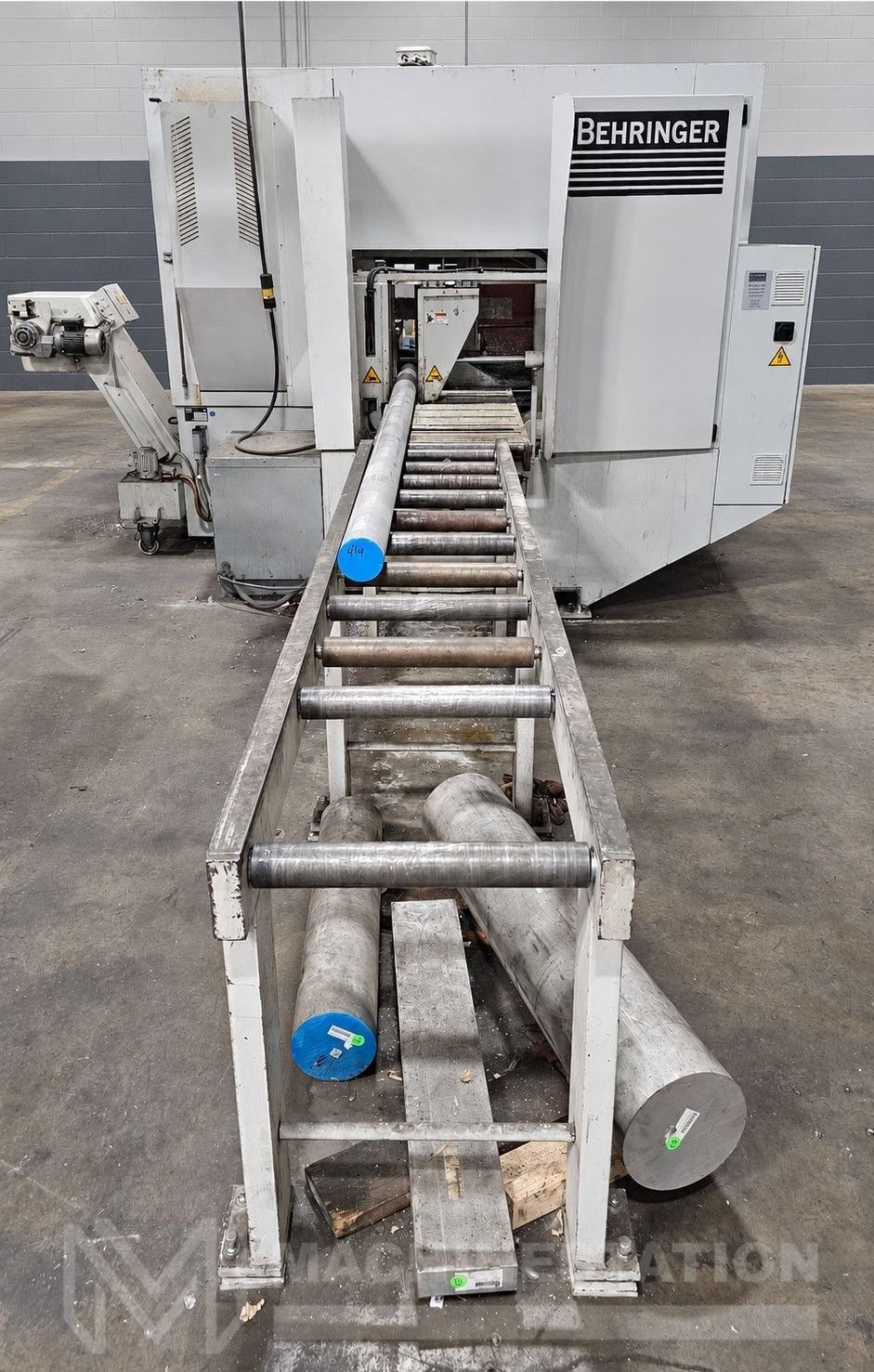

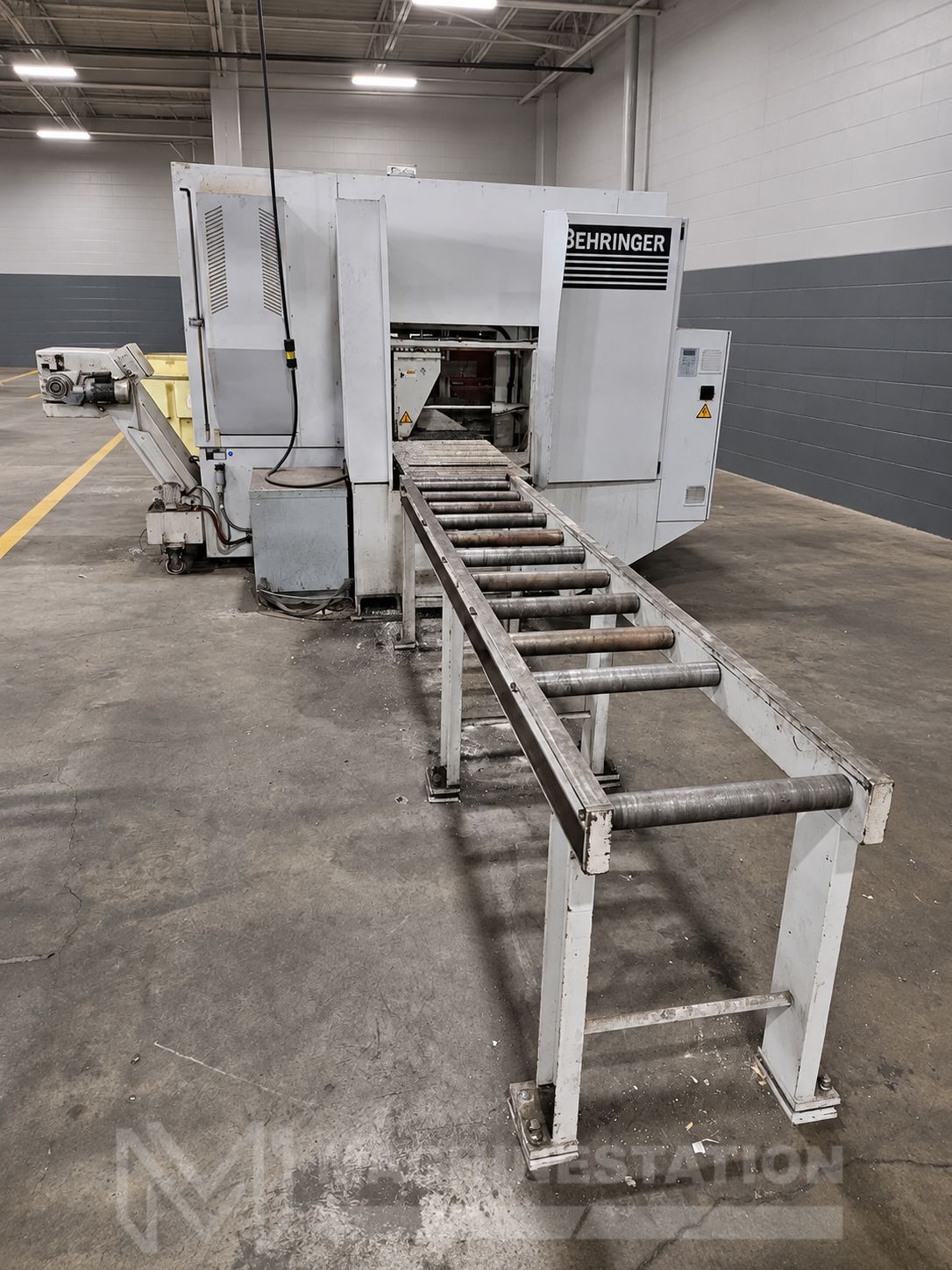

| 10 ft Roller Infeed Conveyor Approx. |

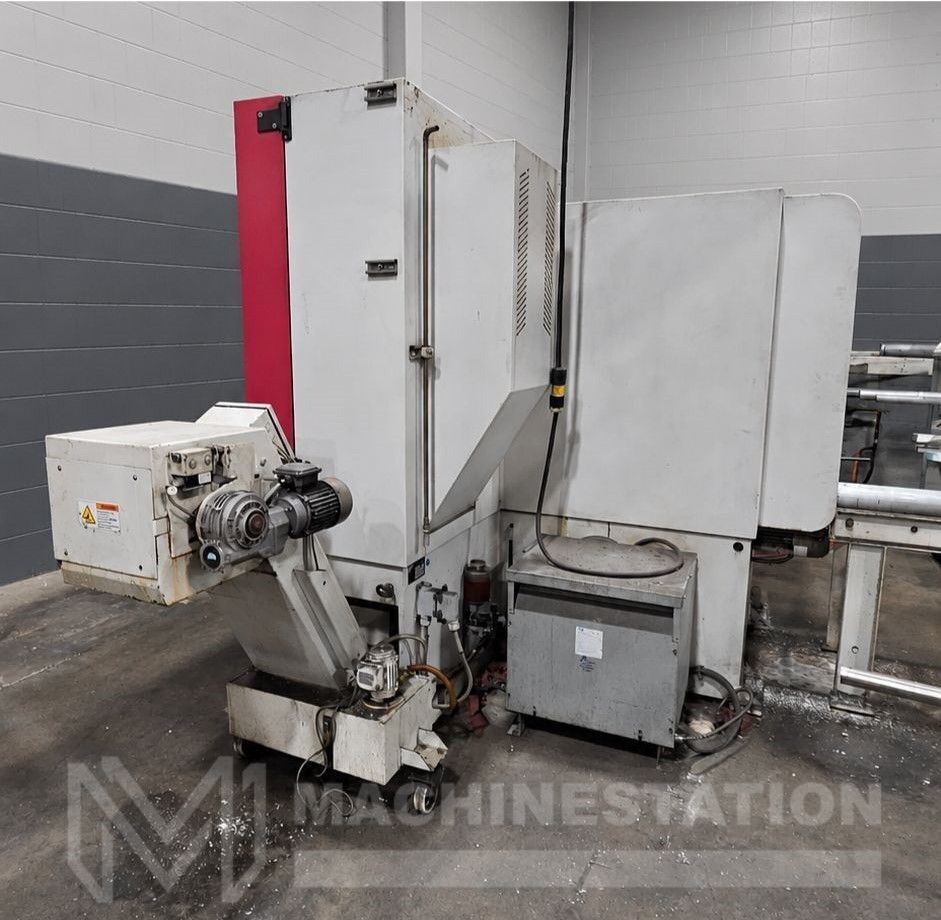

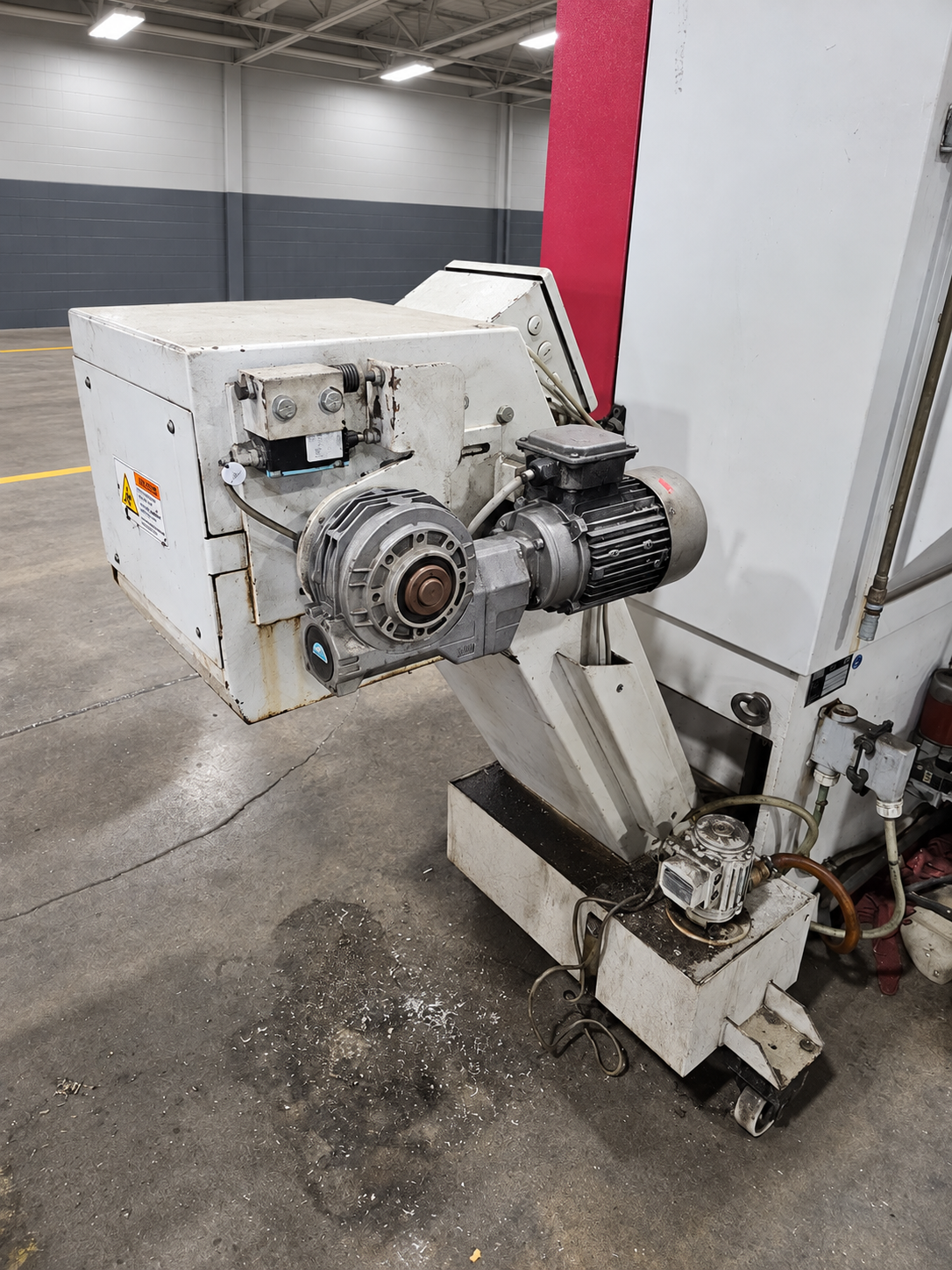

| Chip Conveyor |
| Specifications: |
|---|
| Cutting Range 90° Round: 16.1 inch |
| Cutting Range 90° Flat: 20.1 inch x 16.1 inch |
| Smallest Dimension to be Sawn Round: 0.4 inch |
| Smallest Dimension to be Sawn Flat: 0.4 inch x 0.3 inch |
| Feeding Length Single Stroke: 25.6 inch |
| Drive Power: 5.1 HP |
| Blade Speed: 33 – 360 FPM |
| Saw Blade Dimensions: 225.6 inch x 1.5 inch x 0.5 inch |
| Rest Piece Length in Automatic Operation: 3.1 inch |
| Total Power: 6.7 HP |
| Saw Feed: Servo-Feed via Ball Screw |
| Material Feed: Ball Screw |
| Material Clamping: Hydraulic |
| Saw Blade Cleaning: Electrically Driven Chip Brush |
| General: |
|---|
| Total Power: 6.7 HP |
| Machine Dimensions: 78.7 inch x 112.2 inch x 87.4 inch High |
| Weight: 7,055 lbs |
| Material Support Height: 31.5 inch |
