| Features: |
|---|

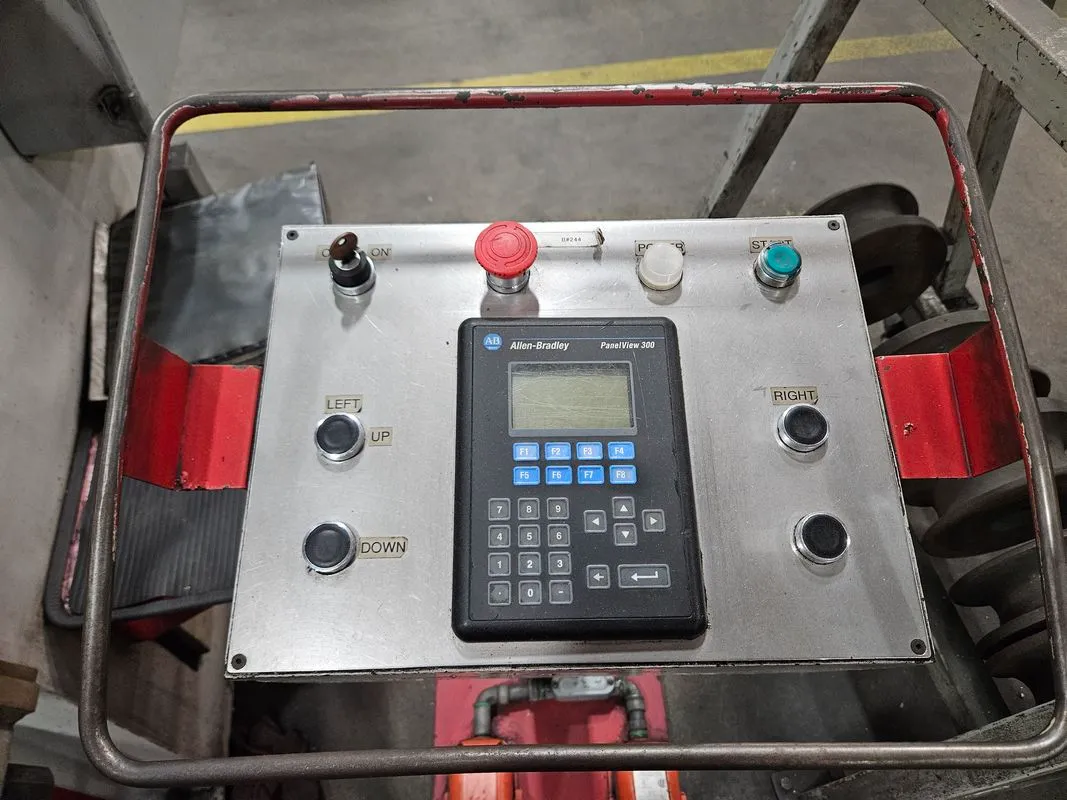

| Pedestal Mounted Operator Control Console |
| Allen-Bradley PanelView 300 PLC |
| Specifications: |
|---|

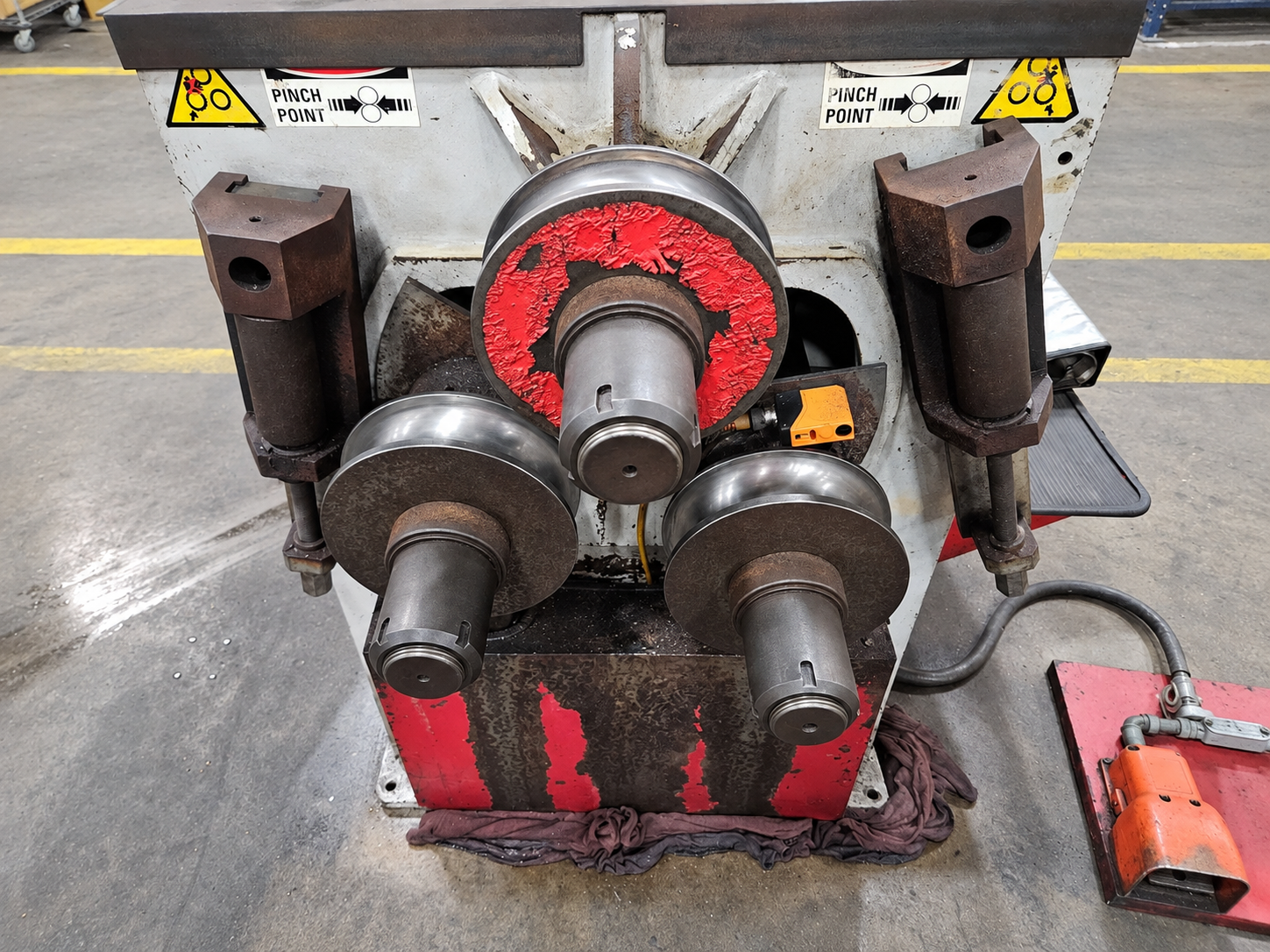

| Number of Driven Rolls: 3 |
| Central Shaft Diameter: 3.14 inch (80 mm) |
| L1 x L2 x Thickness: 3.14 inch x 3.14 inch x 0.31 inch (80 x 80 x 8 mm) |
| Roll Diameter: 9.64 inch (245 mm) |
| Roll Rotation Speed: 8 RPM |
| Linear Working Speed: 6.1 m/min |
| Central/Side Roll Centre Distance: 6.5 inch (165 mm) |
| Roll Stroke: 7.08 inch (180 mm) |
| Roll Adjustment: Hydraulic |
| General: |
|---|

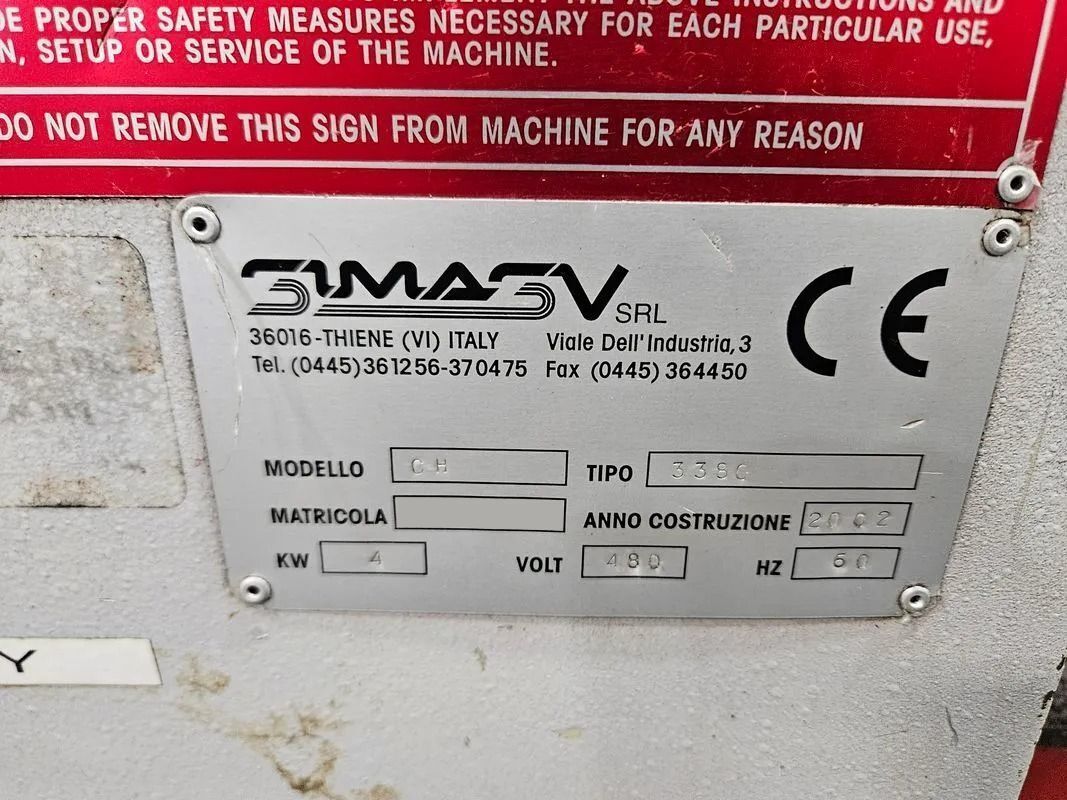

| Power: Main Motor 5.4 HP / 480V / 60 Hz |
| Machine Dimensions: 37.5 inch x 55.1 inch x 51.1 inch High Approx. |
| Weight: 3,527 lbs Approx. |
